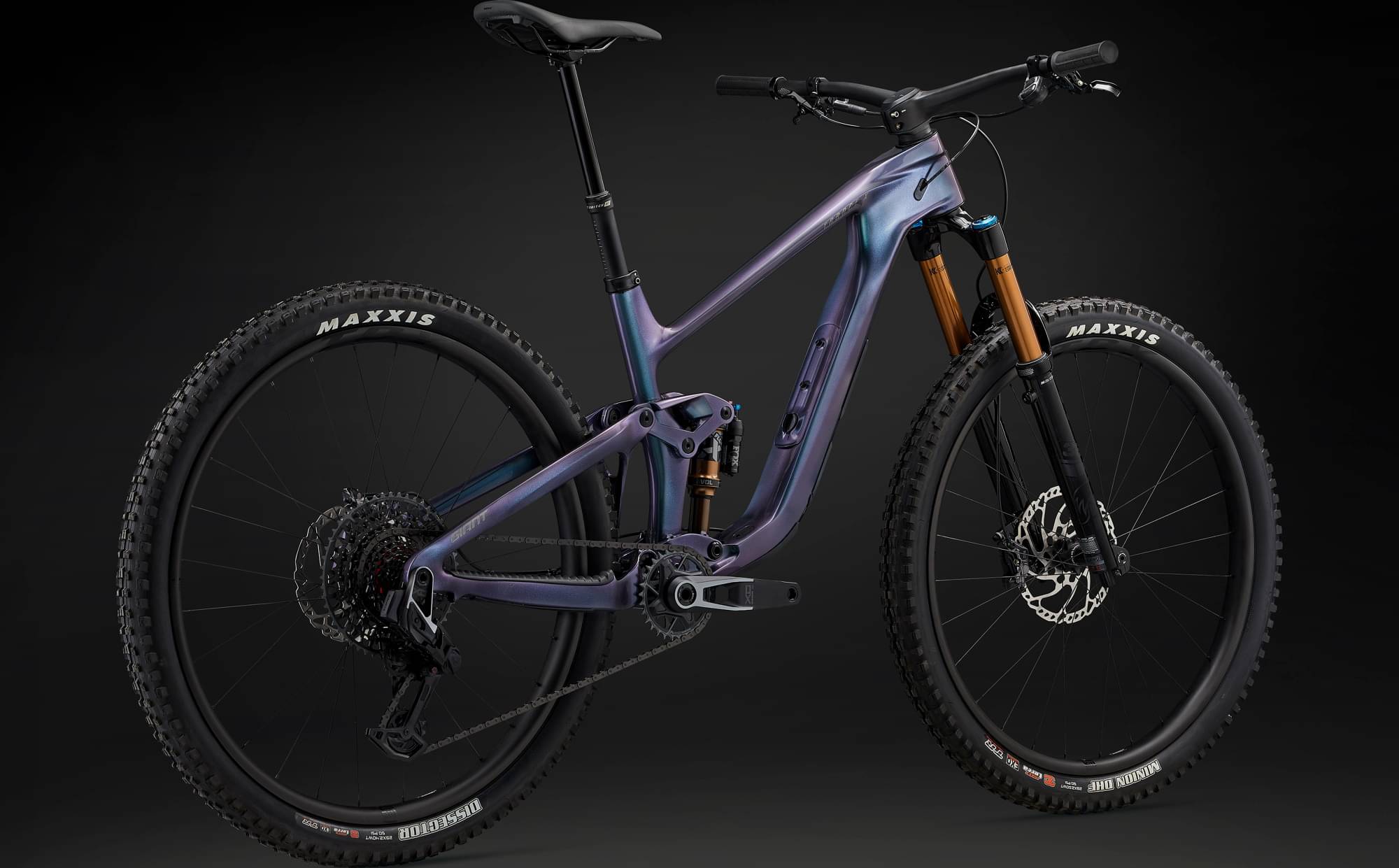

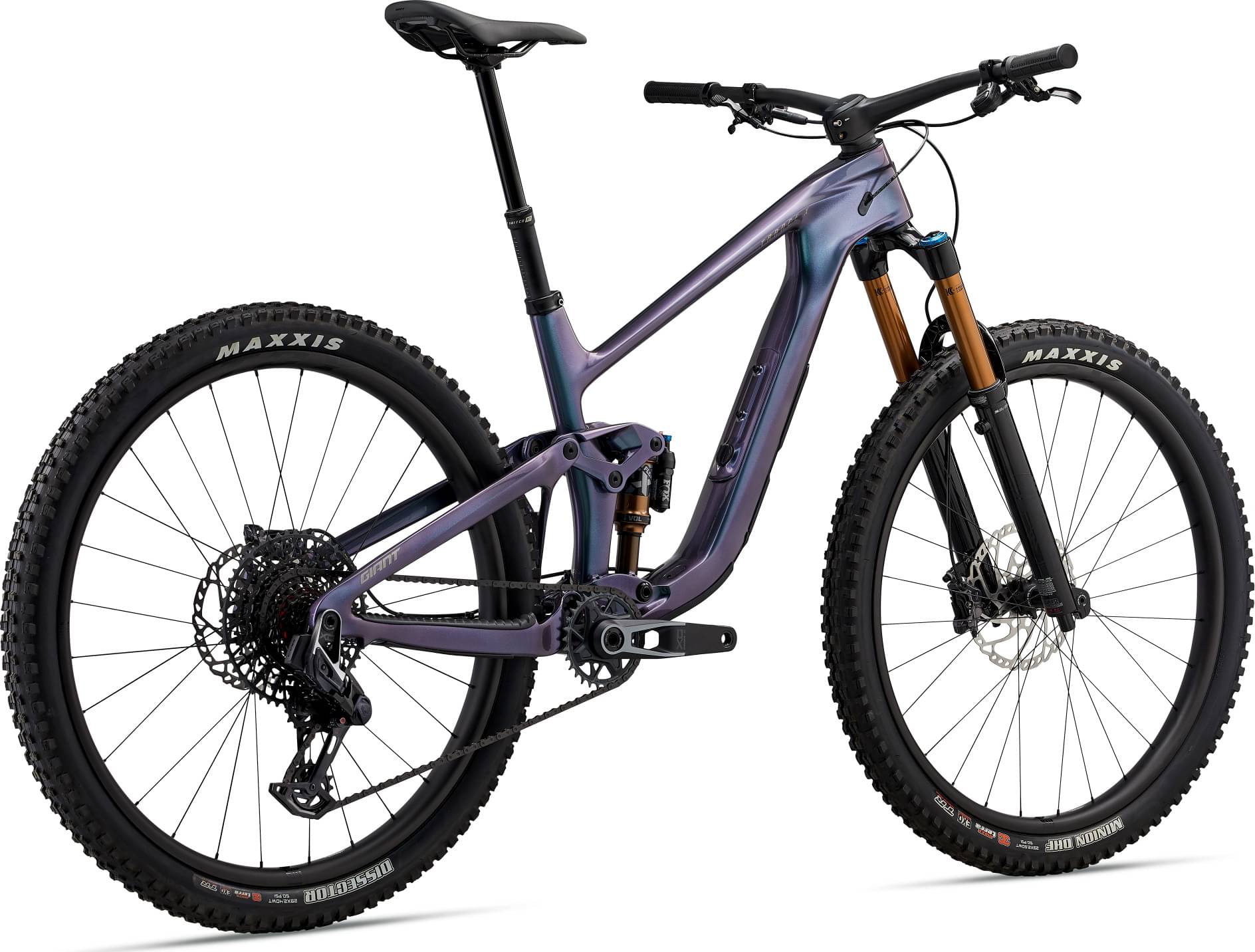

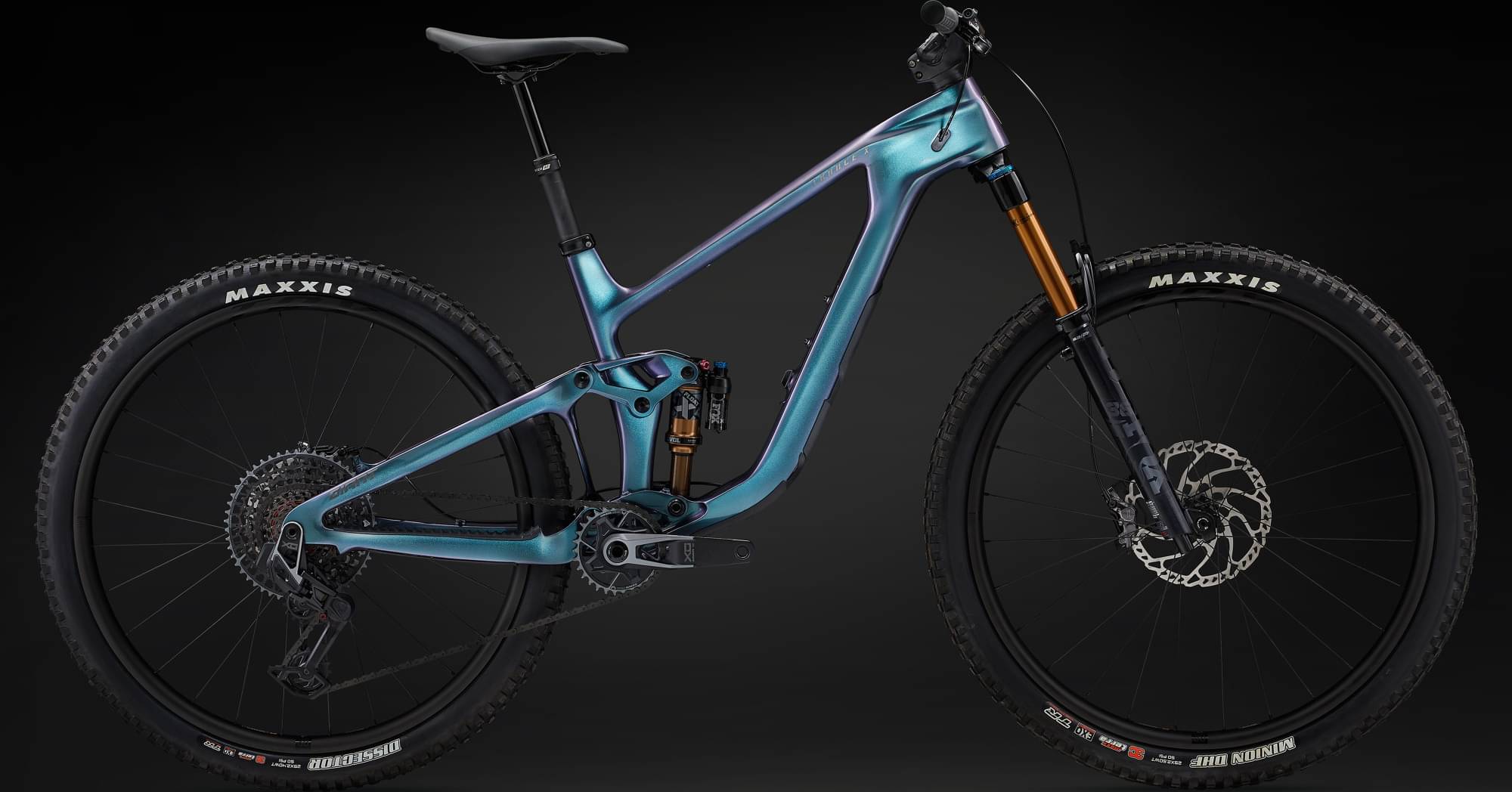

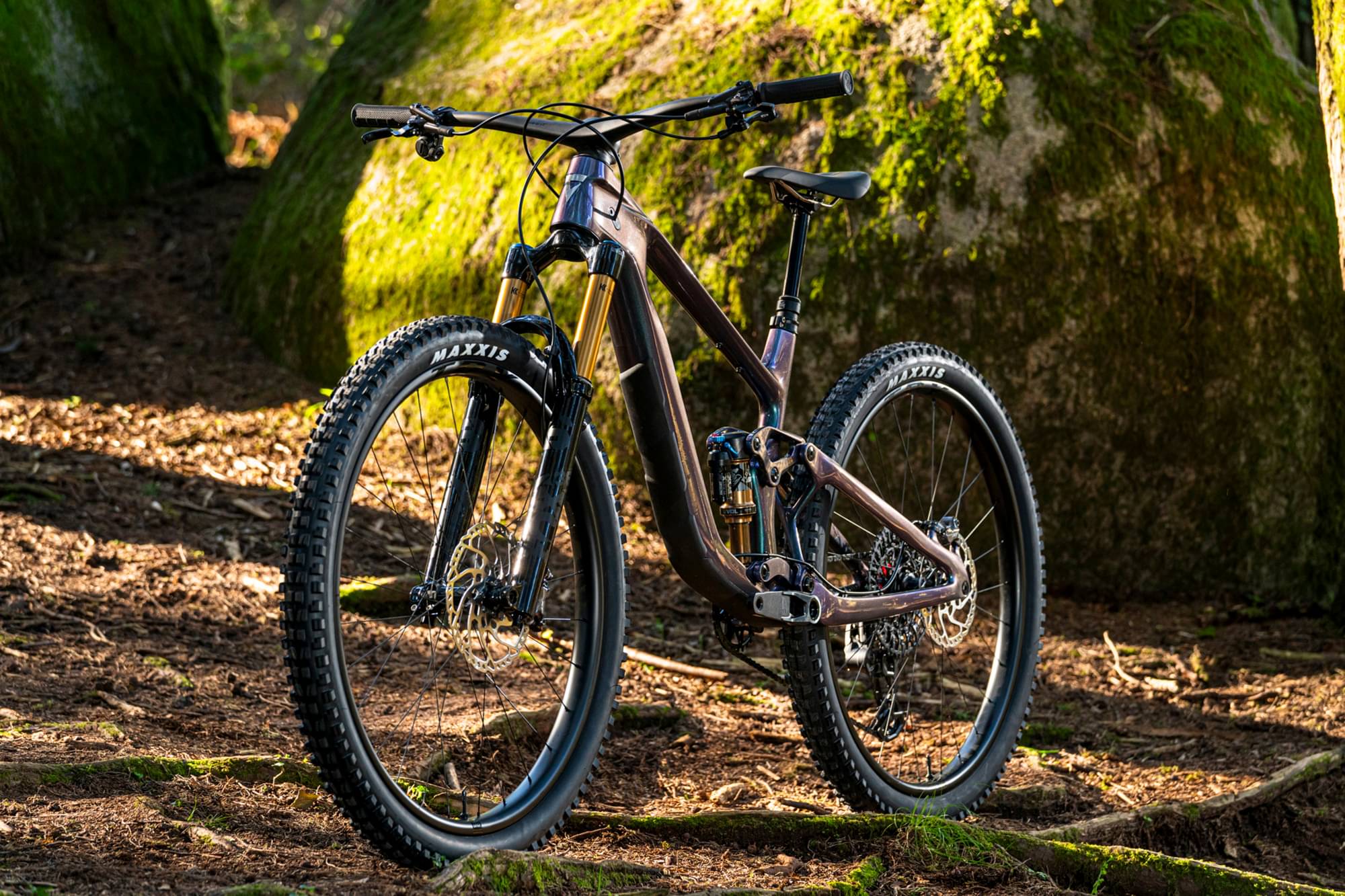

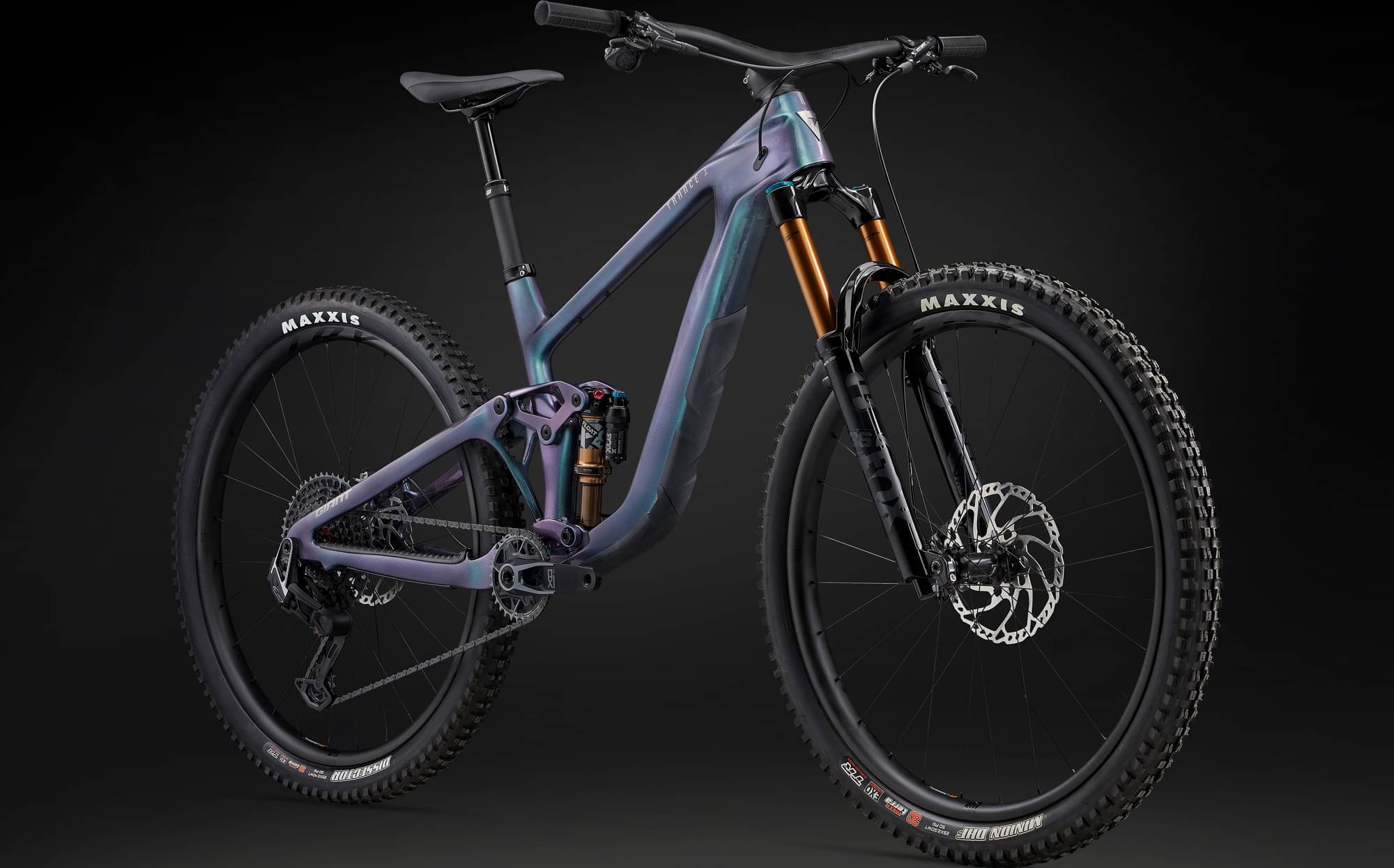

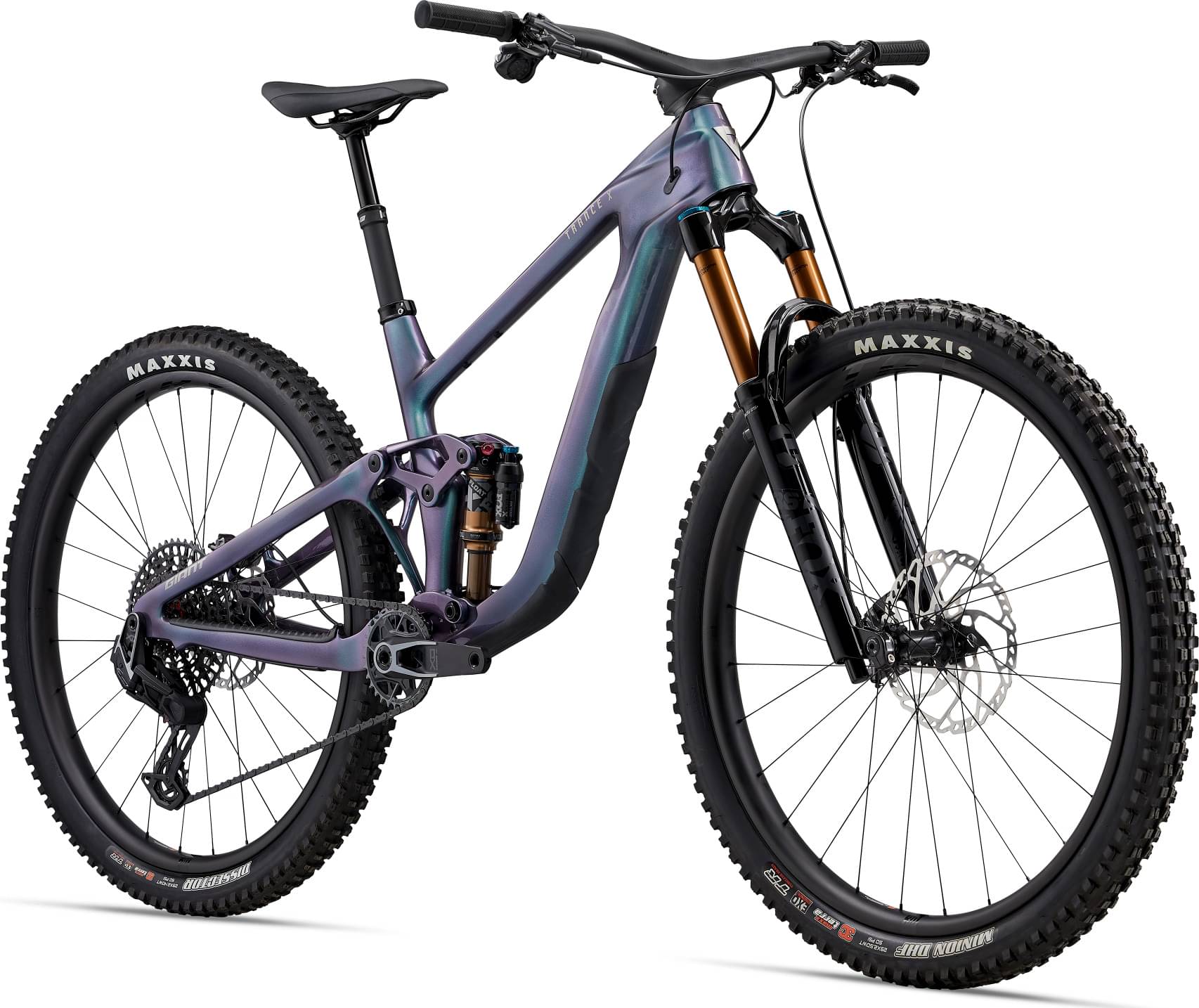

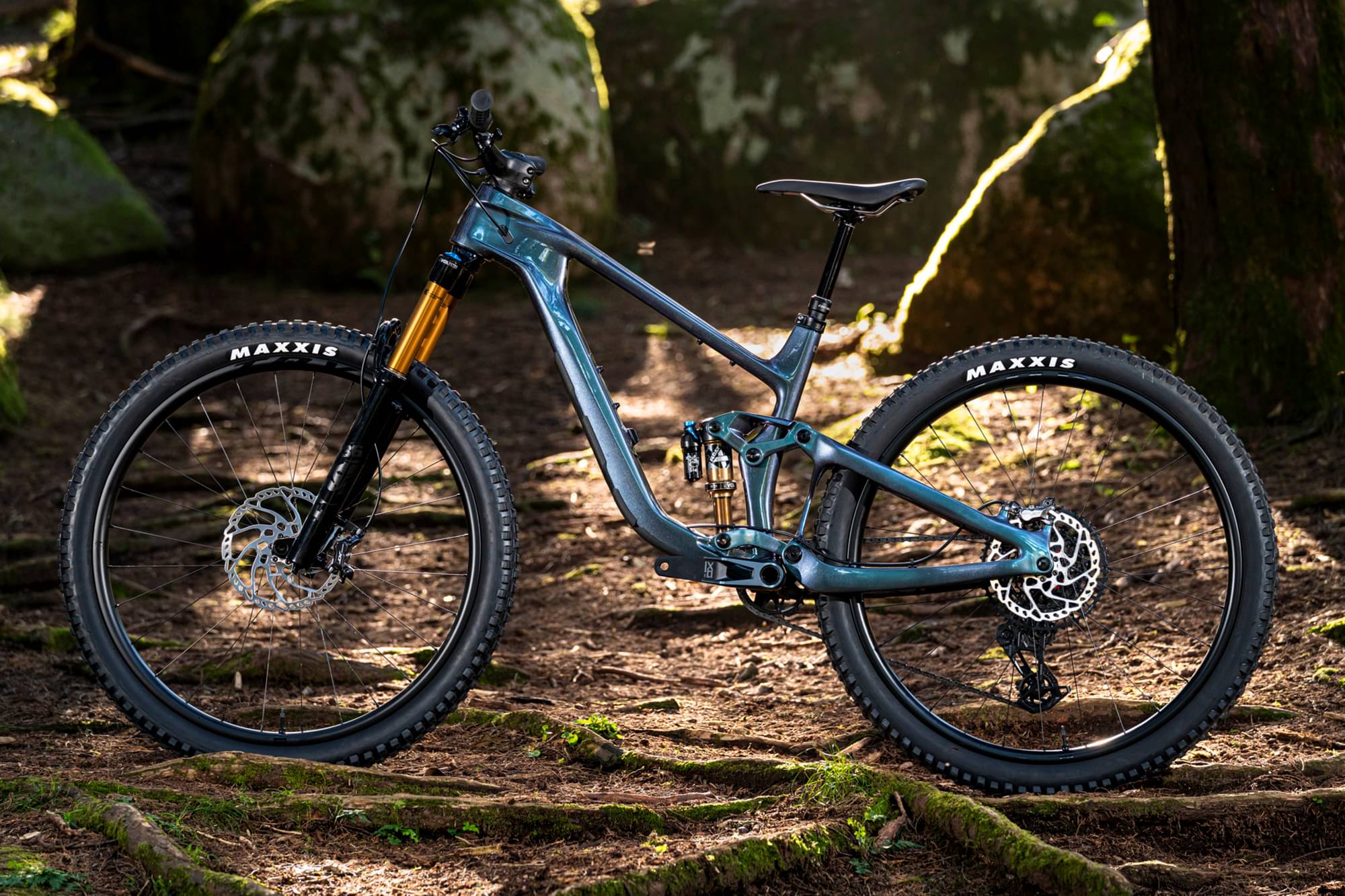

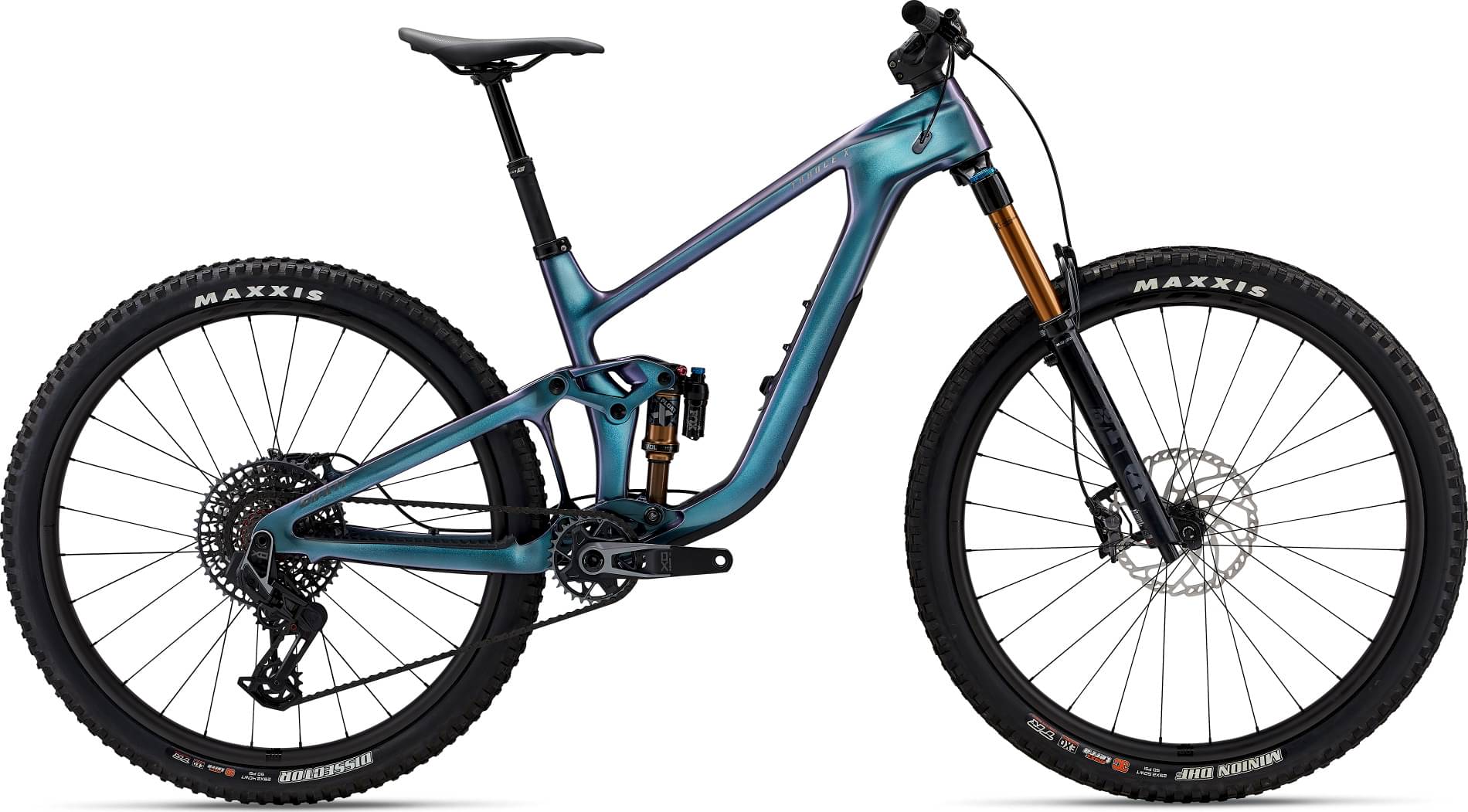

Giant Trance X Advanced 0 2024
2024 Mountain
Estimate price |
10,236$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset X0 Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD High
171cm - 181cm
MD Mid
171cm - 181cm
MD Low
171cm - 181cm
LG High
178cm - 188cm
LG Mid
178cm - 188cm
LG Low
178cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

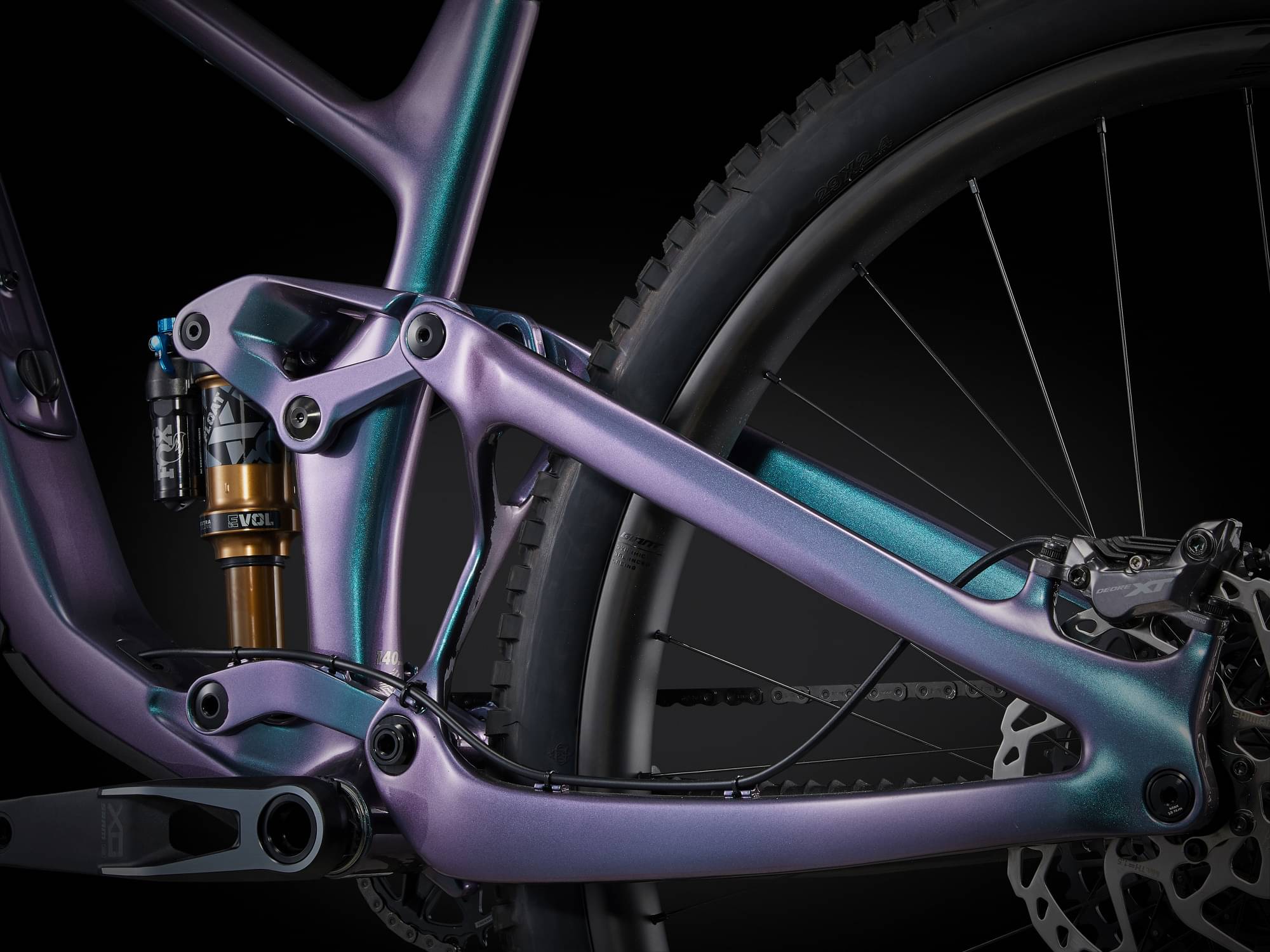

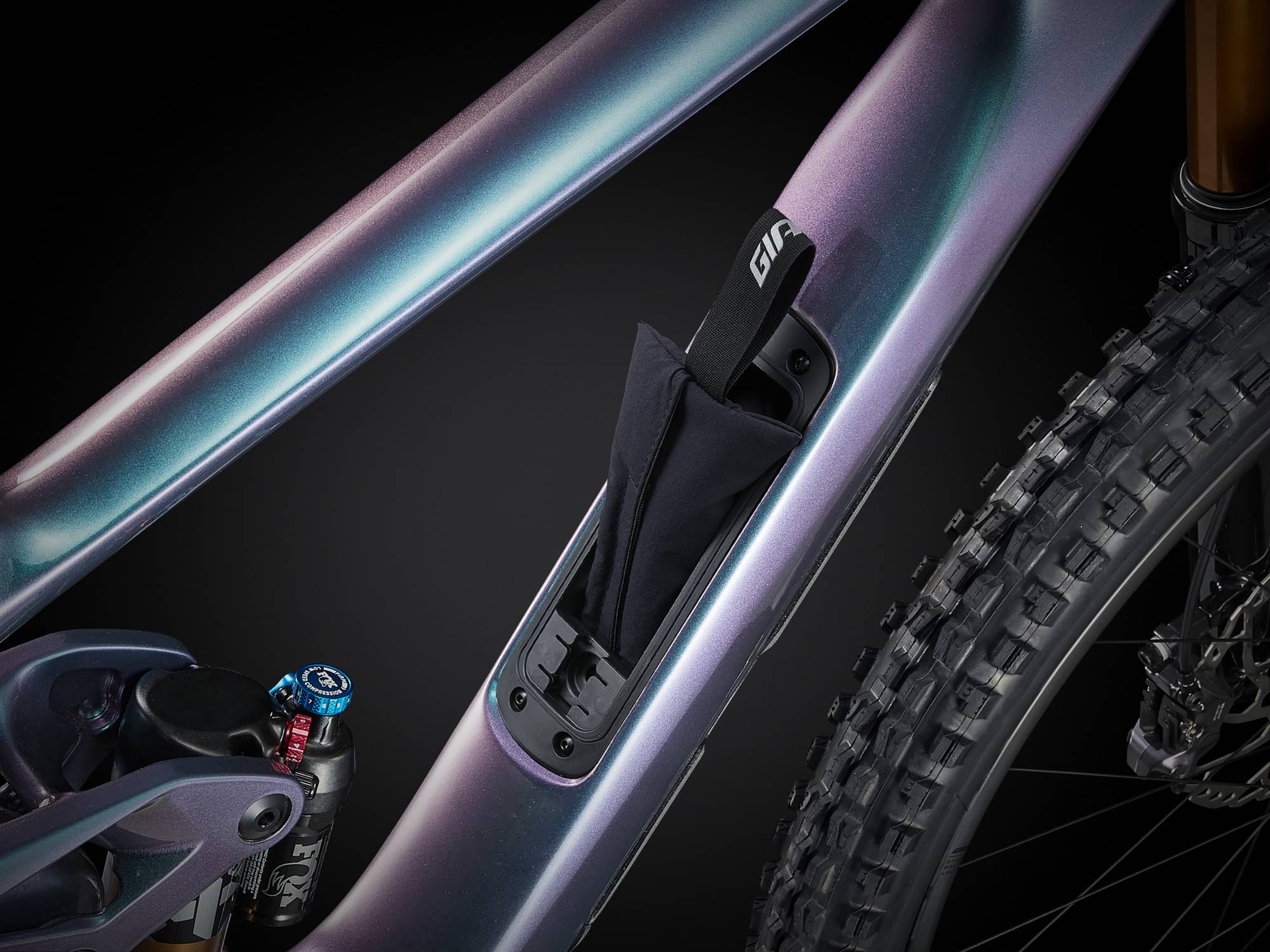

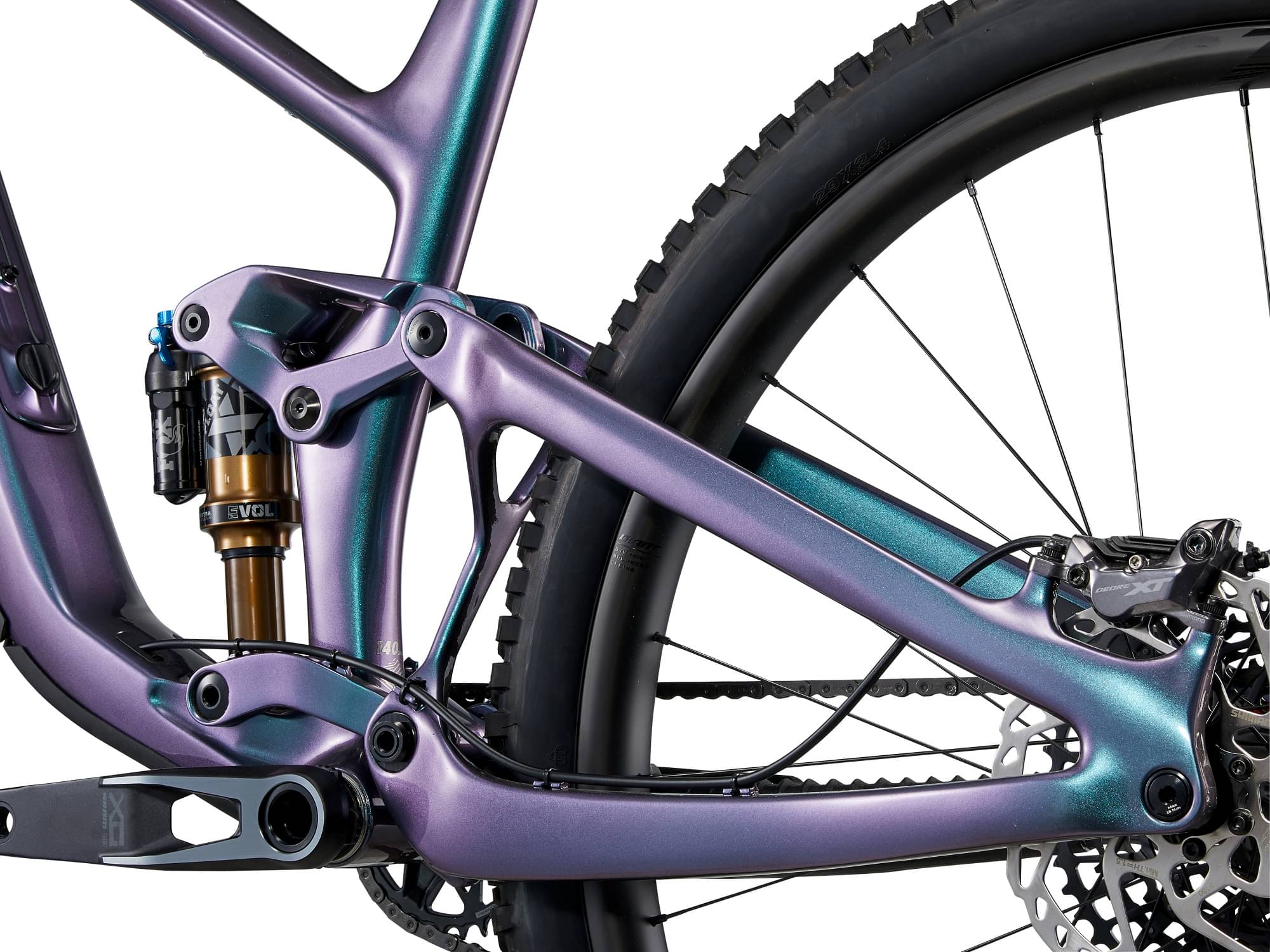

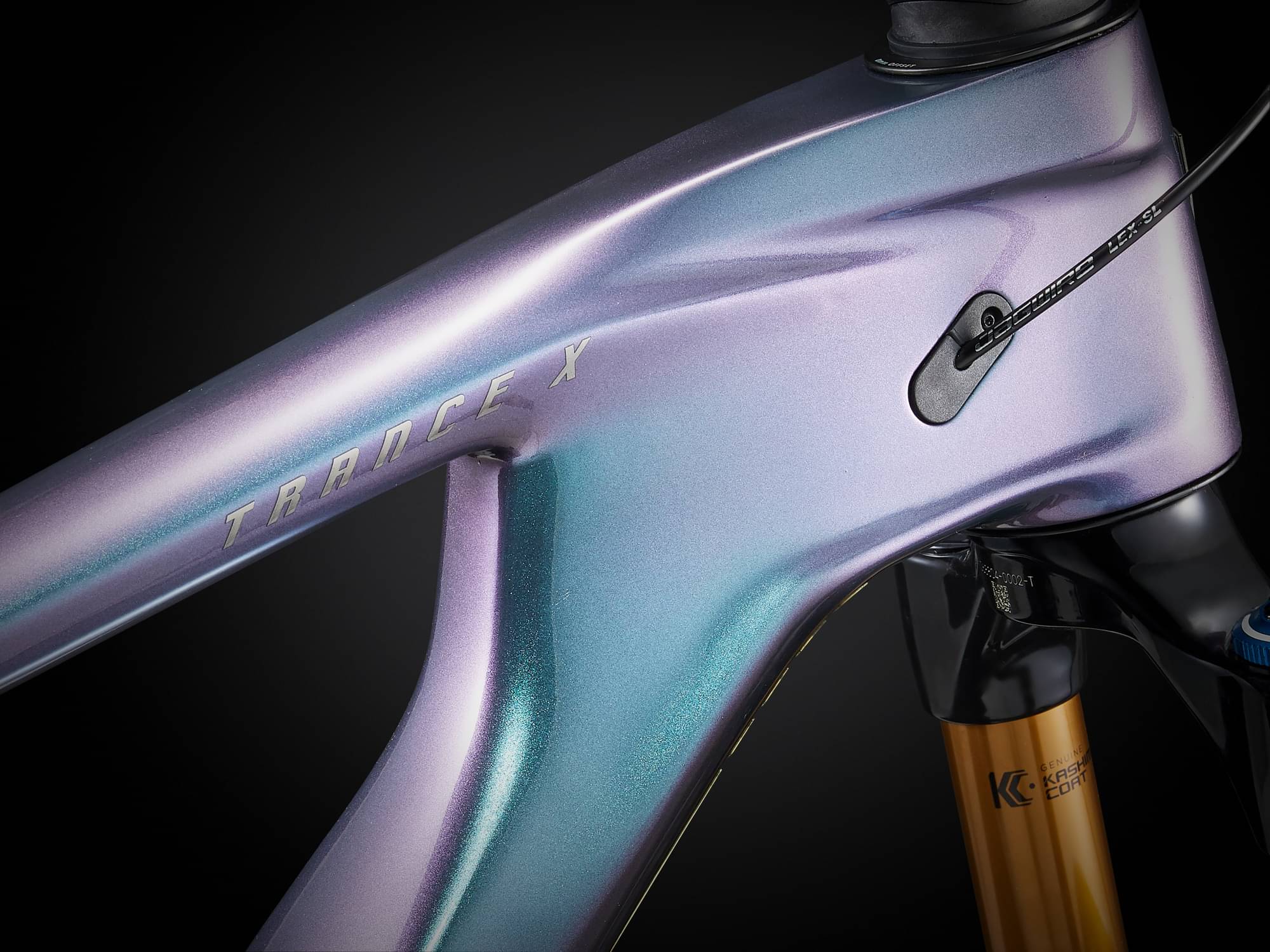

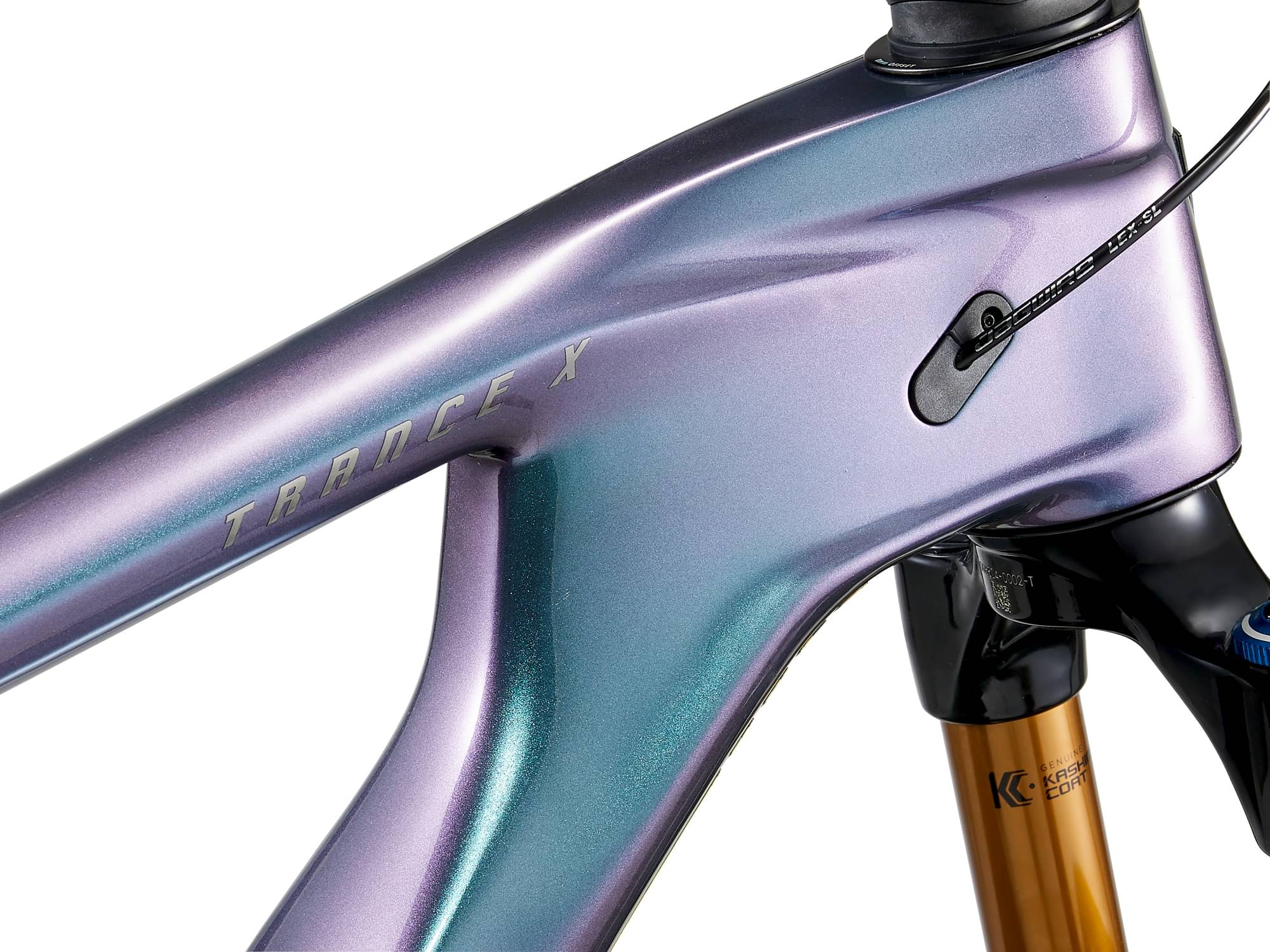

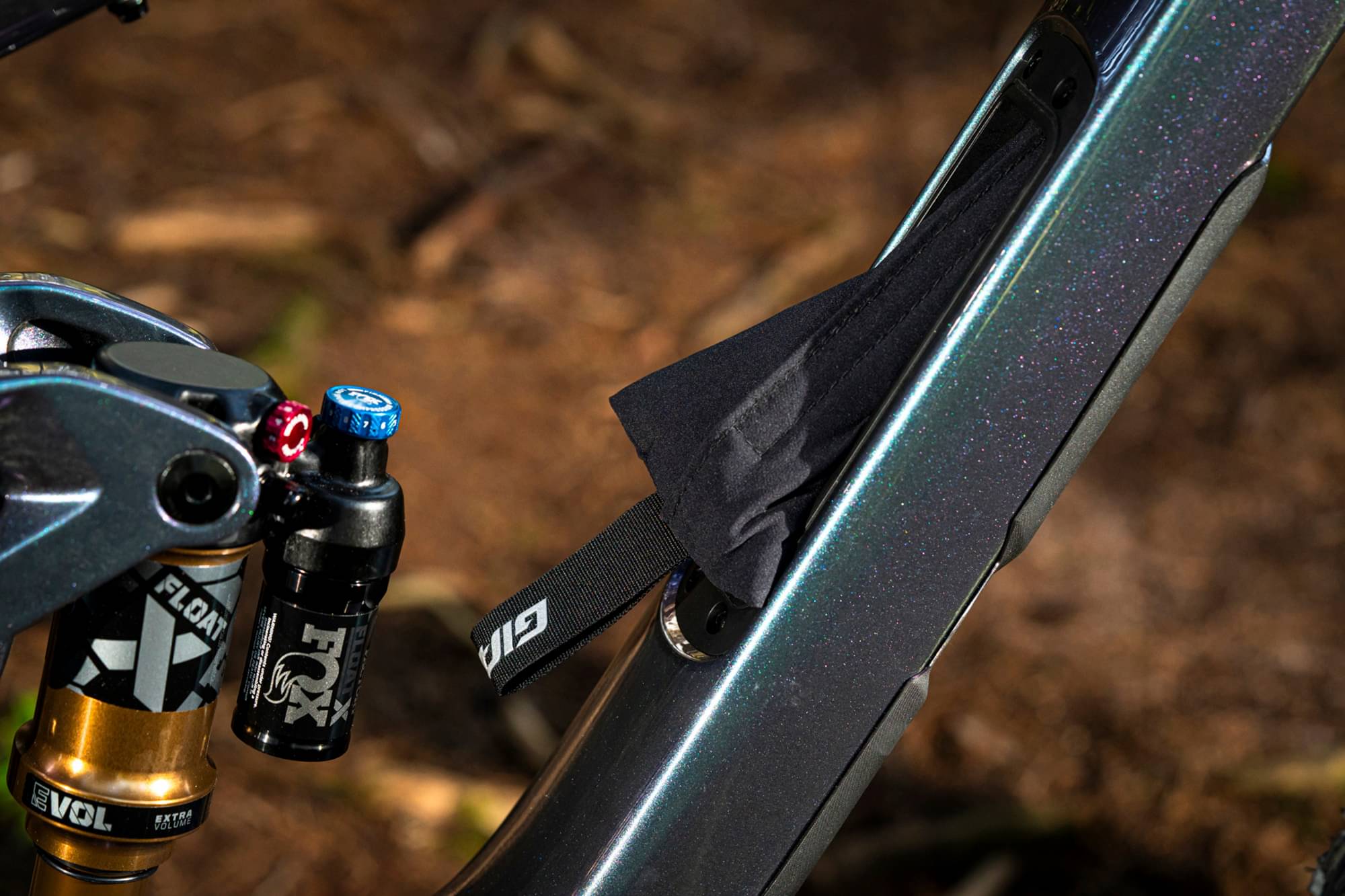

Advanced-Grade Composite front and rear triangles, 140mm Maestro suspension, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, flip chip - Maestro 3, flip chip - headset, integrated down tube storage and under-top tube storage mounts
Suspension Fork

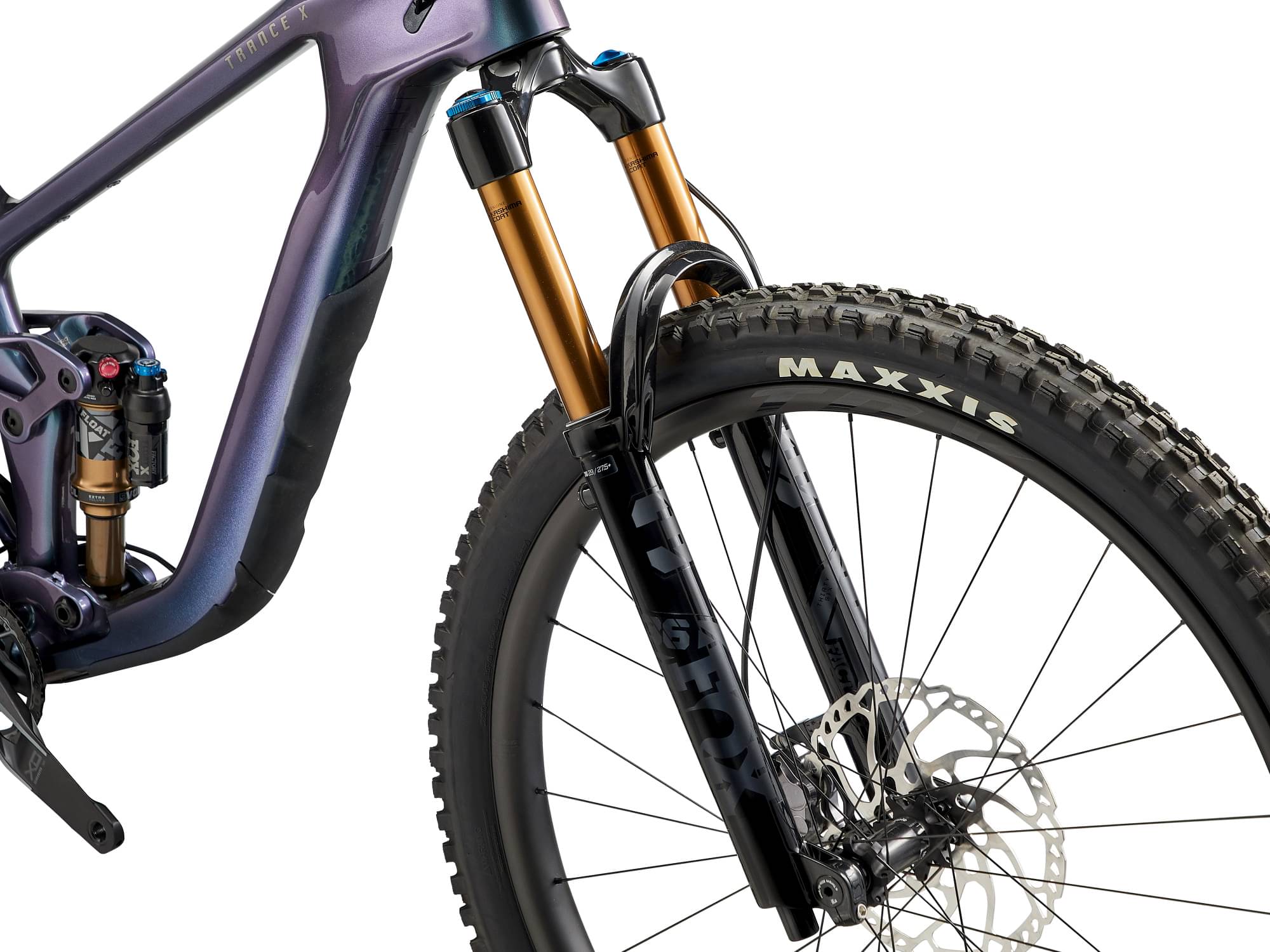

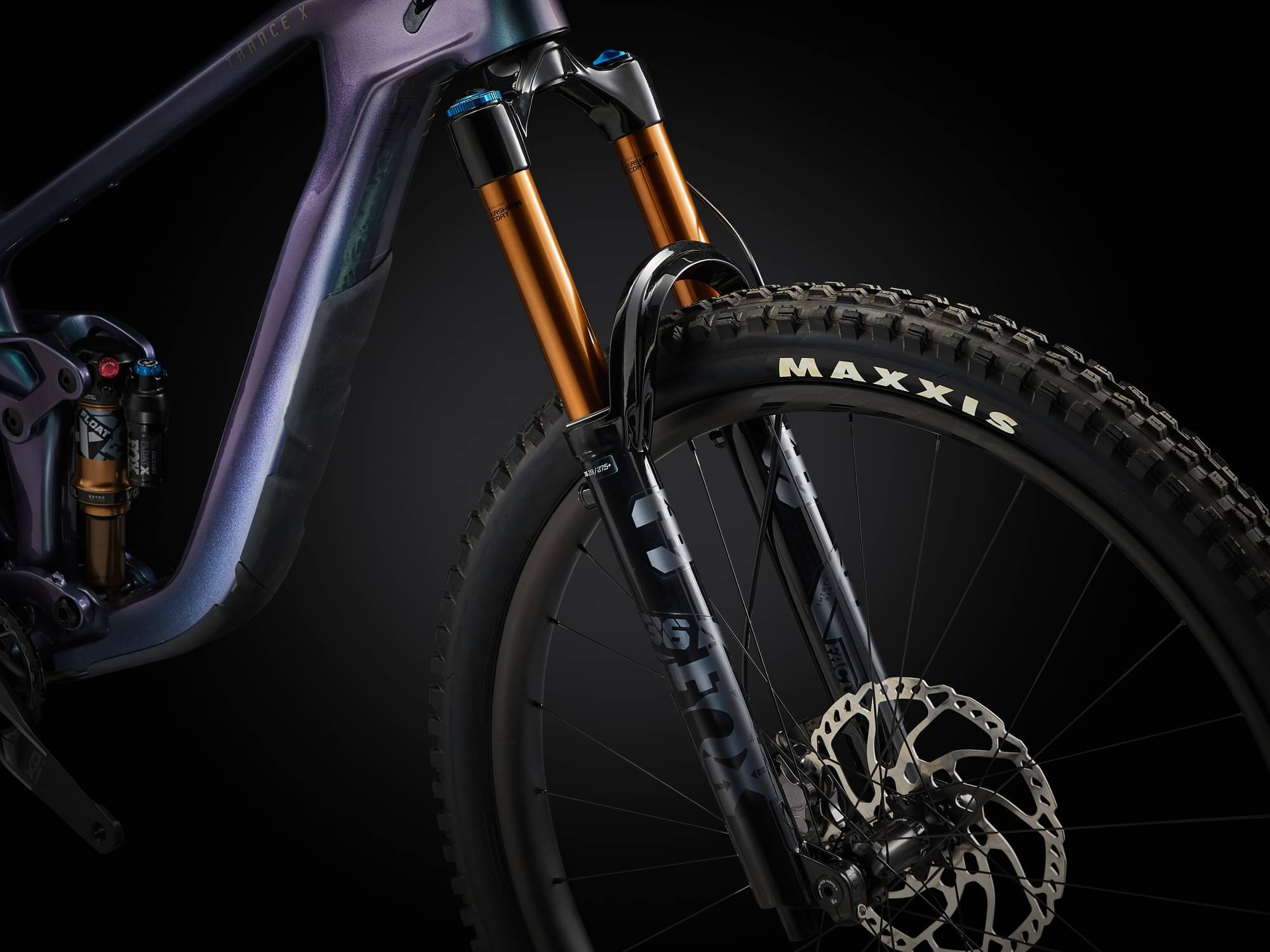

Fox 36 Factory, 150mm, GRIP 2 damper, 15x110 Kabolt X, 44mm offset

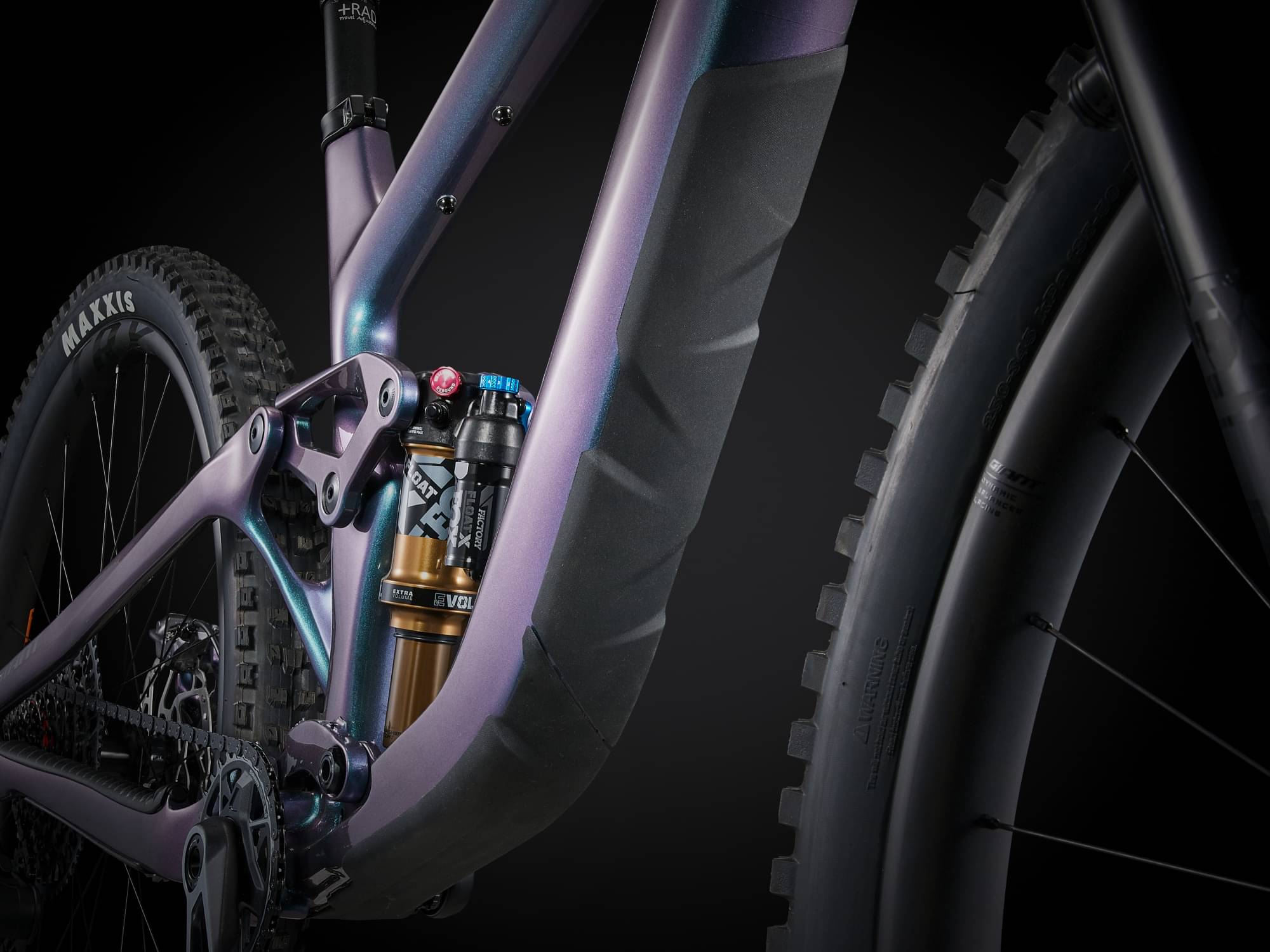

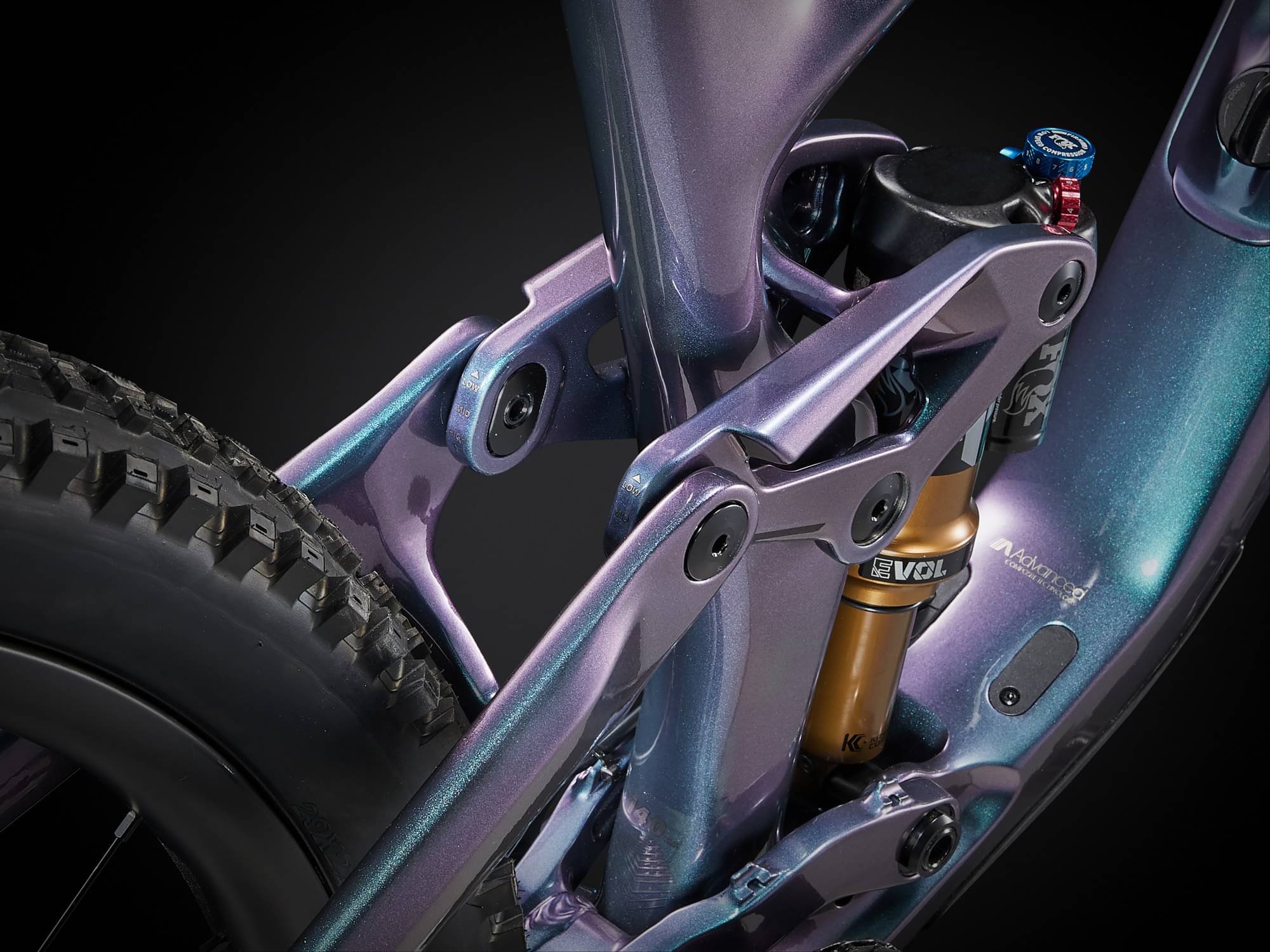

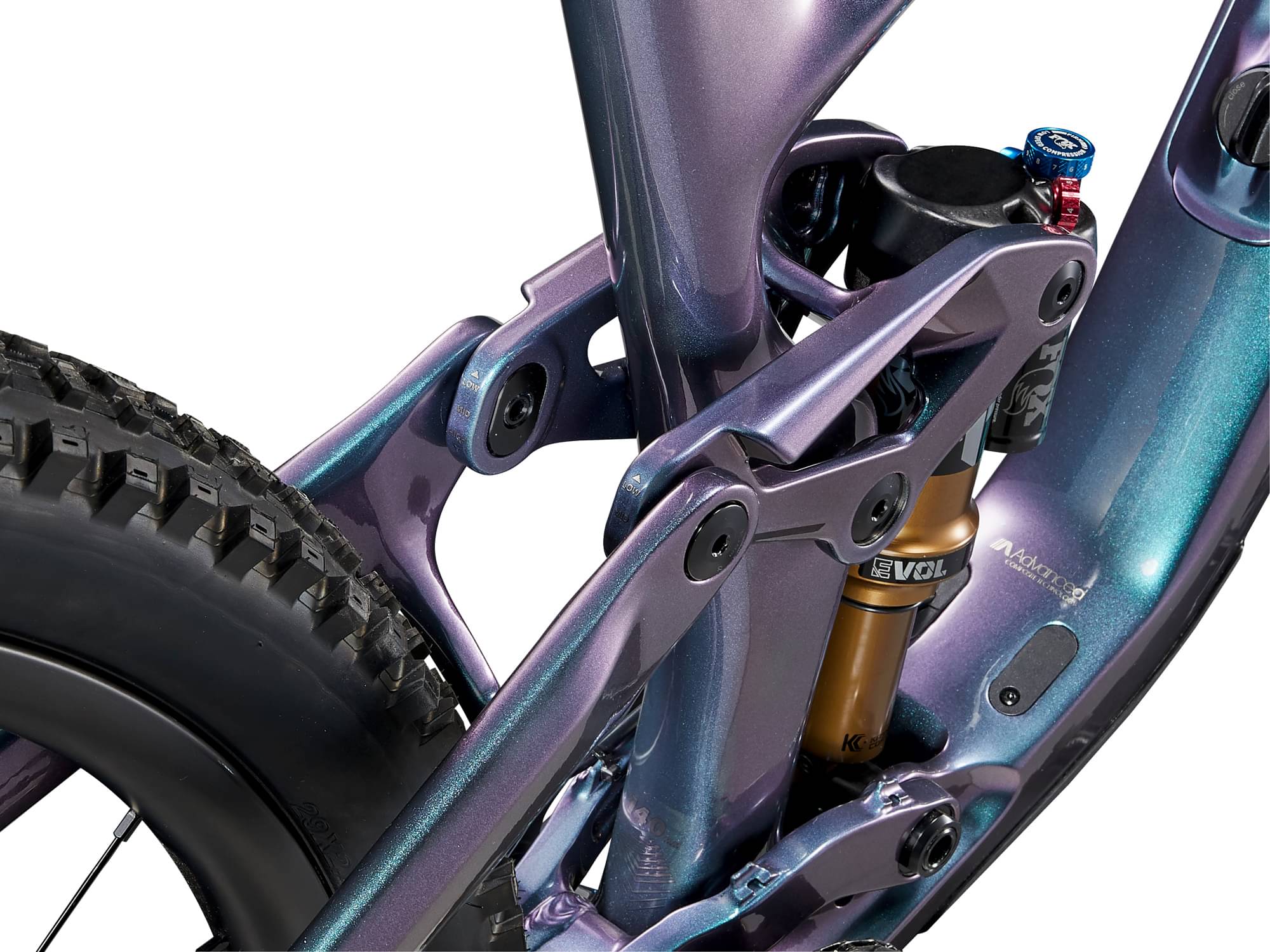

Rear Shock

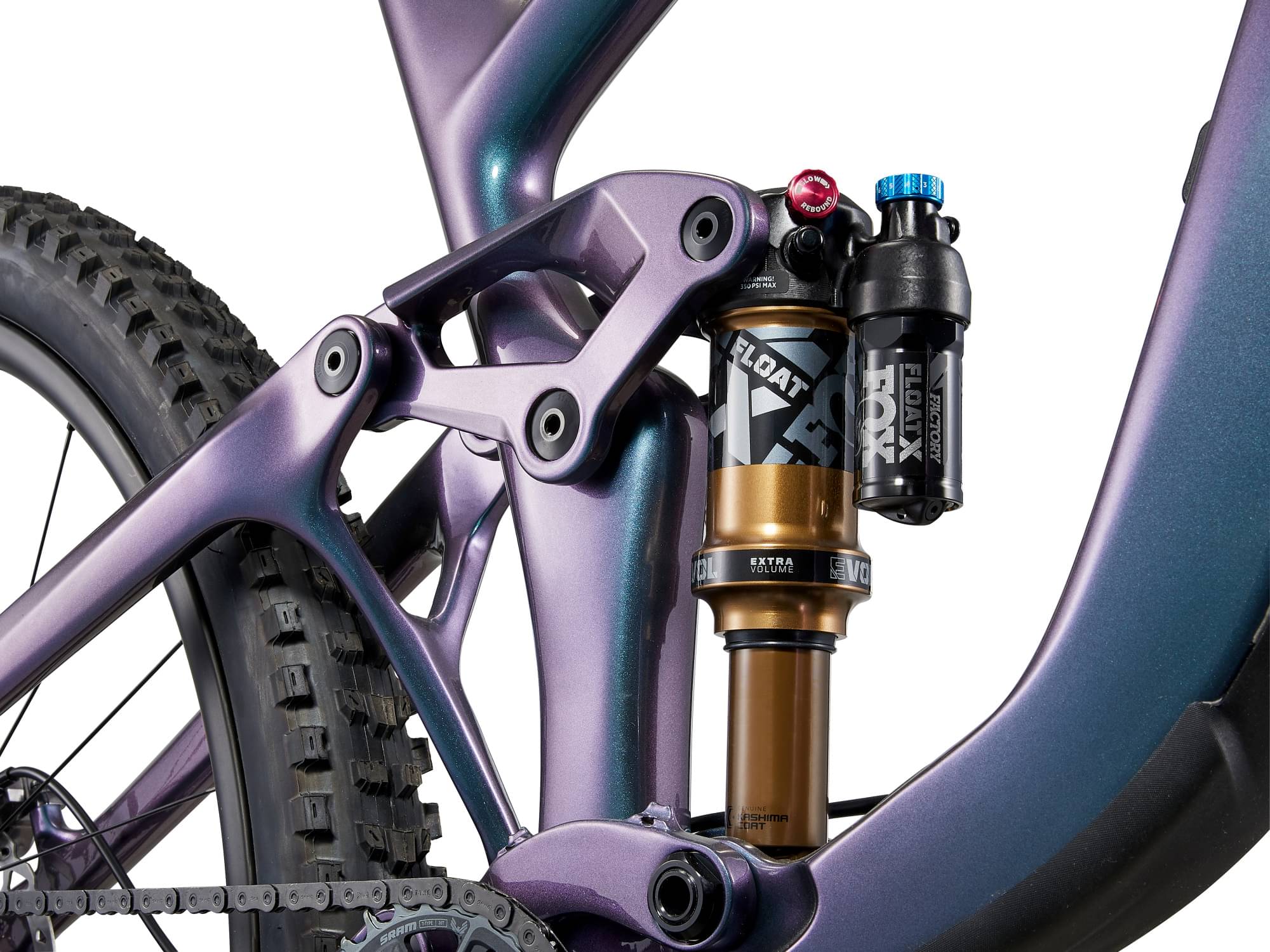

Fox Float X Factory, two-position LSC adjust, 185/52.5, custom tuned for Giant

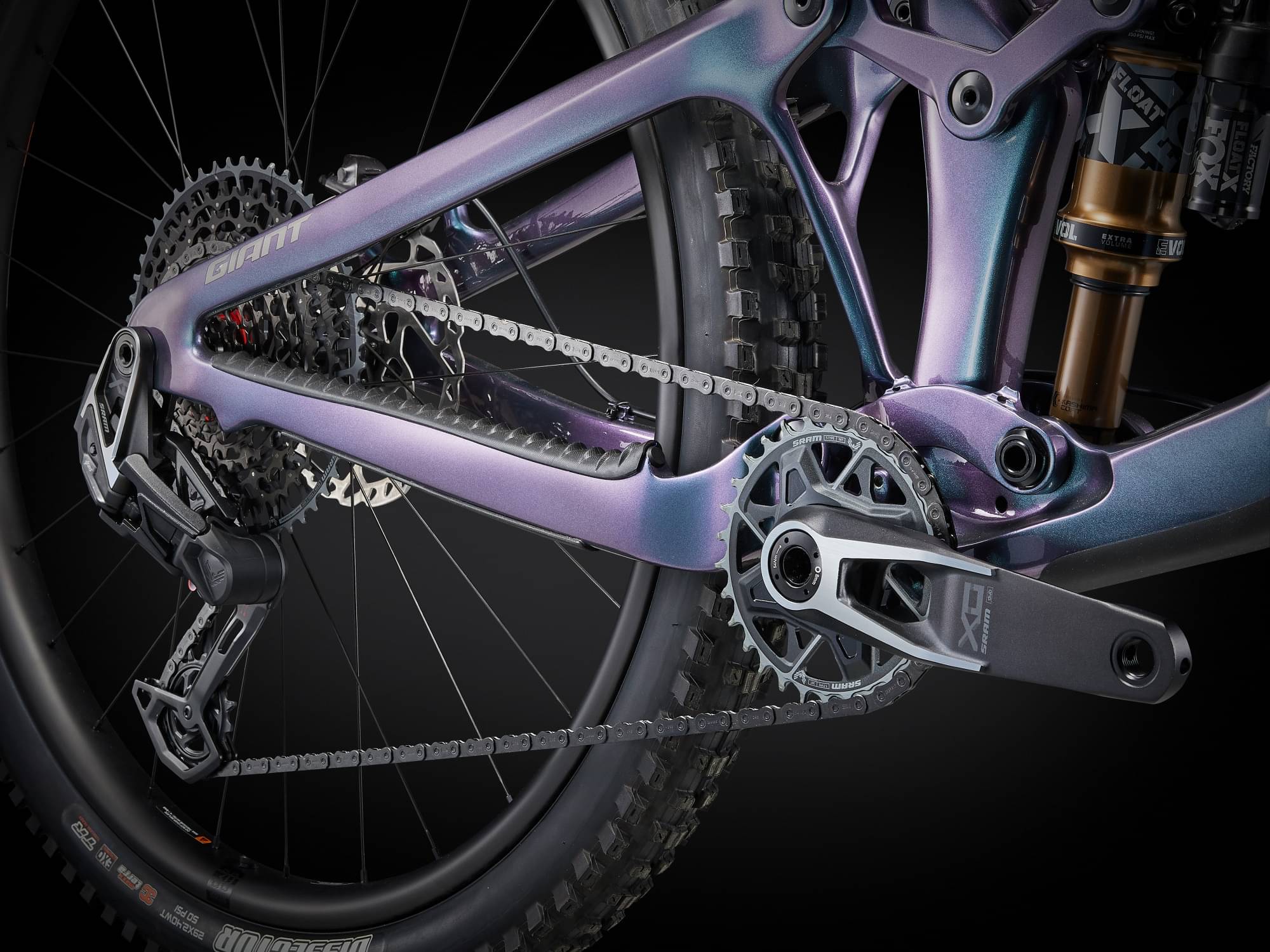

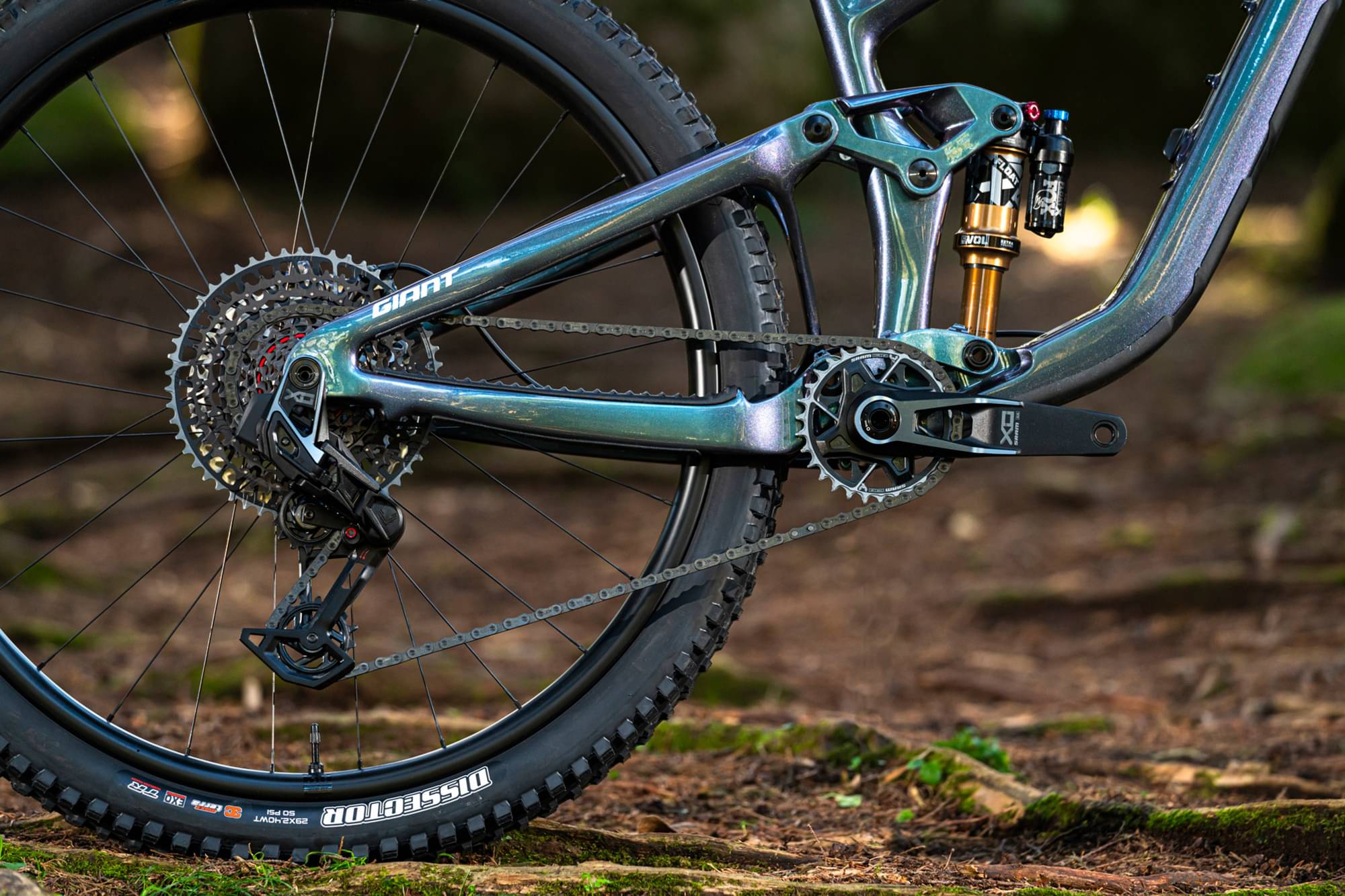

Drivetrain

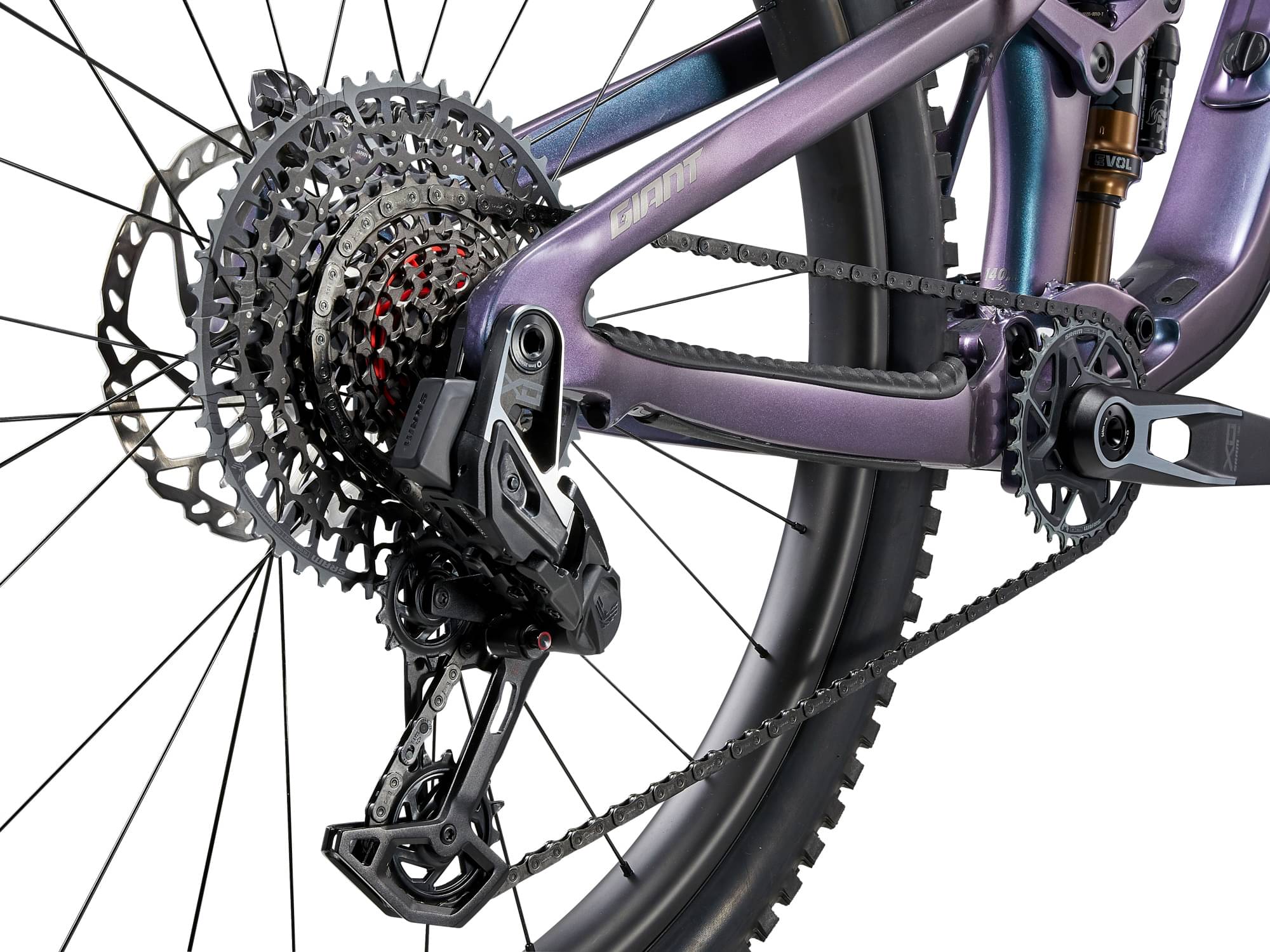

Rear Derailleur
SRAM XO Eagle AXS, T-Type
Front Derailleur
N/A
Shift Levers
SRAM AXS Pod, 1x12
Cassette
SRAM XO, T-Type, 10x52
Crank
SRAM XO, T-Type, 30t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm
Bottom Bracket
SRAM DUB, press fit
Chain
SRAM XO, T-Type
Pedals
N/A
Wheels
Front Hub
Giant TRX 0 29 Carbon WheelSystem
Rear Hub
Giant TRX 0 29 Carbon WheelSystem
Rims
Giant TRX WheelSystem, carbon, hookless, 30mm inner width, 40mm outer width, 22mm height, Wide Guard Technology
Spokes
Sapim, 28, straight pull, DBL Technology
Tires
[F] Maxxis Minion DHF, 29x2.5 WT, 3C 60 tpi, MaxxTerra, EXO, TR [R] Maxxis Dissector 29x2.4 WT, 60 tpi, 3C MaxxTerra, TR, tubeless
Brakes
Brakes
Shimano Deore XT BR-M8120, hydraulic, four piston, Shimano RT-66 rotors [F]203mm, [R]180mm
Brake Levers
Shimano Deore XT BL-M8100
Cockpit
Stem

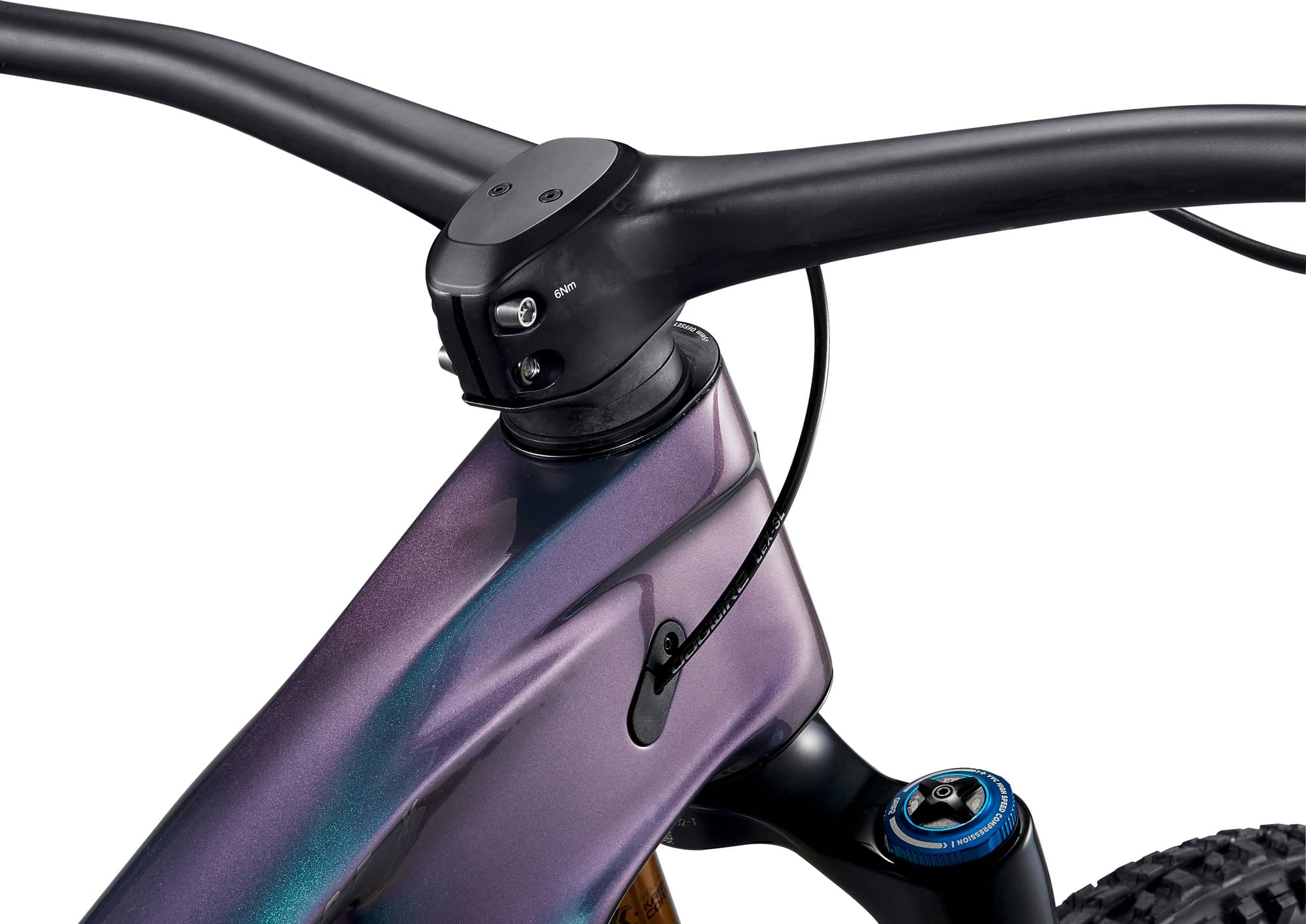

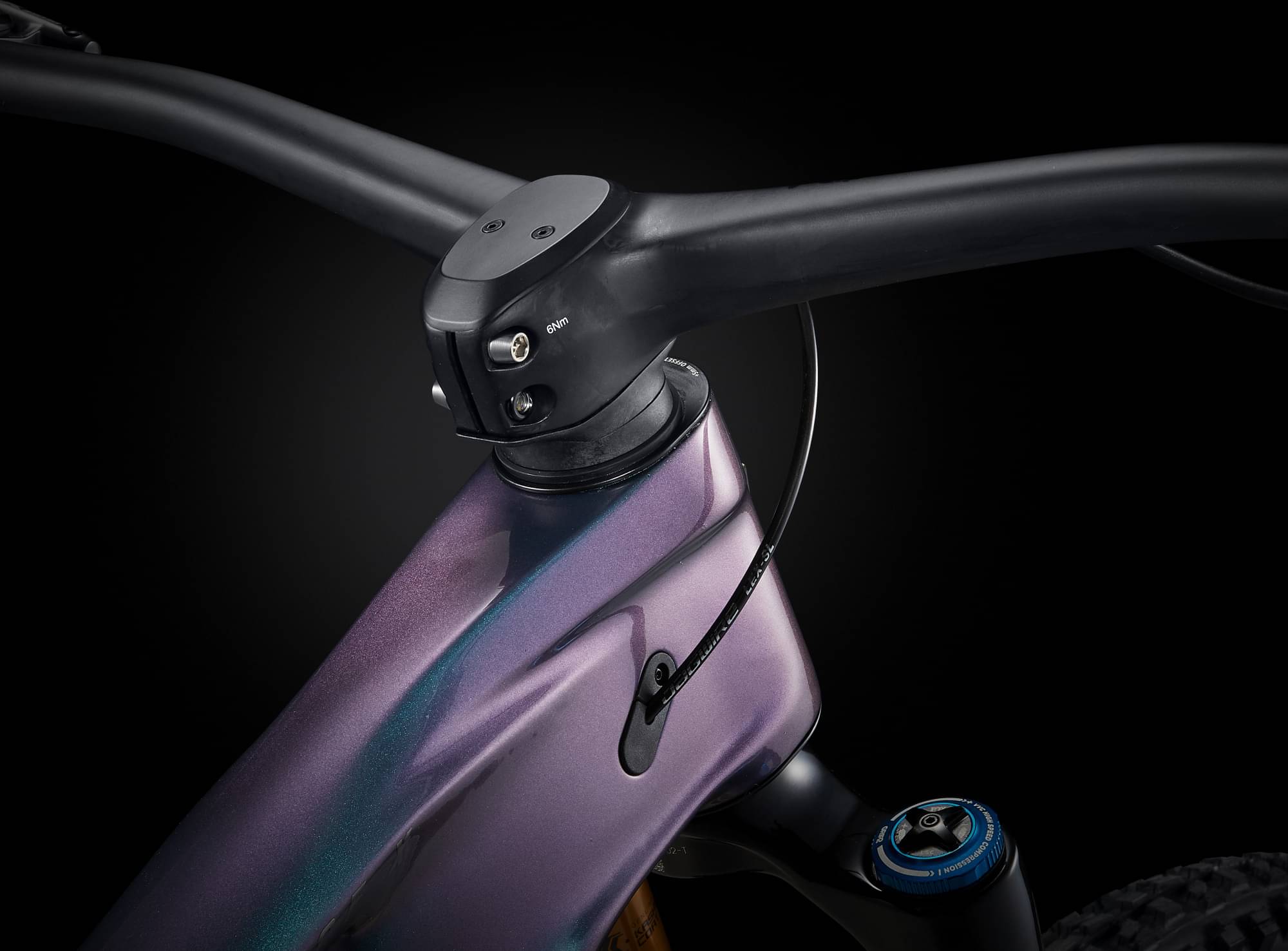

Giant Contact Integrated SLR Trail S:40mm, M:40mm, L:50mm, XL:50mm
Handlebar

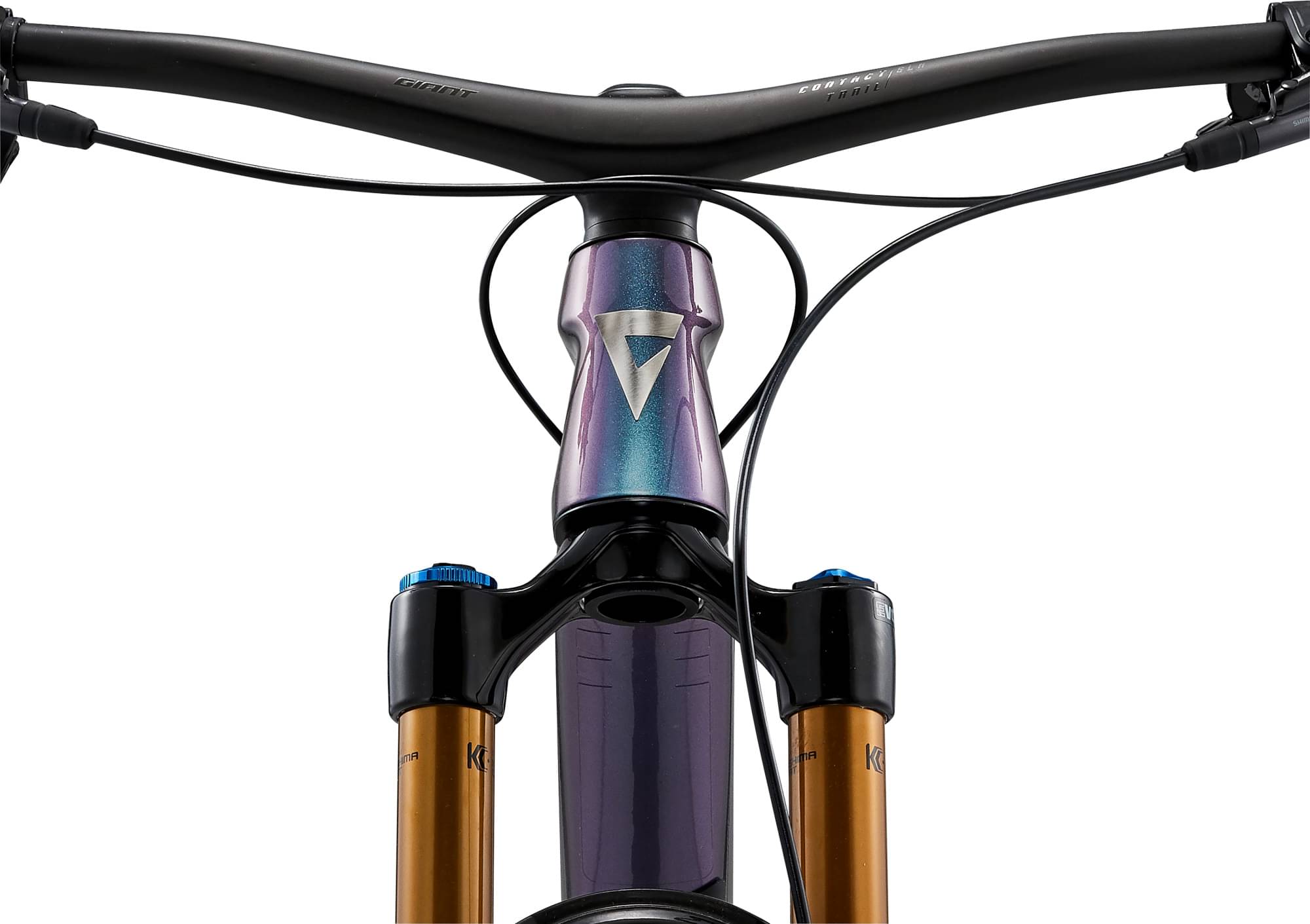

Giant Contact SLR Trail Integrated, composite, 800x35mm, 20mm rise
Grips
Giant Tactal Pro Single Lock-On, 132x35mm
Seat
Saddle
Giant Romero SL
Seatpost

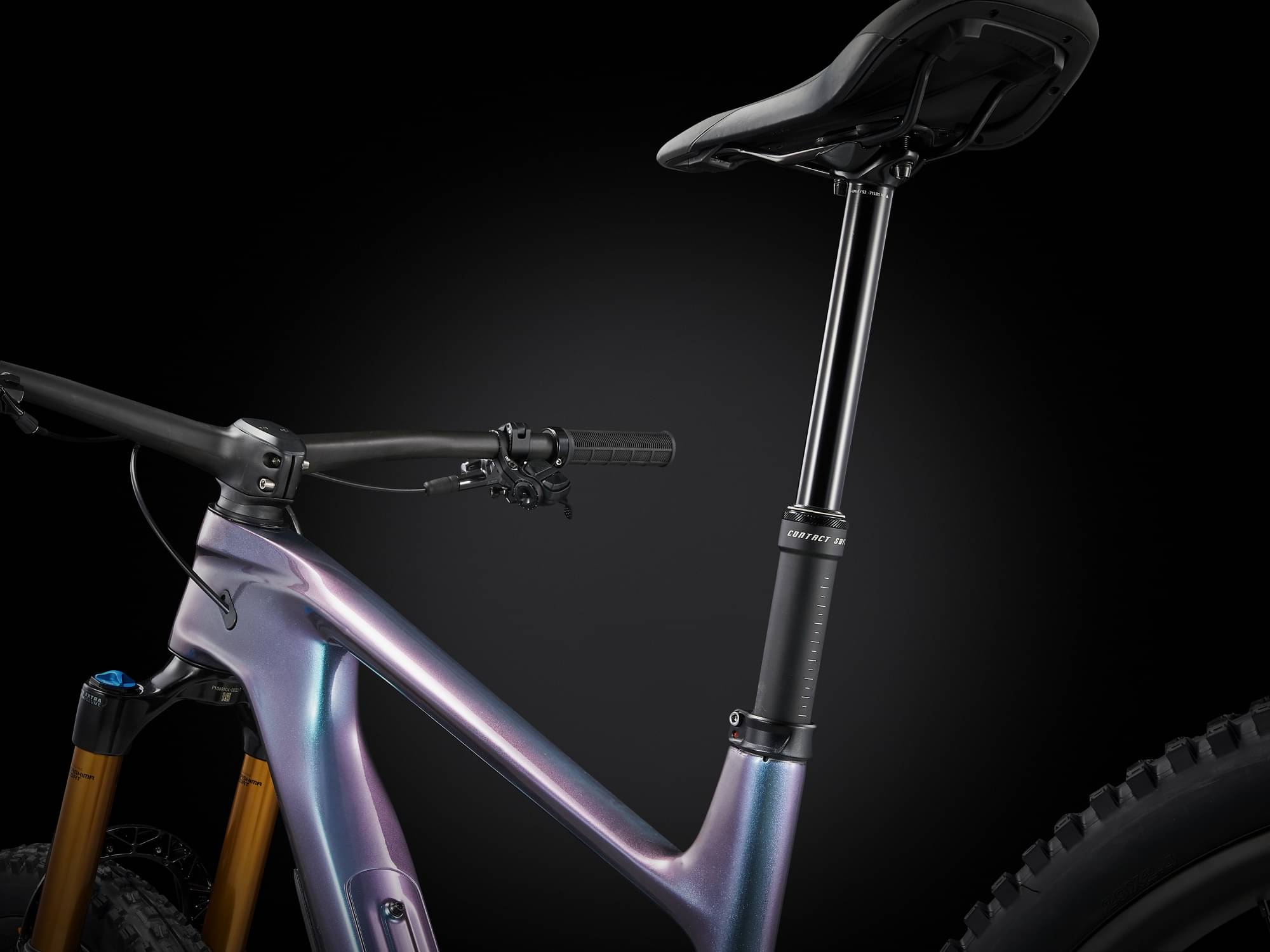

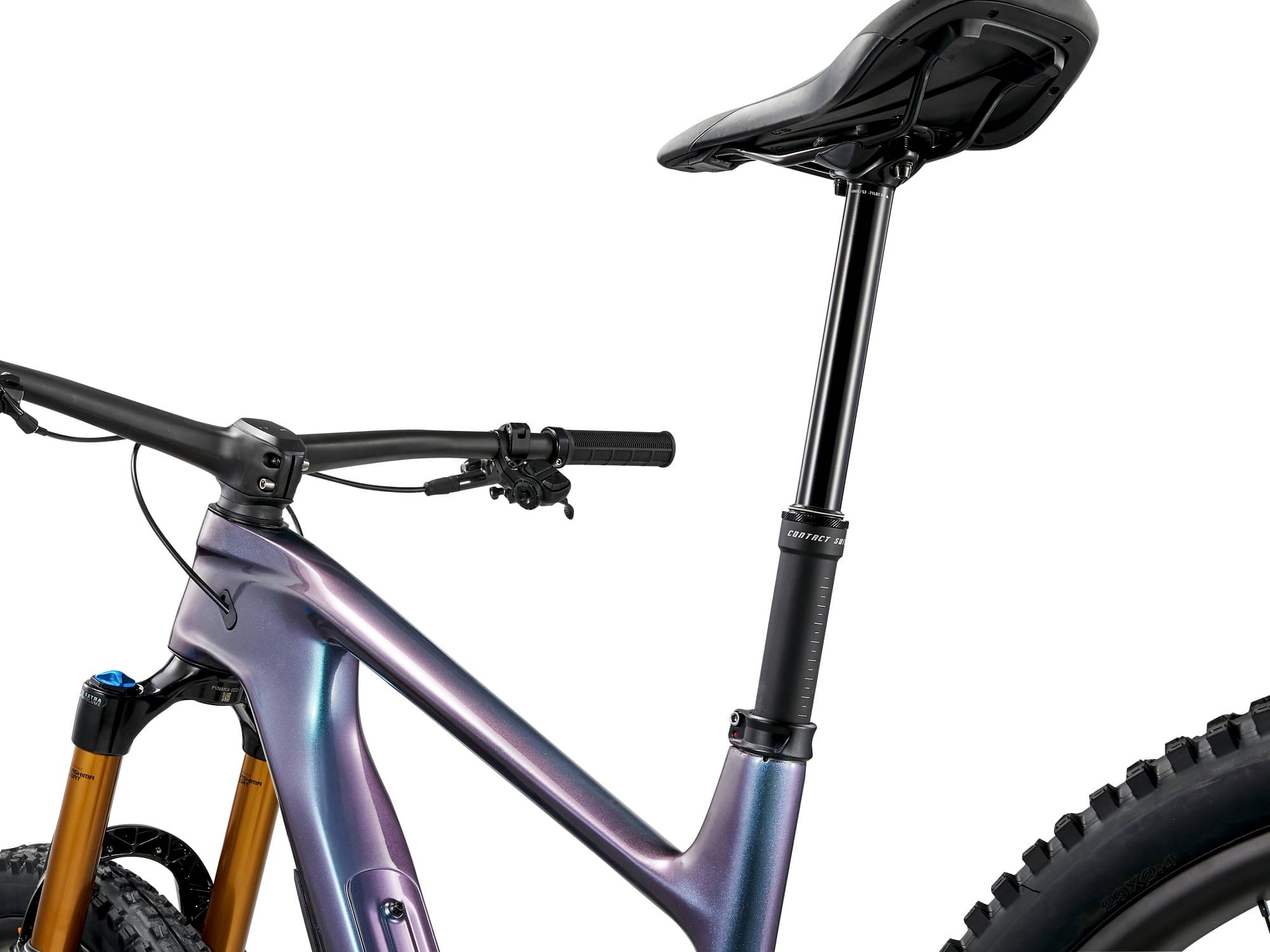

Contact Switch AT dropper, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD High | MD Mid | MD Low | LG High | LG Mid | LG Low |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.328 mm | 1.346 mm | 1.362 mm | 1.291 mm | 1.308 mm | 1.326 mm |
| Bottom Bracket Height | 344 mm | 339 mm | 334 mm | 344 mm | 339 mm | 334 mm |
| Front Center | 785 mm | 785 mm | 785 mm | 809 mm | 809 mm | 809 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 128.5 mm | 131.3 mm | 134 mm | 128.5 mm | 131.3 mm | 133.9 mm |
| Stack | 616 mm | 619 mm | 621 mm | 625 mm | 628 mm | 631 mm |
| Reach | 464 mm | 460 mm | 456 mm | 484 mm | 480 mm | 476 mm |
| Top Tube Length | 600 mm | 601 mm | 602 mm | 622 mm | 623 mm | 624 mm |
| Seat Tube Angle | 77.5 ° | 77.2 ° | 76.8 ° | 77.5 ° | 77.2 ° | 76.8 ° |
| Seat Tube Length | 425 mm | 425 mm | 425 mm | 450 mm | 450 mm | 450 mm |
| Head Tube Angle | 65.1 ° | 64.8 ° | 64.4 ° | 65.1 ° | 64.8 ° | 64.4 ° |
| Head Tube Length | 105 mm | 105 mm | 105 mm | 115 mm | 115 mm | 115 mm |
| Chainstay Length | 438 mm | 439 mm | 440 mm | 438 mm | 439 mm | 440 mm |
| Wheelbase | 1221 mm | 1222 mm | 1222 mm | 1245 mm | 1246 mm | 1246 mm |
| Bottom Bracket Drop | 30 mm | 35 mm | 40 mm | 30 mm | 35 mm | 40 mm |
| Standover Height | 746 mm | 741 mm | 737 mm | 763 mm | 759 mm | 754 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 171 cm | 171 cm | 171 cm | 178 cm | 178 cm | 178 cm |
| Rider Max Height | 181 cm | 181 cm | 181 cm | 188 cm | 188 cm | 188 cm |
