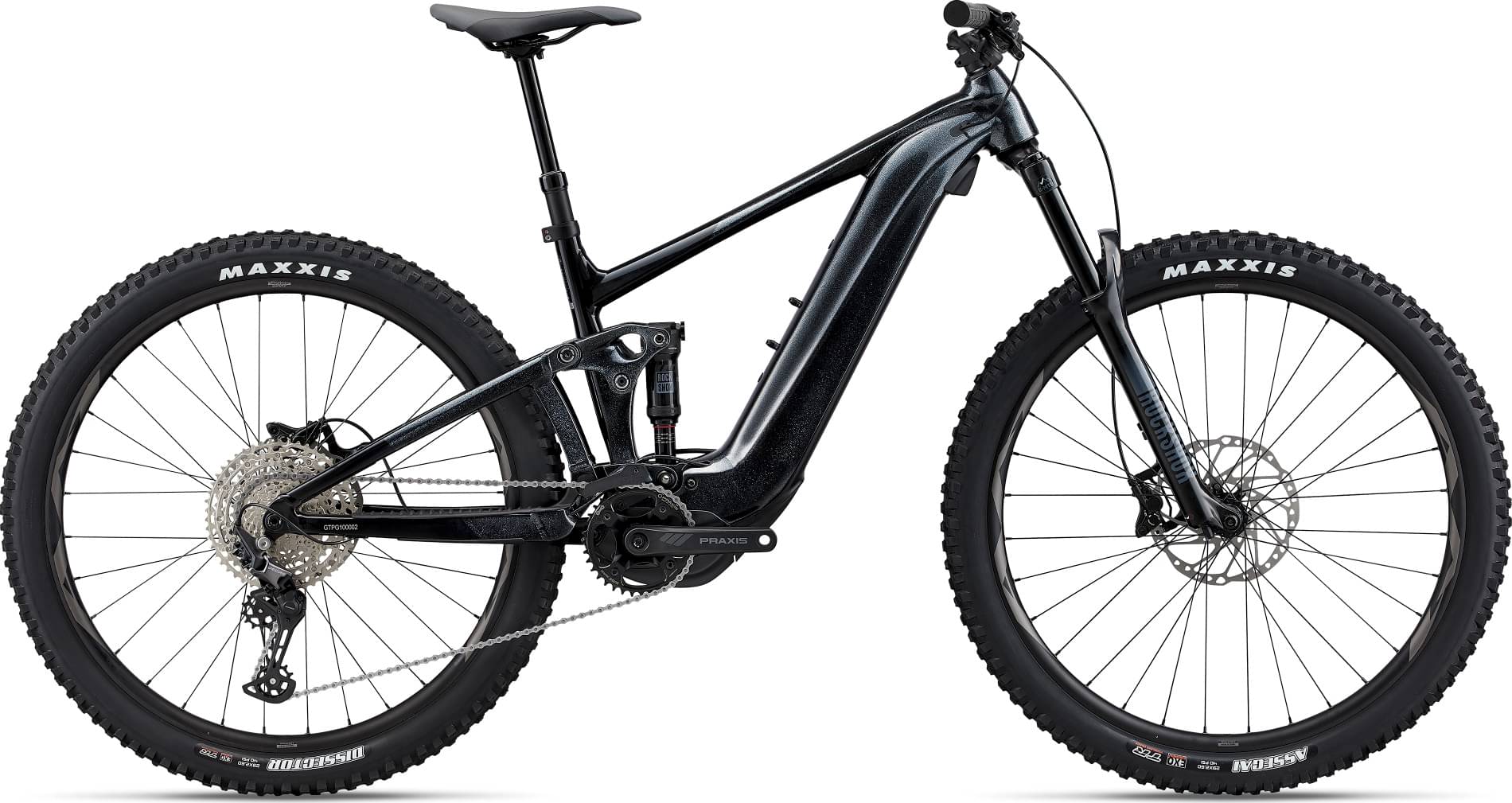

Giant Trance X E+ 3 Pro 2022
2022 E-bike
Estimate price |
5,932$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox 35 Gold RL
-
Groupset Deore -
Suspension Full -
Motor Yamaha 250W 85Nm mid-drive -
Battery EnergyPak Smart 625Wh, EnergyPak Plus range extender compatible -
Drivetrain 1 × 12 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM High
163cm - 174cm
SM Low
163cm - 174cm
MD High
171cm - 182cm
MD Low
171cm - 182cm
LG High
179cm - 190cm
LG Low
179cm - 190cm
XL High
187cm - 198cm
XL Low
187cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SL-Grade Aluminum, Advanced Forged Composite linkage, 140mm Maestro Suspension System, 'Boost' 148x12 UDH derrailleur hanger, Giant EnergyPak Plus Range Extender Compatible
Suspension Fork
RockShox 35 Gold RL DebonAir, 150mm travel, 44mm offset, MotionControltm rebound and lockout control, 15x110 Boost, Maxle Stealth, e-MTB optimized
Rear Shock
Rock Shox Deluxe R, 185x52.5mm Trunnion mount, custom tuned
Drivetrain
Rear Derailleur
Shimano Deore 12-speed
Front Derailleur
MRP HD2 co-moulded chain guide
Shift Levers
Shimano Deore
Cassette
Shimano CS-M6100-12, 10-51T, 12-speed
Crank
Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (S:160, M/L: 165, XL:170)
Bottom Bracket
-
Chain
KMC e.12 Turbo, EcoProteq, e-bike optimized
Pedals
Flat pedal
Wheels
Front Hub
Shimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle
Rear Hub
Shimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle
Rims
Giant AM 29", Tubeless ready, 30mm inner width
Spokes
Sapim E-Lite [R] Race [F]
Tires
Maxxis Assegai 29x2.6" foldable, Tubeless, EXO [F]Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO+ [R]
Brakes
Brakes
Shimano BR-M420, 4-piston, hydraulic disc, 203mm
Brake Levers
Shimano Deore BL-M4100, I-spec EV
Cockpit
Stem
Giant Contact SL 35
Handlebar
Giant Contact 35 Trail, 35x780mm
Grips
Giant Tactal Pro-E, single lock-on
Seat
Saddle
Giant Romero Trail
Seatpost
Giant Contact Switch, dropper, 30,9mm (S:125, M: 150, L/XL:170)
Motor & Battery
Motor
SyncDrive Pro, 85Nm, powered by Yamaha, Class 1, Max Assist Speed: 20MPH
Battery
EnergyPak Smart 625Wh, EnergyPak Plus range extender compatible
Remote
RideControl Ergo 3, grip integrated
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.345 mm | 1.38 mm | 1.31 mm | 1.337 mm | 1.256 mm | 1.288 mm | 1.207 mm | 1.235 mm |
| Bottom Bracket Height | 354 mm | 344 mm | 354 mm | 344 mm | 354 mm | 344 mm | 354 mm | 344 mm |
| Front Center | 734 mm | 734 mm | 765 mm | 768 mm | 797 mm | 797 mm | 829 mm | 828 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 122.4 mm | 117 mm | 122.4 mm | 117 mm | 122.4 mm | 117 mm | 122.4 mm | 117 mm |
| Stack | 601 mm | 606 mm | 605 mm | 611 mm | 614 mm | 621 mm | 624 mm | 630 mm |
| Reach | 447 mm | 439 mm | 462 mm | 457 mm | 489 mm | 482 mm | 517 mm | 510 mm |
| Top Tube Length | 575 mm | 577 mm | 605 mm | 610 mm | 635 mm | 637 mm | 665 mm | 667 mm |
| Seat Tube Angle | 76.7 ° | 76 ° | 76.7 ° | 76 ° | 76.7 ° | 76 ° | 76.7 ° | 76 ° |
| Seat Tube Length | 400 mm | 400 mm | 425 mm | 425 mm | 450 mm | 450 mm | 475 mm | 475 mm |
| Head Tube Angle | 66.5 ° | 65.7 ° | 66.5 ° | 65.8 ° | 66.5 ° | 65.8 ° | 66.5 ° | 65.8 ° |
| Head Tube Length | 95 mm | 95 mm | 100 mm | 100 mm | 110 mm | 110 mm | 120 mm | 120 mm |
| Chainstay Length | 473 mm | 473 mm | 473 mm | 473 mm | 473 mm | 473 mm | 473 mm | 473 mm |
| Wheelbase | 1206 mm | 1205 mm | 1237 mm | 1239 mm | 1269 mm | 1268 mm | 1301 mm | 1300 mm |
| Bottom Bracket Drop | 20 mm | 30 mm | 20 mm | 30 mm | 20 mm | 30 mm | 20 mm | 30 mm |
| Standover Height | 789 mm | 783 mm | 784 mm | 775 mm | 770 mm | 763 mm | 782 mm | 775 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 163 cm | 163 cm | 171 cm | 171 cm | 179 cm | 179 cm | 187 cm | 187 cm |
| Rider Max Height | 174 cm | 174 cm | 182 cm | 182 cm | 190 cm | 190 cm | 198 cm | 198 cm |
