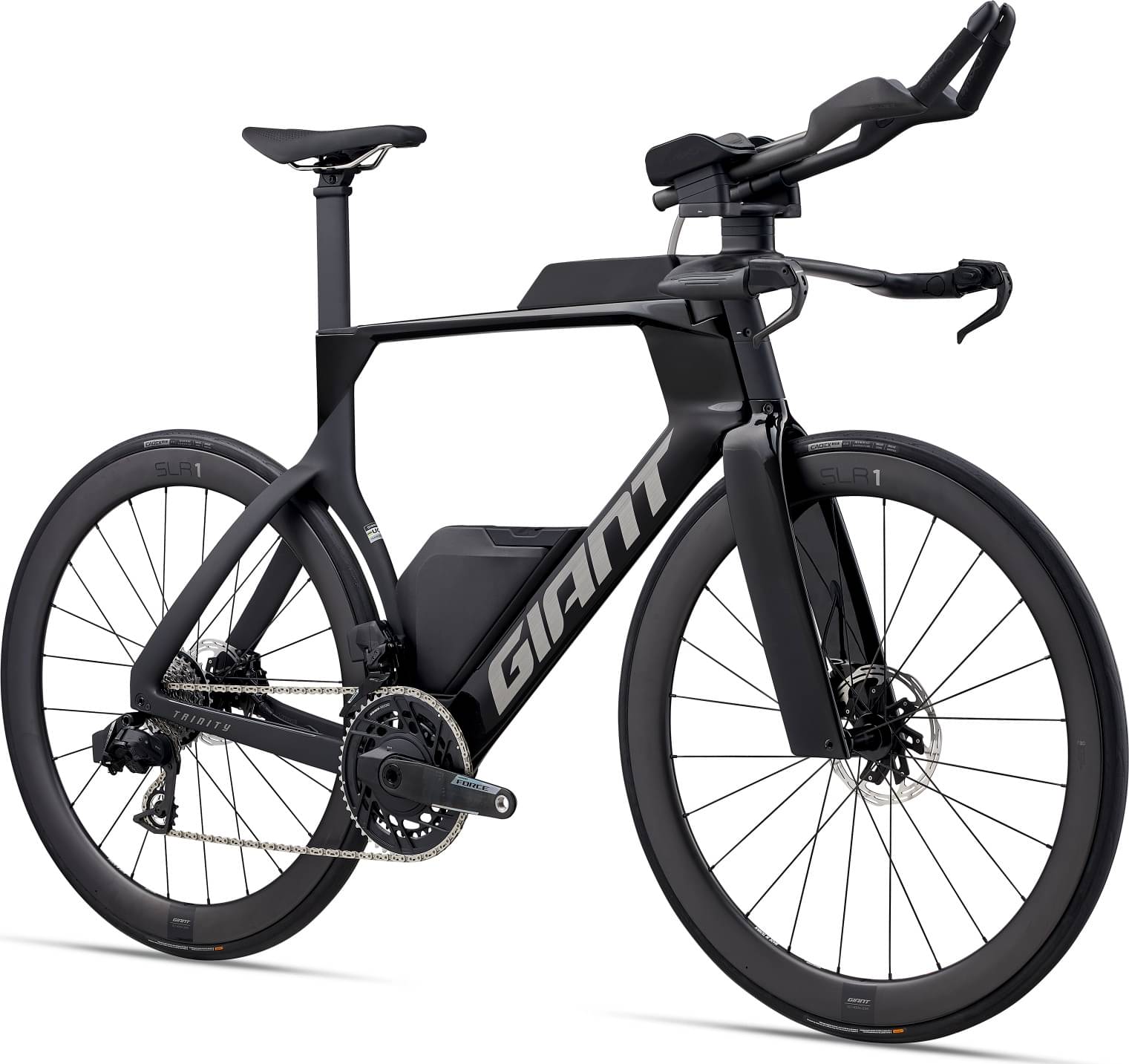

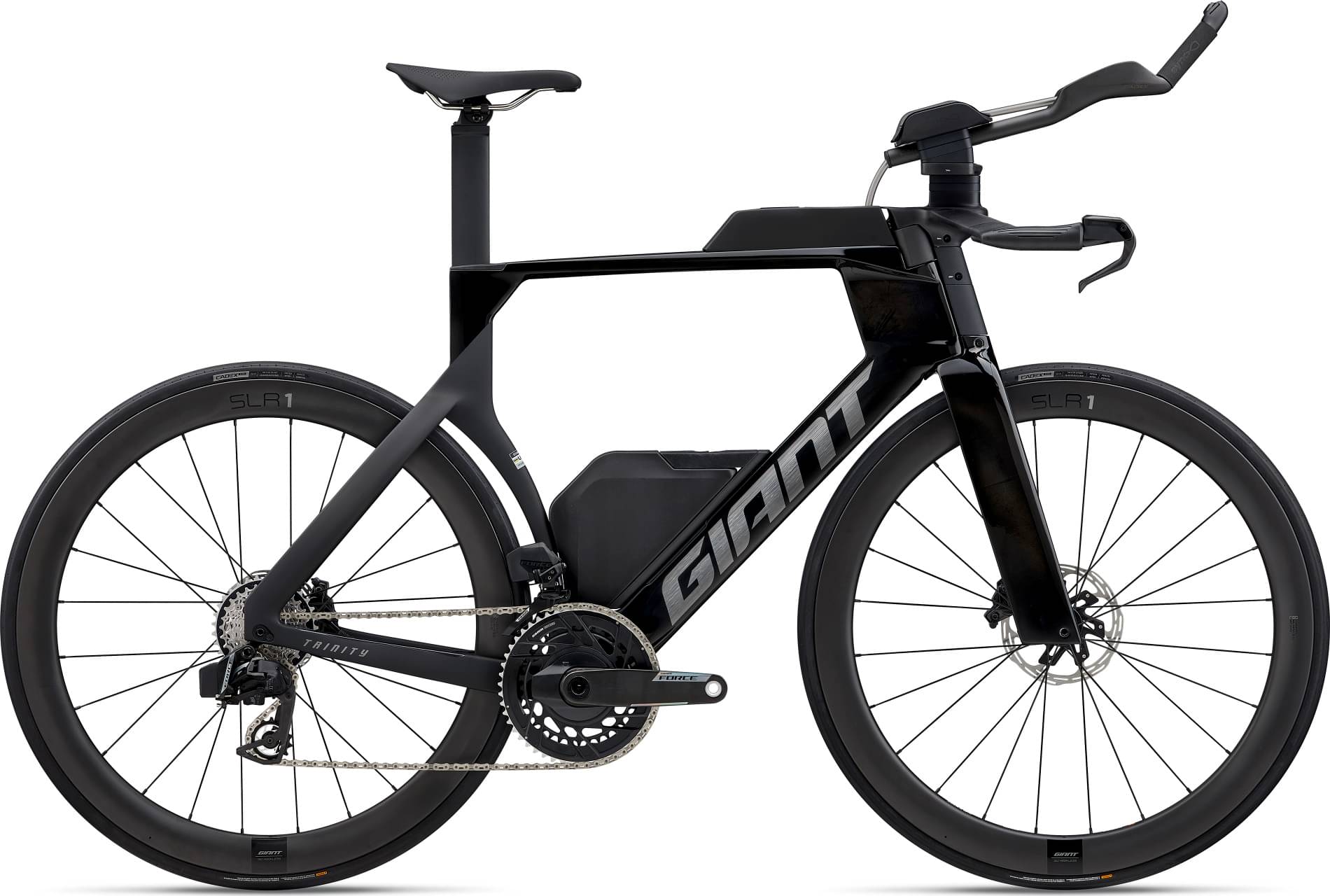

Giant Trinity Advanced SL 1 2025
2025 Road
Estimate price |
11,051$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset RED AXS, Force -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes SRAM Hydraulic Disc
Sizing
Recommended size guide.
SM
166cm - 176cm
MD
173cm - 183cm
LG
180cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components

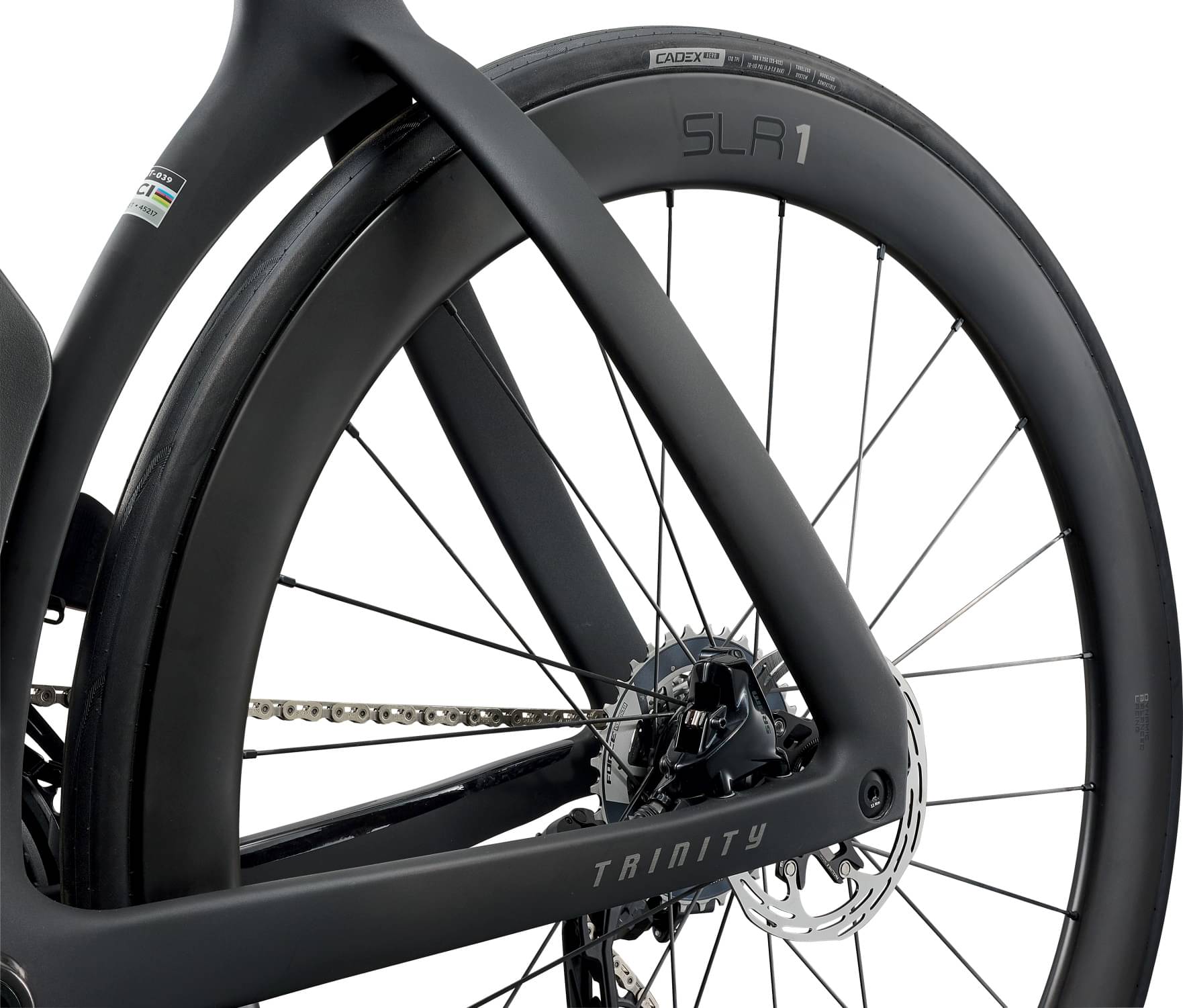

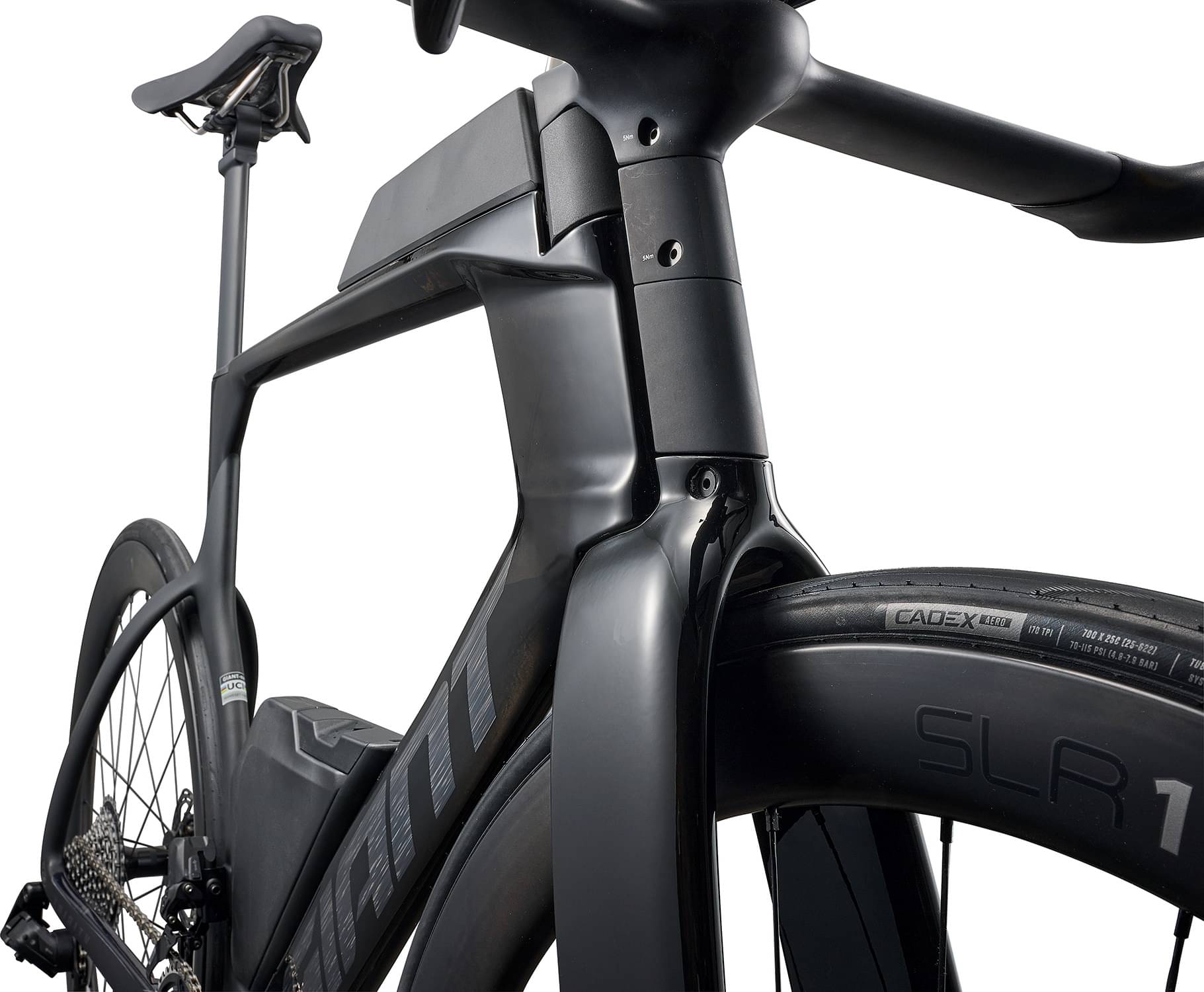

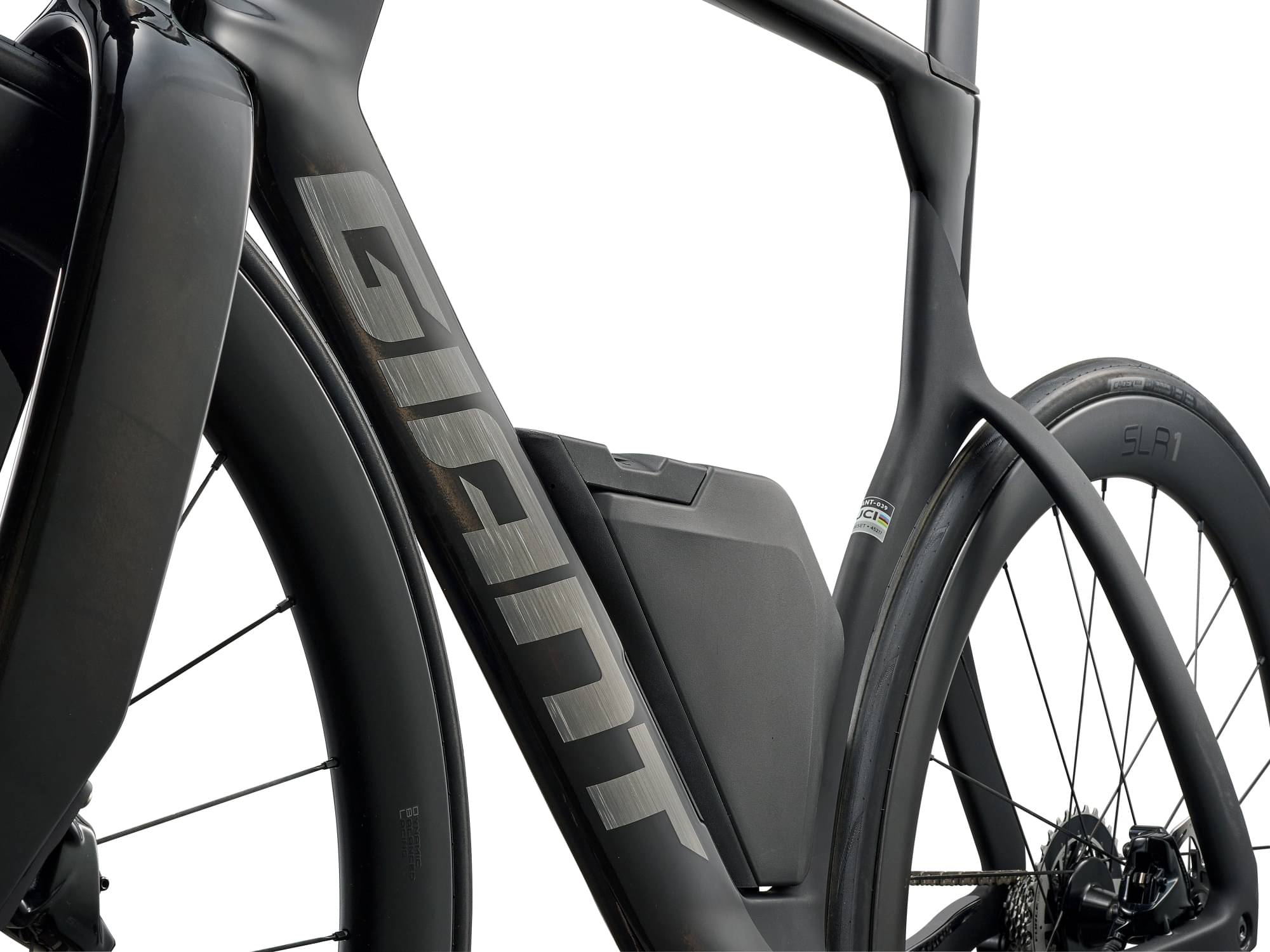

Frame
Frame
Advanced SL-Grade Composite, 12x142mm thru-axle, disc

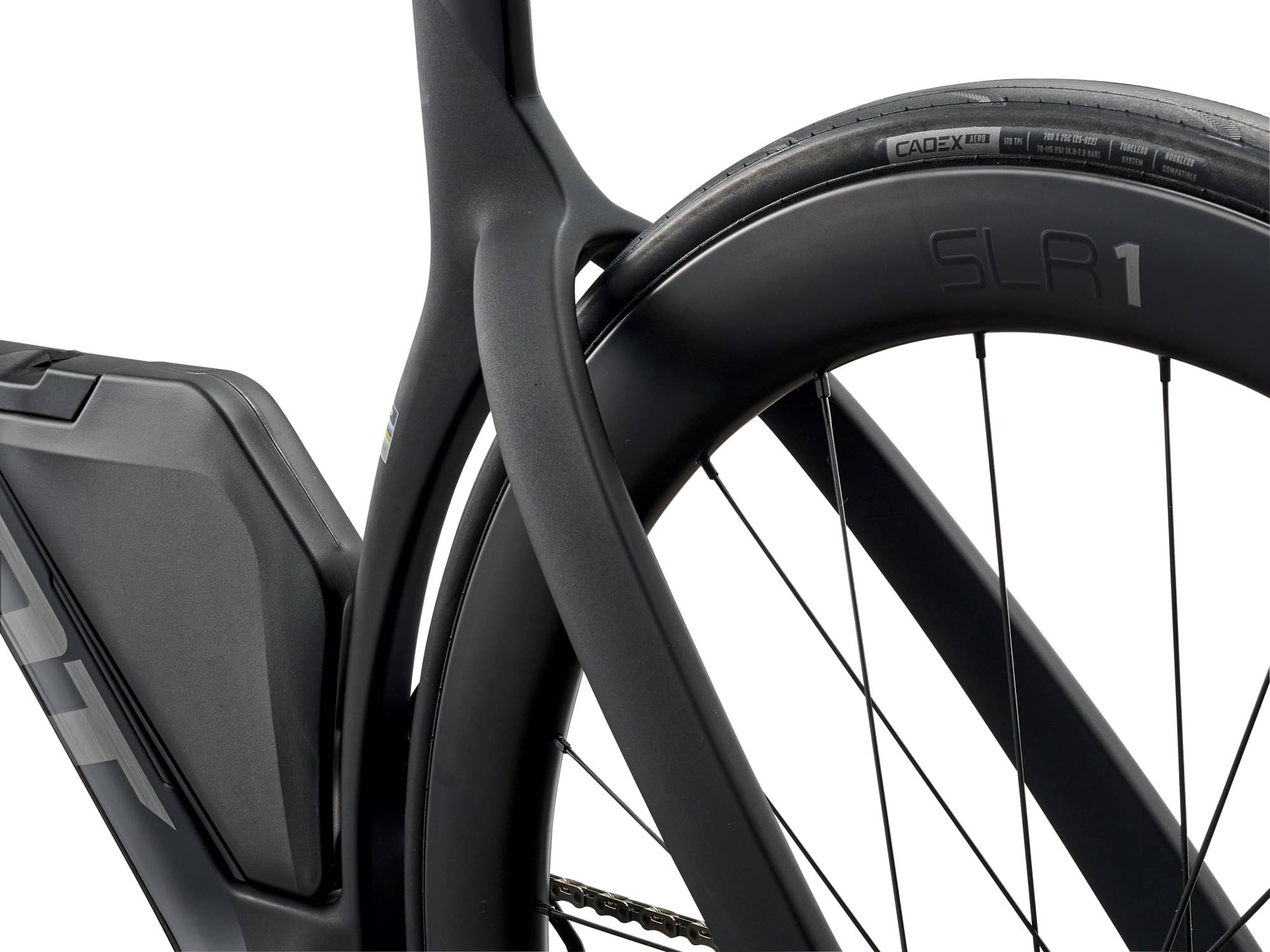

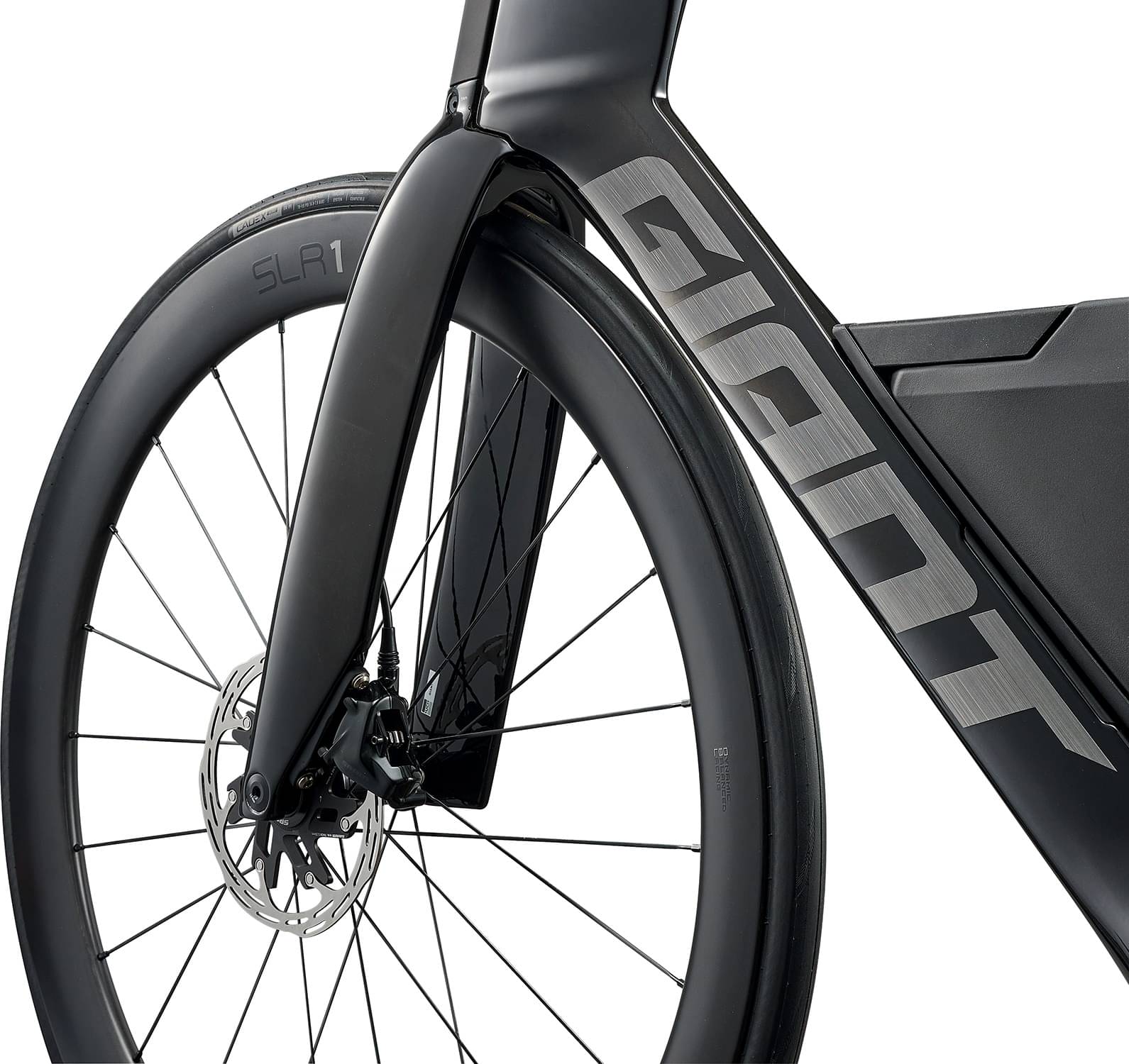

Suspension Fork
Advanced SL-Grade Composite, full-composite steerer, 12x100mm thru-axle, disc

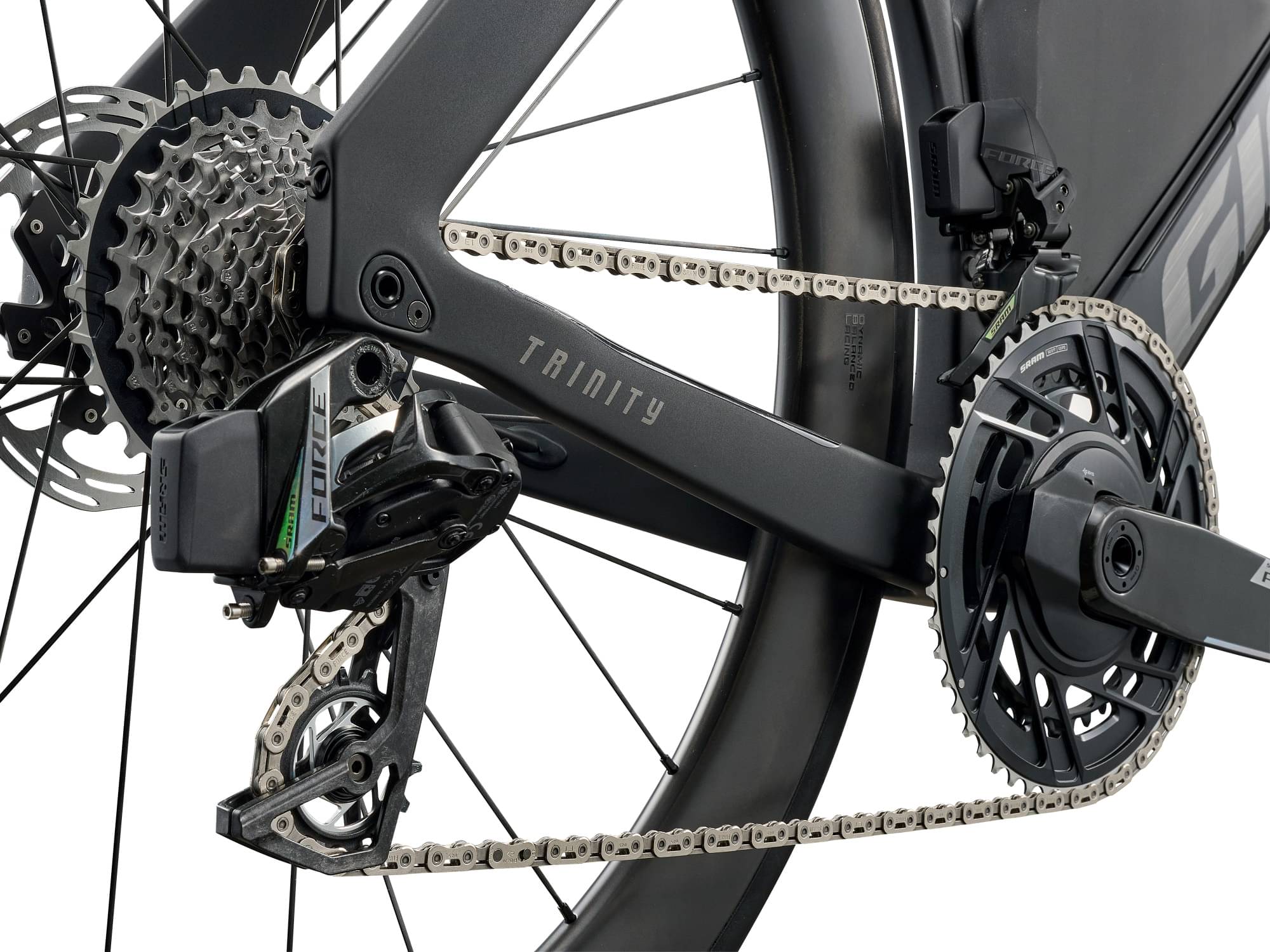

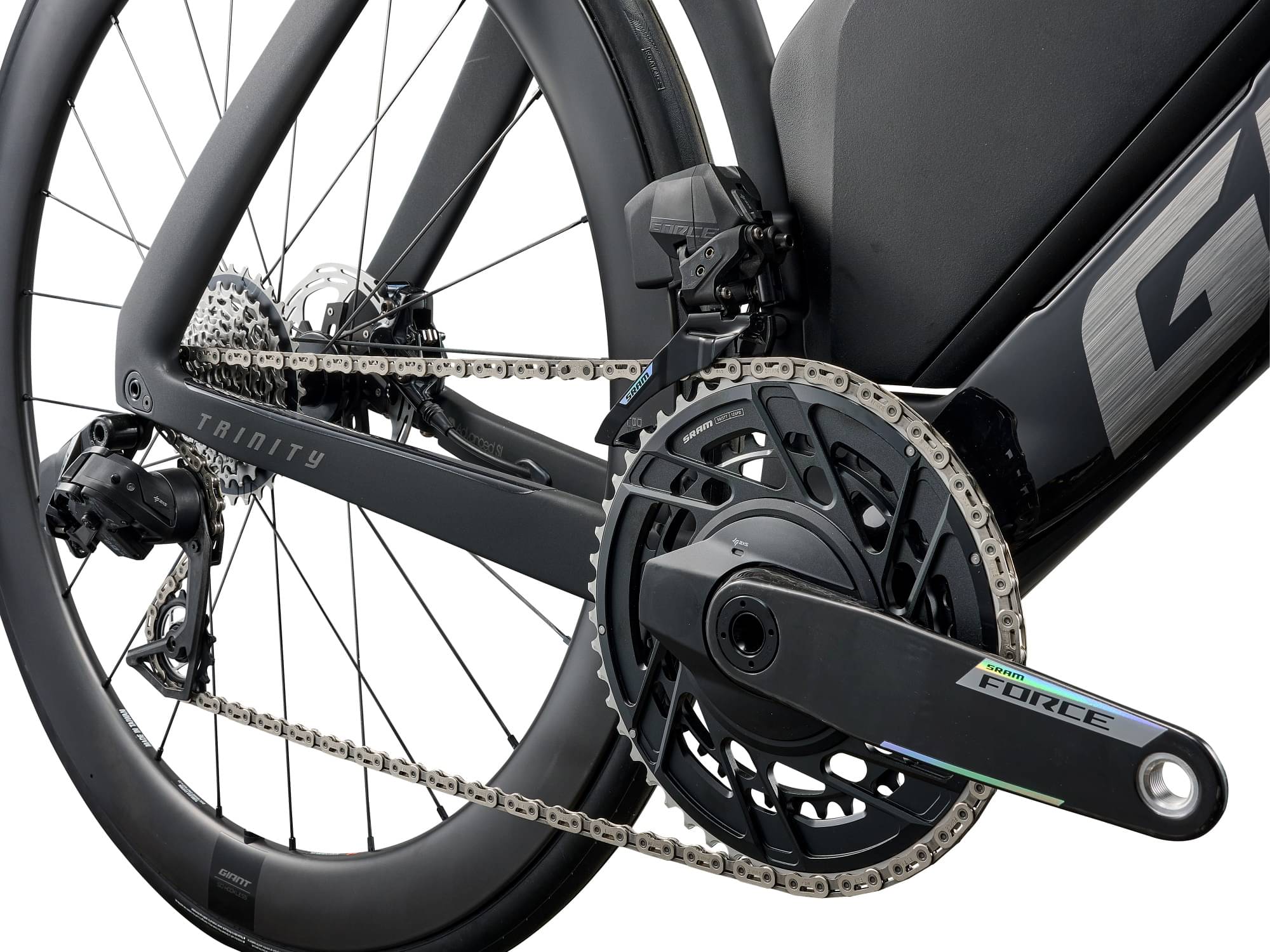

Drivetrain
Rear Derailleur
SRAM Force AXS D2
Front Derailleur
SRAM Force AXS
Shift Levers
SRAM eTap Clics - extension mounted, SRAM eTap Blips - basebar mounted
Cassette
SRAM Force, 12-speed, 10x33
Crank
SRAM Force AXS, 37/50 with SRAM power meter XS:160mm, S:165mm, M:170mm, L:172.5mm
Bottom Bracket
SRAM DUB, press fit
Chain
SRAM Force D1
Wheels
Front Hub
[F] Giant Low Friction Hub, CenterLock, 12mm thru-axle [R] Giant Low Friction Hub, 30t ratchet driver, CenterLock, 12mm thru-axle
Rear Hub
[F] Giant Low Friction Hub, CenterLock, 12mm thru-axle [R] Giant Low Friction Hub, 30t ratchet driver, CenterLock, 12mm thru-axle
Rims
Giant SLR 1 50 WheelSystem, [F]40mm, [R]40mm
Spokes
Giant Aero Carbon Spoke
Tires
CADEX Aero, tubeless, 700x25c (26.5mm), folding
Brakes
Brakes
SRAM S-900 Aero hydraulic, SRAM PaceLine X rotors [F]160mm, [R]140mm
Brake Levers
SRAM S-900 Aero AXS

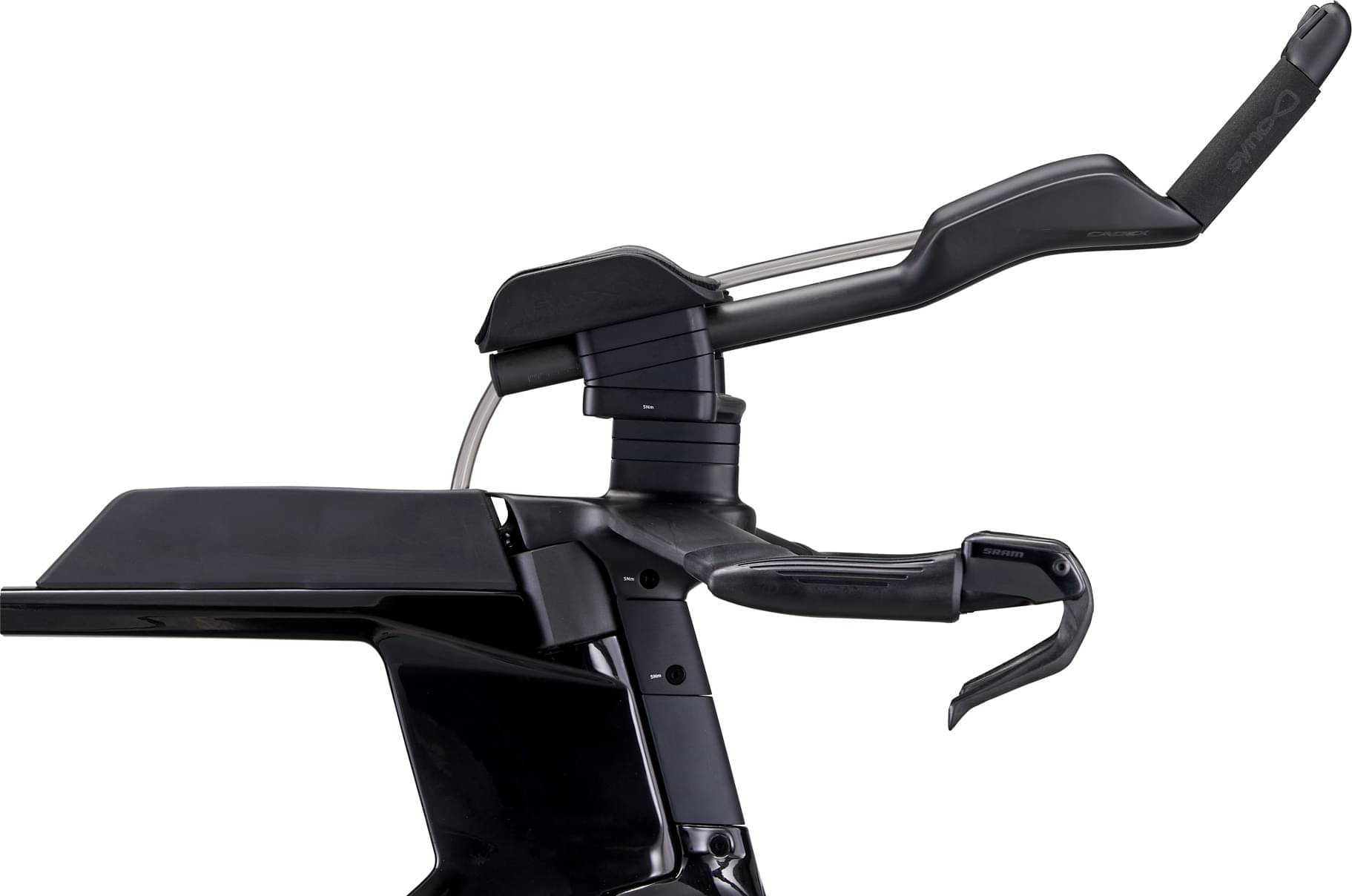

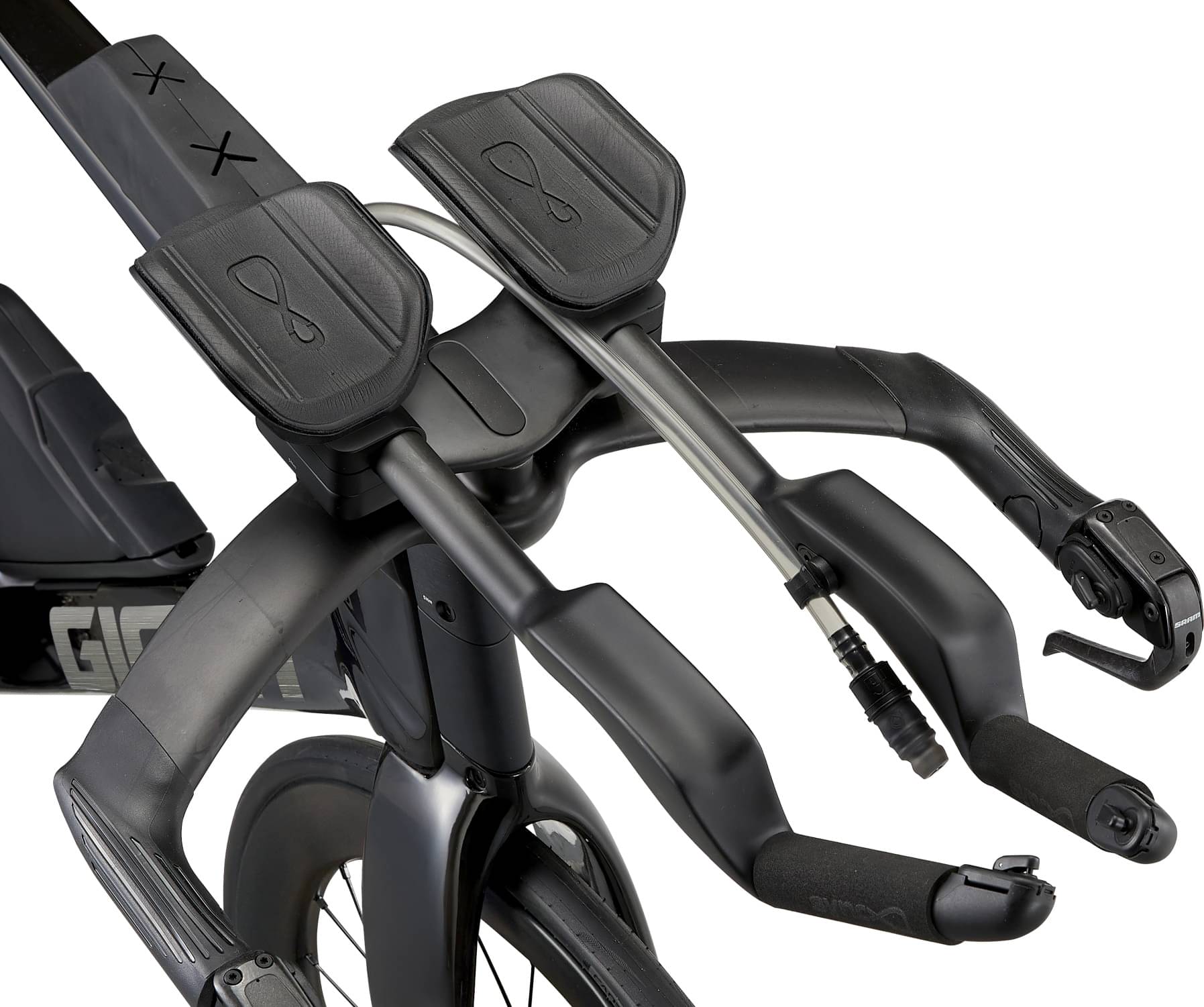

Cockpit
Stem
AeroDrive integrated stem

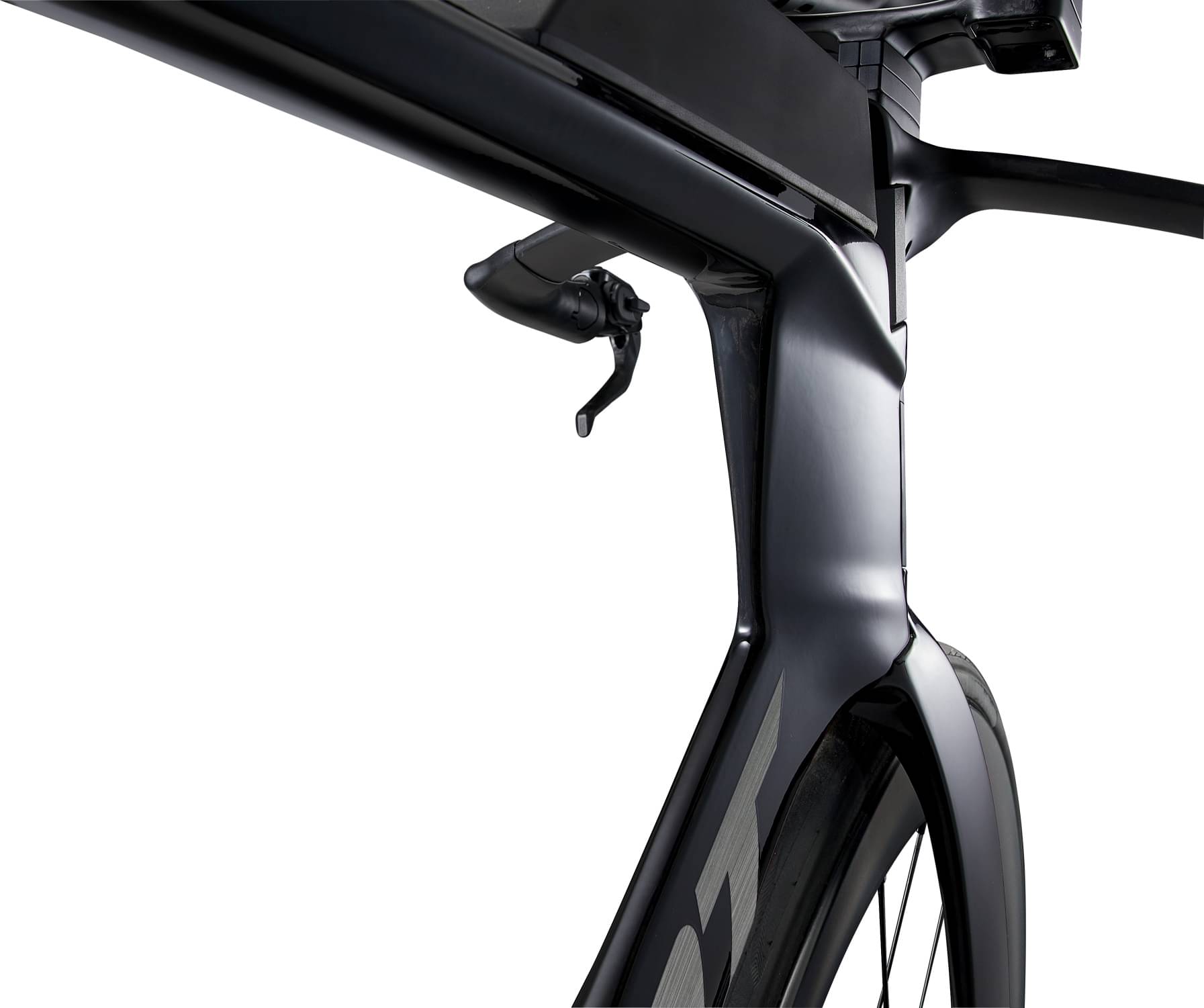

Handlebar
AeroDrive base bar with Sync armrest set, 10 and 15-degree extension wedge
Seat
Saddle
Giant Contact SL Tri
Seatpost
Trinity Composite
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.245 mm | 1.231 mm | 1.219 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm |
| Front Center | 593 mm | 618 mm | 644 mm |
| Rake | 40 mm | 40 mm | 40 mm |
| Trail | 63 mm | 63 mm | 63 mm |
| Stack | 513 mm | 532 mm | 551 mm |
| Reach | 412 mm | 432 mm | 452 mm |
| Top Tube Length | 530 mm | 554 mm | 579 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 495 mm | 525 mm | 550 mm |
| Head Tube Angle | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 105 mm | 125 mm | 145 mm |
| Chainstay Length | 405 mm | 405 mm | 405 mm |
| Wheelbase | 988 mm | 1013 mm | 1039 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Standover Height | 786 mm | 814 mm | 838 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 166 cm | 173 cm | 180 cm |
| Rider Max Height | 176 cm | 183 cm | 191 cm |
