Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Manitou Mastodon Comp
-
Groupset Deore, CUES -
Suspension Hardtail -
Motor Yamaha 250W 85Nm mid-drive -
Battery EnergyPak Smart 800Wh, alloy casing with highest safety standard (EN50604), CO2 neutral production, EnergyPak Plus 200Wh range extender compatible, low temperature protection mode -
Drivetrain 1 × 10 -
Brakes SRAM Code R Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 172cm
MD
169cm - 179cm
LG
176cm - 186cm
XL
183cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components

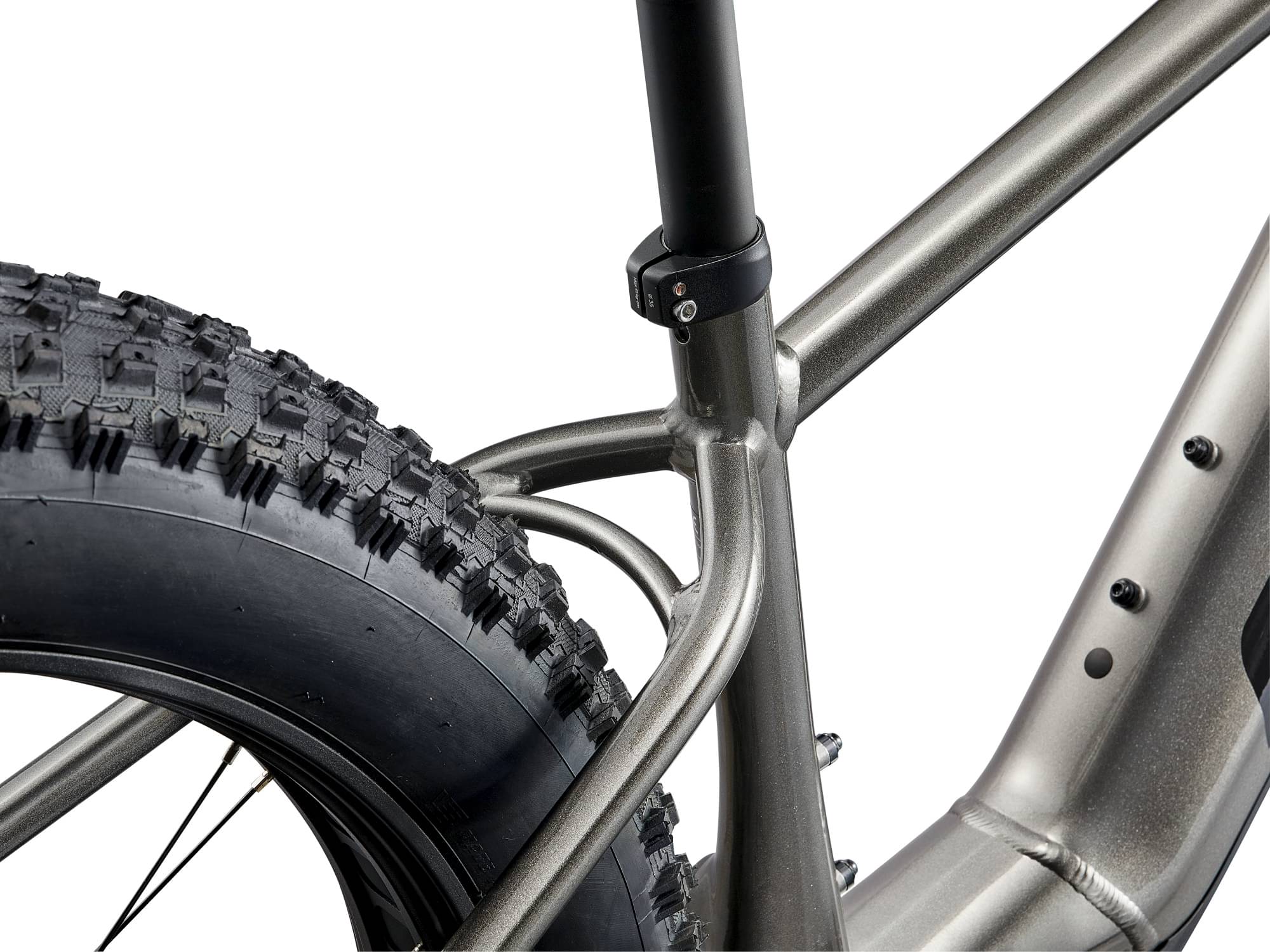

Frame
Frame
ALUXX aluminum, Overdrive head tube, 12x197mm thru-axle, integrated KS40 kickstand mount, M10 trailer mount

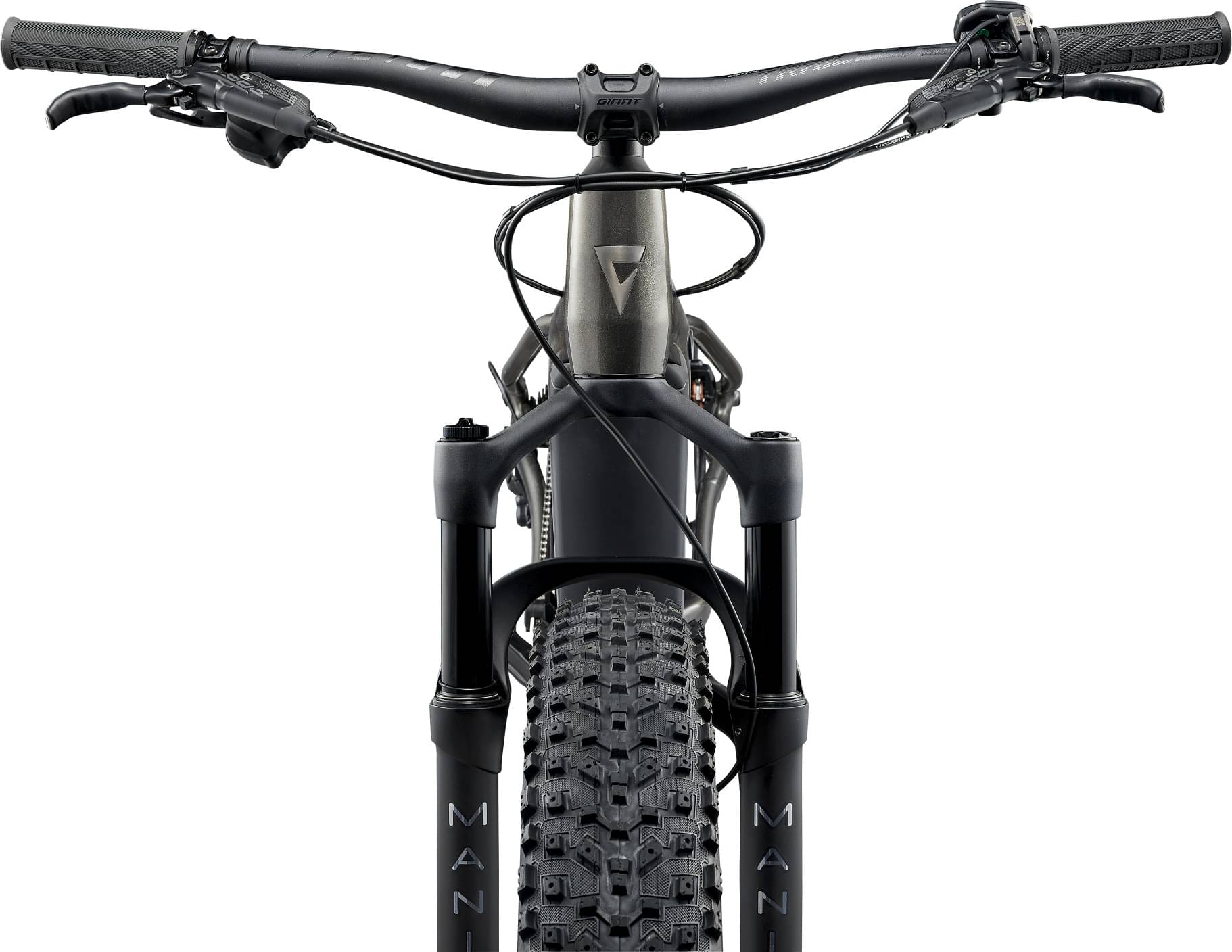

Suspension Fork

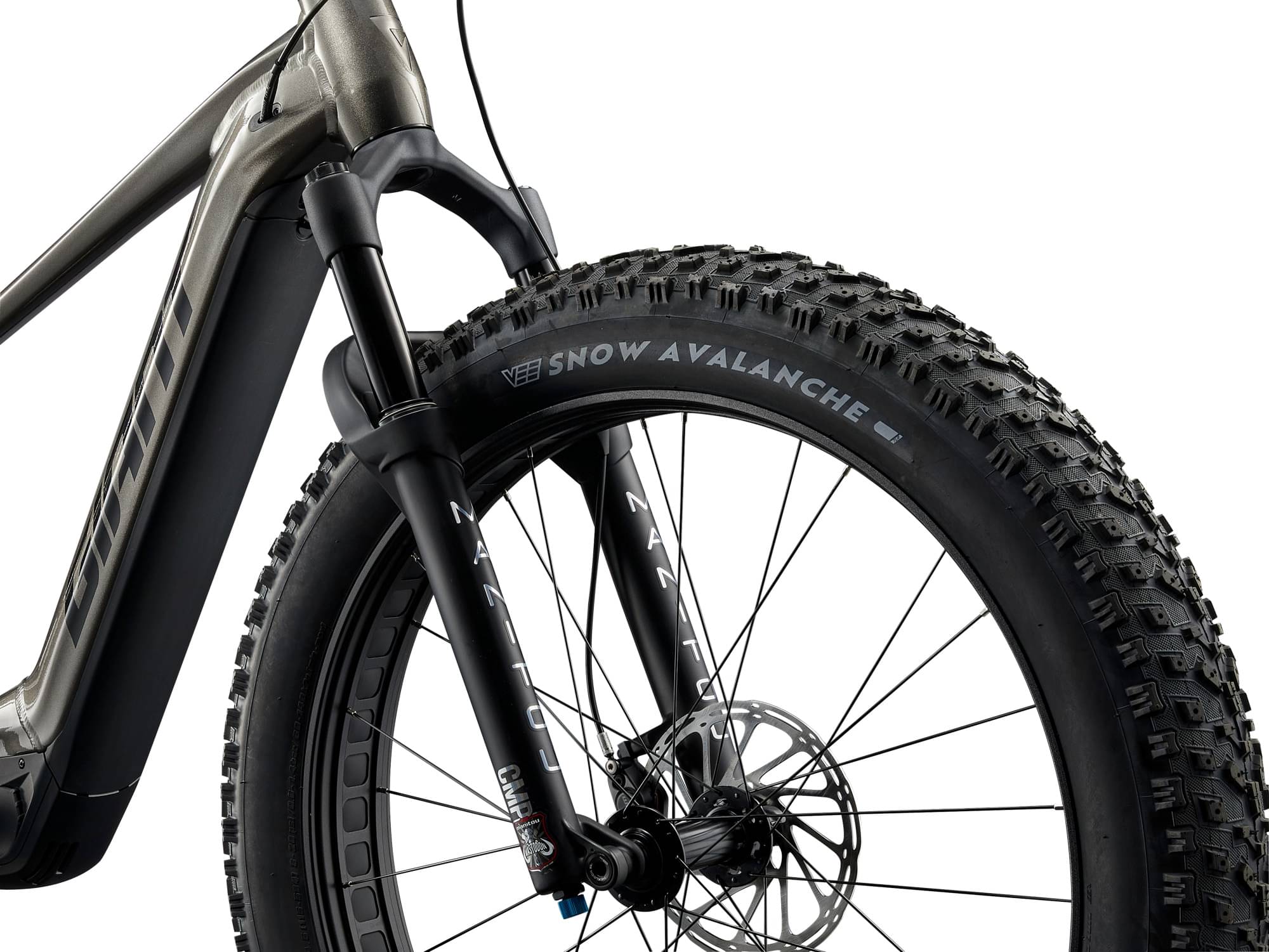

Manitou Mastodon Comp - Gen 3, 27.5", 100mm, Expert Air, Absolute+ compression
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano CUES RD-U6000, LinkGlide
Front Derailleur
co-moulded chain guide
Shift Levers
Shimano Deore, 1x10
Cassette
Shimano CUES LinkGlide, 10-speed, 11x48
Crank

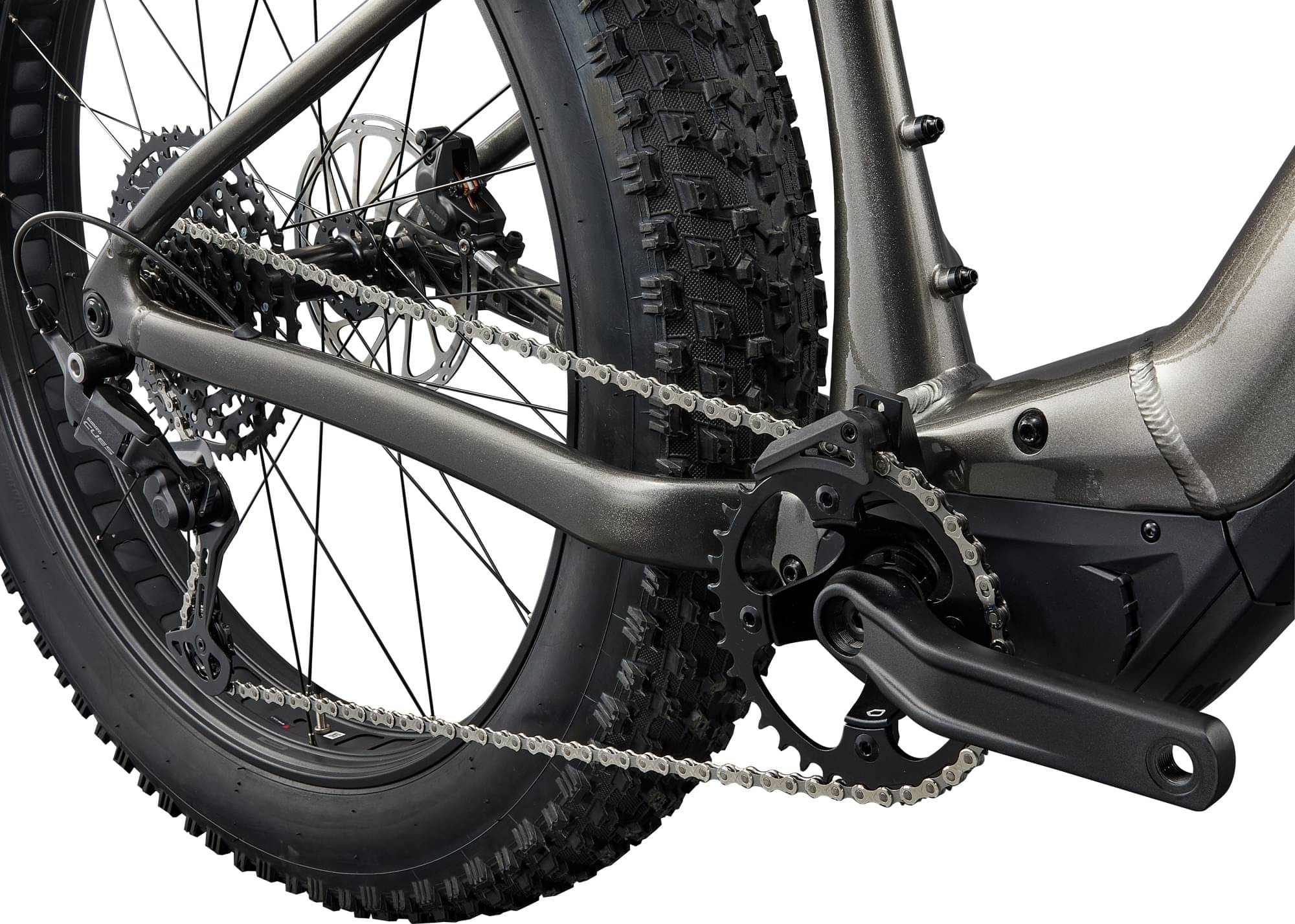

Forged alloy spider BCD 104, steel narrow/wide chainring 36T Forged aluminum crank arms
Bottom Bracket
N/A
Chain
KMC eGlide, e-bike optimized
Pedals
platform
Wheels
Front Hub
Giant alloy 6-bolt disc sealed bearing, 15x150mm [F] 12x197mm [R]
Rear Hub
Giant alloy 6-bolt disc sealed bearing, 15x150mm [F] 12x197mm [R]
Rims
Giant FT85C alloy, 27.5", 75mm
Spokes
stainless
Tires
Vee Tire Co. Avalanche, 27.5x4.5", SC compound, folding, tubeless, studdable, 120 TPI

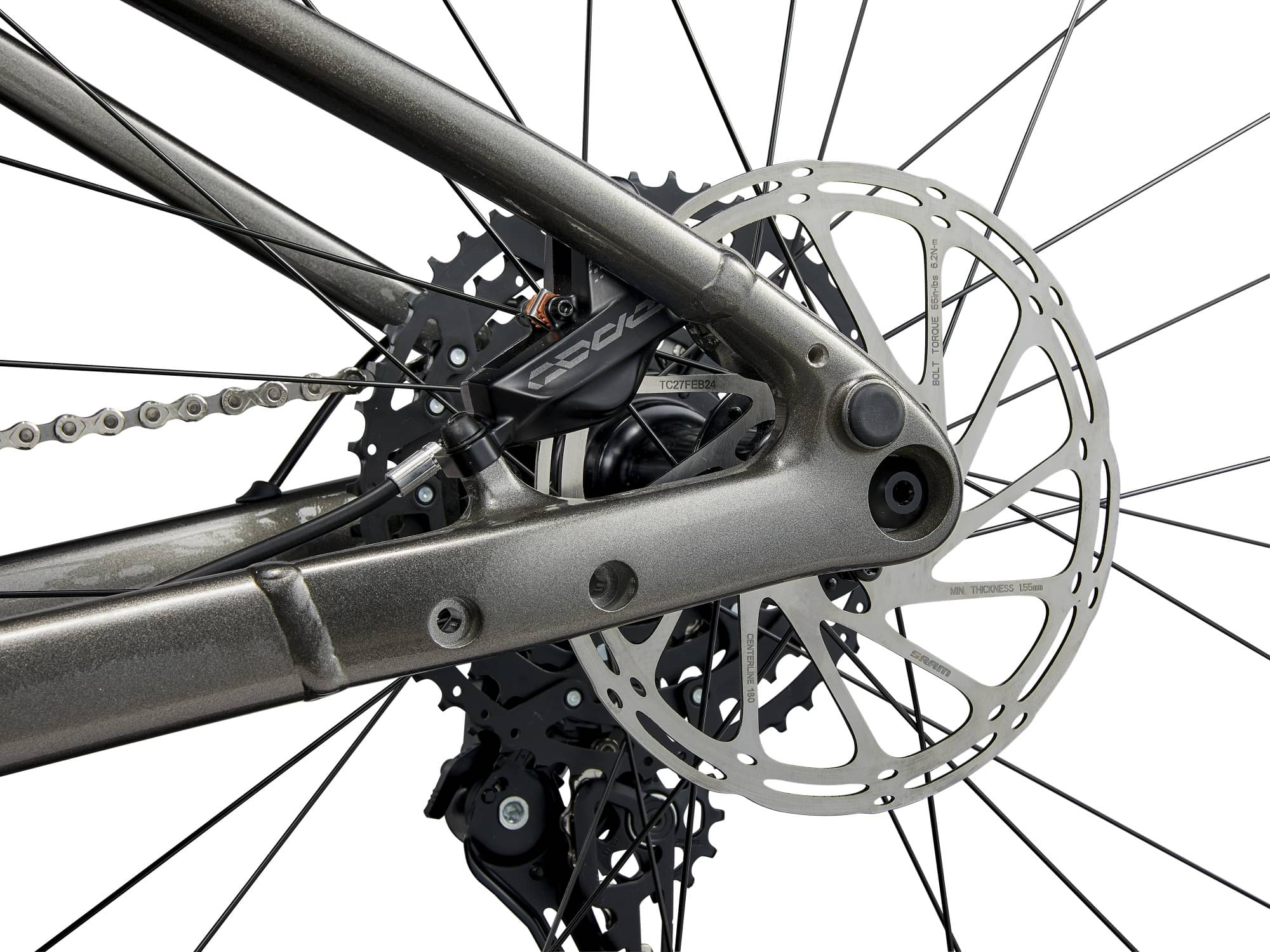

Brakes
Brakes
SRAM Code R, 4-piston hydraulic, SRAM Centerline rotors [F] 180mm, [R] 180mm

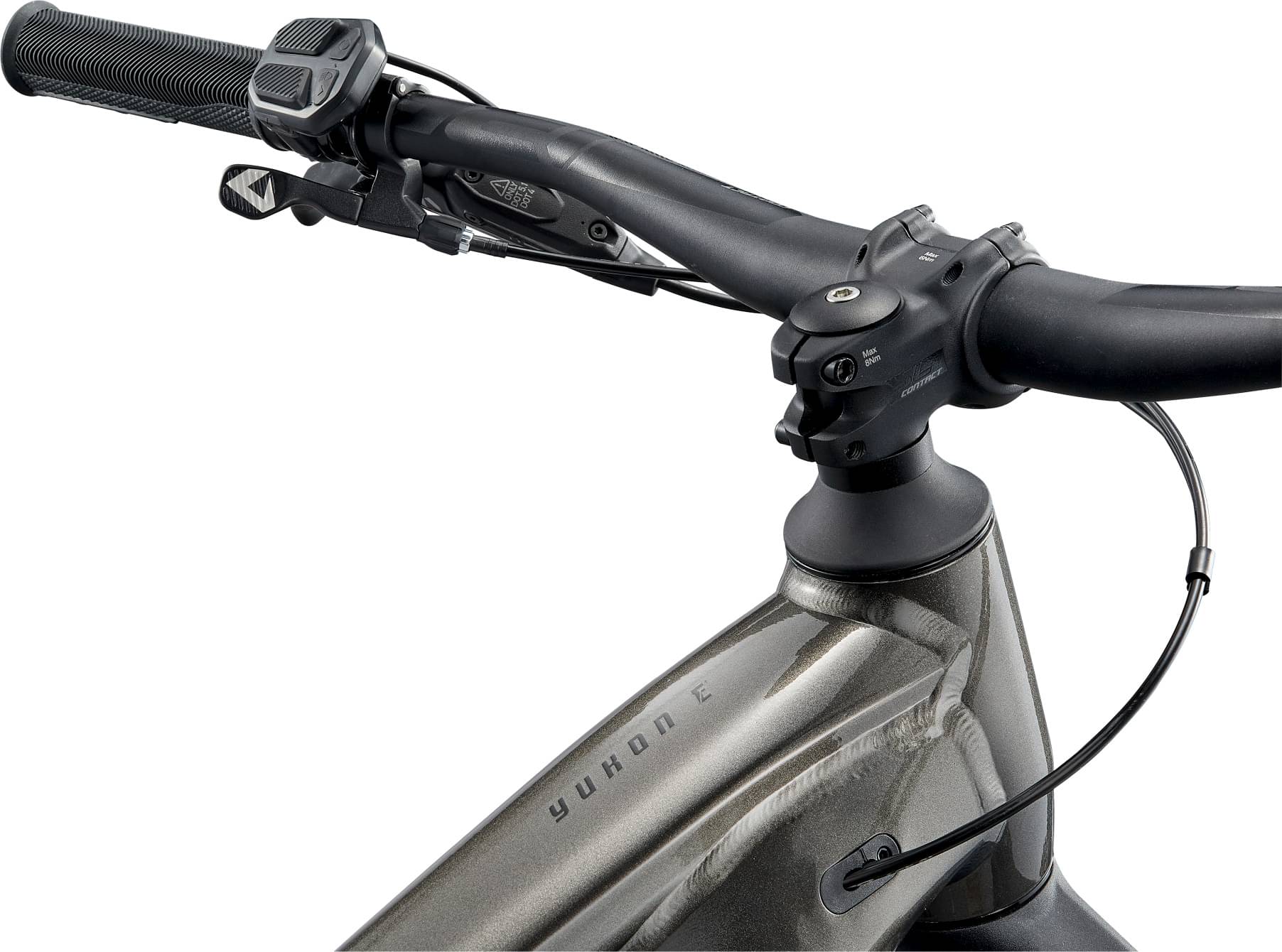

Cockpit
Stem
Giant Contact SL 35
Handlebar
Giant Contact TR35, 20mm rise, 35mm
Grips
Giant Tactal Pro single lock-on

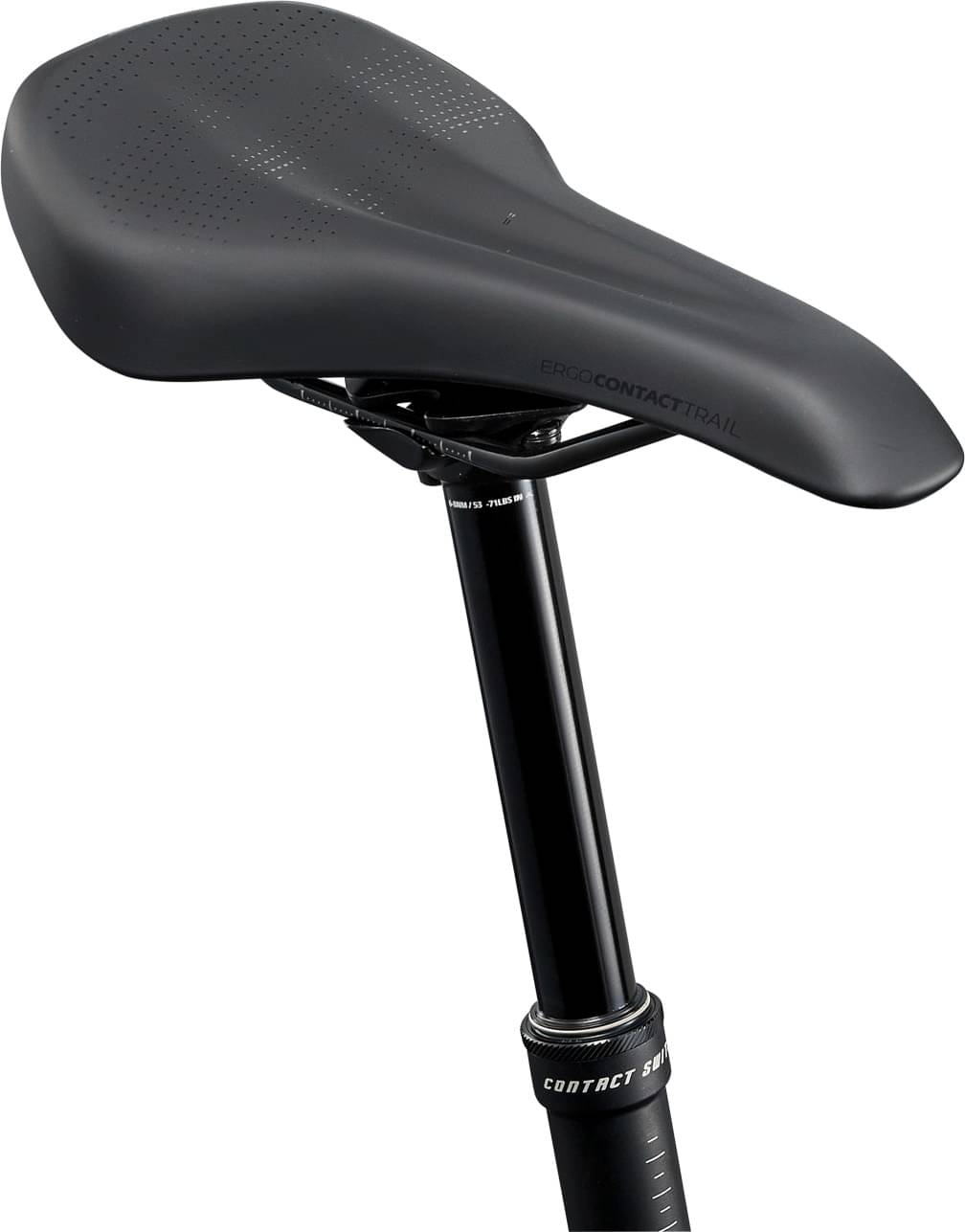

Seat
Saddle
Giant Ergo Contact Trail
Seatpost
Giant Contact Switch AT Adjustable dropper, remote [S: 110-140mm travel / 30.9 x 395mm, M: 140-170mm travel / 30.9 x 470mm, L/XL: 170-200mm travel / 30.9 x 530mm]
Motor & Battery

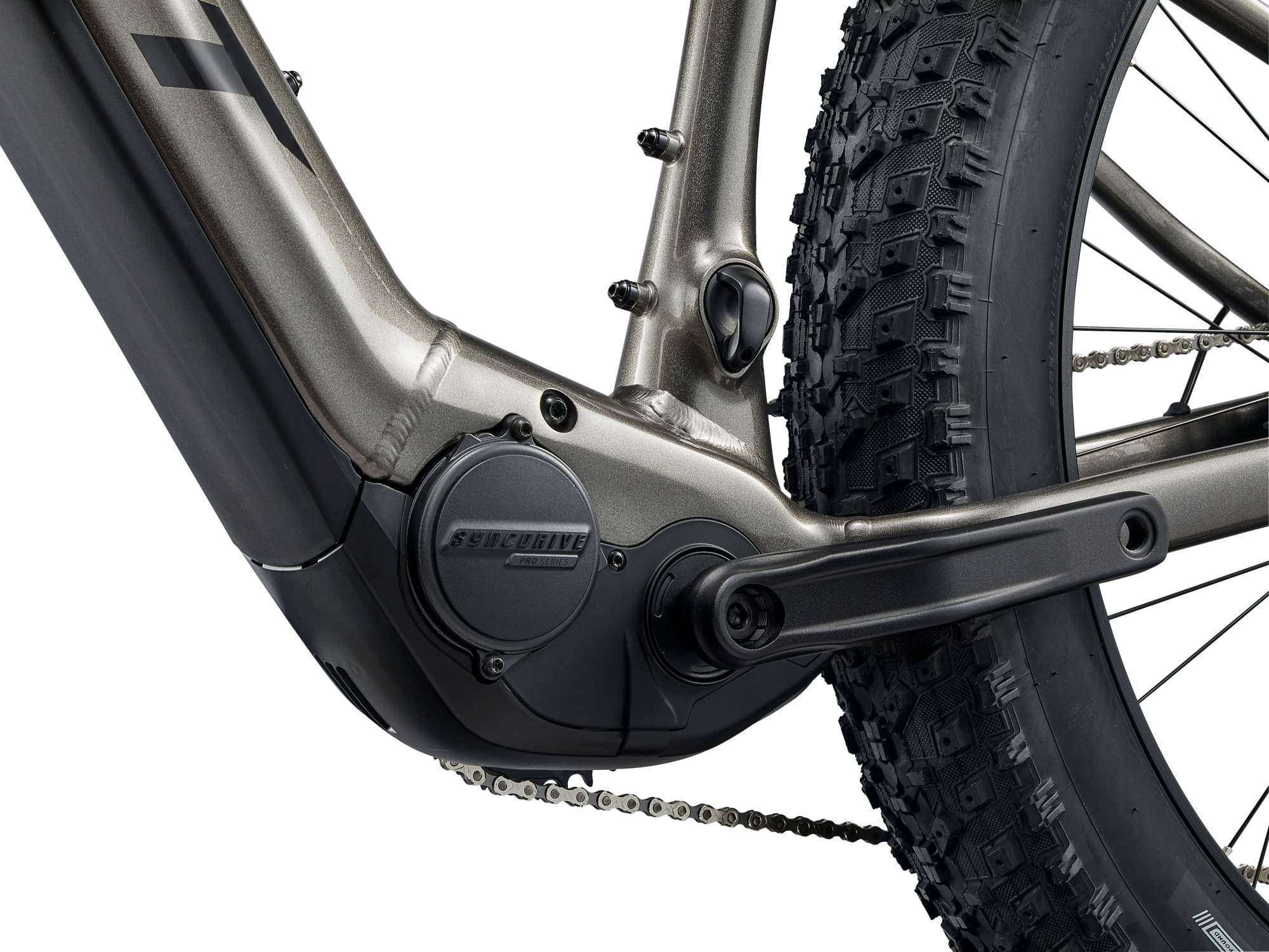

Motor
SyncDrive Pro2, 85Nm, powered by Yamaha
Battery
EnergyPak Smart 800Wh, alloy casing with highest safety standard (EN50604), CO2 neutral production, EnergyPak Plus 200Wh range extender compatible, low temperature protection mode
Remote
RideControl Ergo, 5 power levels plus Smart Assist auto mode
Charger
EnergyPak 4A smart charger compact
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.437 mm | 1.416 mm | 1.397 mm | 1.38 mm |
| Bottom Bracket Height | 290 mm | 290 mm | 290 mm | 290 mm |
| Front Center | 715 mm | 737 mm | 758 mm | 780 mm |
| Rake | 60 mm | 60 mm | 60 mm | 60 mm |
| Trail | 98.5 mm | 98.5 mm | 98.5 mm | 98.5 mm |
| Stack | 612 mm | 626 mm | 640 mm | 654 mm |
| Reach | 426 mm | 442 mm | 458 mm | 474 mm |
| Top Tube Length | 590 mm | 610 mm | 630 mm | 650 |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 380 mm | 420 mm | 460 mm | 500 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 110 mm | 120 mm | 135 mm | 150 mm |
| Chainstay Length | 490 mm | 490 mm | 490 mm | 490 mm |
| Wheelbase | 1198 mm | 1220 mm | 1241 mm | 1263 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 750 mm | 780 mm | 815 mm | 835 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 162 cm | 169 cm | 176 cm | 183 cm |
| Rider Max Height | 172 cm | 179 cm | 186 cm | 193 cm |
