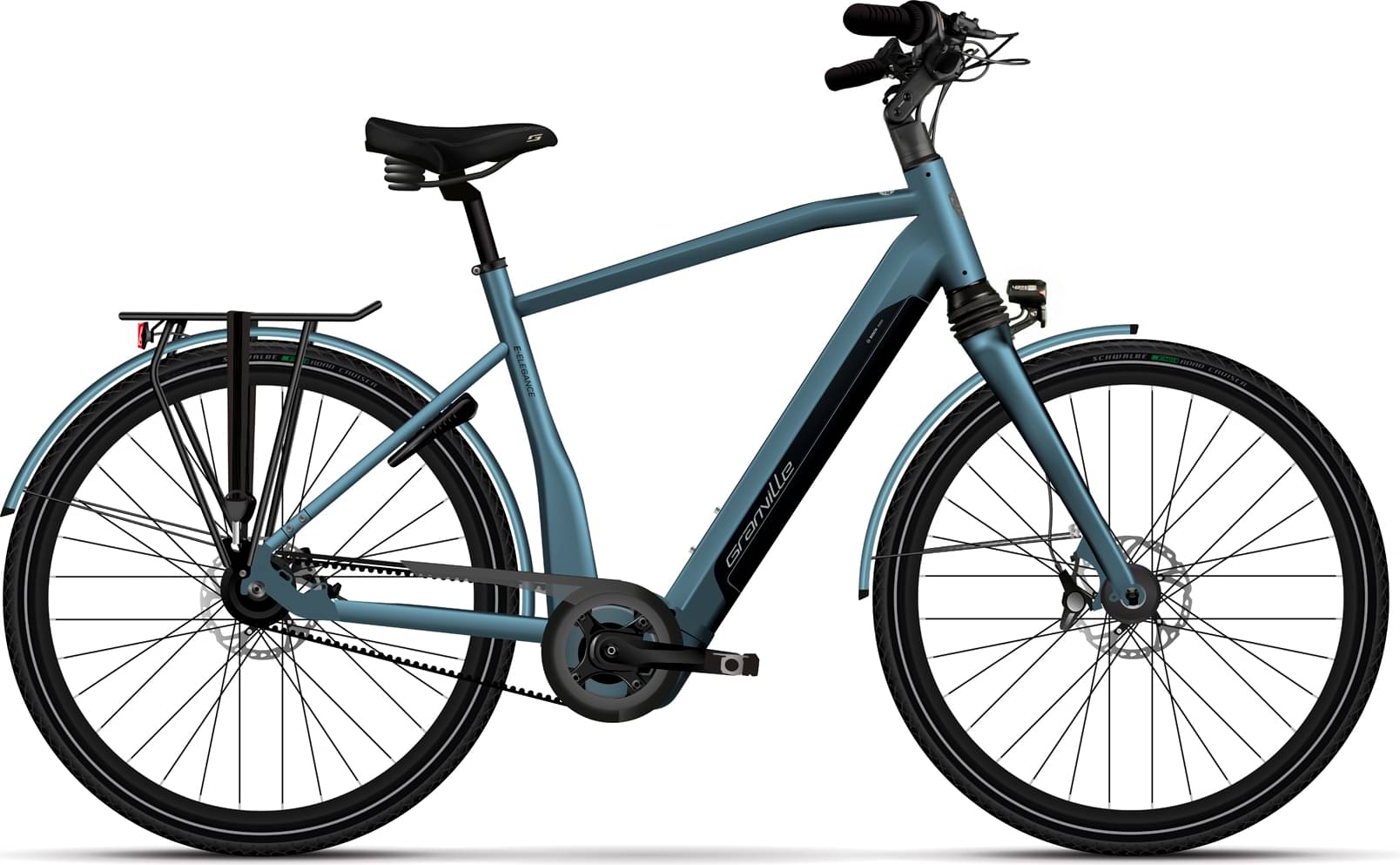

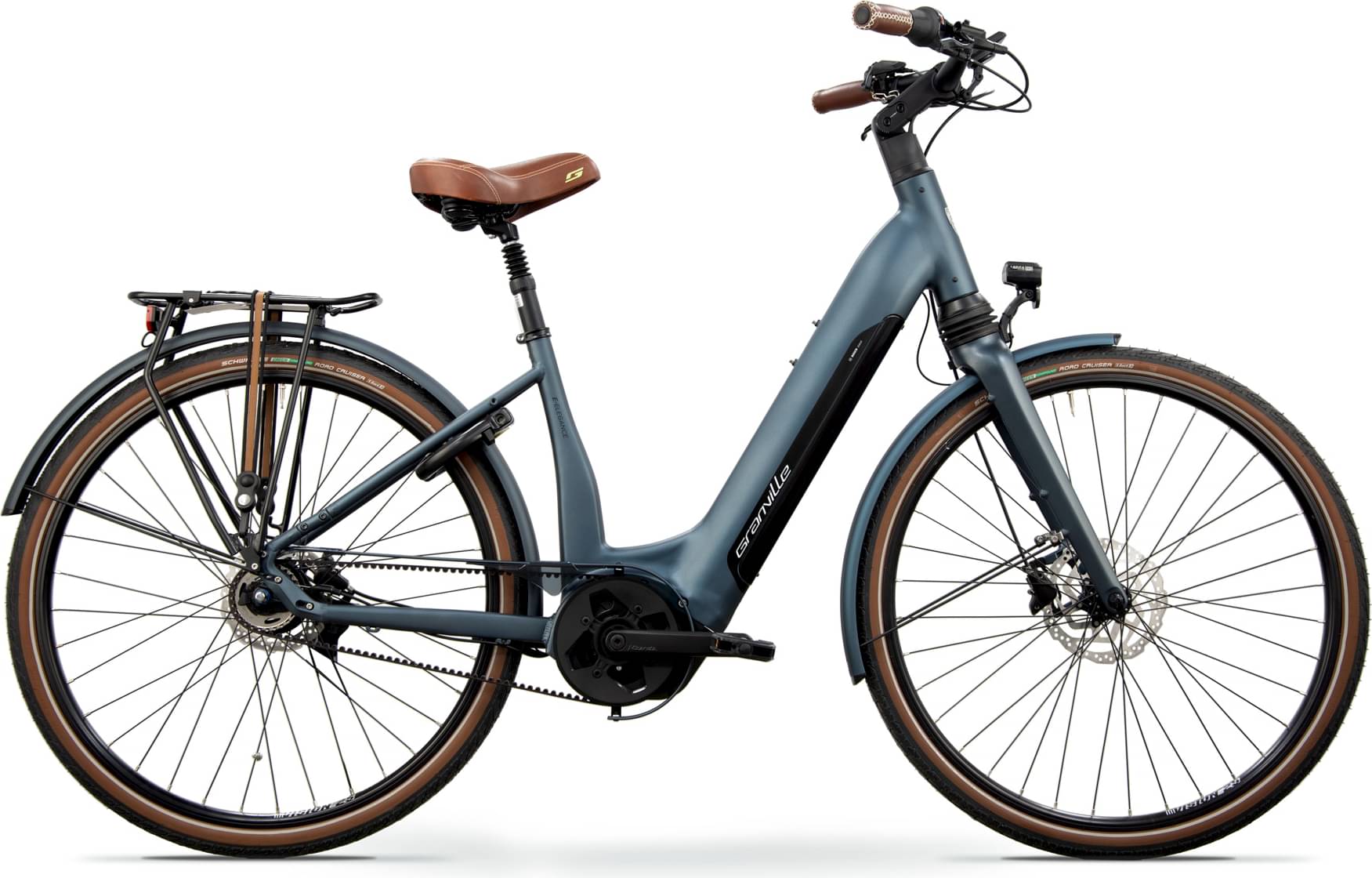

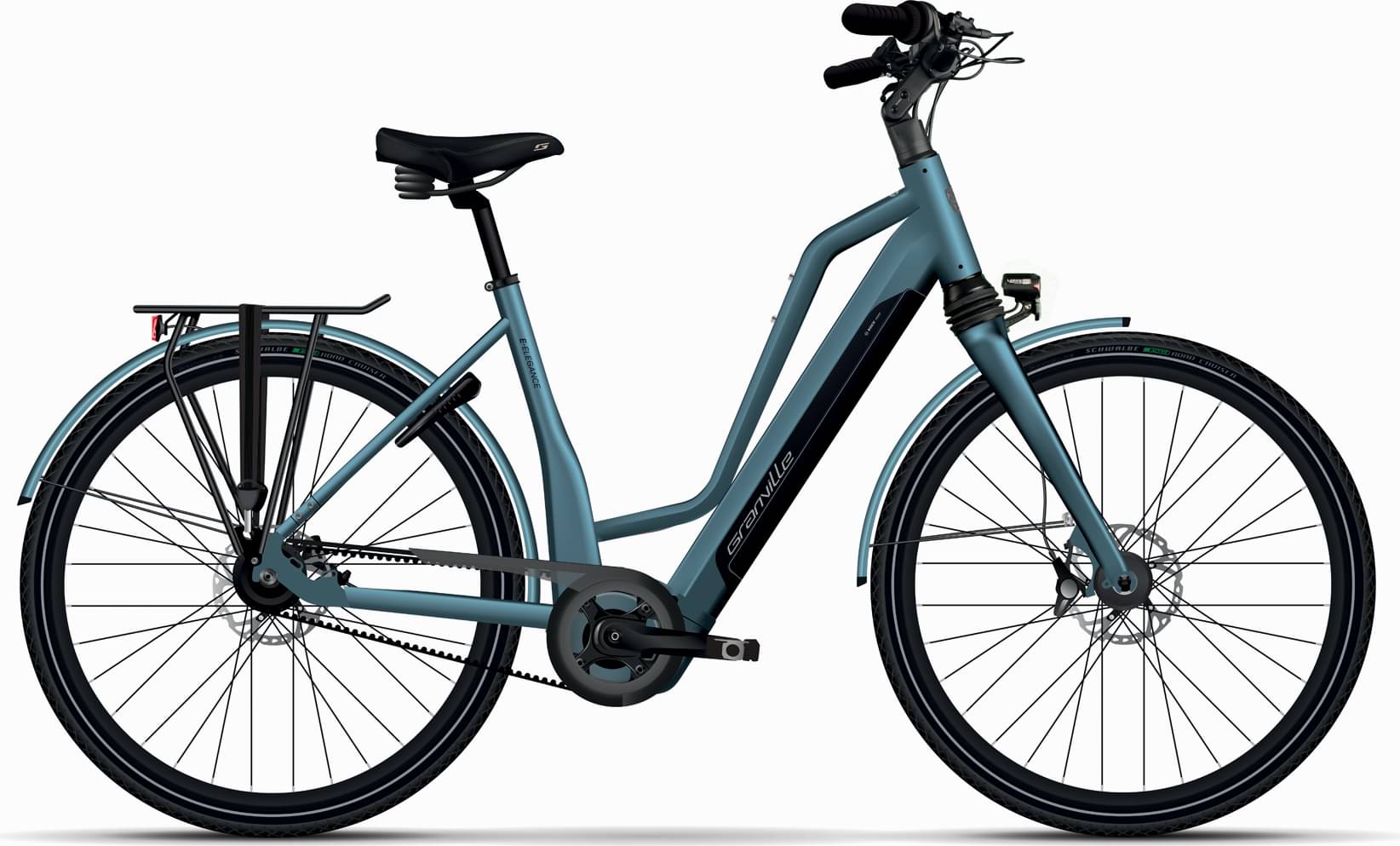

granville E-ELEGANCE NEX Belt 625Wh 2024
2024 E-bike
Estimate price |
5,001$
Weight | 28.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Suspension Rigid -
Motor Bosch 600W 75Nm mid-drive -
Battery BOSCH PowerTube – Integrated in DT -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
HL CH-109D
Wheels
Tires
47 mm, Schwalbe Road Cruiser
Brakes
Brakes
Shimano MT-200, Shimano Hydraulic disc brakes
Seat
Saddle
G-Access Comfort
Motor & Battery
Motor
BOSCH Performance Line – BES3 – 75Nm, Mid-motor
Battery
BOSCH PowerTube – Integrated in DT
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL | MD | LG | XL | MD | LG | XL |
|---|---|---|---|---|---|---|---|---|---|
| Top Tube Length | 625 mm | 625 mm | 625 mm | 625 mm | 625 mm | 625 mm | 633 mm | 633 mm | 633 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm | 520 mm | 560 mm | 600 mm | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 180 mm | 180 mm | 180 mm | 180 mm | 180 mm | 180 mm | 180 mm | 180 mm | 180 mm |
| Chainstay Length | 485 mm | 485 mm | 485 mm | 485 mm | 485 mm | 485 mm | 485 mm | 485 mm | 485 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 175 cm | 185 cm | 165 cm | 175 cm | 185 cm | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm | 177 cm | 188 cm | 198 cm | 177 cm | 188 cm | 198 cm |
