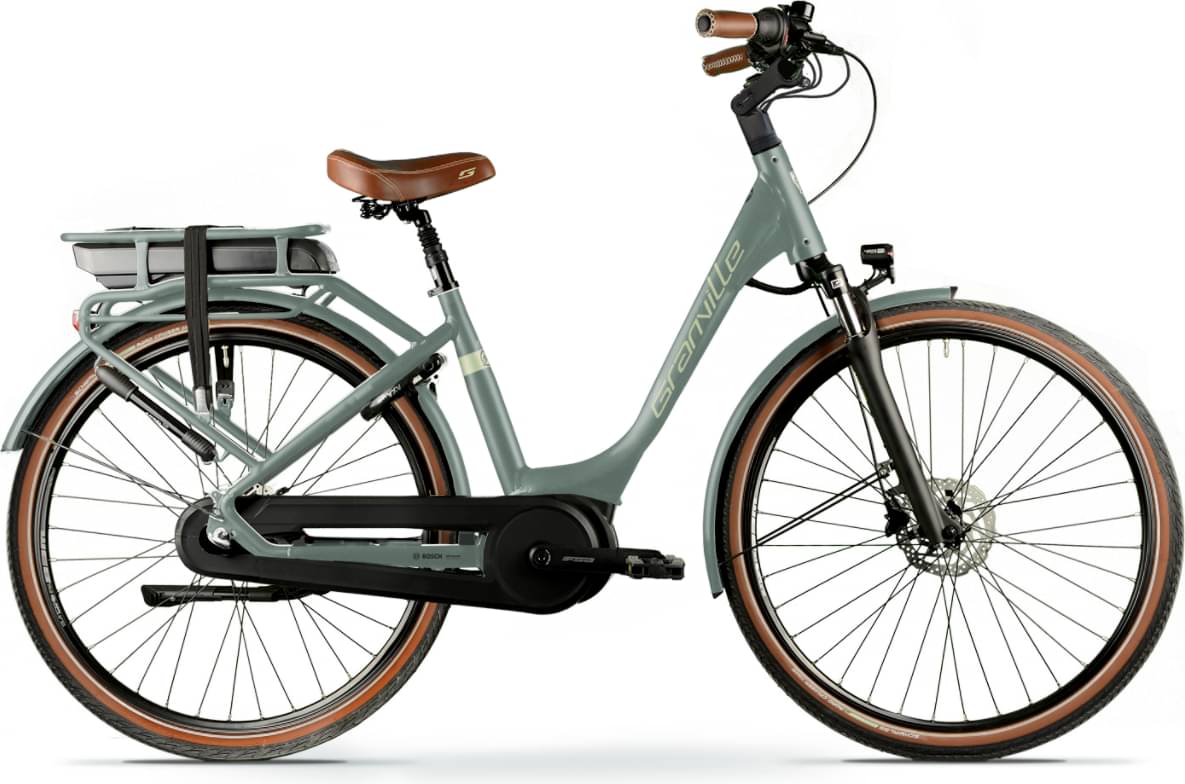

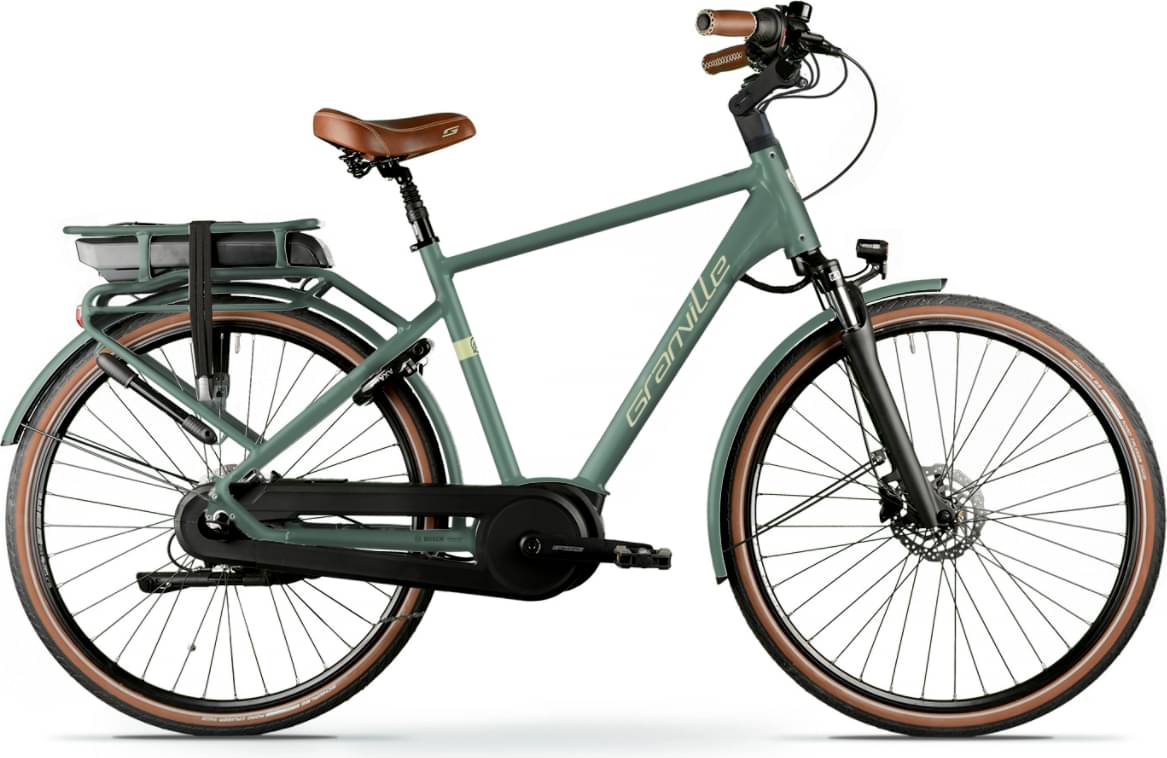

granville E-Exclusive NEX Active+ 500Wh 2024
2024 E-bike
Estimate price |
3,547$
Weight | 26.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Suntour NEX -
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 600W 50Nm mid-drive -
Battery BOSCH PowerPack – Racktype -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
MD
168cm - 180cm
XL
186cm - 199cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Suntour NEX
Drivetrain
Rear Derailleur
Shimano Nexus 7 speed
Wheels
Tires
Schwalbe, 47 mm, 50 mm
Brakes
Brakes
Shimano Hydraulic disc brakes
Seat
Saddle
G-Access Comfort
Motor & Battery
Motor
BOSCH Active Line Plus – 50Nm, Mid-motor
Battery
BOSCH PowerPack – Racktype
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | MD | XL | LG | XL |
|---|---|---|---|---|---|---|---|
| Top Tube Length | 570 mm | 580 mm | 590 mm | 600 mm | 610 mm | 610 mm | 620 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 420 mm | 450 mm | 500 mm | 520 mm | 550 mm | 560 mm | 600 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 180 mm | 180 mm | 180 mm | 180 mm | 180 mm | 180 mm | 180 mm |
| Chainstay Length | 480 mm | 480 mm | 480 mm | 480 mm | 480 mm | 480 mm | 480 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 168 cm | 186 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 180 cm | 199 cm | 189 cm | 199 cm |
