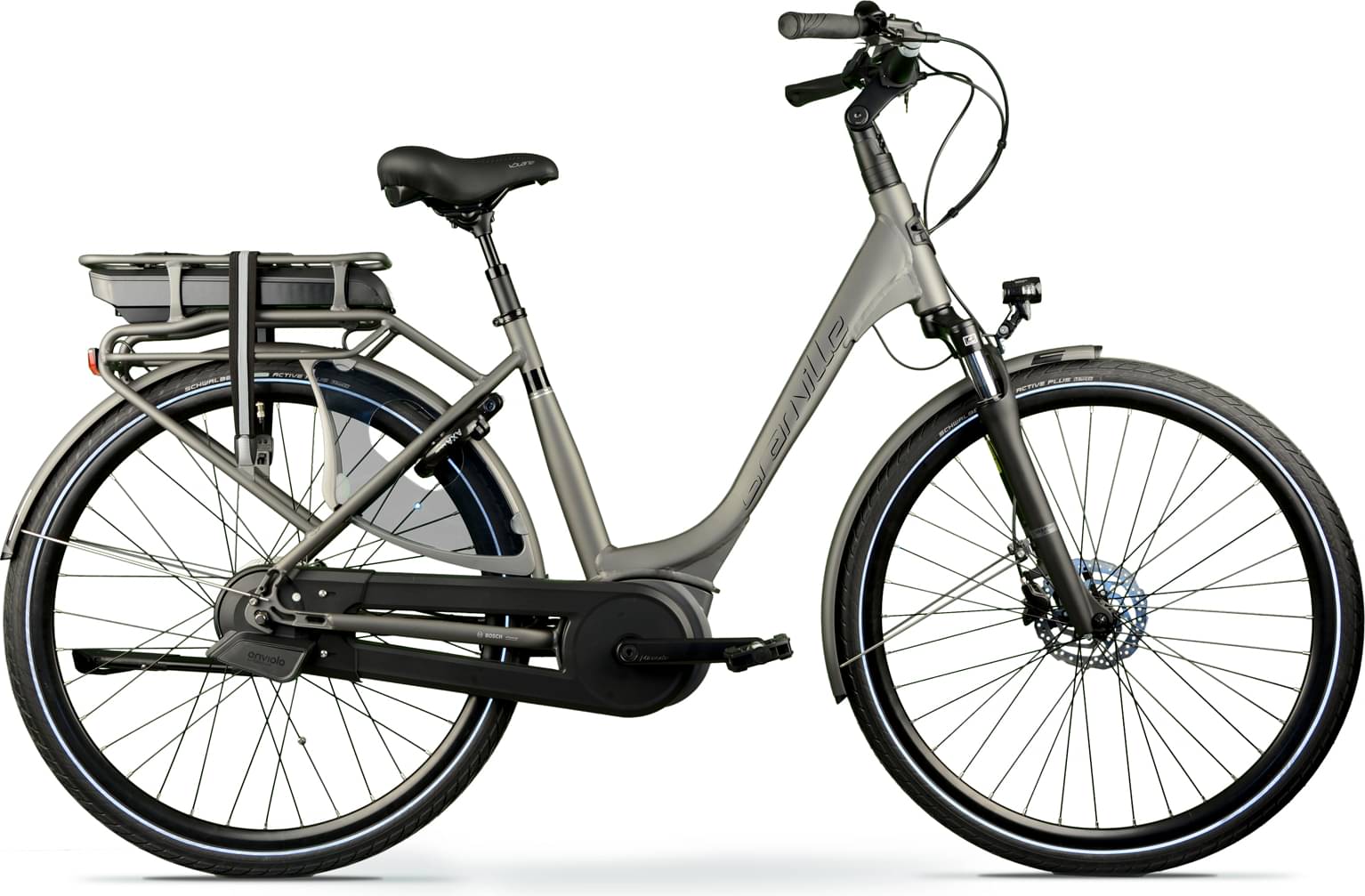

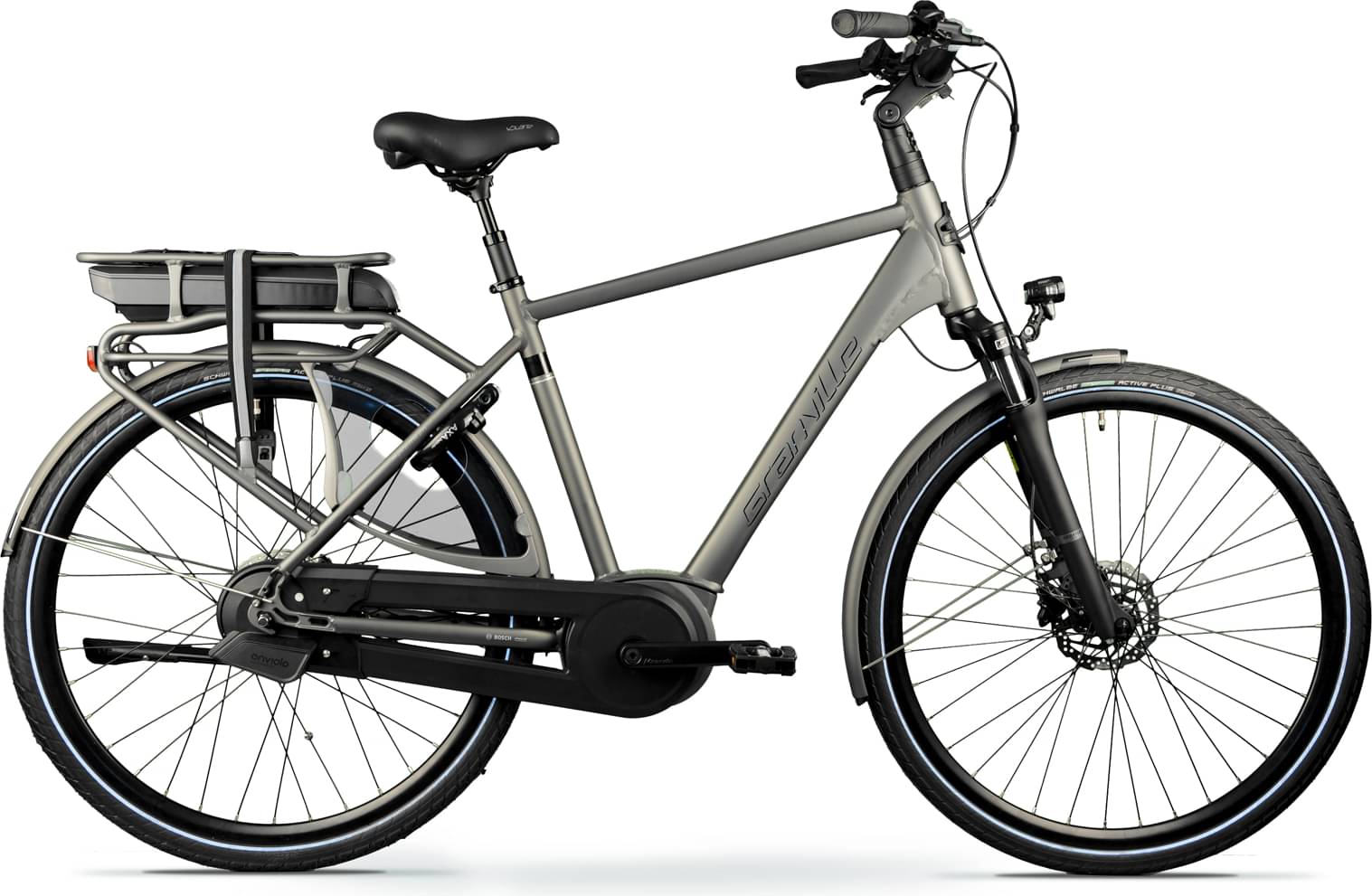

granville E-Premium Automatiq 2024
2024 E-bike
Estimate price |
3,780$
Weight | 26.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Suntour NEX -
Suspension Hardtail -
Motor Bosch 600W 50Nm mid-drive -
Battery BOSCH PowerPack – Racktype -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
MD
168cm - 180cm
XL
186cm - 199cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Suntour NEX
Drivetrain
Rear Derailleur
Enviolo AutomatiQ
Wheels
Tires
47 mm, Schwalbe Energizer Plus
Brakes
Brakes
Shimano Hydraulic disc brakes
Seat
Saddle
G-Access Comfort
Motor & Battery
Motor
BOSCH Active Line Plus – 50Nm, Mid-motor
Battery
BOSCH PowerPack – Racktype
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | MD | XL | LG | XL |
|---|---|---|---|---|---|---|---|
| Top Tube Length | 570 mm | 580 mm | 590 mm | 600 mm | 610 mm | 610 mm | 620 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 420 mm | 450 mm | 500 mm | 520 mm | 550 mm | 560 mm | 600 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 180 mm | 180 mm | 180 mm | 180 mm | 180 mm | 180 mm | 180 mm |
| Chainstay Length | 480 mm | 480 mm | 480 mm | 480 mm | 480 mm | 480 mm | 480 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 168 cm | 186 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 180 cm | 199 cm | 189 cm | 199 cm |
