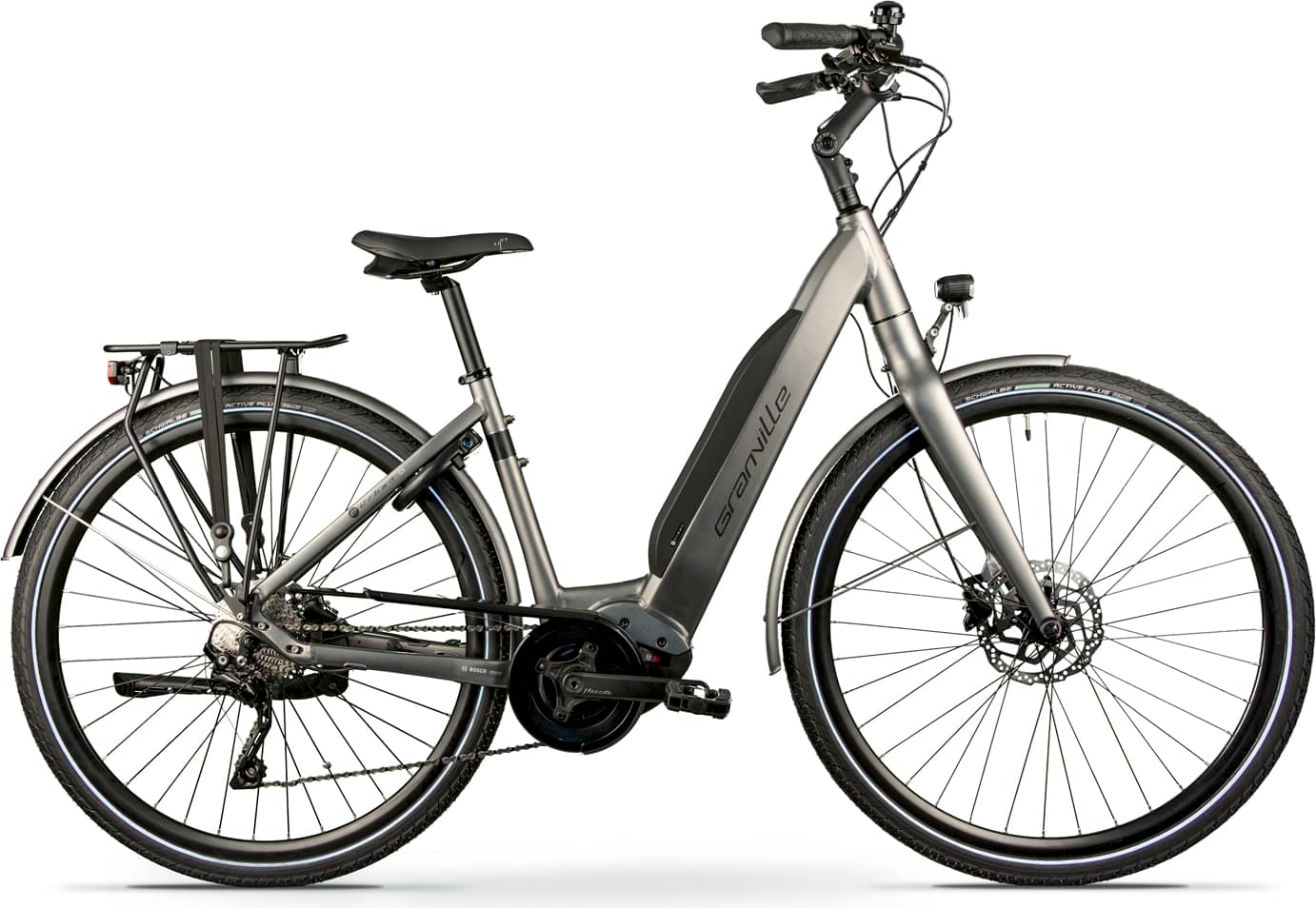

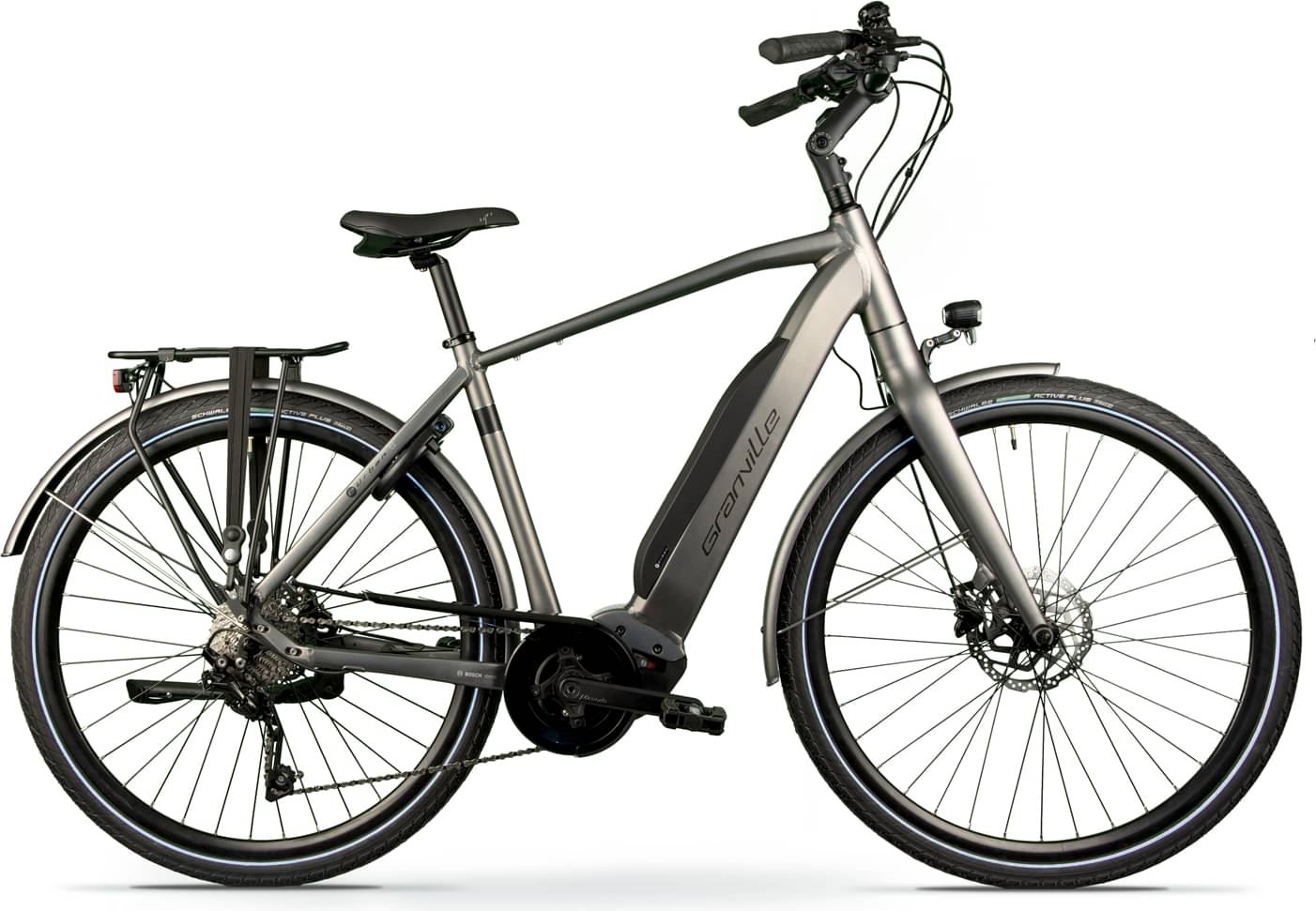

granville E-Urban CX 2024
2024 E-bike
Estimate price |
3,489$
Weight | 26.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Deore -
Suspension Rigid -
Motor Bosch 600W 75Nm mid-drive -
Battery BOSCH PowerPack – Semi Integrated in DT -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Rigid
Drivetrain
Rear Derailleur
Shimano Deore 10 speed
Wheels
Tires
47 mm, Schwalbe Energizer Plus
Brakes
Brakes
Shimano Hydraulic disc brakes
Seat
Saddle
Selle Royal – Lift
Motor & Battery
Motor
BOSCH Performance Line CX – 75Nm, Mid-motor
Battery
BOSCH PowerPack – Semi Integrated in DT
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | SM | MD | LG | XL | LG | XL |
|---|---|---|---|---|---|---|---|
| Top Tube Length | 585 mm | 585 mm | 595 mm | 600 mm | 615 mm | 615 mm | 635 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 480 mm | 520 mm | 500 mm | 550 mm | 560 mm | 600 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 150 mm | 160 mm | 170 mm | 165 mm | 180 mm | 180 mm | 190 mm |
| Chainstay Length | 495 mm | 495 mm | 495 mm | 495 mm | 495 mm | 495 mm | 495 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
