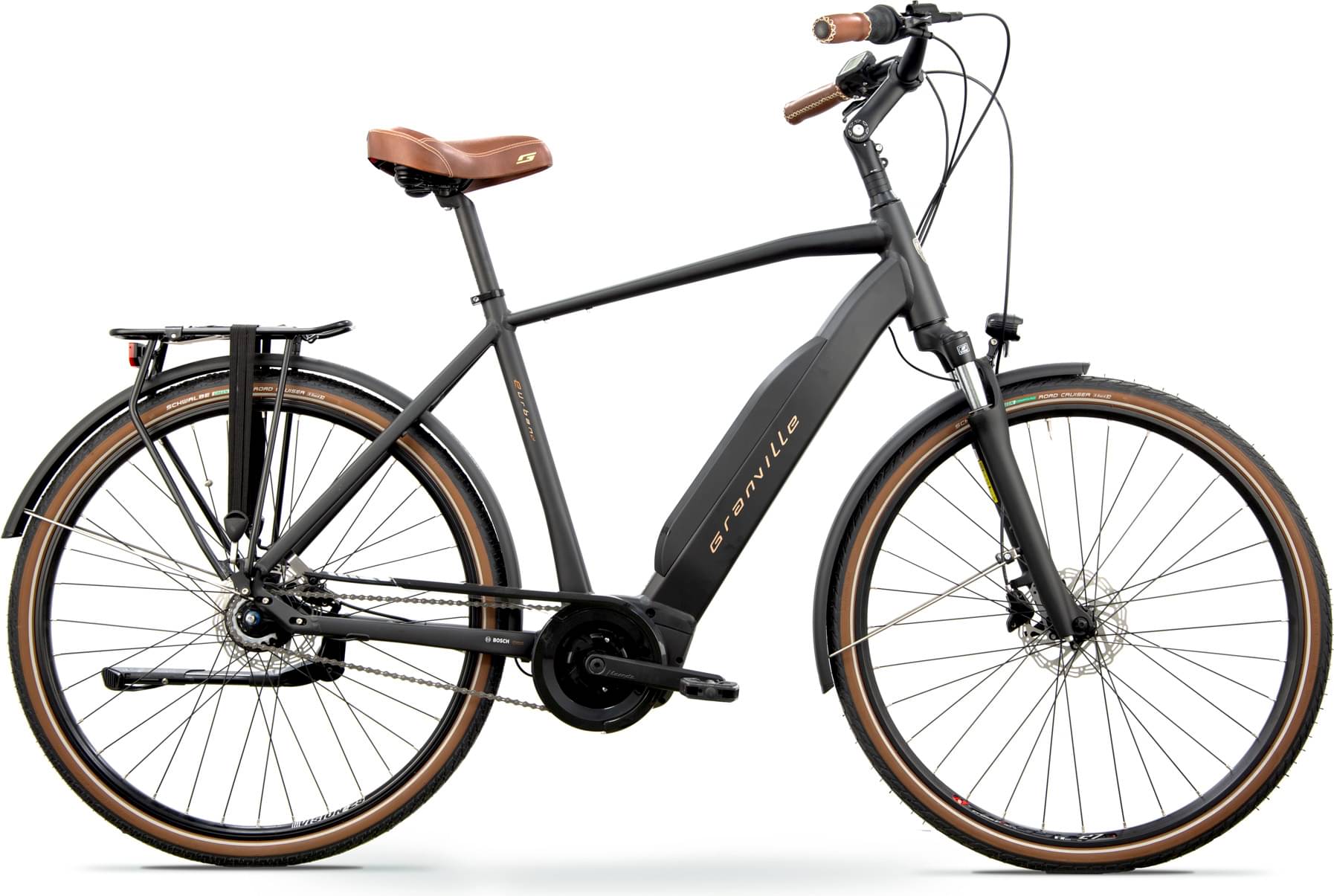

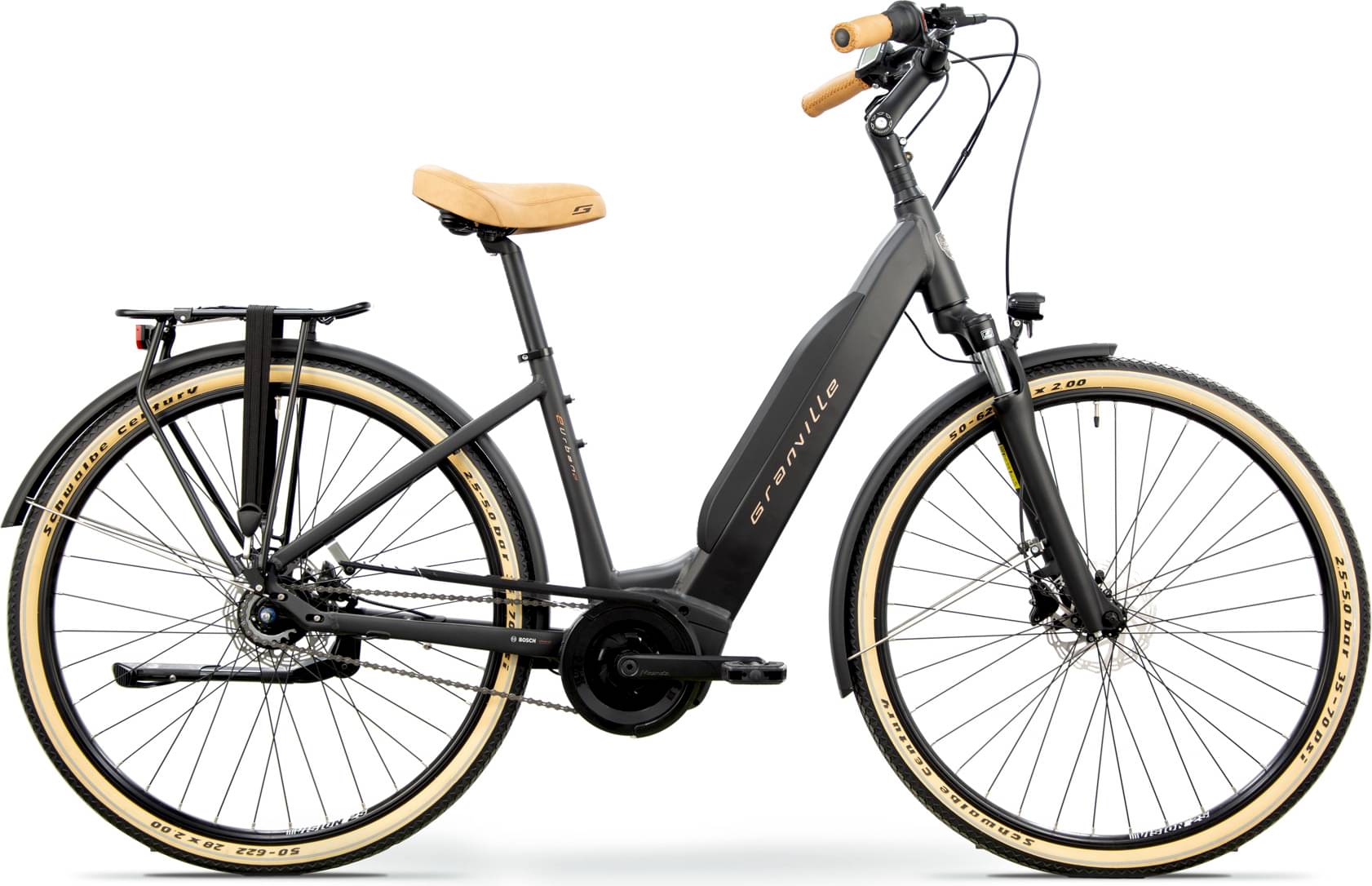

granville E-URBAN N2 2024
2024 E-bike
Estimate price |
3,140$
Weight | 26.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 600W 50Nm mid-drive -
Battery BOSCH PowerPack – Semi Integrated in DT -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
CH-187 E-bike approved suspension fork
Drivetrain
Rear Derailleur
Shimano Nexus 7 speed
Wheels
Tires
47 mm, Schwalbe Road Cruiser
Brakes
Brakes
Shimano Hydraulic disc brakes
Seat
Saddle
G-Access Comfort
Motor & Battery
Motor
BOSCH Active Line Plus – 50Nm, Mid-motor
Battery
BOSCH PowerPack – Semi Integrated in DT
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | SM | MD | LG | XL | LG | XL |
|---|---|---|---|---|---|---|---|
| Top Tube Length | 585 mm | 585 mm | 595 mm | 600 mm | 615 mm | 615 mm | 635 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 480 mm | 520 mm | 500 mm | 550 mm | 560 mm | 600 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 150 mm | 160 mm | 170 mm | 165 mm | 180 mm | 180 mm | 190 mm |
| Chainstay Length | 495 mm | 495 mm | 495 mm | 495 mm | 495 mm | 495 mm | 495 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
