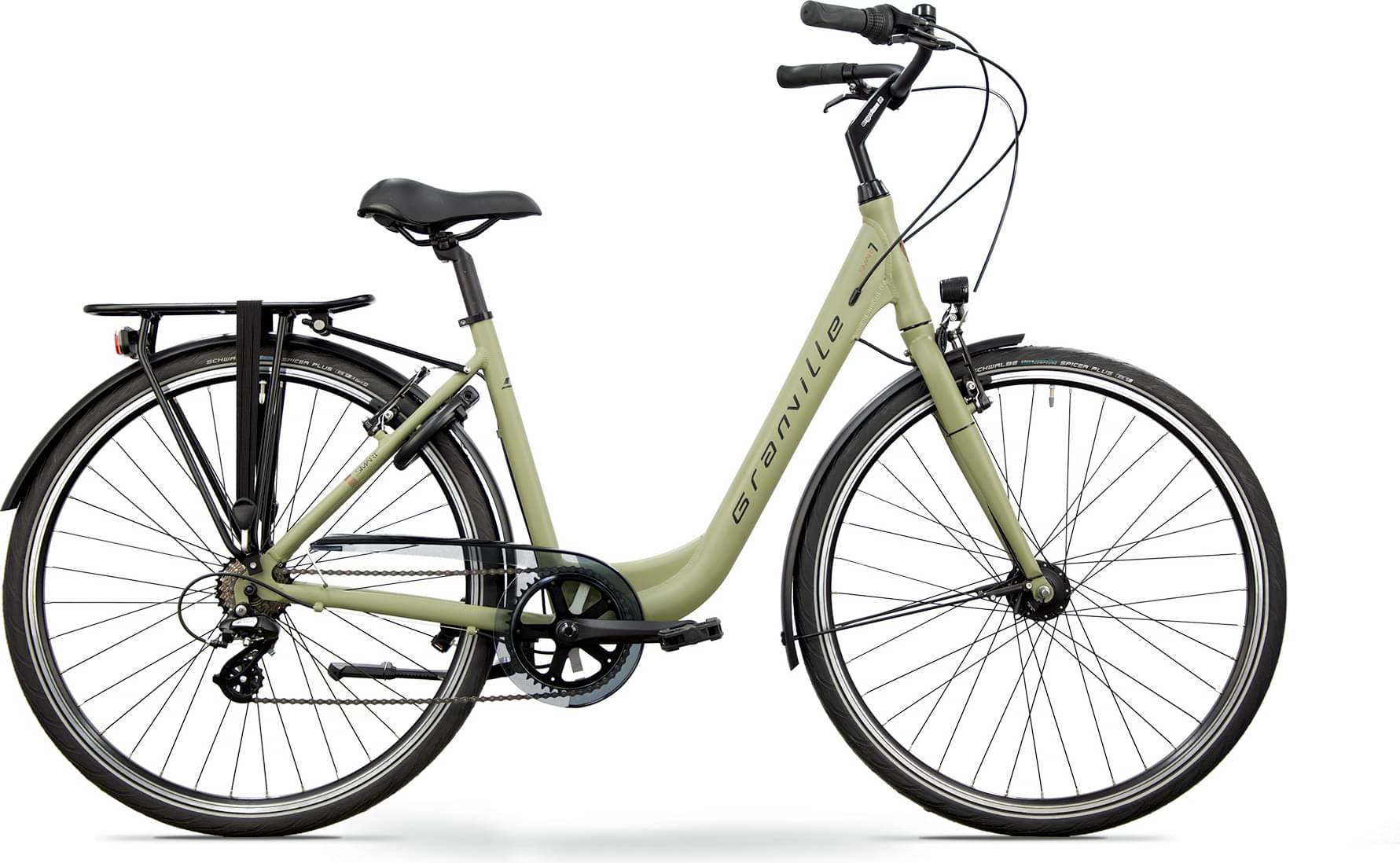

granville Smart 7 WAVE 2024
2024 Urban
Estimate price |
687$
Weight | 16.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Tourney -
Suspension Rigid -
Brakes Rim
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
SM
158cm - 171cm
XL
186cm - 199cm
MD
168cm - 180cm
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
LG
178cm - 189cm
XL
186cm - 199cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Lady Smart, Man Smart, Wave/Unisex Smart
Suspension Fork
Rigid
Drivetrain
Rear Derailleur
Shimano Tourney SL-RV200-7R Revoshift Shifter – 7-speed
Wheels
Tires
Kenda K935, 42mm
Brakes
Brakes
Promax TX115C
Seat
Saddle
San Marco Mosel (Man) / Donau (Lady)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | SM | XL | MD | SM | MD | LG | LG | XL | XL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Top Tube Length | 540 mm | 560 mm | 580 mm | 585 mm | 590 mm | 590 mm | 594 mm | 600 mm | 600 mm | 604 mm | 611 mm | 619 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 420 mm | 470 mm | 510 mm | 480 mm | 550 mm | 520 mm | 420 mm | 470 mm | 560 mm | 510 mm | 550 mm | 600 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 180 mm | 190 mm | 200 mm | 175 mm | 210 mm | 175 mm | 190 mm | 190 mm | 175 mm | 210 mm | 210 mm | 205 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm | 450 mm | 450 mm | 450 mm | 450 mm | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 158 cm | 186 cm | 168 cm | 158 cm | 168 cm | 178 cm | 178 cm | 186 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 171 cm | 199 cm | 180 cm | 171 cm | 180 cm | 189 cm | 189 cm | 199 cm | 199 cm |
