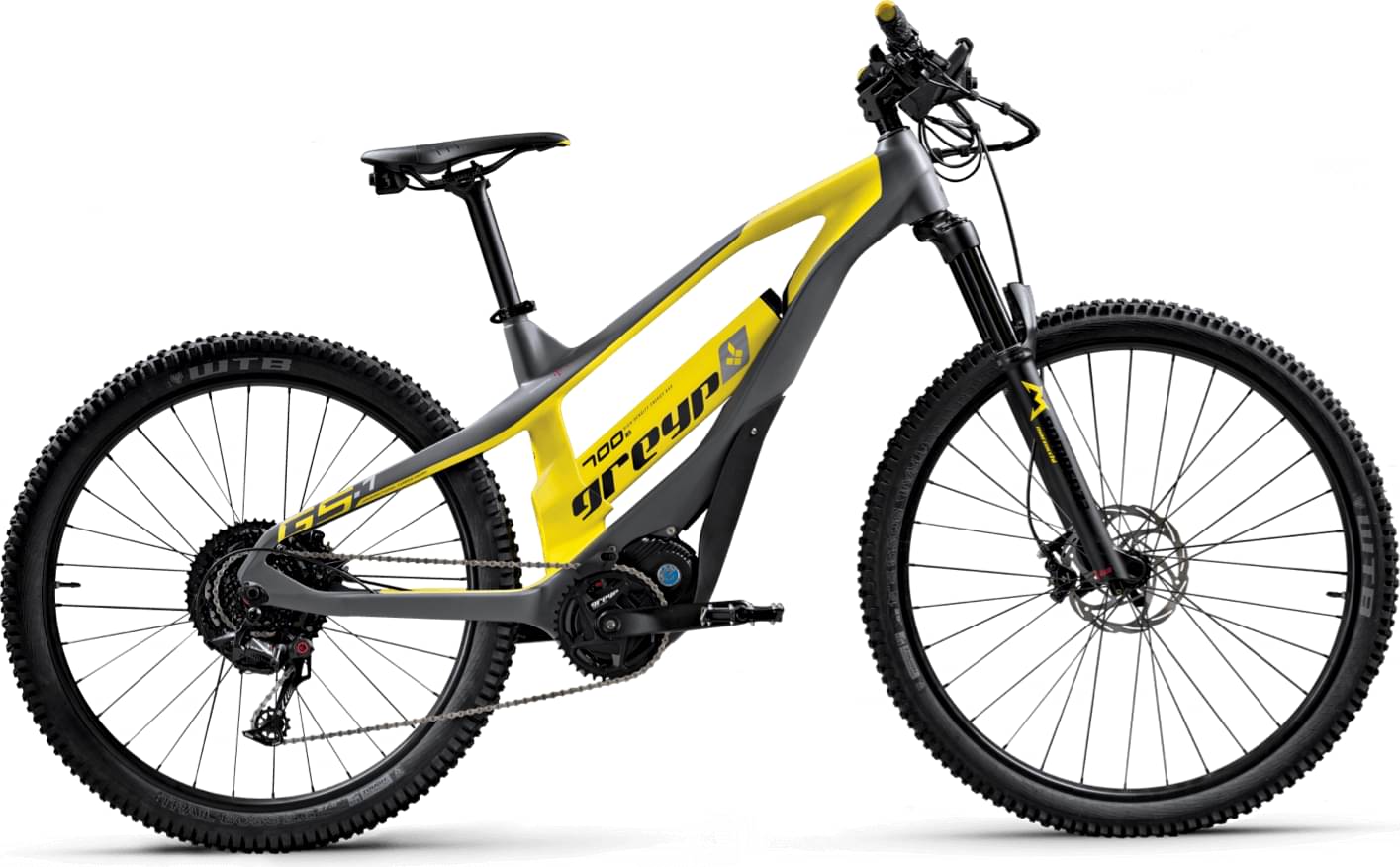

greyp G5.1 2024
2024 E-bike
Estimate price |
5,160$
Weight | 24.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 140mm -
Fork Marzocchi Bomber Z2
-
Suspension Hardtail -
Motor 250W mid-drive -
Battery Greyp custom, 36V, 700 Wh (Li-ion), OTA updatable -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 173cm
MD
171cm - 186cm
LG
184cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Greyp G5, full T700 carbon, hardtail
Suspension Fork
Marzocchi Bomber Z2, 29" Air, RAIL, 2-Position Lever, travel 140mm
Rear Shock
-
Drivetrain
Rear Derailleur
Box Components Two-E 9-speed
Shift Levers
Box Components Two-E 9-speed
Cassette
Box Components Two-E 11-50T
Crank
Greyp custom, 175mm, ISIS, Alloy forged
Chain
Box Components Two-E
Pedals
Greyp custom flat pedal, die-cast Alloy & Cr-Mo axle
Wheels
Rims
Front: WTB SpeedTerra, 29" Boost, Rear: WTB SpeedTerra, 27.5" Boost, HG freehub
Tires
Front: WTB Vigilante, 29" x 2.60", Light/High Grip, Rear: WTB Trail Boss G2, 27.5" x 2.60", Light/Fast Rolling
Brakes
Brakes
Formula Cura (2 pistons, electronic brake sensor)
Cockpit
Stem
Greyp custom stem, 52mm, with integrated CIM (Central Intelligence Module)
Handlebar
Greyp custom, width 770mm, 38mm rise
Headset
FSA Gravity SX pro
Seat
Saddle
Fi'zi:k Tundra M5
Seatpost
Rigid seatpost, 31.6mm
Motor & Battery
Motor
MPF 6.0C, custom firmware, OTA updatable, 250W, 25km/h
Battery
Greyp custom, 36V, 700 Wh (Li-ion), OTA updatable
Charger
Greyp custom smart charger, 36V, 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.758 mm | 1.671 mm | 1.63 mm |
| Bottom Bracket Height | 300 mm | 300 mm | 300 mm |
| Front Center | 676 mm | 709 mm | 729 mm |
| Rake | 48 mm | 49 mm | 49 mm |
| Trail | 107 mm | 106 mm | 106 mm |
| Stack | 647 mm | 660 mm | 670 mm |
| Reach | 368 mm | 395 mm | 411 mm |
| Top Tube Length | 569 mm | 600 mm | 620 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 105 mm | 120 mm | 130 mm |
| Chainstay Length | 478 mm | 478 mm | 478 mm |
| Wheelbase | 1150 mm | 1183 mm | 1203 mm |
| Bottom Bracket Drop | 49 mm | 49 mm | 49 mm |
| Standover Height | 630 mm | 682 mm | 730 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 171 cm | 184 cm |
| Rider Max Height | 173 cm | 186 cm | 188 cm |
