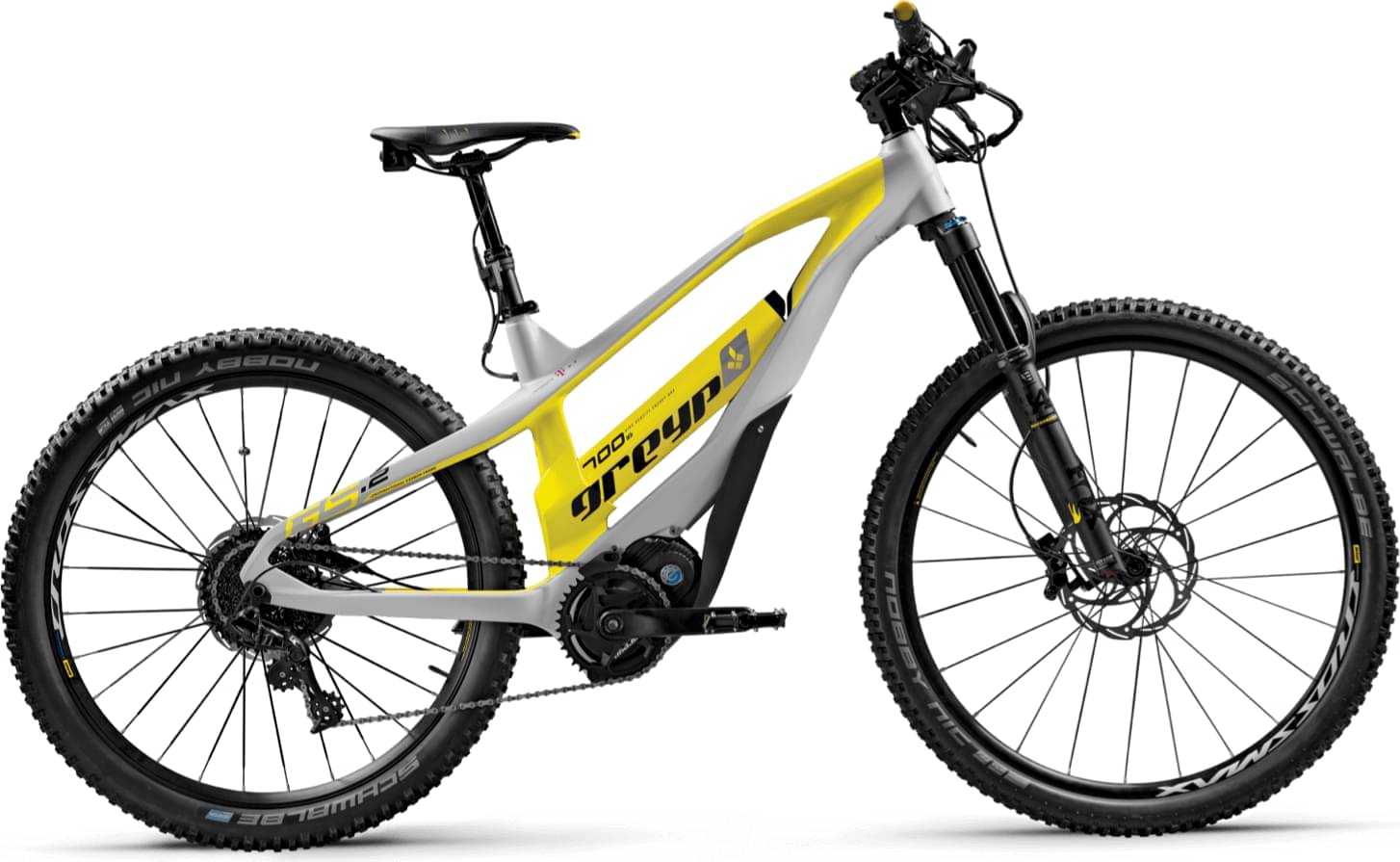

greyp G5.2 2024
2024 E-bike
Estimate price |
6,307$
Weight | 24 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 140mm -
Fork Fox Performance Float 34
-
Groupset GX -
Suspension Hardtail -
Motor 250W mid-drive -
Battery Greyp custom, 36V, 700 Wh (Li-ion), OTA updatable -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 173cm
MD
171cm - 186cm
LG
184cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Greyp G5, full T700 carbon, hardtail
Suspension Fork
FOX Float 34 Performance, 29" Air, GRIP, 3-Position Lever, travel 140mm
Rear Shock
-
Drivetrain
Rear Derailleur
SRAM GX 11-speed
Shift Levers
SRAM GX-e Single Click 11-speed
Cassette
SRAM XG-1150 11-42T
Crank
Greyp custom, 175mm, ISIS, Alloy forged
Chain
SRAM PC-1130
Pedals
Greyp custom flat pedal, die-cast Alloy & Cr-Mo axle
Wheels
Rims
Front: Mavic E-Crossmax, 29" Boost, Rear: Mavic E-Crossmax, 27.5" Boost, XD freehub
Tires
Front: Schwalbe Nobby Nic, 29" x 2.35", TLE, ADDIX SpeedGrip, Evolution Line, Rear: Schwalbe Nobby Nic, 27.5" x 2.60", TLE, ADDIX SpeedGrip, Evolution Line
Brakes
Brakes
Formula Cura 4 (4 pistons, electronic brake sensor)
Cockpit
Stem
Greyp custom 50mm with integrated CIM (Central Intelligence Module)
Handlebar
Greyp custom, width 770mm, 38mm rise
Headset
FSA Gravity SX pro
Seat
Saddle
Fi'zi:k Tundra M5
Seatpost
KS SHOCK - LEV-DX 335/100mm
Motor & Battery
Motor
MPF 6.0C, custom firmware, OTA updatable, 250W, 25km/h
Battery
Greyp custom, 36V, 700 Wh (Li-ion), OTA updatable
Charger
Greyp custom smart charger, 36V, 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.758 mm | 1.671 mm | 1.63 mm |
| Bottom Bracket Height | 300 mm | 300 mm | 300 mm |
| Stack | 647 mm | 660 mm | 670 mm |
| Reach | 368 mm | 395 mm | 411 mm |
| Top Tube Length | 569 mm | 600 mm | 620 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 105 mm | 120 mm | 130 mm |
| Chainstay Length | 478 mm | 478 mm | 478 mm |
| Wheelbase | 1150 mm | 1183 mm | 1203 mm |
| Standover Height | 630 mm | 682 mm | 730 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 171 cm | 184 cm |
| Rider Max Height | 173 cm | 186 cm | 188 cm |
