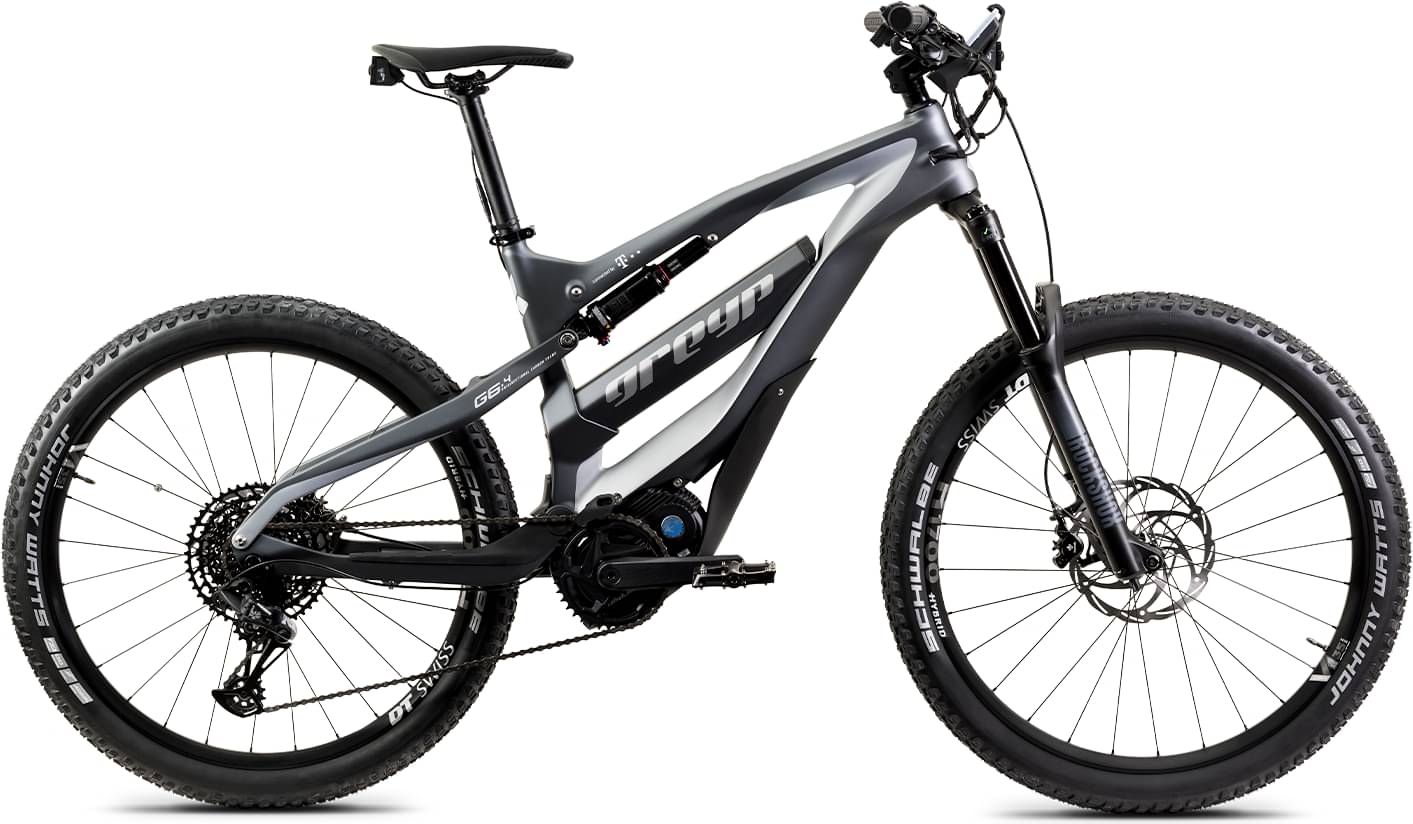

greyp G6.4 2024
2024 E-bike
Estimate price |
7,798$
Weight | 25.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Travel Rear 150mm -
Fork RockShox 35 Gold RL
-
Groupset NX Eagle -
Suspension Full -
Motor 460W mid-drive -
Battery Greyp custom, 36V, 700 Wh (Li-ion), OTA updatable -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 172cm
MD
168cm - 182cm
LG
178cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Greyp G6, full T700 carbon, suspension travel 150 mm
Suspension Fork
Rock Shox 35 Gold RL, 27.5", Debonair, travel 150mm
Rear Shock
Rock Shox Monarch RT, 216X63, SoloAir
Drivetrain
Rear Derailleur
SRAM NX Eagle 12-speed
Shift Levers
SRAM NX-e Eagle Single Click 12-speed
Cassette
SRAM PG-1210 Eagle 11-50T
Crank
Greyp custom, 165mm, ISIS, Alloy forged
Chain
SRAM SX Eagle
Pedals
Greyp custom flat pedal, die-cast Alloy & Cr-Mo axle
Wheels
Rims
Front: DT Swiss H 1700 SPLINE®, 27.5" Boost
Tires
Front: Schwalbe Johnny Watts, 27.5" x 2.60", ADDIX, Performance Line, Rear: Schwalbe Johnny Watts, 27.5" x 2.60", ADDIX, Performance Line
Brakes
Brakes
Formula Cura (2 pistons, electronic brake sensor)
Cockpit
Stem
Greyp custom 50mm with integrated CIM (Central Intelligence Module)
Handlebar
Spank Ind. Spoon, width 785mm, rise 40mm
Headset
FSA Gravity SX pro
Seat
Saddle
Fi"zi:k Ponente F200
Seatpost
Rigid Seatpost, 31.6mm, 350mm
Motor & Battery
Motor
MPF 6.0s, custom firmware, OTA updatable, 460W, 45km/h, OFFROAD ONLY
Battery
Greyp custom, 36V, 700 Wh (Li-ion), OTA updatable
Charger
Greyp custom smart charger, 36V, 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | 25" | 45cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.585 mm | 1.46 mm | 1.411 mm | mm | mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm | mm | mm |
| Front Center | 687 mm | 724 mm | 749 mm | mm | mm |
| Rake | 56 mm | 50 mm | 52 mm | mm | mm |
| Trail | 90 mm | 97 mm | 94 mm | mm | mm |
| Stack | 596 mm | 606 mm | 614 mm | mm | mm |
| Reach | 376 mm | 415 mm | 435 mm | mm | mm |
| Top Tube Length | 573 mm | 599 mm | 623 mm | mm | mm |
| Seat Tube Angle | 73 ° | ° | 73 ° | ° | ° |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | ° | ° |
| Head Tube Length | 128 mm | 128 mm | 128 mm | mm | mm |
| Chainstay Length | 480 mm | 480 mm | 480 mm | mm | mm |
| Wheelbase | 1167 mm | 1204 mm | 1229 mm | mm | mm |
| Bottom Bracket Drop | 6 mm | 6 mm | 6 mm | mm | mm |
| Standover Height | 765 mm | 773 mm | 793 mm | mm | mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 160 cm | 168 cm | 178 cm | cm | cm |
| Rider Max Height | 172 cm | 182 cm | 188 cm | cm | cm |
