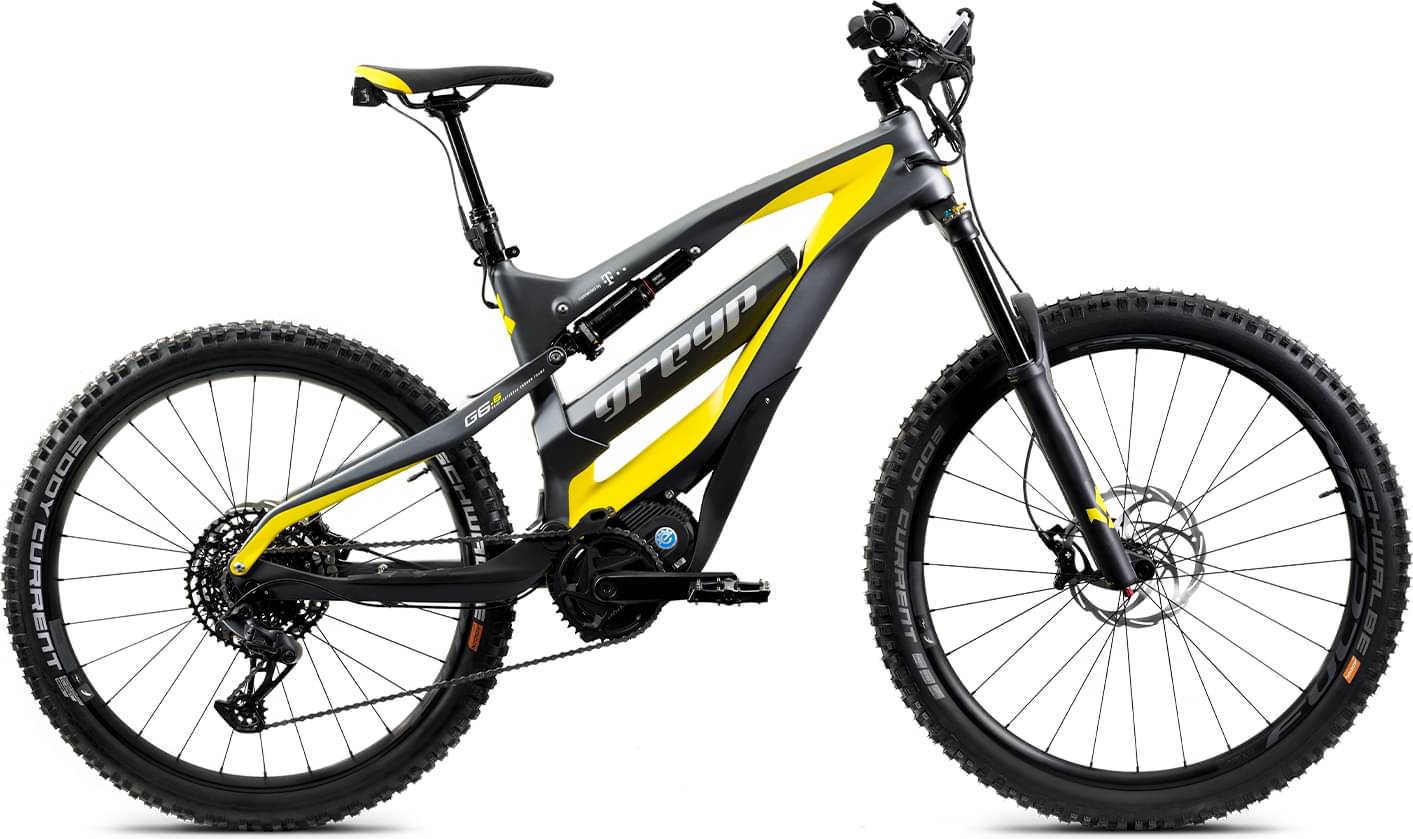

greyp G6.6 2024
2024 E-bike
Estimate price |
9,748$
Weight | 26 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Travel Rear 150mm -
Fork Formula Selva S
-
Groupset GX Eagle -
Suspension Full -
Motor 460W mid-drive -
Battery Greyp custom, 36V, 700 Wh (Li-ion), OTA updatable -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
166cm - 178cm
LG
174cm - 186cm
XL
182cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Greyp G6, full T700 carbon, suspension travel 150 mm
Suspension Fork
Formula Selva S, 29", Air, CTS valve, travel 160mm
Rear Shock
Rock Shox Monarch RT3, 216X63, SoloAir
Drivetrain
Rear Derailleur
SRAM GX Eagle 12-speed
Shift Levers
SRAM GX-e Eagle Single Click 12-speed
Cassette
SRAM PG-1230 Eagle 11-50T
Crank
Greyp custom, 165mm, ISIS, Alloy forged
Chain
SRAM NX Eagle
Pedals
Greyp custom flat pedal, die-cast Alloy & Cr-Mo axle
Wheels
Rims
Front: Fulcrum E-Fire 500, 29", Boost, Rear: Fulcrum E-Fire 500, 27.5", Boost, HG freehub
Tires
Front: Schwalbe Eddy Current Front, 29" x 2.60", ADDIX Soft, Evolution Line, Rear: Schwalbe Eddy Current Rear, 27.5" x 2.60", ADDIX Soft, Evolution Line
Brakes
Brakes
Formula Cura 4 (4 pistons, electronic brake sensor)
Cockpit
Stem
Greyp custom 50mm with integrated CIM (Central Intelligence Module)
Handlebar
Spank Ind. Spike 800 with Vibrocore, width 800mm, rise 30mm
Headset
FSA Gravity SX pro
Seat
Saddle
Fi"zi:k Ponente F200
Seatpost
KS SHOCK - LEV-DX, S 100mm / M 125mm / L 150mm
Motor & Battery
Motor
MPF 6.0s, custom firmware, OTA updatable, 460W, 45km/h, OFFROAD ONLY
Battery
Greyp custom, 36V, 700 Wh (Li-ion), OTA updatable
Charger
Greyp custom smart charger, 36V, 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | 25" | 45cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.601 mm | 1.545 mm | 1.476 mm | 1.396 mm | mm | mm |
| Bottom Bracket Height | 353 mm | 353 mm | 353 mm | 343 mm | mm | mm |
| Front Center | 696 mm | 723 mm | 748 mm | 774 mm | mm | mm |
| Rake | 49 mm | 48 mm | 49 mm | 2 mm | mm | mm |
| Trail | 115 mm | 116 mm | 115 mm | 170 mm | mm | mm |
| Stack | 602 mm | 615 mm | 620 mm | 663 mm | mm | mm |
| Reach | 376 mm | 398 mm | 420 mm | 475 mm | mm | mm |
| Top Tube Length | 579 mm | 605 mm | 630 mm | 645 mm | mm | mm |
| Seat Tube Angle | 72.3 ° | 72.3 ° | 72.3 ° | 75.5 ° | ° | ° |
| Head Tube Angle | 65.7 ° | 65.7 ° | 65.7 ° | 65.3 ° | ° | ° |
| Head Tube Length | 115 mm | 127 mm | 135 mm | 150 mm | mm | mm |
| Chainstay Length | 480 mm | 480 mm | 480 mm | 480 mm | mm | mm |
| Wheelbase | 1176 mm | 1203 mm | 1228 mm | 1254 mm | mm | mm |
| Bottom Bracket Drop | 12 mm | 12 mm | 12 mm | 16 mm | mm | mm |
| Standover Height | 759 mm | 770 mm | 779 mm | 856 mm | mm | mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 166 cm | 174 cm | 182 cm | cm | cm |
| Rider Max Height | 170 cm | 178 cm | 186 cm | 198 cm | cm | cm |
