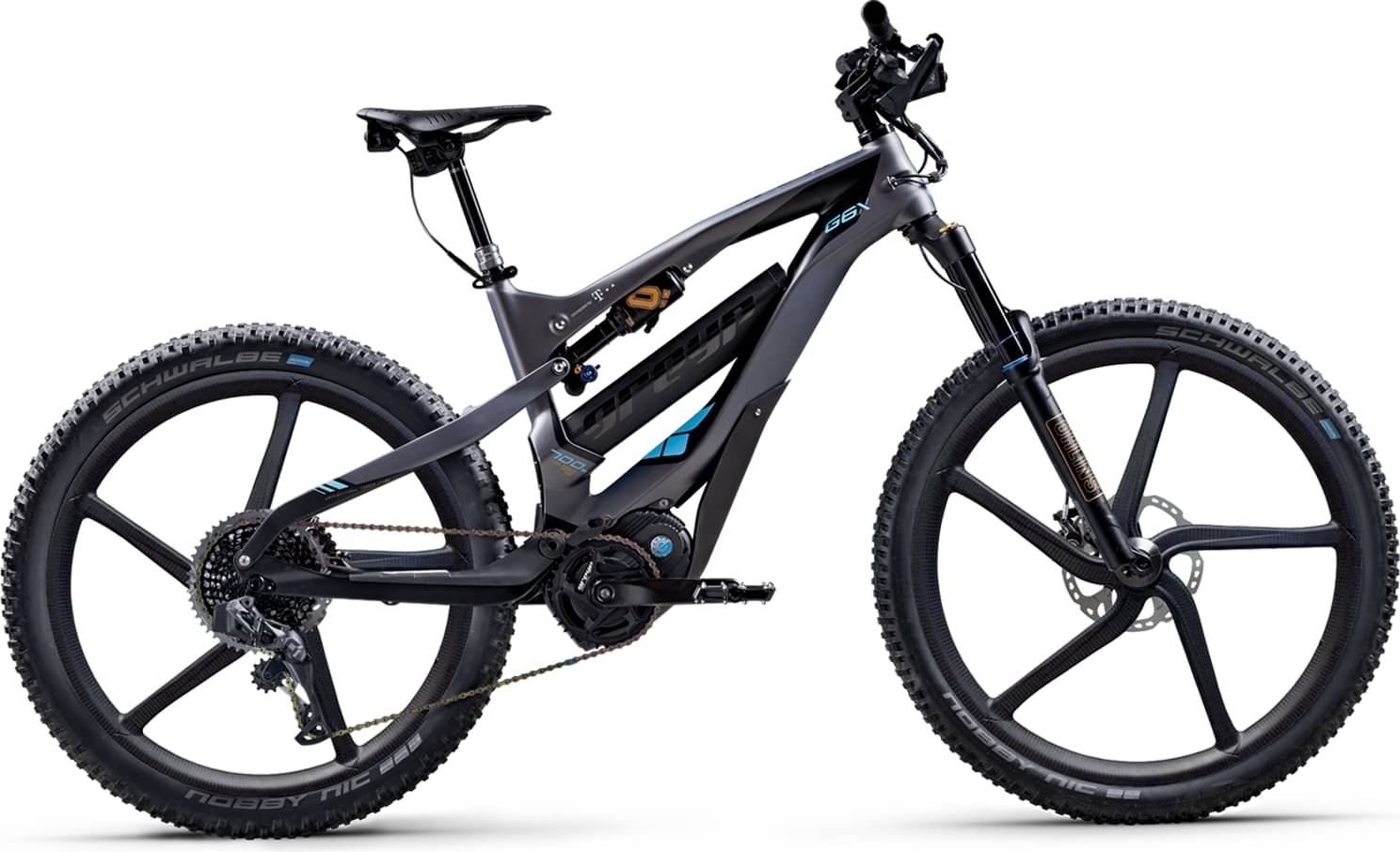

greyp G6.X LIMITED 2024
2024 E-bike
Estimate price |
16,056$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Travel Rear 150mm -
Fork Öhlins RXF36 EVO
-
Groupset X01 Eagle AXS -
Suspension Full -
Motor 460W mid-drive -
Battery Greyp custom, 36V, 700 Wh (Li-ion), OTA updatable -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
168cm - 182cm
LG
178cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Greyp G6, full T700 carbon, suspension travel 150 mm
Suspension Fork
Öhlins RXF36 EVO Air, 29", travel 160mm
Rear Shock
Öhlins TTX Air Shock 230x65 mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle AXS 12-speed
Shift Levers
SRAM Eagle AXS™ Controller 12-speed
Cassette
SRAM XG-1295 Eagle™ 10-50T
Crank
Greyp custom, 175mm, ISIS, Alloy forged
Chain
SRAM X01 Eagle™
Pedals
Greyp custom flat pedal, die-cast Alloy & Cr-Mo axle
Wheels
Rims
Front: Xentis KAPPA X E-bike, 29", Boost, Rear: Xentis KAPPA X E-bike, 27.5", Boost, XD freehub
Tires
Front: Schwalbe Nobby Nic, 29" x 2.60", ADDIX SpeedGrip, Evolution Line, Rear: Schwalbe Nobby Nic, 27.5" x 2.60", ADDIX SpeedGrip, Evolution Line
Brakes
Brakes
Magura Cockpit Integration MCi (4 pistons)
Cockpit
Stem
Greyp custom 50mm with integrated CIM (Central Intelligence Module)
Handlebar
Ergotec - Low Riser Bar for MCI System, width 780 mm
Headset
FSA Gravity SX pro
Seat
Saddle
Fi"zi:k Antares R1 Carbon
Seatpost
SRAM Reverb AXS 31.6mm 125mm
Motor & Battery
Motor
MPF 6.0s, custom firmware, OTA updatable, 460W, 45km/h
Battery
Greyp custom, 36V, 700 Wh (Li-ion), OTA updatable
Charger
Greyp custom smart charger, 36V, 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Stack Reach Ratio | 1.646 mm | 1.591 mm |
| Bottom Bracket Height | 330 mm | 330 mm |
| Front Center | 754 mm | 779 mm |
| Rake | 53 mm | 67 mm |
| Trail | 124 mm | 108 mm |
| Stack | 642 mm | 638 mm |
| Reach | 390 mm | 401 mm |
| Top Tube Length | 606 mm | 632 mm |
| Seat Tube Angle | 71 ° | 71 ° |
| Head Tube Angle | 64 ° | 64 ° |
| Head Tube Length | 127 mm | 135 mm |
| Chainstay Length | 478 mm | 478 mm |
| Wheelbase | 1231 mm | 1256 mm |
| Bottom Bracket Drop | 18 mm | 18 mm |
| Standover Height | 760 mm | 773 mm |
| Wheels | 29" | 29" |
| Rider Min Height | 168 cm | 178 cm |
| Rider Max Height | 182 cm | 188 cm |
