Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 160mm -
Fork RockShox Yari RC
-
Groupset Truvativ Descendant, SX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 167cm
MD
165cm - 180cm
LG
177cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

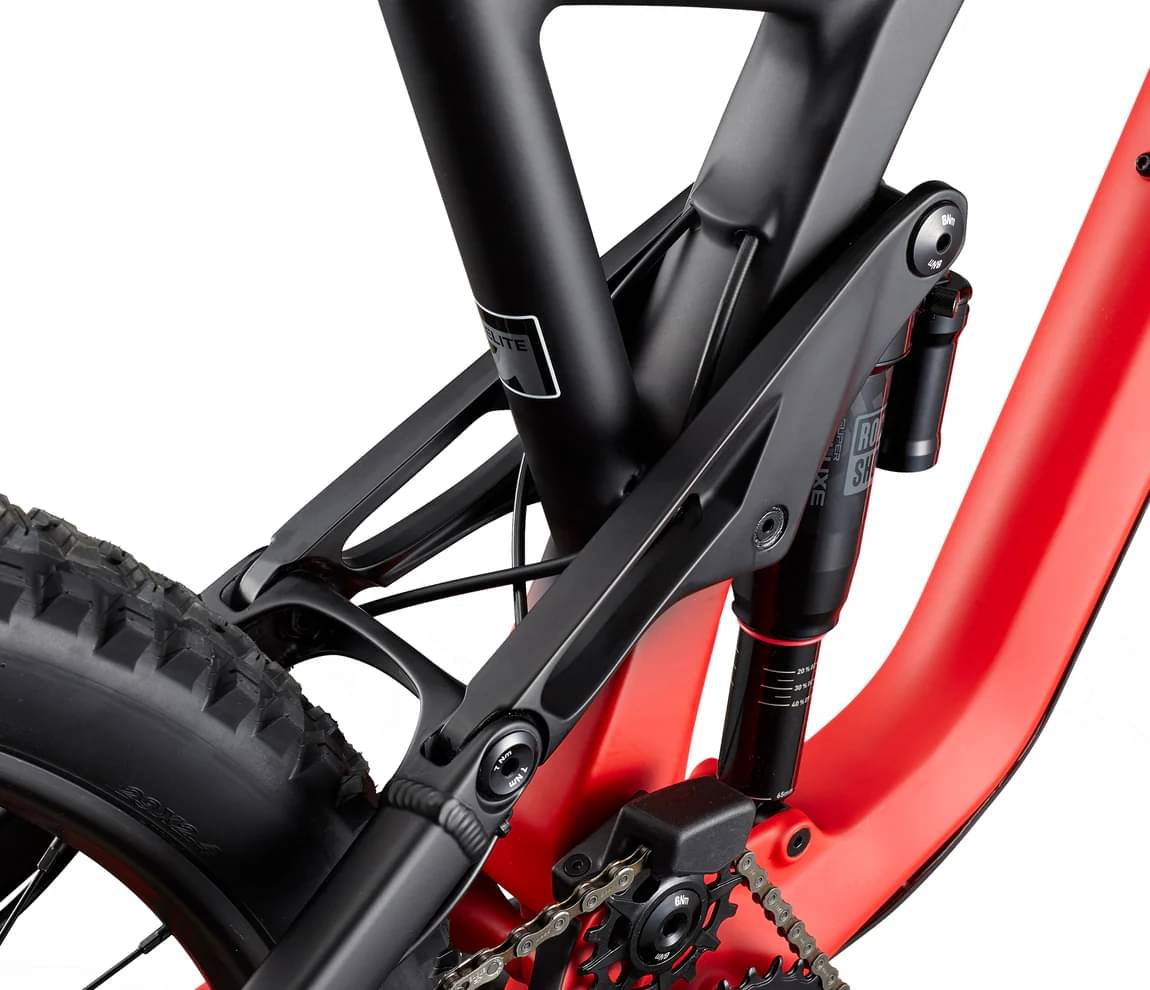

Force Carbon 29" Frame, 160mm Travel, High Pivot LTS Suspension, 12x148mm Thru-Axle
Suspension Fork
RockShox Yari RC, 170mm, Motion Control, 42mm Offset
Rear Shock

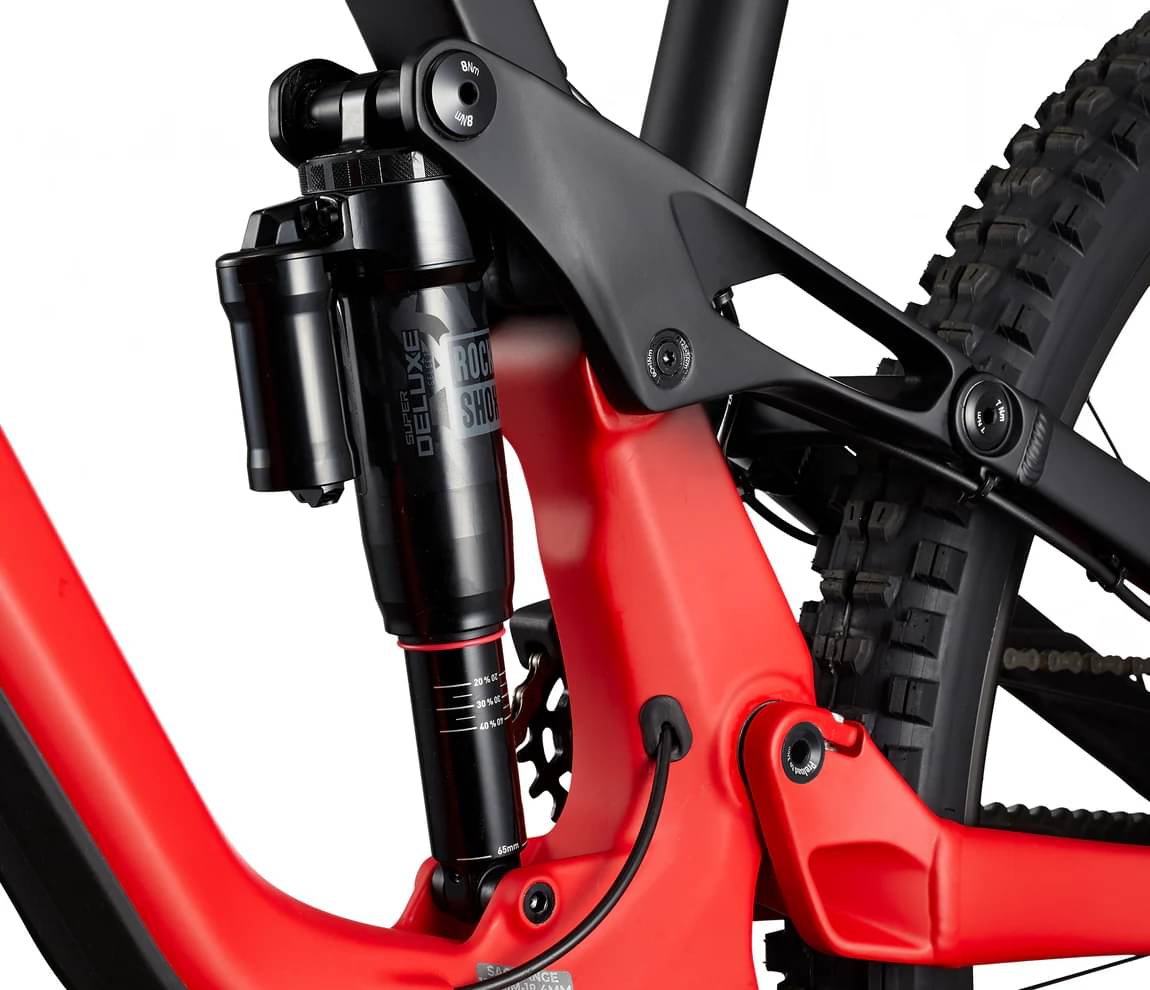

RockShox Super Deluxe Select R, 230x65mm
Drivetrain
Rear Derailleur
SRAM SX Eagle
Shift Levers
SRAM SX Eagle, 12-Speed
Cassette
SRAM PG-1210, 11-50T
Crank

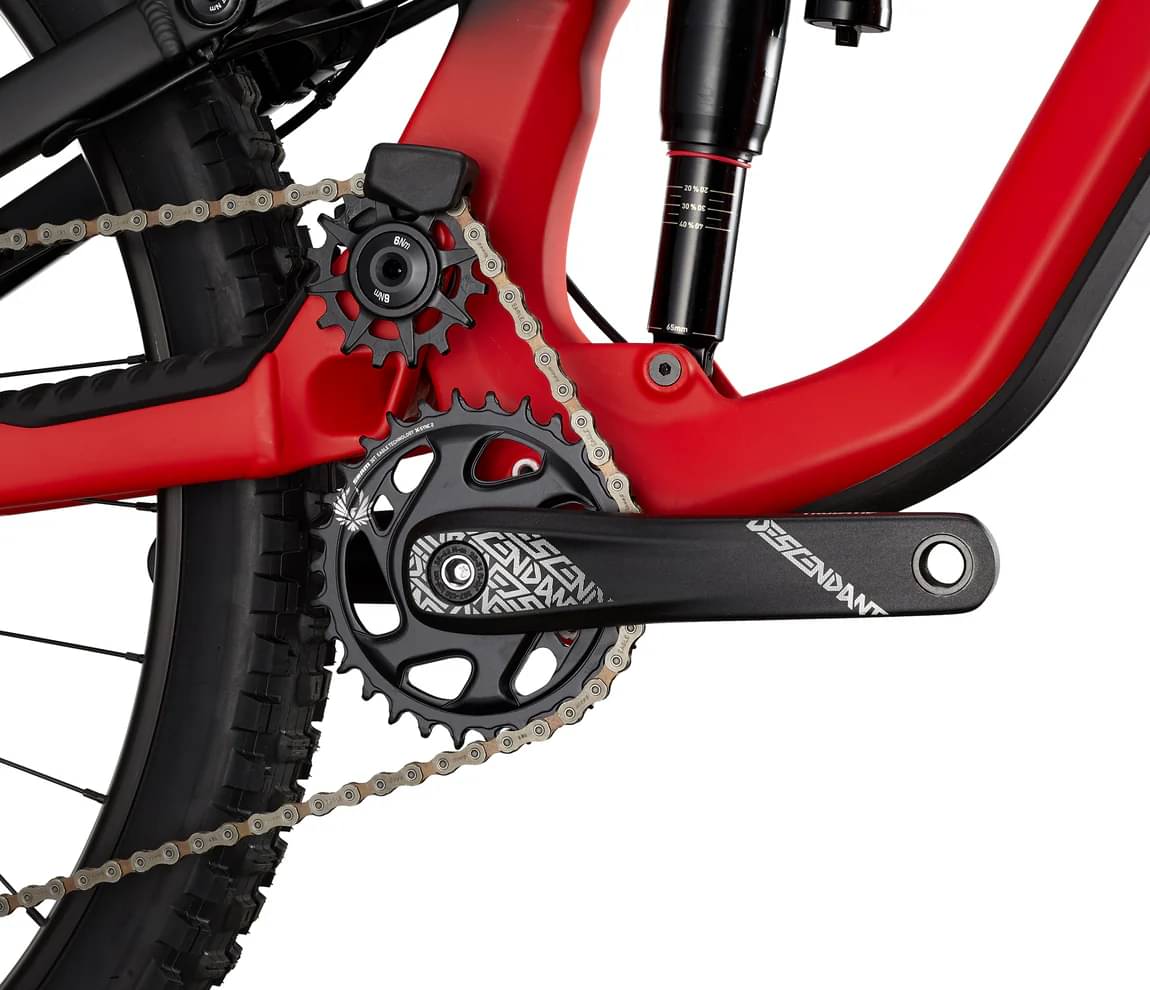

Truvativ Descendant 6K, 30T
Bottom Bracket
Truvativ Powerspline BSA, 73mm
Chain
SRAM SX Eagle, 12-Speed
Wheels
Front Hub
Formula, 15x110mm
Rear Hub
Formula, 12x148mm, HG Freehub Body
Rims
WTB ST i30 TCS 2.0, 32h, Tubeless Ready
Tires
Front: Continental Kryptotal Fr, 29x2.4", Trail Endurance, Rear: Continental Kryptotal Re, 29x2.4", Trail Endurance
Brakes
Brakes

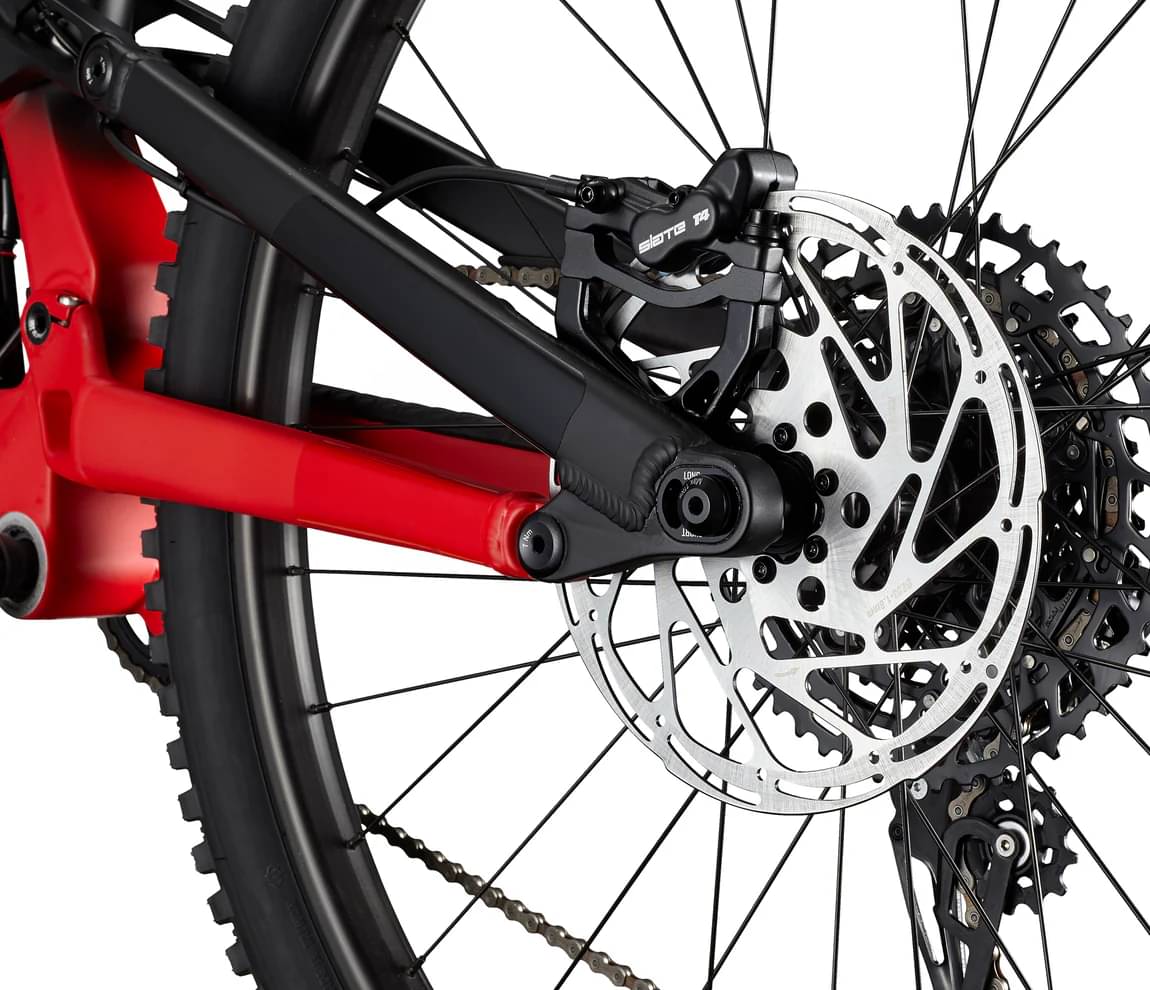

TRP Slate EVO T4, 203/203mm Rotors
Cockpit
Stem
GT Alloy, 45mm
Handlebar

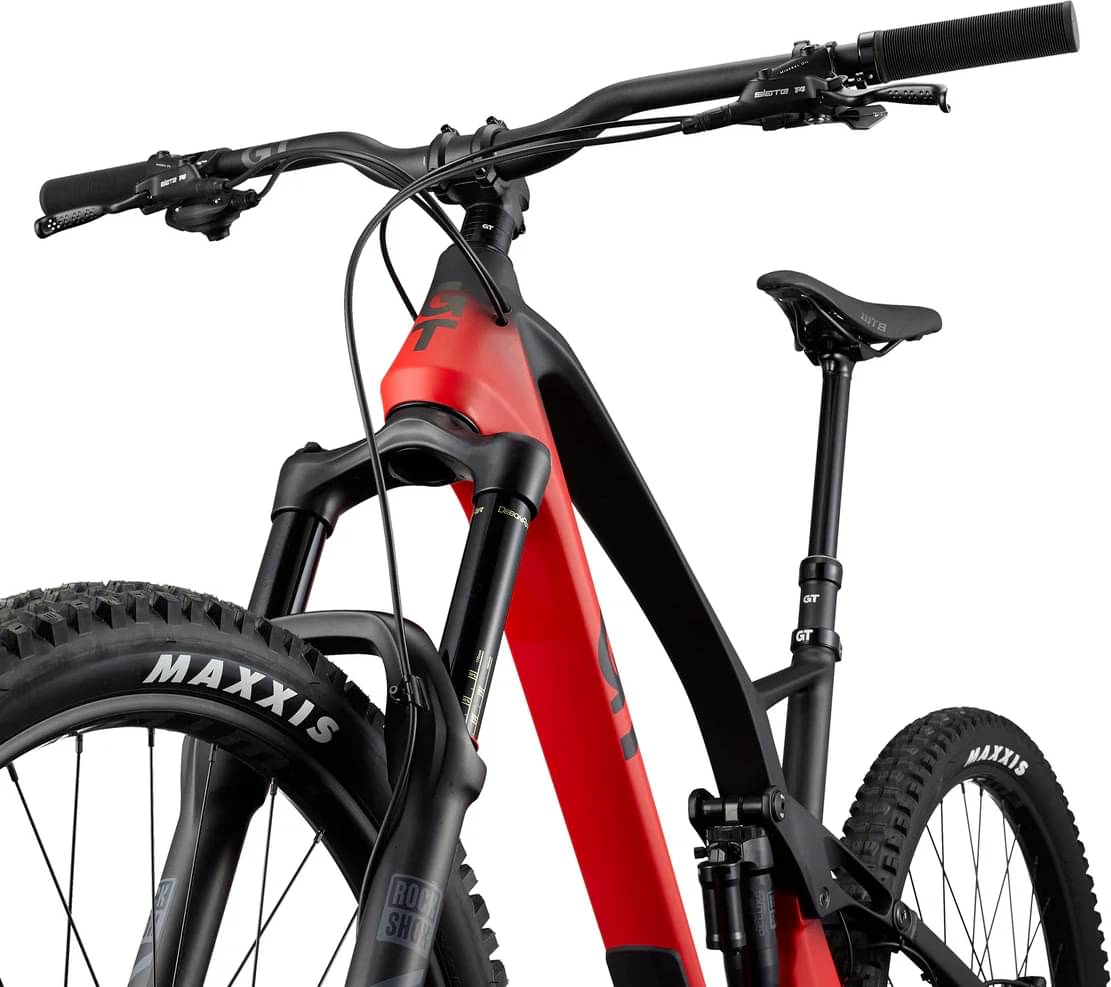

GT Alloy Riser Bar, 30mm Rise, 780mm, 5° Up, 8° Back (Width: S/M/L/XL - 80cm)
Grips
GT Mushroom
Headset
FSA No.57
Seat
Saddle
GT Scoop Shallow Sport
Seatpost
GT DropKick, 31.6mm, (S - 125mm, M - 150mm, L/XL - 170mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.458 mm | 1.398 mm | 1.344 mm | 1.27 mm |
| Bottom Bracket Height | 347 mm | 347 mm | 347 mm | 347 mm |
| Front Center | 777 mm | 807 mm | 836 mm | 876 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 139 mm | 139 mm | 139 mm | 139 mm |
| Stack | 627 mm | 636 mm | 645 mm | 654 mm |
| Reach | 430 mm | 455 mm | 480 mm | 515 mm |
| Top Tube Length | 563 mm | 590 mm | 617 mm | 654 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 380 mm | 410 mm | 445 mm | 500 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1211 mm | 1240 mm | 1270 mm | 1309 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 725 mm | 730 mm | 740 mm | 760 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 165 cm | 177 cm | 185 cm |
| Rider Max Height | 167 cm | 180 cm | 188 cm | 198 cm |
