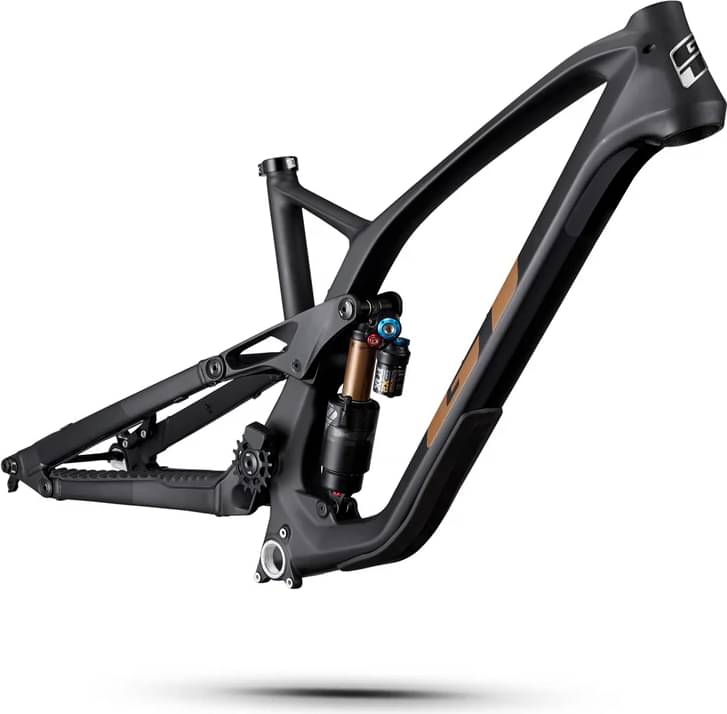

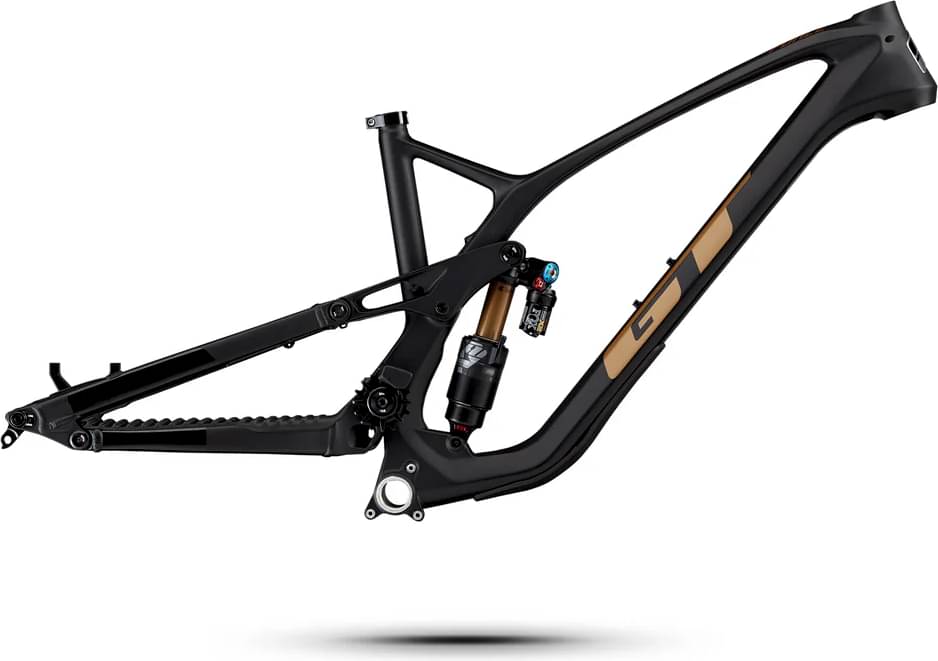

GT Force Carbon Frameset 2024
2024 Mountain
Estimate price |
3,700$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Travel Rear 160mm -
Suspension Full
Sizing
Recommended size guide.
SM
152cm - 167cm
MD
165cm - 180cm
LG
177cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Force Carbon 29" Frame, 160mm Travel, High Pivot LTS Suspension, 12x148mm Thru-Axle
Rear Shock
Fox Factory Float X2, 2-Pos Adjust, 230x65mm
Cockpit
Headset
FSA No.57
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.458 mm | 1.398 mm | 1.344 mm | 1.27 mm |
| Bottom Bracket Height | 347 mm | 347 mm | 347 mm | 347 mm |
| Front Center | 777 mm | 807 mm | 836 mm | 876 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 139 mm | 139 mm | 139 mm | 139 mm |
| Stack | 627 mm | 636 mm | 645 mm | 654 mm |
| Reach | 430 mm | 455 mm | 480 mm | 515 mm |
| Top Tube Length | 563 mm | 590 mm | 617 mm | 654 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 380 mm | 410 mm | 445 mm | 500 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1211 mm | 1240 mm | 1270 mm | 1309 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 725 mm | 730 mm | 740 mm | 760 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 165 cm | 177 cm | 185 cm |
| Rider Max Height | 167 cm | 180 cm | 188 cm | 198 cm |
