Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 160mm -
Fork RockShox ZEB Ultimate
-
Groupset X01 Eagle, GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 167cm
MD
165cm - 180cm
LG
177cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

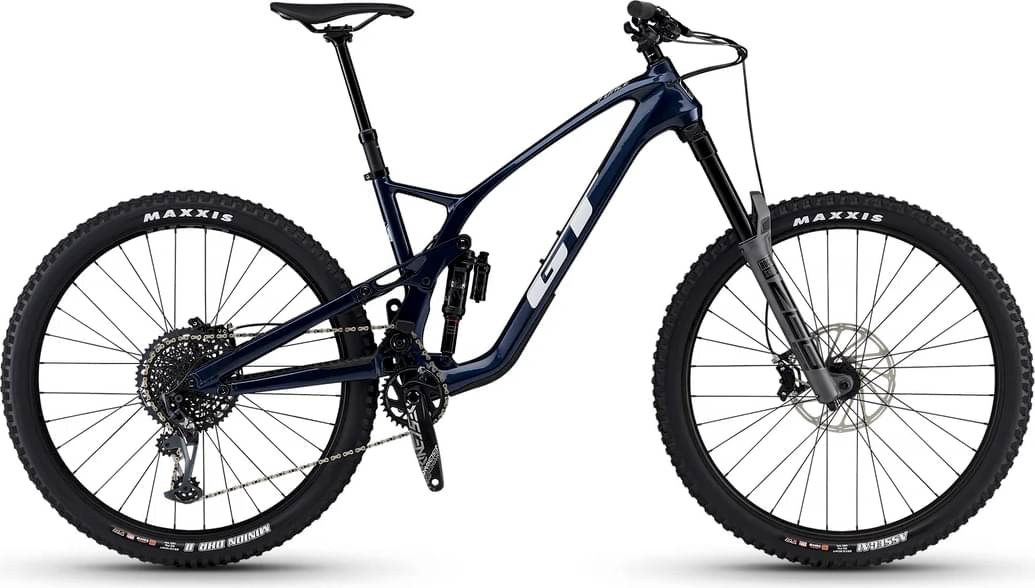

Force Carbon 29" Frame, 160mm Travel, High Pivot LTS Suspension, 12x148mm Thru-Axle
Suspension Fork
RockShox Zeb Ultimate RC2, 170mm, Charger 3, DebonAir+ w/ ButterCups, 44mm Offset

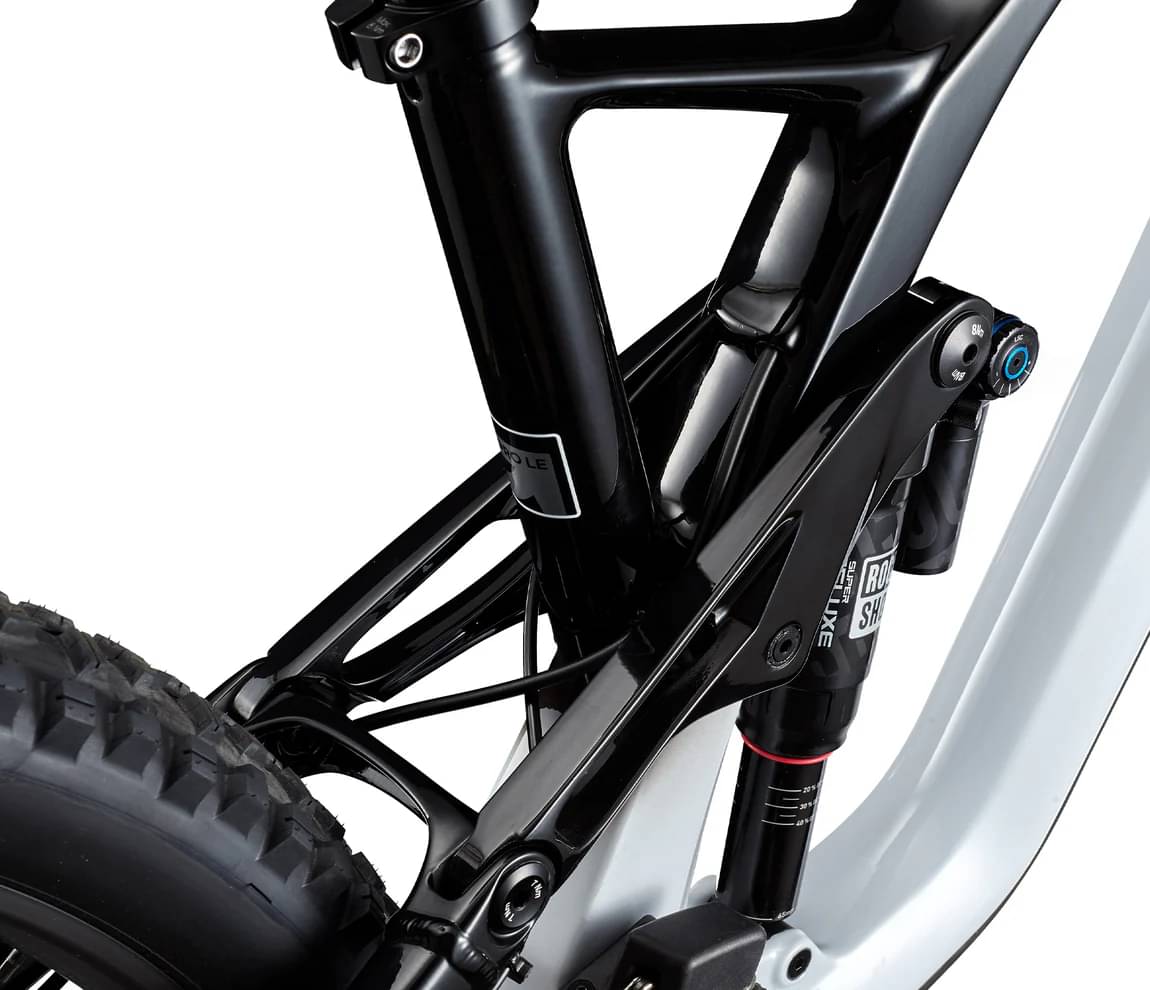

Rear Shock

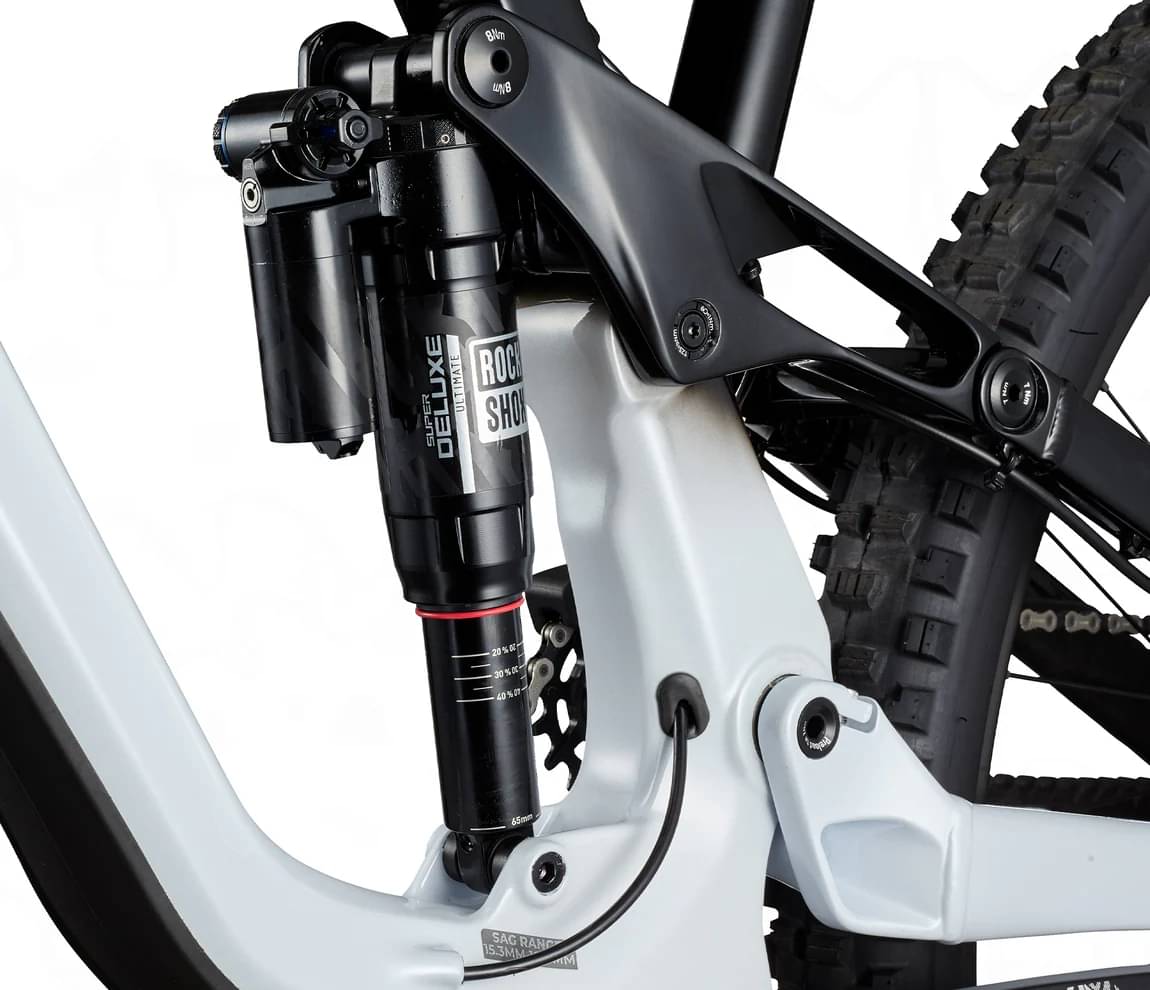

RockShox Super Deluxe Ultimate RC2T, 230x65mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle
Shift Levers
SRAM GX Eagle, 12-Speed
Cassette
SRAM XG-1275, 10-52T

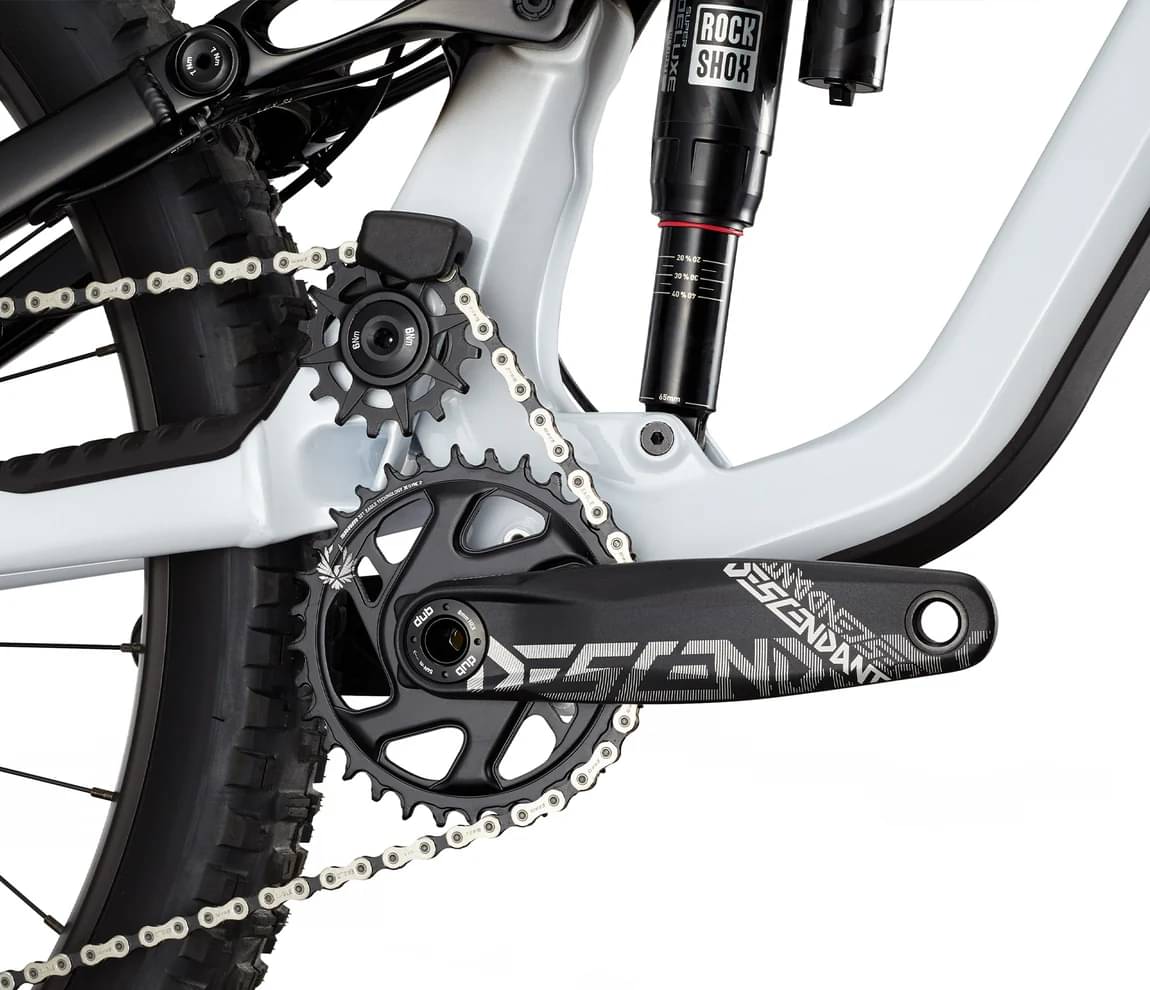

Crank
Truvativ Descendant 7K, DUB, 32T
Bottom Bracket
SRAM DUB BSA, 73mm
Chain
SRAM GX Eagle, 12-Speed
Wheels
Front Hub
Formula, 15x110mm

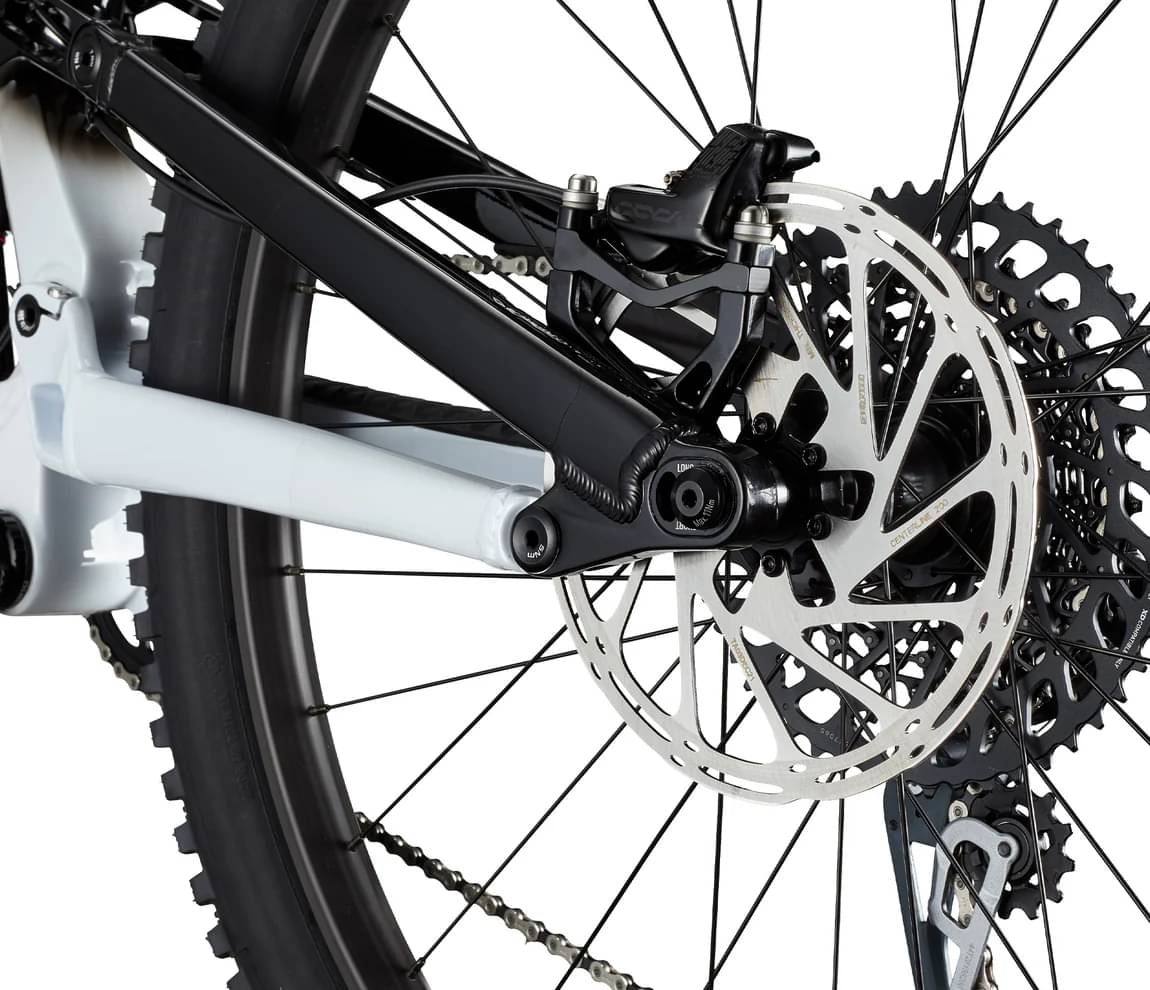

Rear Hub
SRAM MTH746, 12x148mm, XD Driver
Rims
WTB KOM Trail i30, 32h, Tubeless Ready
Tires
Front: Continental Kryptotal Fr, 29x2.4", Enduro Soft, Rear: Continental Kryptotal Re, 29x2.4", Enduro Soft
Brakes
Brakes
SRAM Code RSC, 220/200mm Centerline Rotors

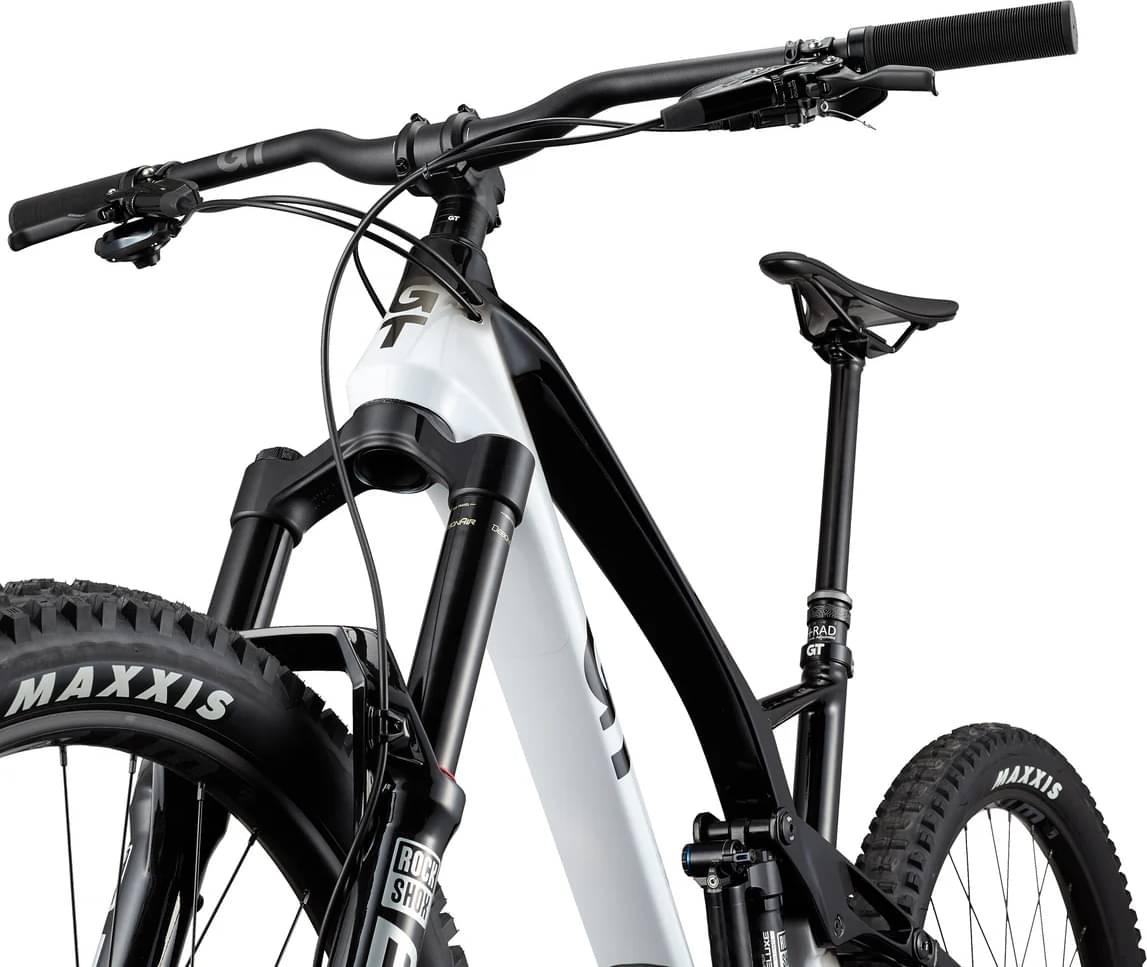

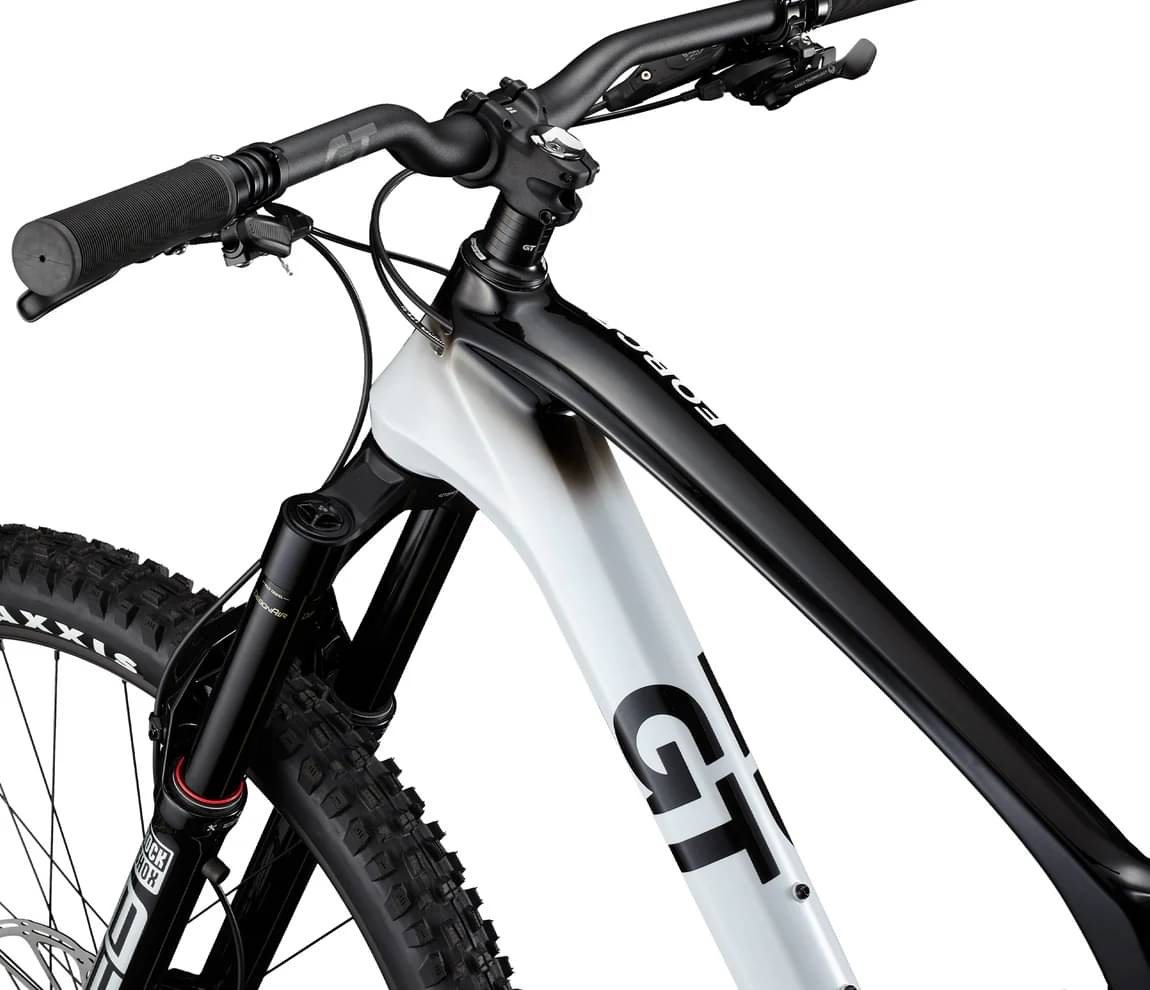

Cockpit
Stem
GT Alloy, 45mm
Handlebar
GT Alloy Riser Bar, 30mm Rise, 780mm, 5° Up, 8° Back (Width: S/M/L/XL - 80cm)
Grips
GT Mushroom
Headset
FSA No.57
Seat
Saddle
GT Scoop Shallow Sport
Seatpost
TranzX +Rad, 31.6mm, Adjustable Height (S - 150mm, M - 170mm, L/XL - 200mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.458 mm | 1.398 mm | 1.344 mm | 1.27 mm |
| Bottom Bracket Height | 347 mm | 347 mm | 347 mm | 347 mm |
| Front Center | 777 mm | 807 mm | 836 mm | 876 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 139 mm | 139 mm | 139 mm | 139 mm |
| Stack | 627 mm | 636 mm | 645 mm | 654 mm |
| Reach | 430 mm | 455 mm | 480 mm | 515 mm |
| Top Tube Length | 563 mm | 590 mm | 617 mm | 654 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 380 mm | 410 mm | 445 mm | 500 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1211 mm | 1240 mm | 1270 mm | 1309 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 725 mm | 730 mm | 740 mm | 760 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 165 cm | 177 cm | 185 cm |
| Rider Max Height | 167 cm | 180 cm | 188 cm | 198 cm |
