Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 200mm -
Travel Rear 200mm -
Fork RockShox BoXXer Ultimate
-
Groupset Truvativ Descendant, GX -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 180cm
LG
177cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fury Carbon MX Frame, 200mm Travel, 12x148mm Rear Thru-Axle, 29" Wheel Ready
Suspension Fork
RockShox BoXXer Ultimate RC2 200mm, Charger 3, DebonAir+ w/ Buttercups, 20x110mm Boost, 52mm Offset

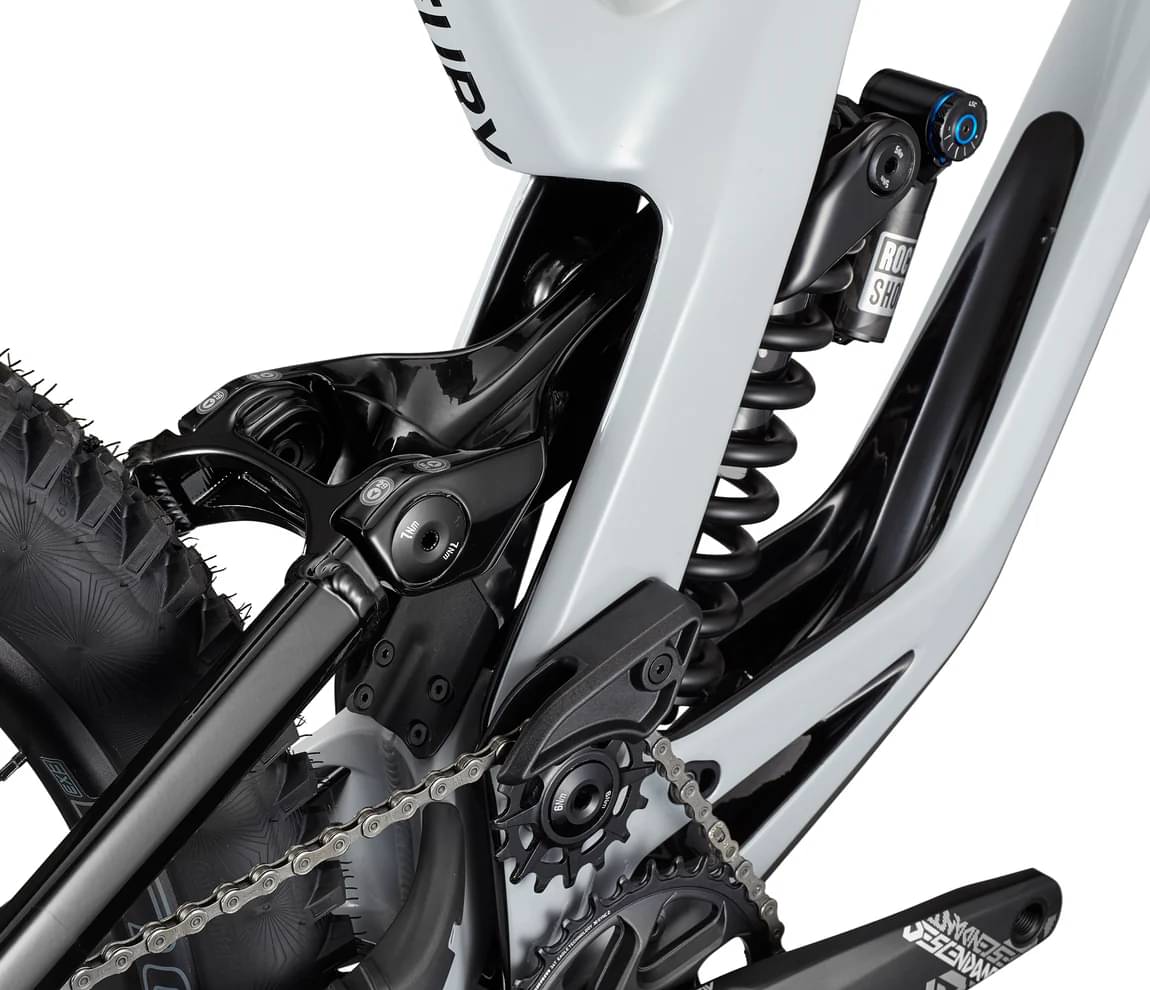

Rear Shock
RockShox Super Deluxe Coil Ultimate DH RC, 225x75mm Trunnion (Spring Rate: M - 500 Lbs/Inch, L/XL- 550 Lbs/Inch)
Drivetrain
Rear Derailleur
SRAM GX DH
Shift Levers
SRAM GX DH, 7-Speed
Cassette
SRAM PG-720, 11-25T

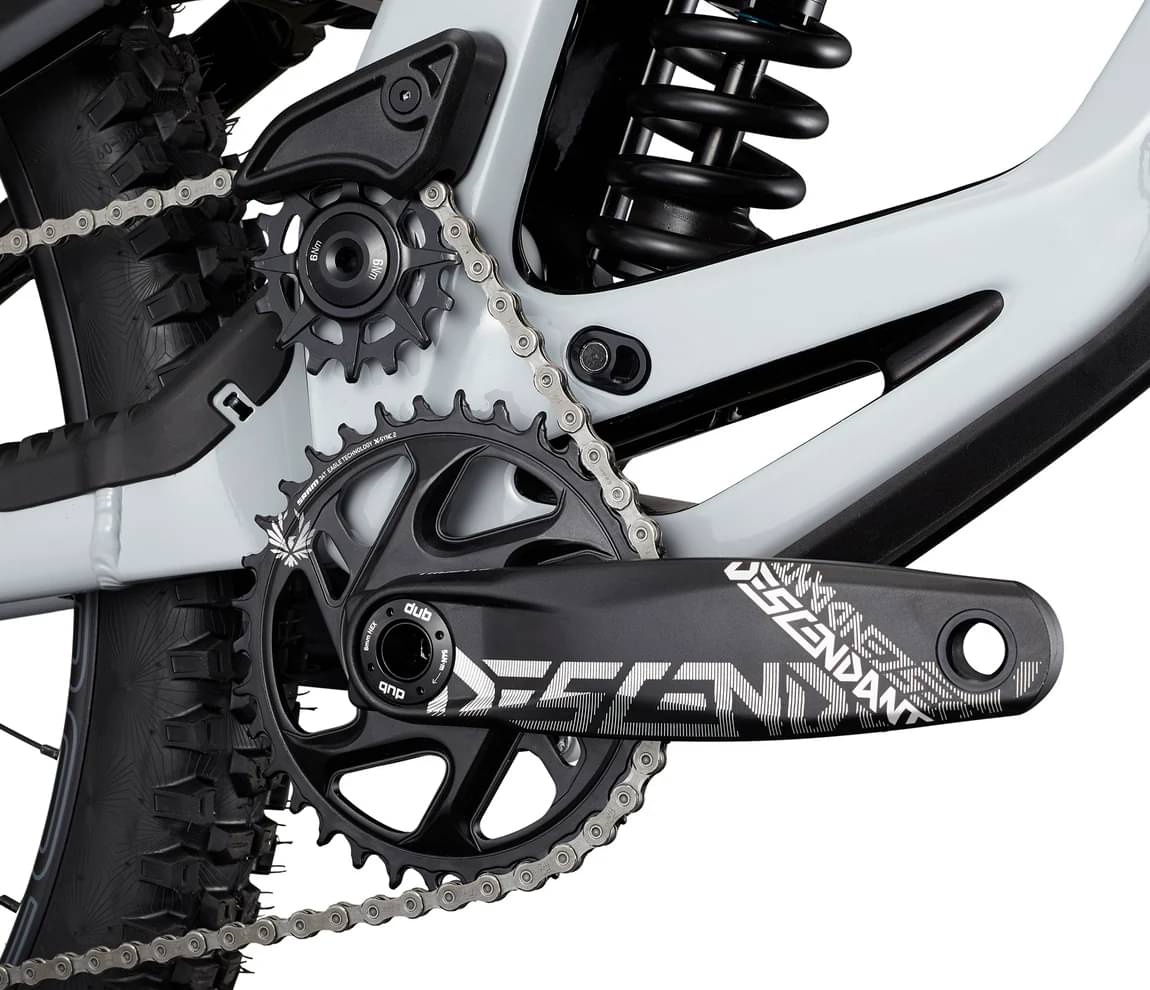

Crank
Truvativ Descendant DH, DUB, 34T
Bottom Bracket
SRAM DUB BSA, 83mm
Chain
SRAM PC-1110, 11-Speed
Wheels
Front Hub
Formula, 20x110mm Boost
Rear Hub
SRAM MTH746, 12x148mm, HG Freehub Body
Rims
Stan's NoTubes Flow EX3, 32h, Tubeless Ready
Tires
Front: Continental Kryptotal Fr, 29x2.4", DH SuperSoft, Rear: Continental Kryptotal Re, 27.5x2.4", DH SuperSoft
Brakes
Brakes
SRAM Code R, 220/200mm Centerline Rotors
Cockpit
Stem
Truvativ Descendant DH
Handlebar
GT Alloy Riser Bar, 30mm Rise, 780mm, 5° Up, 8° Back (Width: M/L/XL - 80cm)
Grips
GT Mushroom
Headset
FSA Orbit 1.5"
Seat
Saddle
GT Scoop Flat
Seatpost
GT Alloy, 31.6mm (M/L/XL - 300mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.418 mm | 1.348 mm | 1.286 mm |
| Front Center | 821 mm | 856 mm | 890 mm |
| Rake | 52 mm | 52 mm | 52 mm |
| Trail | 133 mm | 133 mm | 133 mm |
| Stack | 638 mm | 647 mm | 656 mm |
| Reach | 450 mm | 480 mm | 510 mm |
| Top Tube Length | 621 mm | 653 mm | 686 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 410 mm | 420 mm | 430 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Wheelbase | 1260 mm | 1295 mm | 1329 mm |
| Standover Height | 720 mm | 730 mm | 730 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 177 cm | 185 cm |
| Rider Max Height | 180 cm | 188 cm | 198 cm |
