Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 40mm -
Travel Rear 45mm -
Fork RockShox Rudy XPLR
-
Groupset Apex -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 172cm
MD
170cm - 182cm
LG
179cm - 189cm
XL
187cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

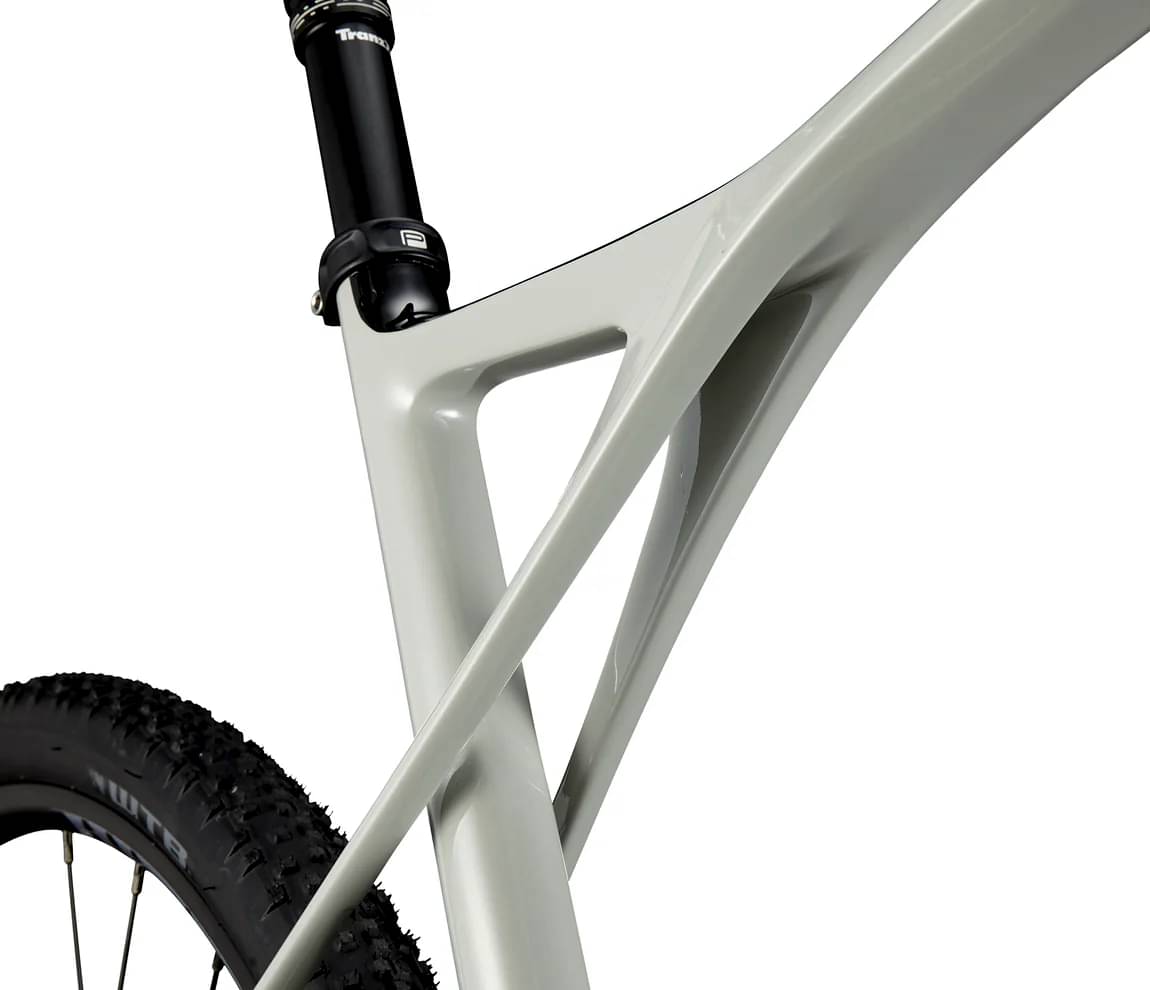

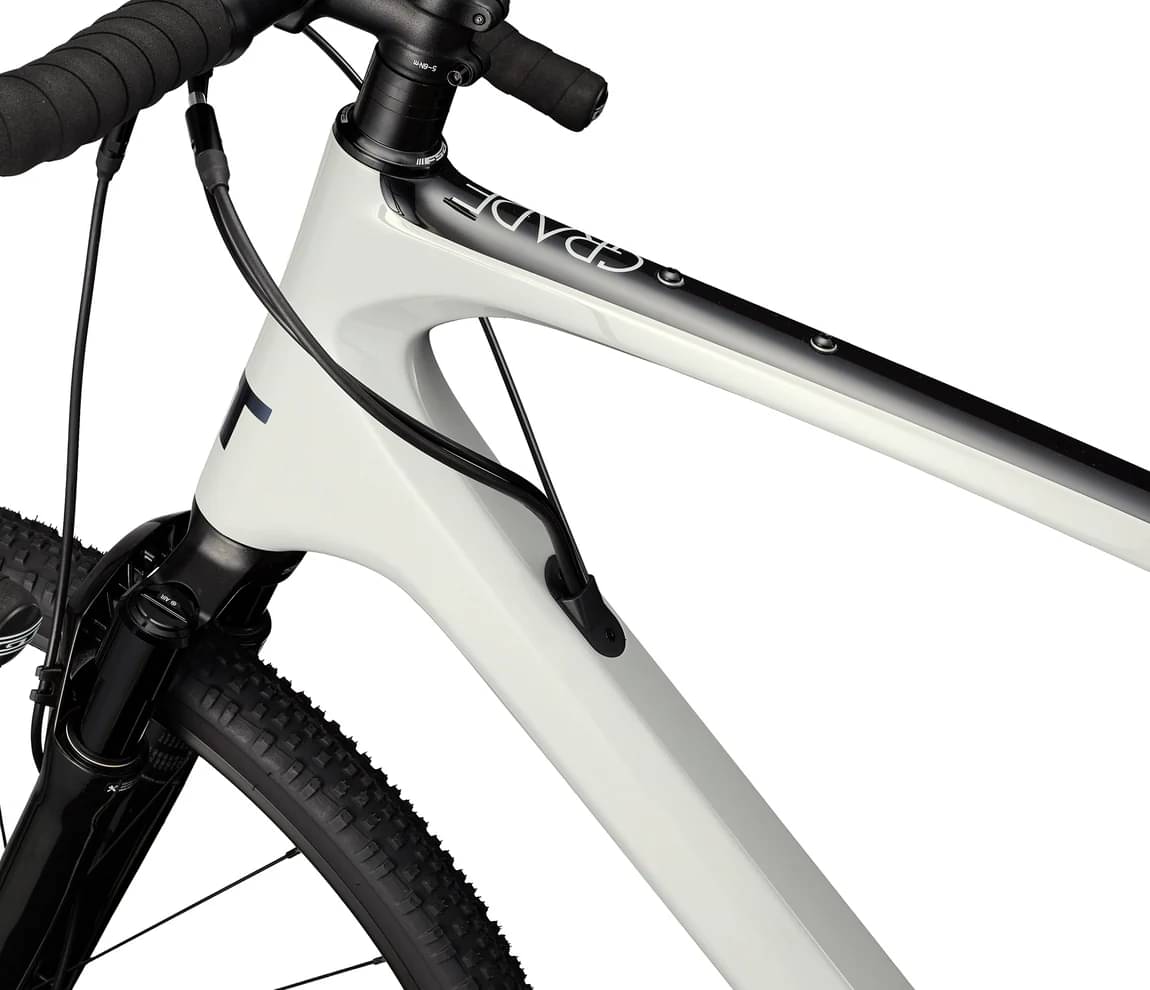

Grade Carbon Frame, Triple Triangle Design feat. Floating Seatstays, 12x142mm Thru Axle, 45mm Max Tire Width
Suspension Fork
Rockshox Rudy XPLR, 40mm, 51mm offset, Solo Air

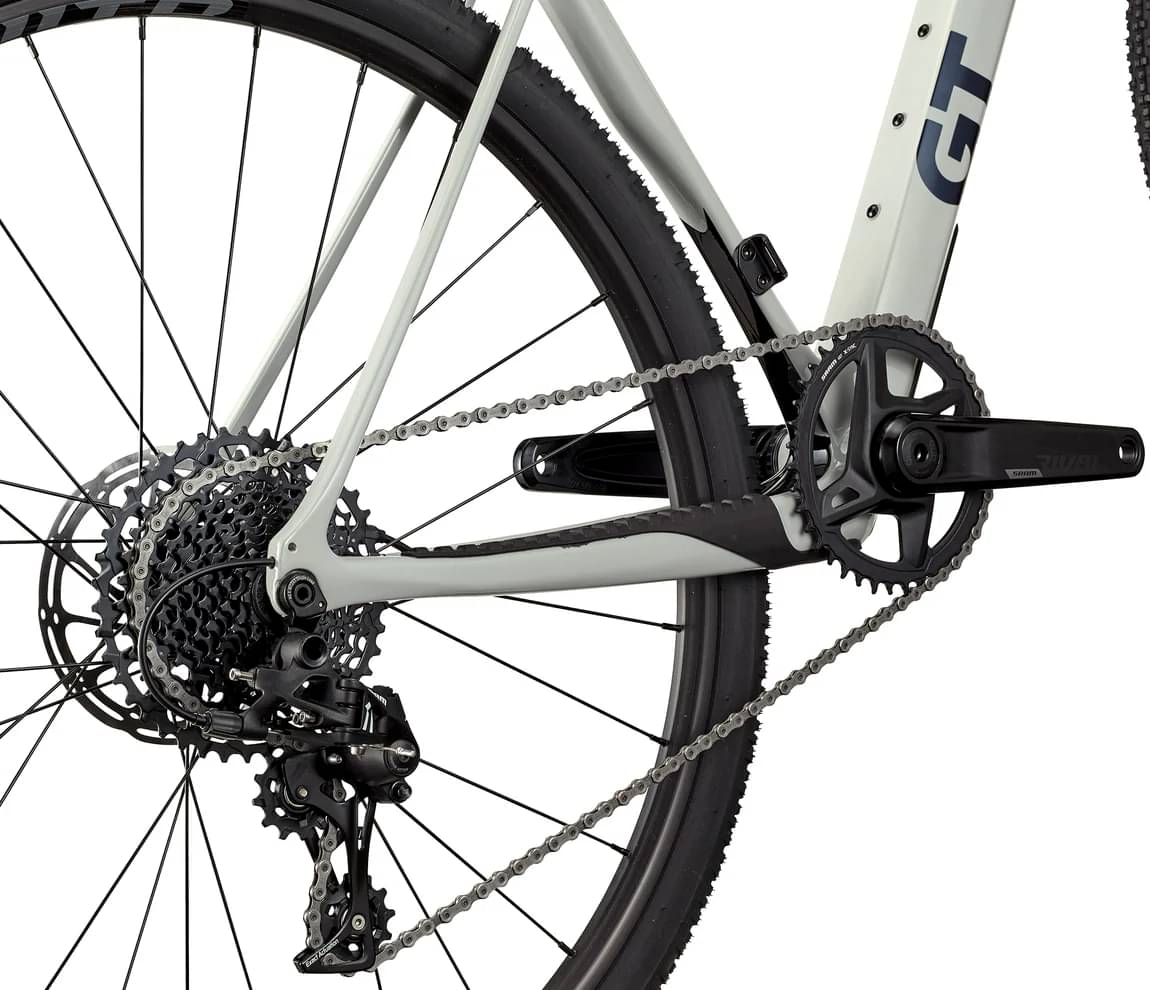

Drivetrain
Rear Derailleur
SRAM Apex1
Shift Levers
SRAM Apex1
Cassette

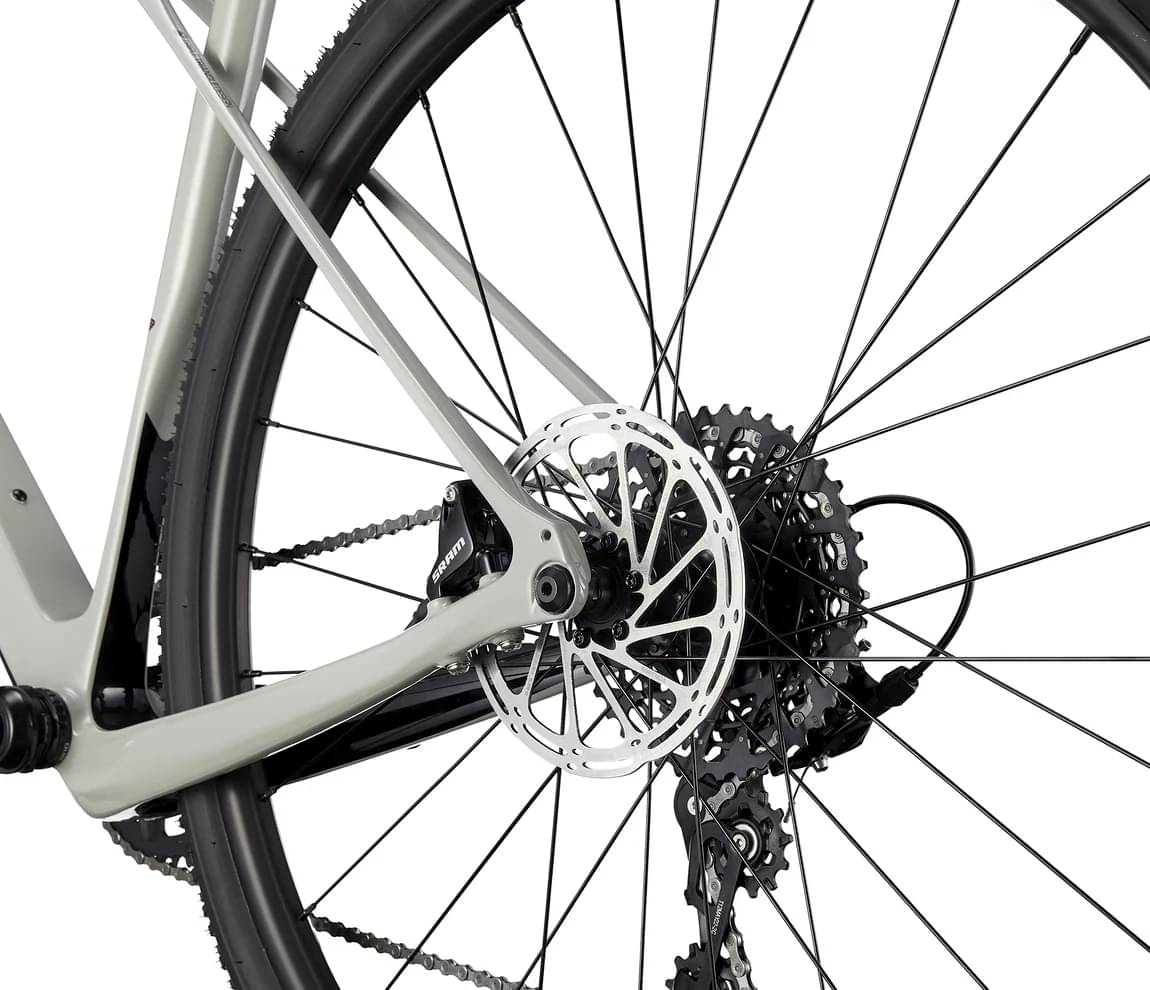

SRAM PG-1130, 11-42T
Crank

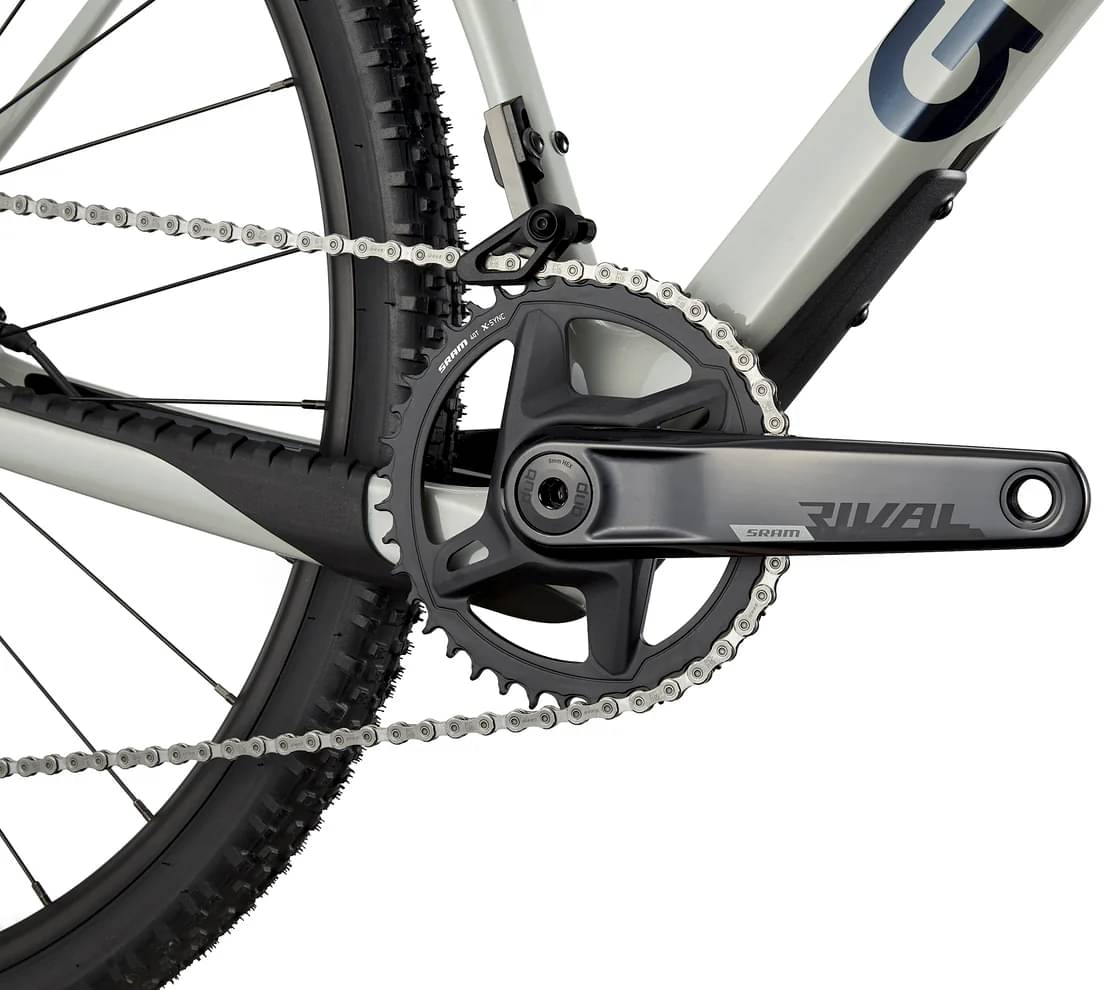

SRAM Apex 1 Wide, DUB, 40T
Bottom Bracket
SRAM DUB BSA, 68mm Wide
Chain
SRAM Apex, 11-speed
Wheels
Front Hub
Formula, 12x100mm 6-Bolt
Rear Hub
Formula, 12x142mm 6-bolt
Rims
WTB ST Light i23 TCS 2.0, 28h, Tubeless Ready
Tires
Front: WTB Resolute TCS Light, 700x42c, SG2 Dual DNA Compound, TCS Aramid Bead, Rear: WTB Resolute TCS Light, 700x42c, SG2 Dual DNA Compound, TCS Aramid Bead
Brakes
Brakes
SRAM Apex 1, 160/160mm
Cockpit
Stem
GT 3D Forged SL Alloy, 31.8
Handlebar

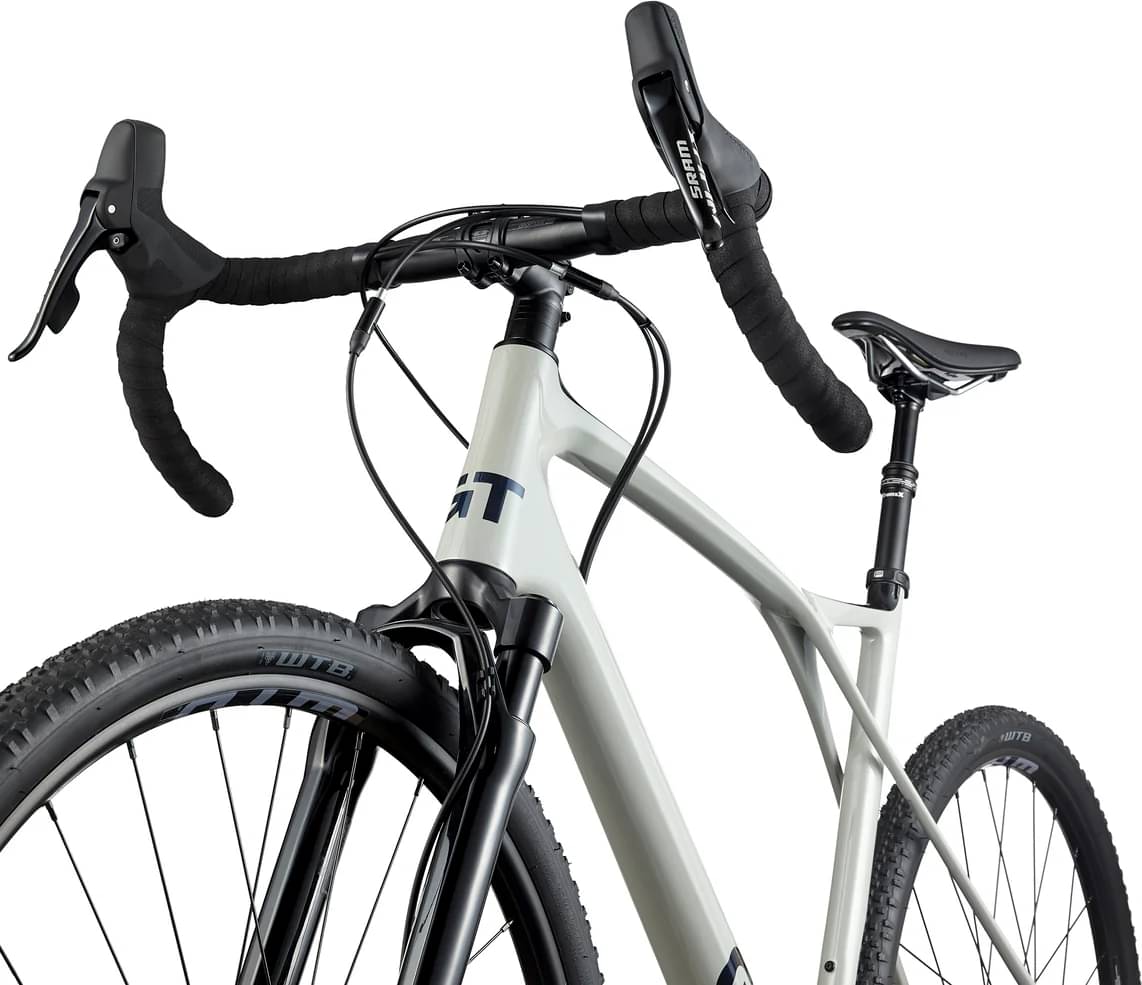

GT DropTune RS, Alloy, 16° Flare (Width: S & M- 42cm, L - 44cm, XL - 46cm)
Grips
GT Gravel Grip Premium Tape
Headset
FSA No.42 ACB
Seat
Saddle
WTB Silverado SL Fusion
Seatpost
TranzX Dropper Post, 27.2mm (S/M-50mm, L/XL-70mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.429 mm | 1.425 mm | 1.419 mm | 1.416 mm |
| Bottom Bracket Height | 284 mm | 284 mm | 284 mm | 284 mm |
| Front Center | 621 mm | 650 | 680 mm | 710 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 72 mm | 72 mm | 72 mm | 72 mm |
| Stack | 550 mm | 577 mm | 603 mm | 630 mm |
| Reach | 385 mm | 405 mm | 425 mm | 445 mm |
| Top Tube Length | 553 mm | 581 mm | 609 mm | 638 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm | 600 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 106 mm | 134 mm | 162 mm | 191 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1040 mm | 1069 mm | 1099 mm | 1129 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 730 mm | 753 mm | 792 mm | 816 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 170 cm | 179 cm | 187 cm |
| Rider Max Height | 172 cm | 182 cm | 189 cm | 195 cm |
