Bike details
Overview
Key information split into simple groups.

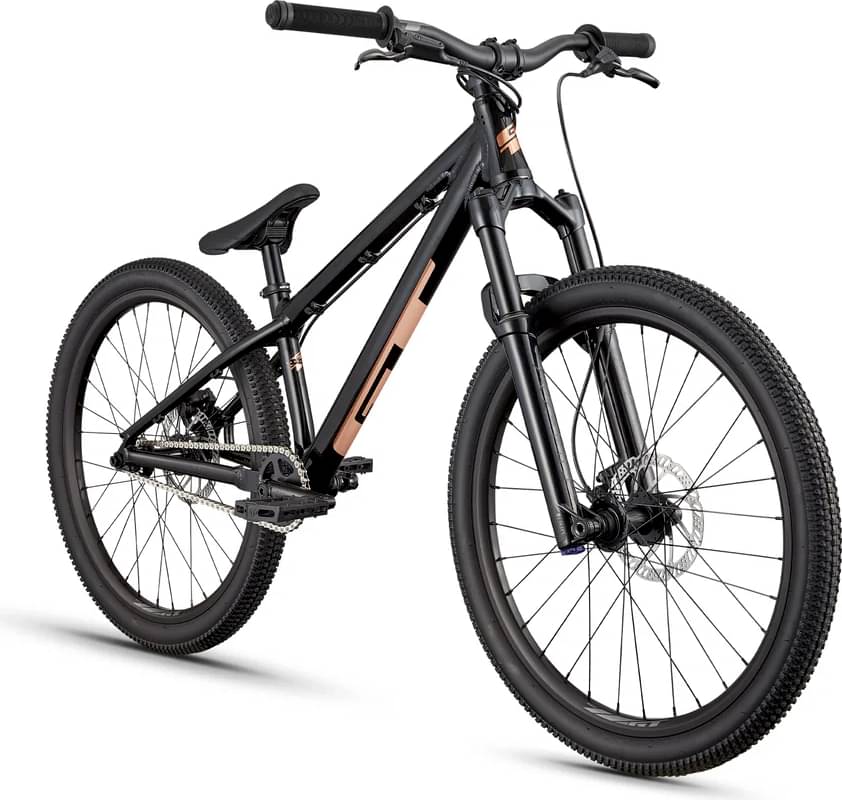

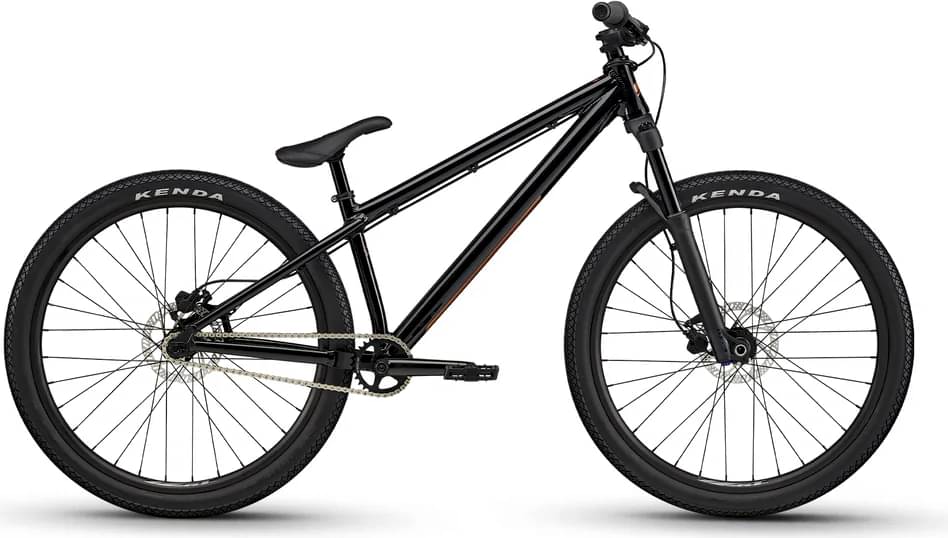

Bike summary
-
-
Frame Aluminum -
Fork Manitou Machete JUNIT -
Suspension Hardtail -
Drivetrain Single Speed -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Aluminum, BSA BB, Disc Brake Mount, Integrated 1-1/8"-1.5" Taper H/T, 3/8" Horizontal Adjustable Dropout w/ Integrated Chain Tensioners
Suspension Fork
Manitou Machete J-Unit, Air Spring w/ Rebound Adjust, 15mm Thru Axle Dropout, 1-1/8"-1.5" Taper AL Steerer, Pre Load Adjust, Black Stanchions
Drivetrain
Cassette
13T Cog
Crank
GT Power Series 3pc Chromoly 140mm, 19mm x 8T Spindle, GT NBS 28T Alloy Chainwheel
Bottom Bracket
BSA Sealed
Chain
KMC HL1 Wide
Pedals
GT Logo PC Platform
Wheels
Front Hub
Sealed Alloy Disc, 15x110 Boost
Rear Hub
Alloy Disc Body, Sealed Bearings, 32 Hole, 3/8" x 17mm Female Bolt
Rims
Alloy Double Wall, 32h
Spokes
Stainless Steel, 14g
Tires
Front: Kenda Small Block Eight 2.10", Rear: Kenda Small Block Eight 2.10"
Brakes
Brakes
Hydro Disc, 160mm Rotor (F/R)
Brake Levers
Brake Levers Alloy, 2 Finger Hydro
Cockpit
Stem
GT 3D Forged Alloy Stem 35mm, 31.8mm Clamp
Handlebar
GT Alloy Riser Bar, 30mm Rise, 650mm Wide, 5° Up, 9° Back
Grips
GT Super Soft Flanged
Headset
1-1/8-1.5" Taper Sealed Integrated, (45)
Seat
Saddle
GT Pivotal Slim Padded
Seatpost
Alloy Pivotal 27.2 x 200mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | One Size |
|---|---|
| Stack Reach Ratio | 1.384 mm |
| Bottom Bracket Height | 290 mm |
| Front Center | 623 mm |
| Rake | 40 mm |
| Trail | 83 mm |
| Stack | 519 mm |
| Reach | 375 mm |
| Top Tube Length | 525 mm |
| Seat Tube Angle | 75.6 ° |
| Seat Tube Length | 290 mm |
| Head Tube Angle | 68.5 ° |
| Head Tube Length | 110 mm |
| Chainstay Length | 353 mm |
| Wheelbase | 986 mm |
| Bottom Bracket Drop | 10 mm |
| Standover Height | 640 mm |
| Wheels | 24" |
| Rider Min Height | 120 cm |
