Bike details
Overview
Key information split into simple groups.

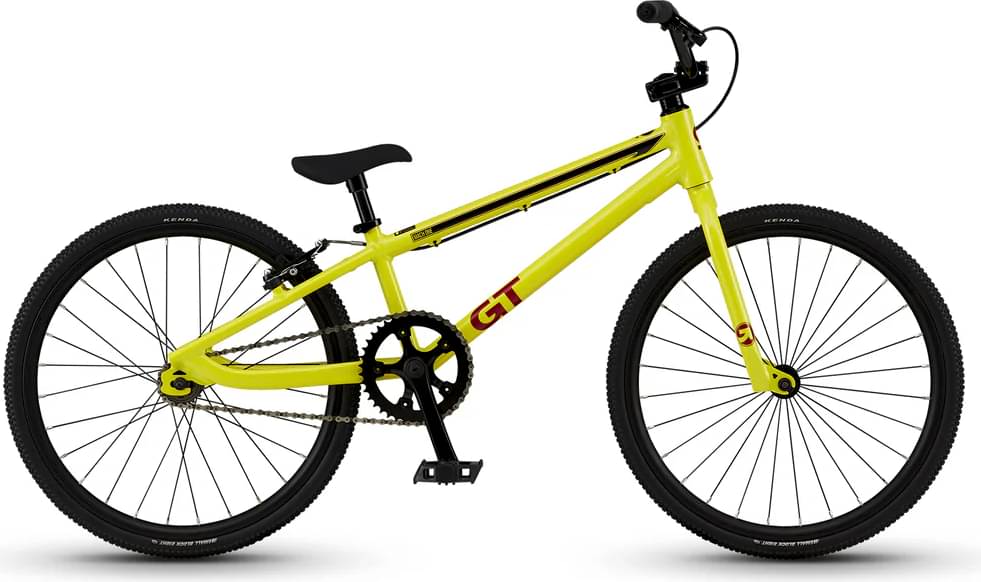

Bike summary
-
-
Frame Aluminum -
Suspension Rigid -
Drivetrain Single Speed -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components

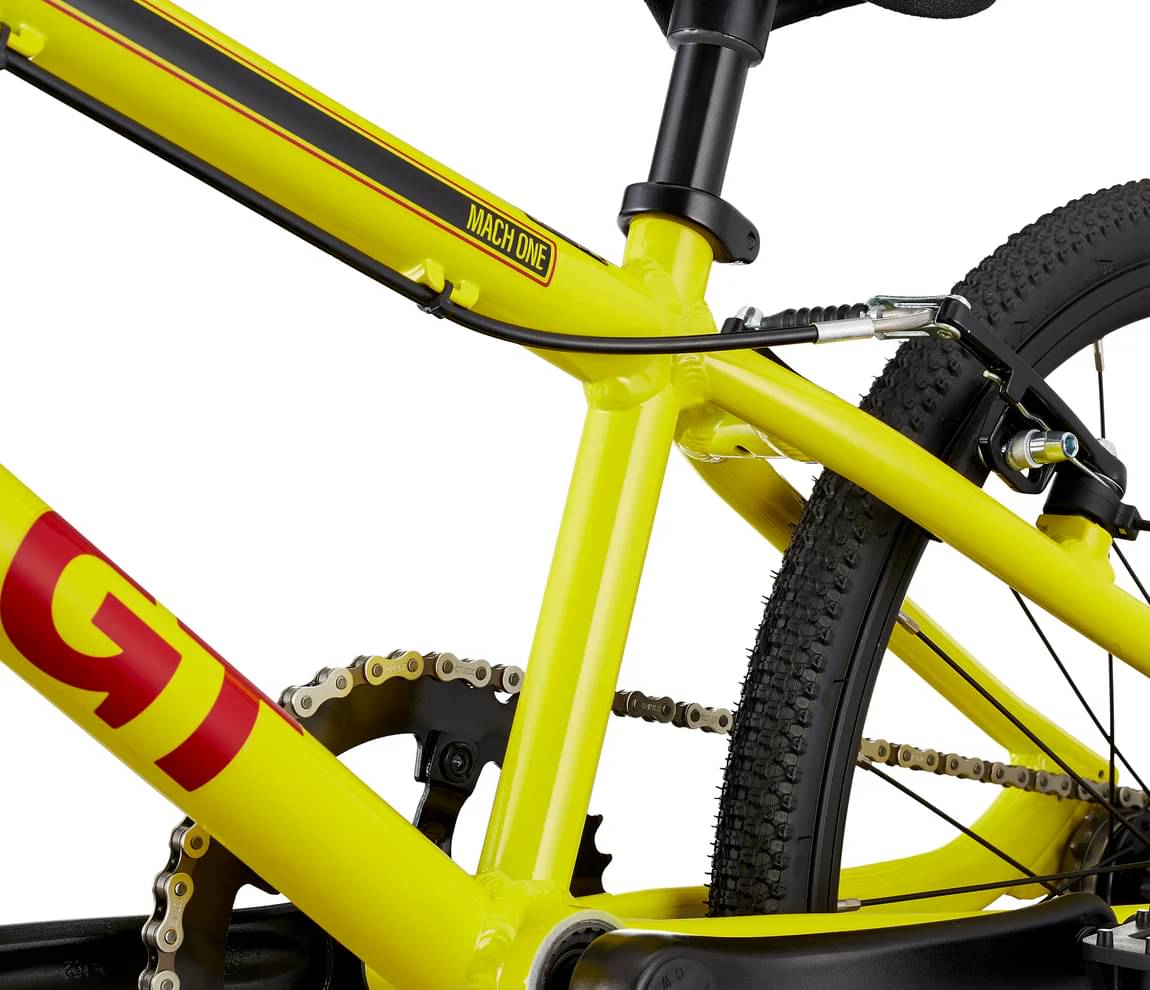

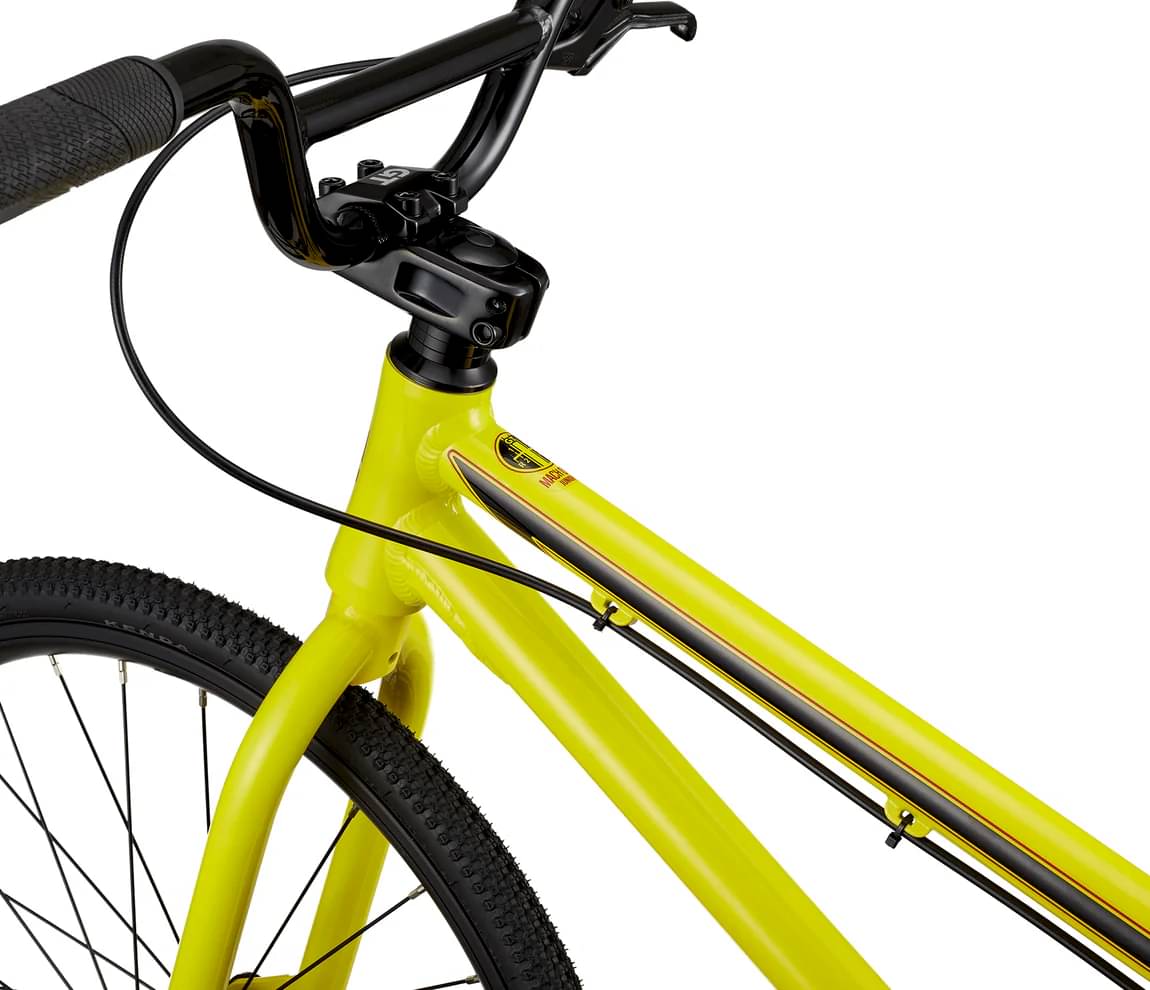

Frame
Frame
GT Mach One Race MK2, 6061 Alloy, Euro BB, Reverse Dropouts, V-Brakes, 1-1/8" Integrated H/T
Suspension Fork
GT BMX Race, Hi-Ten Steel 1 1/8" Steerer, 312mm A/C, 3/8" Dropouts
Drivetrain
Cassette
16T Freewheel

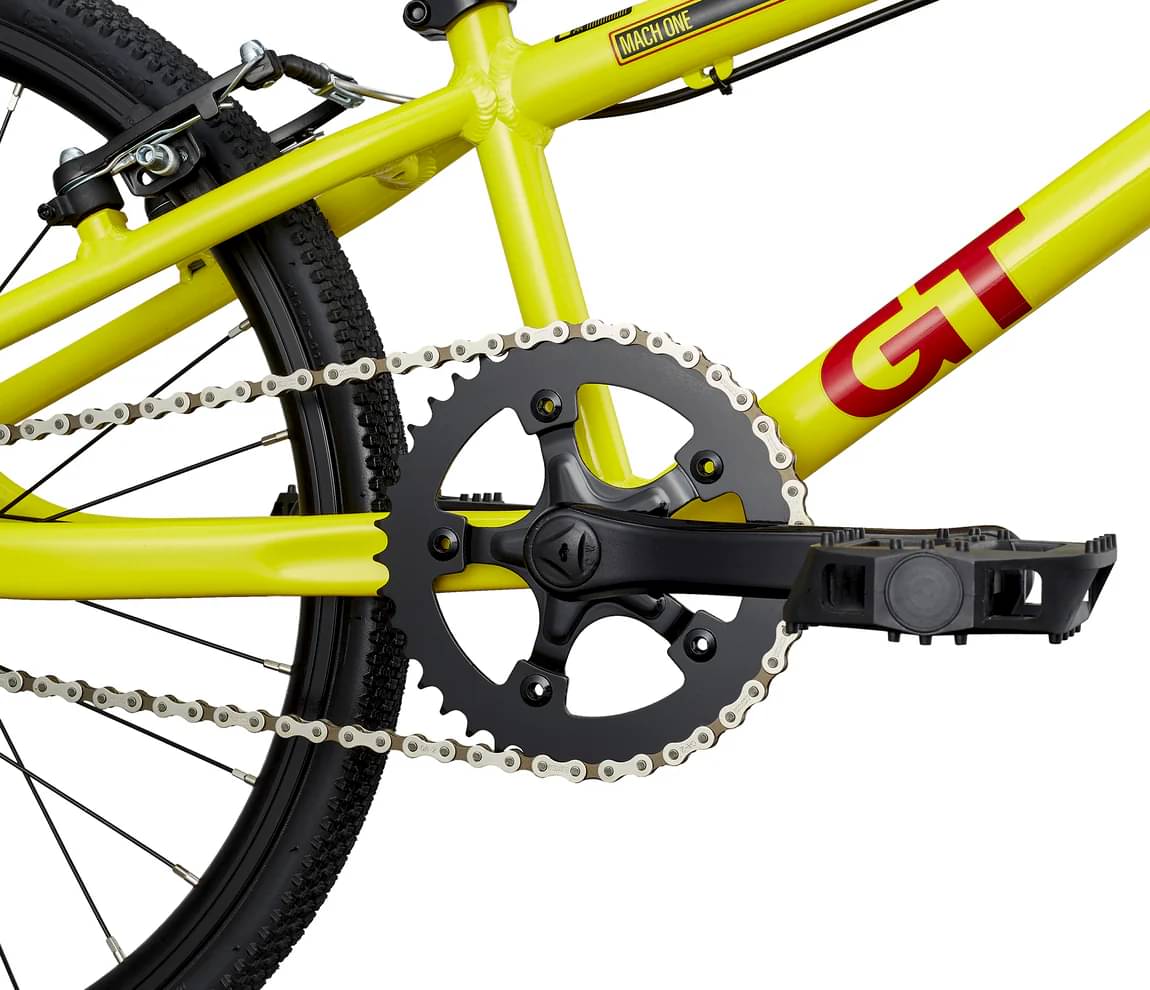

Crank
GT Alloy Forged 3pc, 152mm, Square Taper, 130 BCD 40T Steel Chainring
Bottom Bracket
Threaded Square Type
Chain
KMC S1
Pedals
GT Mini Size Platform, PP Material
Wheels
Front Hub
Steel Body, 28h, 3/8" Axle

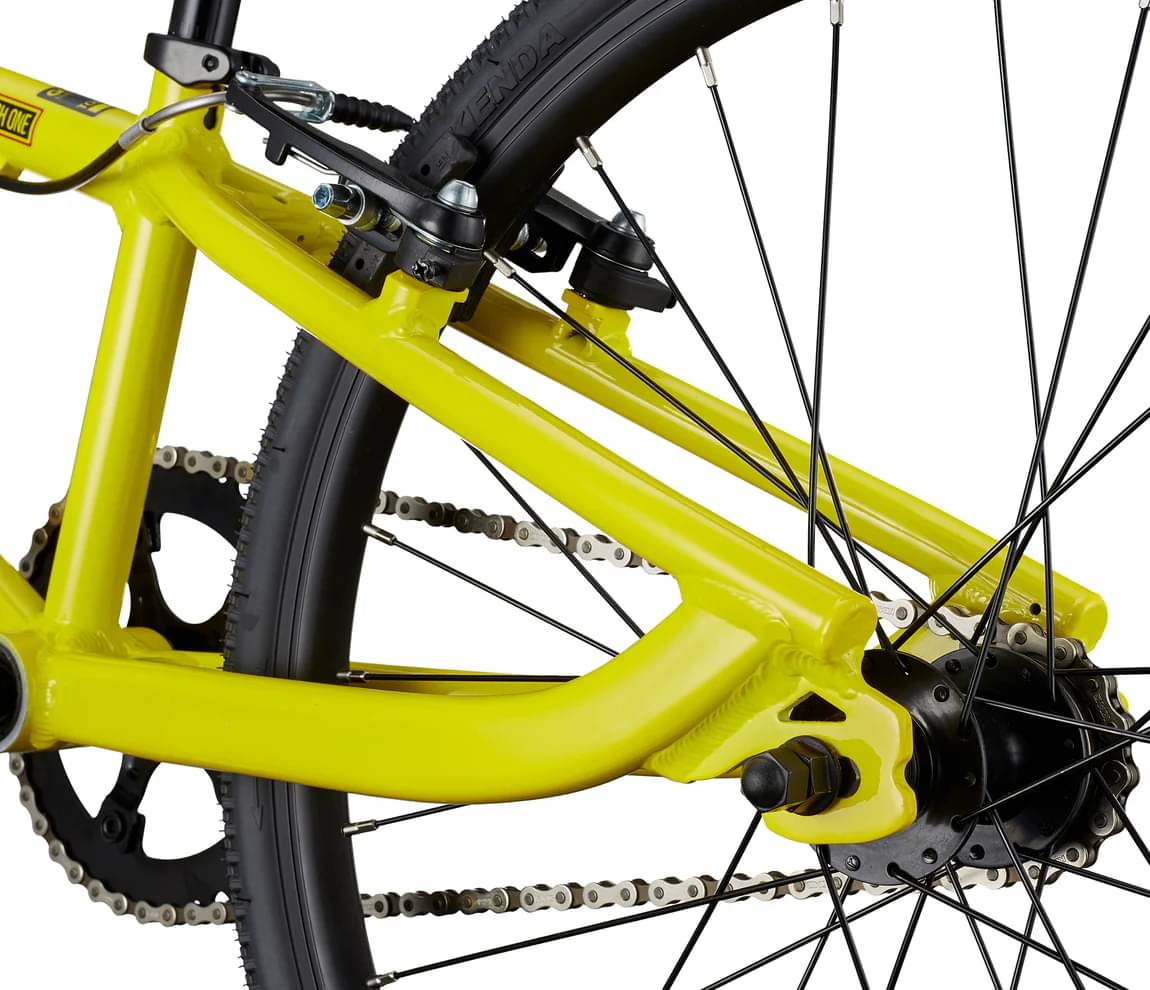

Rear Hub
Steel Flip Flop Thread-on Body, Freewheel, 28h, 3/8" Axle
Rims
Alloy Double Wall, 28h
Spokes
Stainless Steel, 14g
Tires
Front: Kenda Race, 20 x 1-3/8", Rear: Kenda Race, 20 x 1-3/8"
Brakes
Brakes
Alloy V-type
Brake Levers
Alloy V-type

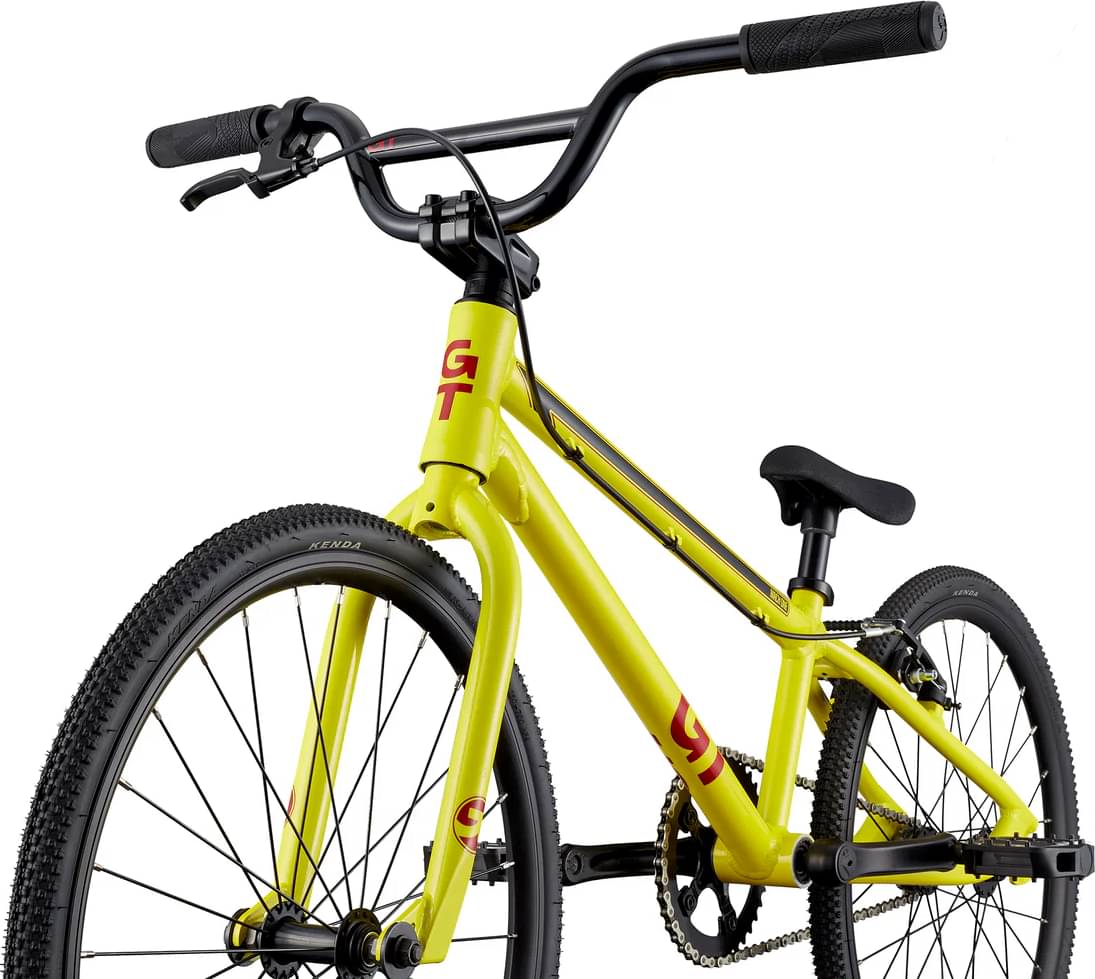

Cockpit
Stem
GT Top Load, 40mm
Handlebar
GT Race, Steel, 4"H x 24"w/ 8° Back, 2° Up, 19mm O.D. Cross Bar
Grips
GT Statement
Headset
1-1/8" Sealed Integrated (41.8 x 45)
Seat

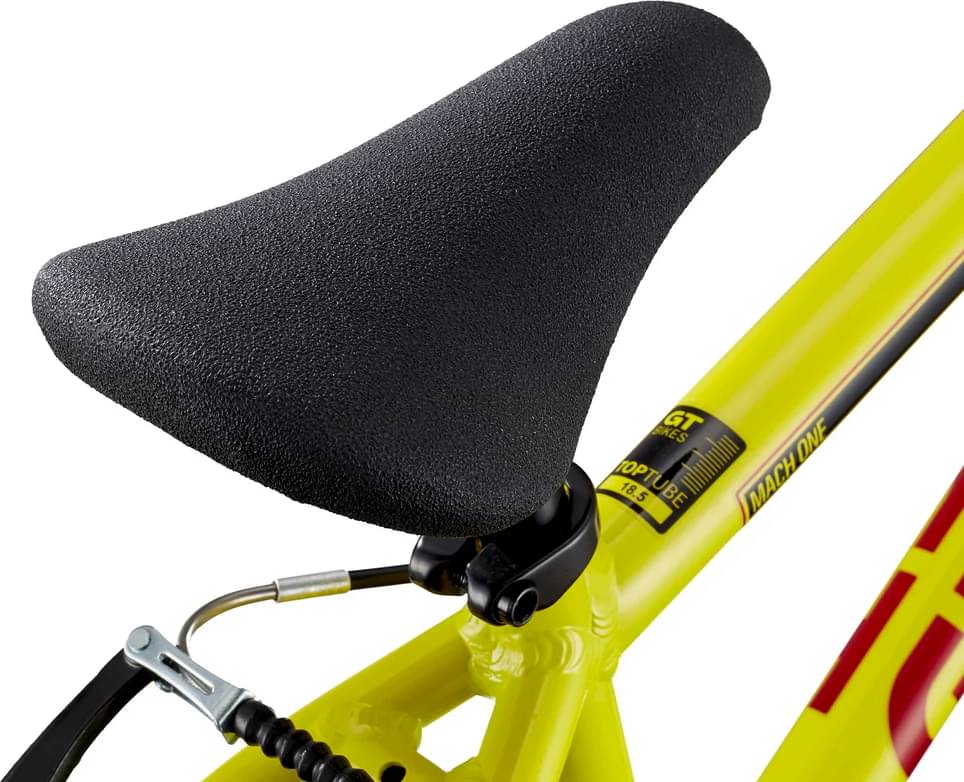

Saddle
GT Uni Mini Padded
Seatpost
Combo Alloy 22.2 Integrated
