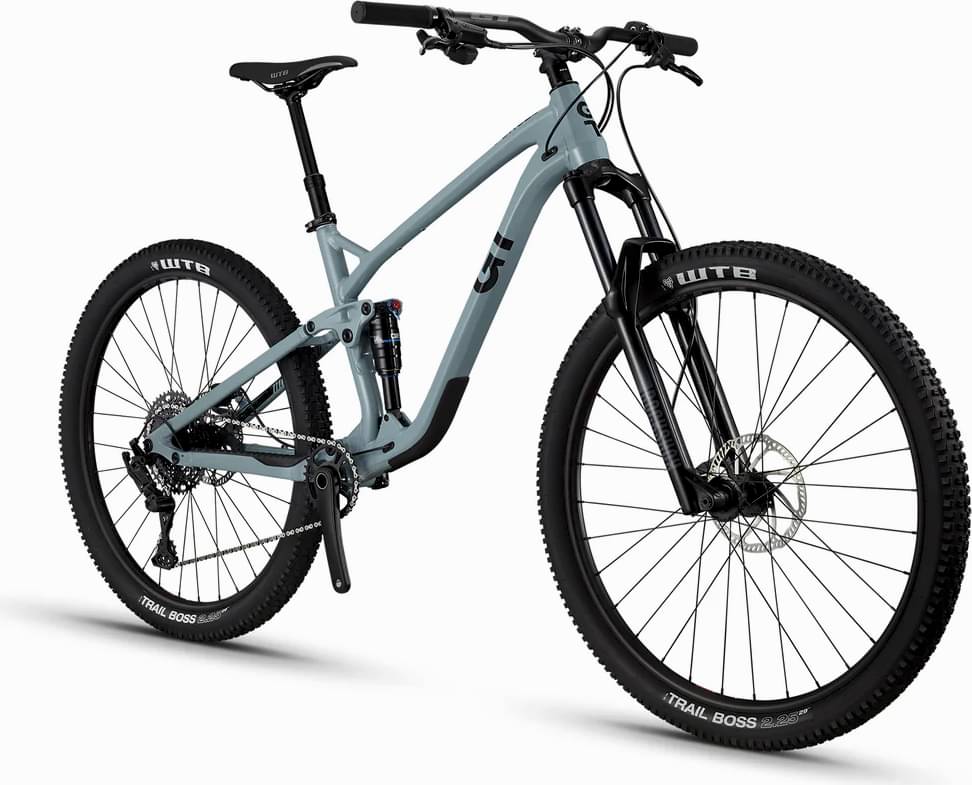

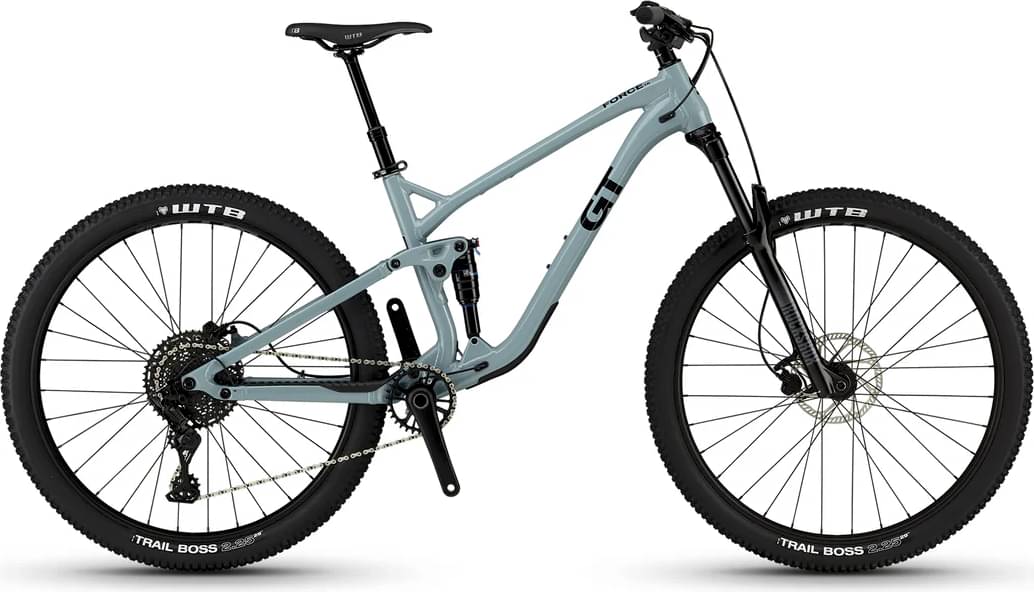

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox Recon Silver RL
-
Groupset microSHIFT Advent X -
Suspension Full -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 167cm
MD
165cm - 180cm
LG
177cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Sensor Alloy 29” Frame, 130mm Travel, 12x148mm Thru-Axle, UDH
Suspension Fork
RockShox Recon Silver, 140mm, 15x110mm, 42mm Offset
Rear Shock
X-Fusion 02 Pro RL, 185x50mm Trunnion
Drivetrain
Rear Derailleur
MicroSHIFT Advent X M6205
Shift Levers
MicroSHIFT Advent X, 10-Speed
Cassette
MicroSHIFT Advent X, 11-48T
Crank
Prowheel MPX, 32T
Bottom Bracket
Shimano BSA, 73mm
Chain
KMC X10, 10-Speed
Wheels
Front Hub
Formula, 15x110mm
Rear Hub
Formula, 12x148mm, HG Freehub Body
Rims
WTB STX i25 TCS, 32h, Tubeless Ready
Tires
Front: WTB Trail Boss, DNA Compound, 29x2.3", Rear: WTB Trail Boss, DNA Compound, 29x2.3"
Brakes
Brakes
Tektro M275, 180/180mm Rotors
Cockpit
Stem
GT Alloy, 45mm
Handlebar
GT Alloy Riser Bar, 30mm Rise, 780mm, 5° Up, 8° Back
Grips
GT Mushroom
Headset
FSA No.42
Seat
Saddle
WTB Silverado
Seatpost
TranzX Dropper, 31.6mm, (S/M - 150mm, L/XL - 170mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.447 mm | 1.387 mm | 1.333 mm | 1.259 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 738 mm | 767 mm | 797 mm | 836 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 125 mm | 125 mm | 125 mm | 125 mm |
| Stack | 615 mm | 624 mm | 633 mm | 642 mm |
| Reach | 425 mm | 450 mm | 475 mm | 510 mm |
| Top Tube Length | 551 mm | 579 mm | 607 mm | 646 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° | 77.5 ° |
| Seat Tube Length | 395 mm | 420 mm | 445 mm | 460 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1176 mm | 1205 mm | 1234 mm | 1273 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 740 mm | 740 mm | 745 mm | 755 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 165 cm | 177 cm | 185 cm |
| Rider Max Height | 167 cm | 180 cm | 188 cm | 198 cm |
