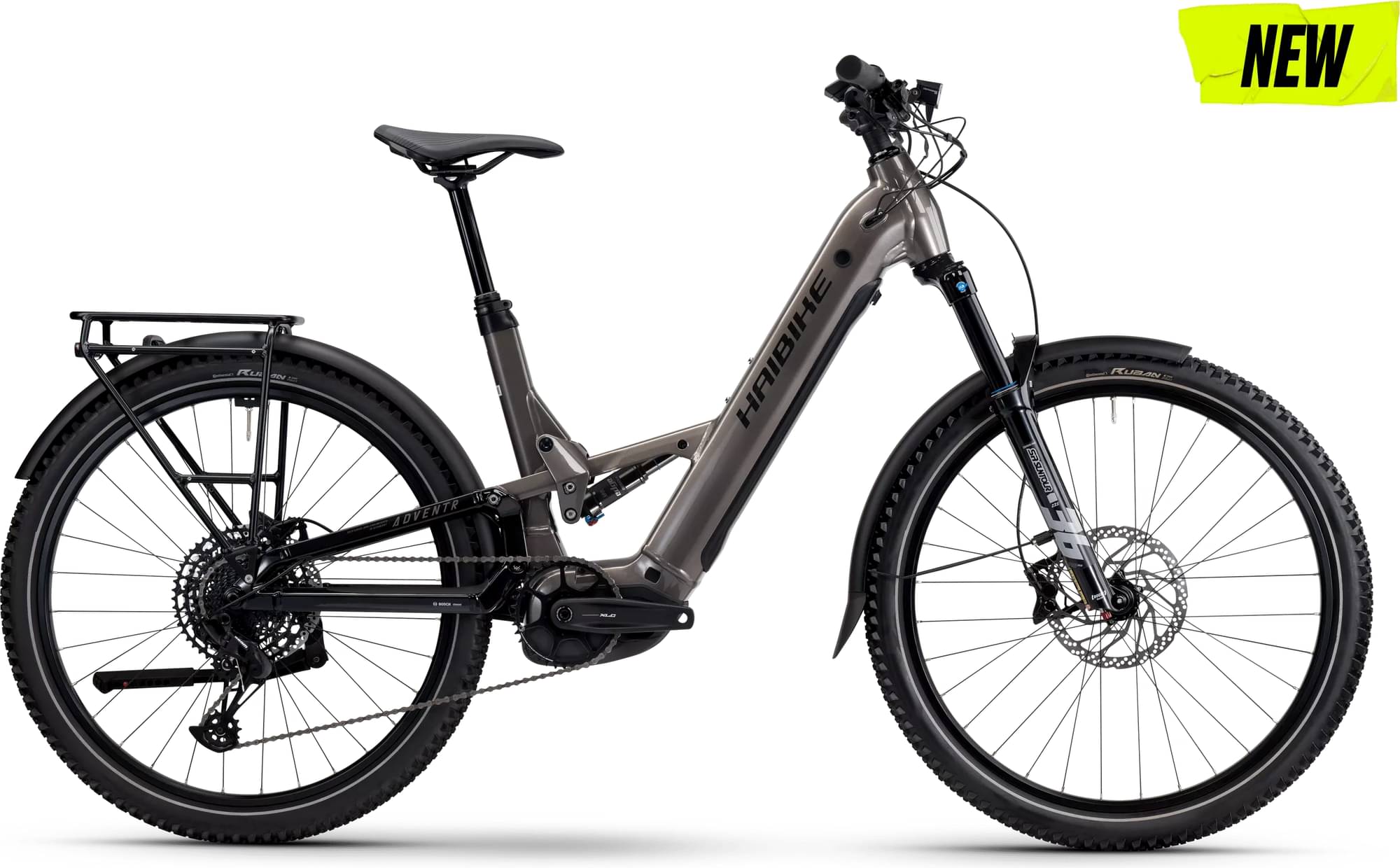

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Fork Suntour Zeron
-
Groupset SX Eagle -
Suspension Hardtail -
Motor Bosch hub-drive -
Battery Bosch InTube 800Wh -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
Suntour SF25-ZERON36X-Boost EQ 2CR, 140 mm
Drivetrain
Rear Derailleur
SRAM SX Eagle 12s
Shift Levers
SRAM Triggershift SX Eagle Single Click Trigger
Cassette
SRAM PG-1210 Eagle, HG
Crank
Miranda Crius ISIS Crakset + SRAM CR T-Type Bosch DU38, DM 165
Bottom Bracket
Bosch, press-fit
Chain
SRAM Chain SX Eagle 12s
Pedals
VP VPE-527 Alloy w/ Reflector
Wheels
Rims
Schurmann YAK Disc 25-584 32H 6,5 mm Valve
Tires
Continental Ruban Reflex 58-584
Brakes
Brakes
Front: Shimano Hydraulic Disc brake Deore BR-MT420, 4 pistons, resin pad, 203 mm
Cockpit
Handlebar
Haibike Flat bar TheBar++ Dia. 31.8 mm
Seat
Saddle
Selle Royal Vivo 1216HRN
Motor & Battery
Motor
Bosch
Battery
Bosch InTube 800Wh
Charger
Bosch Charger 4A 220-240V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
