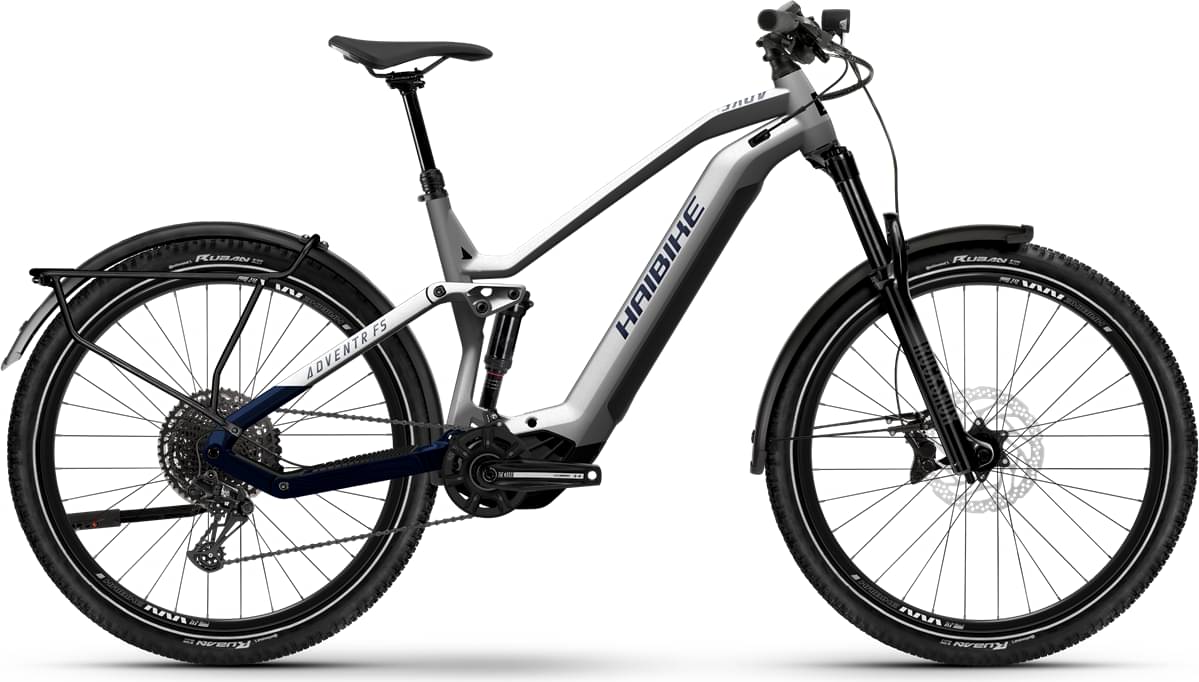

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Fork RockShox 35 Gold RL
-
Groupset NX Eagle, SX Eagle -
Suspension Full -
Motor Yamaha 250W 75Nm mid-drive -
Battery InTube 720 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
RockShox 35 Gold RL, Travel: 140mm
Rear Shock
RockShox, Deluxe select, Air
Drivetrain
Rear Derailleur
SRAM, NX Eagle
Shift Levers
SRAM, SX Eagle, Trigger switch
Cassette
SRAM, Eagle PG1210, 11 - 50 teeth
Crank
Aluminium, 38 teeth
Bottom Bracket
integrated in the motor
Chain
SRAM, SX Eagle
Chain Guide
Nylon directmount
Pedals
Freeridepedal, Aluminium, with Reflector
Wheels
Rims
WTB, ST i30 TCS, Double Wall
Spokes
Sapim, Race, Black
Tires
Continental, Ruban Reflex, 58-622
Brakes
Brakes
Magura, MT5, 4-piston disc brake
Brake Levers
Magura, MT5 HC-lever,
Cockpit
Stem
Alu, A-head, 31.8 mm
Handlebar
Haibike Components, TheBar ++, 780 mm
Headset
Acros, BlockLock, Aluminium
Seat
Saddle
Selle Royal, Vivo
Seatpost
Haibike Components, Dropper-Post Remote 34.9, Aluminium, Telescope, 34.9 mm
Motor & Battery
Motor
Yamaha, PW-S2, 250W, 75 Nm
Battery
InTube 720 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.554 mm | 1.507 mm | 1.507 mm | 1.497 mm |
| Front Center | 756 mm | 765 mm | 765 mm | 775 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 114 mm | 111 mm | 111 mm | 107 mm |
| Stack | 651 mm | 654 mm | 654 mm | 666 mm |
| Reach | 419 mm | 434 mm | 434 mm | 445 mm |
| Top Tube Length | 570 mm | 585 mm | 585 mm | 600 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Head Tube Angle | 65 ° | 65.5 ° | 65.5 ° | 66 ° |
| Head Tube Length | 140 mm | 140 mm | 140 mm | 150 mm |
| Chainstay Length | 480 mm | 480 mm | 480 mm | 480 mm |
| Wheelbase | 1234 mm | 1243 mm | 1243 mm | 1253 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 179 cm | 187 cm |
