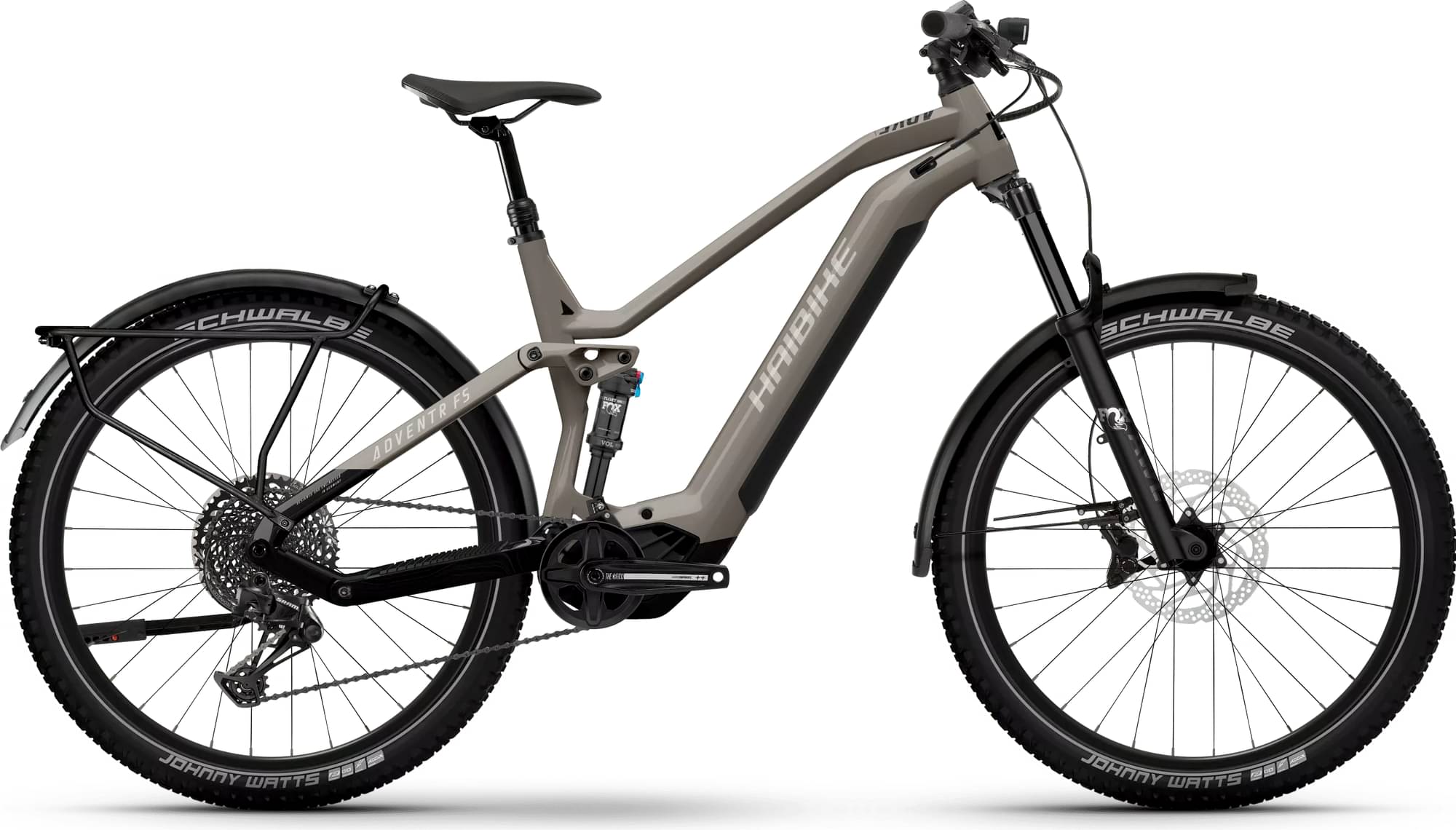

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Travel Rear 140mm -
Fork Fox AWL
-
Groupset NX Eagle -
Suspension Full -
Motor Yamaha mid-drive -
Battery Yamaha InTube 750 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
156cm - 167cm
MD
165cm - 175cm
LG
173cm - 183cm
XL
181cm - 192cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
MTB Fully Aluminium
Suspension Fork
FOX Factory 34 Float AWL 140 mm
Rear Shock
FOX Factory Air Float DPS Performance EVOL LV Trunnion 140 mm
Drivetrain
Shift Levers
SRAM Triggershift NX Eagle
Cassette
SRAM Eagle PG1230
Crank
Haibike The Crank +++
Bottom Bracket
integrated in the motor
Chain
SRAM Chain SX Eagle
Pedals
Freeridepedal
Wheels
Rims
WTB Hollow rim ST i30 TCS
Tires
Schwalbe Johnny Watts Performance 60-622
Brakes
Brakes
Front: Shimano Hydraulic Disc brake MT420
Cockpit
Handlebar
Haibike TheBar ++ Dia. 31.8 mm
Seat
Saddle
Fizik Terra Aidon X5-160
Motor & Battery
Motor
Yamaha
Battery
Yamaha InTube 750 Wh
Charger
Yamaha Quick Charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.554 mm | 1.507 mm | 1.497 mm | 1.439 mm |
| Front Center | 756 mm | 765 mm | 775 mm | 789 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 114 mm | 111 mm | 107 mm | 104 mm |
| Stack | 651 mm | 654 mm | 666 mm | 669 mm |
| Reach | 419 mm | 434 mm | 445 mm | 465 mm |
| Top Tube Length | 570 mm | 585 mm | 600 mm | 620 mm |
| Seat Tube Angle | 77 ° | 77 ° | 76.9 ° | 76.9 ° |
| Seat Tube Length | 410 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 65 ° | 65.5 ° | 66 ° | 66.5 ° |
| Head Tube Length | 140 mm | 140 mm | 150 mm | 150 mm |
| Chainstay Length | 480 mm | 480 mm | 480 mm | 480 mm |
| Wheelbase | 1234 mm | 1243 mm | 1253 mm | 1267 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 165 cm | 173 cm | 181 cm |
| Rider Max Height | 167 cm | 175 cm | 183 cm | 192 cm |
