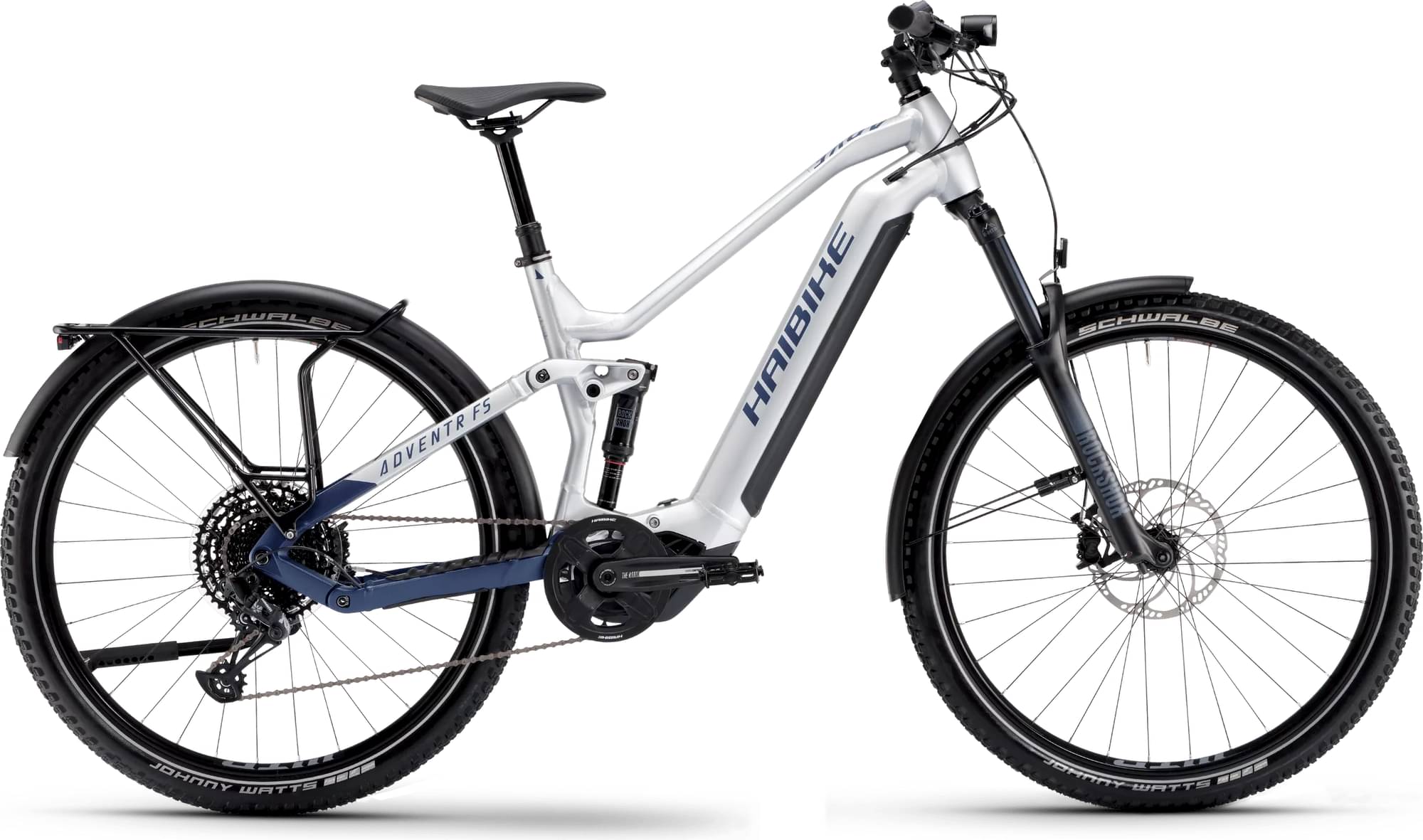

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Travel Rear 140mm -
Fork RockShox 35 Gold RL
-
Groupset NX Eagle, SX Eagle -
Suspension Full -
Motor Yamaha mid-drive -
Battery Yamaha InTube 720 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 169cm
MD
167cm - 176cm
LG
174cm - 184cm
XL
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
MTB Fully Aluminium
Suspension Fork
Rockshox 35 Gold RL 140 mm
Rear Shock
Rockshox Air Deluxe Select 140 mm
Drivetrain
Rear Derailleur
SRAM NX Eagle
Shift Levers
SRAM Triggershift SX Eagle
Cassette
SRAM Eagle PG1210
Crank
Haibike The Crank ++
Bottom Bracket
integrated in the motor
Chain
SRAM Chain SX Eagle
Pedals
Freeridepedal
Wheels
Rims
WTB Hollow rim ST i30 TCS
Tires
Continental Ruban Reflex 58-584
Brakes
Brakes
Front: Shimano Hydraulic Disc brake MT420
Cockpit
Handlebar
Haibike TheBar ++ Dia. 31.8 mm
Seat
Saddle
Selle Royal Vivo
Motor & Battery
Motor
Yamaha
Battery
Yamaha InTube 720 Wh
Charger
Yamaha Quick Charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.554 mm | 1.507 mm | 1.497 mm | 1.439 mm |
| Front Center | 756 mm | 765 mm | 775 mm | 789 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 114 mm | 111 mm | 107 mm | 104 mm |
| Stack | 651 mm | 654 mm | 666 mm | 669 mm |
| Reach | 419 mm | 434 mm | 445 mm | 465 mm |
| Top Tube Length | 570 mm | 585 mm | 600 mm | 620 mm |
| Seat Tube Angle | 77 ° | 77 ° | 76.9 ° | 76.9 ° |
| Seat Tube Length | 410 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 65 ° | 65.5 ° | 66 ° | 66.5 ° |
| Head Tube Length | 140 mm | 140 mm | 150 mm | 150 mm |
| Chainstay Length | 480 mm | 480 mm | 480 mm | 480 mm |
| Wheelbase | 1234 mm | 1243 mm | 1253 mm | 1267 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 167 cm | 174 cm | 182 cm |
| Rider Max Height | 169 cm | 176 cm | 184 cm | 193 cm |
