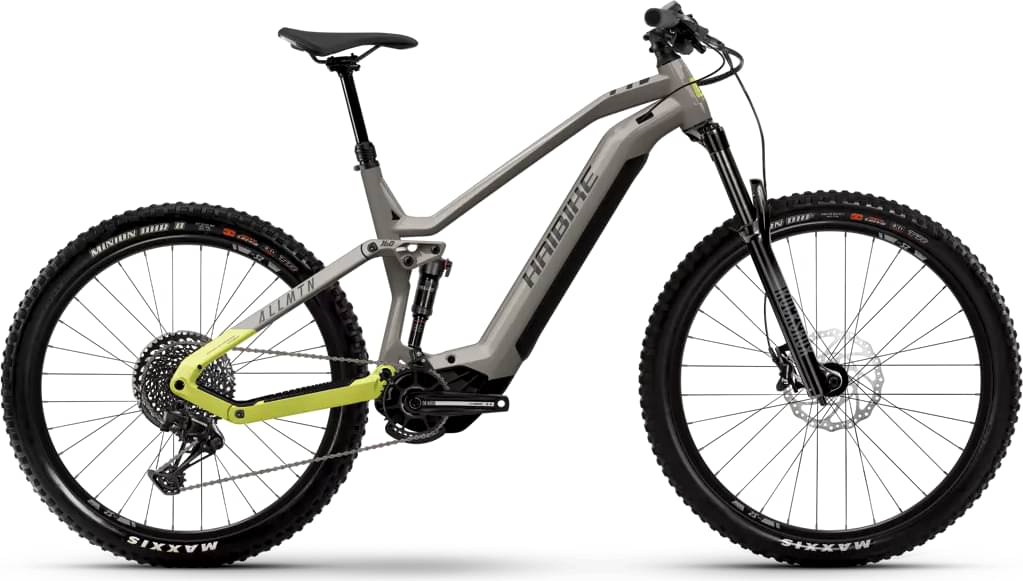

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox Psylo
-
Groupset SX Eagle -
Suspension Full -
Motor Yamaha mid-drive -
Battery Yamaha InTube 720 Wh -
Drivetrain 1 × 12 -
Brakes TRP Slate T4 Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
MTB Fully Aluminium
Suspension Fork
Rockshox Psylo Gold RC 160 mm
Rear Shock
Rockshox Air Deluxe Select Plus 160 mm
Drivetrain
Rear Derailleur
SRAM SX Eagle
Shift Levers
SRAM Triggershift SX Eagle
Cassette
SRAM Eagle PG1210
Crank
Haibike The Crank +
Bottom Bracket
integrated in the motor
Chain
SRAM Chain SX Eagle
Pedals
Freeridepedal
Wheels
Rims
WTB Hollow rim ST i30 TCS
Tires
Maxxis Minion DHF II 63-622
Brakes
Brakes
Front: TRP Hydraulic Disc brake Slate T4
Cockpit
Handlebar
Haibike TheBar +++ Dia. 31.8 mm
Seat
Saddle
Selle Royal Vivo
Seatpost
Haibike Dropperpost
Motor & Battery
Motor
Yamaha
Battery
Yamaha InTube 720 Wh
Charger
Yamaha Quick Charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
