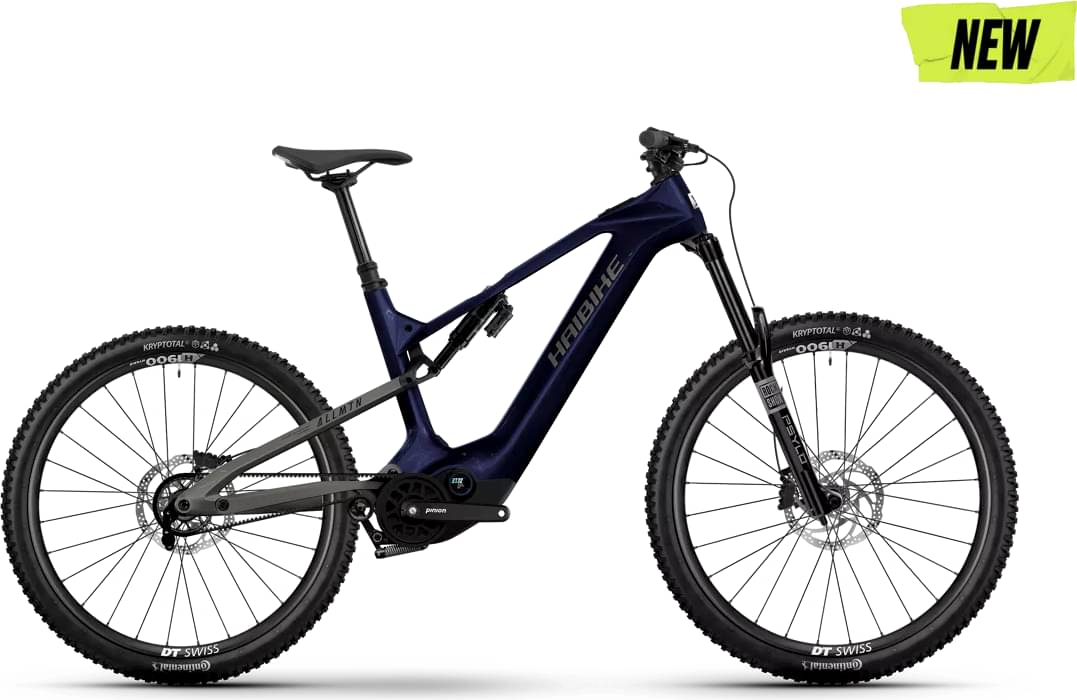

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Fork RockShox Psylo
-
Groupset Gates CDX -
Suspension Full -
Motor hub-drive -
Battery Pinion InTube 800Wh -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Tektro Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
High Carbon Uni
Suspension Fork
Rockshox Psylo Gold RC, Crown Adj, DebonAir 160 mm
Rear Shock
Rockshox Super Deluxe Select RT 230x60mm, DebonAir
Drivetrain
Shift Levers
Pinion Triggershift Smart Shift TE1 E-Trigger
Cassette
Gates Carbon Drive CDX Sprocket, 9 Spline
Crank
Pinion Forge Crankset + GATES CDX front sprocket w/ Guard 165
Bottom Bracket
Pinion, press-fit
Chain
Gates Belt Carbon Drive Belt CDX, 120T
Pedals
VP VPE-527 Alloy w/ Reflector
Wheels
Rims
29
Tires
Continental Kryptotal-Fr, Enduro Soft, foldable skin SL 60-622
Brakes
Brakes
Front: Tektro Hydraulic Disc brake TRP Slate EVO HD-M807, 4 pistons, 203 mm
Cockpit
Handlebar
Haibike Flat bar TheBar++ Dia. 31.8 mm
Seat
Saddle
Selle Royal Vivo 1216HRN
Seatpost
Limotec Dropperpost A4H Dropper, Dia. 34.9 mm, Travel: 200 mm
Motor & Battery
Motor
Pinion
Battery
Pinion InTube 800Wh
Charger
Pinion FIT Standard Charger 48V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
