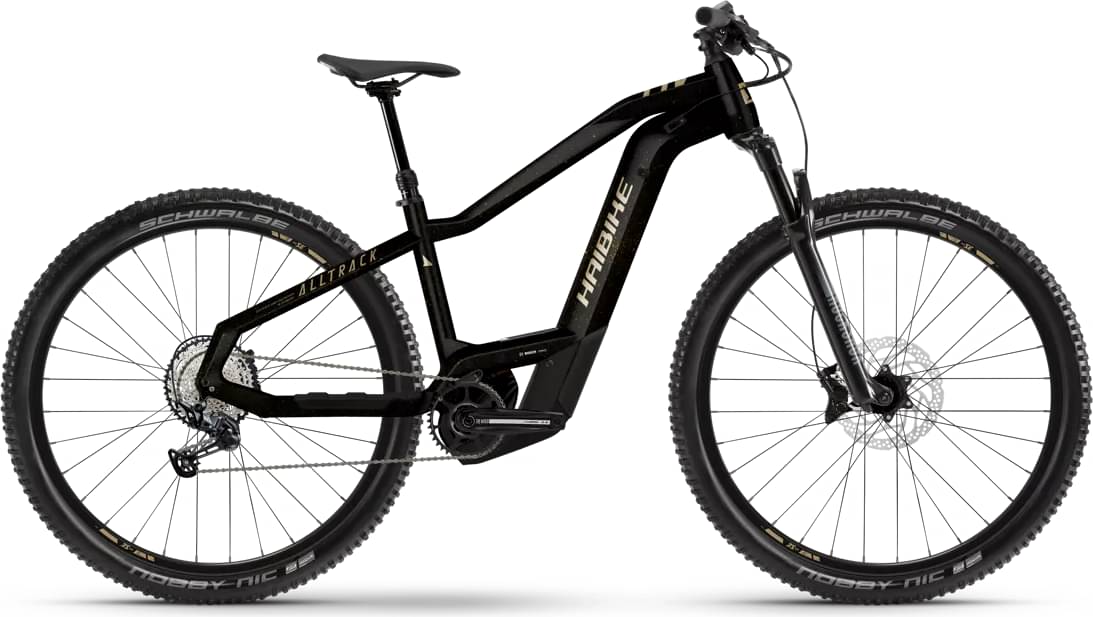

Haibike Alltrack 10 2024

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Aluminum
  • Travel Front 120mm
  • Fork RockShox 35 Gold RL
  • Groupset SLX, Deore
  • Suspension Hardtail
  • Motor Bosch hub-drive
  • Battery Bosch PowerTube 750 Wh
  • Brakes Hydraulic Disc
Sizing

Recommended size guide.

  • SM

    160cm - 172cm

  • MD

    170cm - 180cm

  • LG

    178cm - 188cm

  • XL

    186cm - 198cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

MTB Hardtail Aluminium

Suspension Fork

Rockshox 35 Gold RL 120 mm

Drivetrain

Rear Derailleur

Shimano SLX M7100

Shift Levers

Shimano Triggershift Deore M6100

Cassette

Shimano M6100

Crank

Haibike The Crank ++

Bottom Bracket

integrated in the motor

Chain

Shimano Chain CN-M6100

Pedals

Freeridepedal

Wheels

Rims

Rodi Hollow rim Tryp 30

Tires

Schwalbe Nobby Nic Performance 65-622

Brakes

Brakes

Front: Shimano Hydraulic Disc brake M6120

Cockpit

Handlebar

Haibike TheBar ++ Dia. 31.8 mm

Seat

Saddle

XLC MTB

Motor & Battery

Motor

Bosch

Battery

Bosch PowerTube 750 Wh

Charger

Bosch Quick charger 4A

Fit data

Geometry

Numbers for sizing and ride feel.

SizeSMMDLGXL
Stack Reach Ratio
1.532 mm1.553 mm1.531 mm1.476 mm
Bottom Bracket Height
310 mm314 mm314 mm314 mm
Front Center
726 mm746 mm762 mm789 mm
Rake
38 mm44 mm44 mm44 mm
Trail
124 mm119 mm119 mm119 mm
Stack
628 mm663 mm672 mm682 mm
Reach
410 mm427 mm439 mm462 mm
Top Tube Length
602 mm630 mm645 mm670 mm
Seat Tube Angle
73 °73 °73 °73 °
Seat Tube Length
410 mm440 mm480 mm520 mm
Head Tube Angle
65 °66 °66 °66 °
Head Tube Length
140 mm140 mm150 mm160 mm
Chainstay Length
460 mm470 mm470 mm470 mm
Wheelbase
1182 mm1210 mm1226 mm1253 mm
Bottom Bracket Drop
45 mm60 mm60 mm60 mm
Wheels27"29"29"29"
Rider Min Height160 cm170 cm178 cm186 cm
Rider Max Height172 cm180 cm188 cm198 cm
