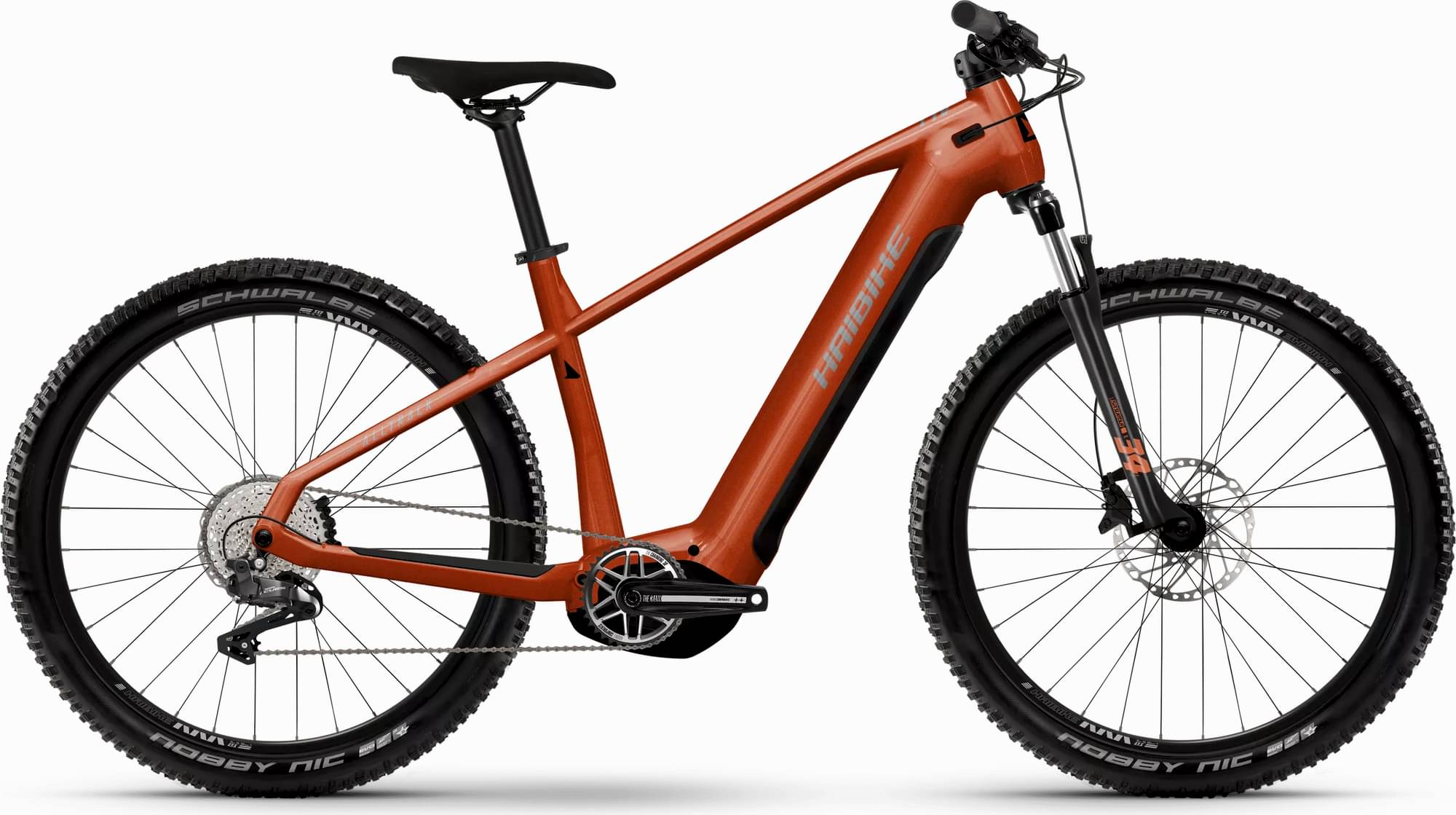

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork Suntour XCM
-
Groupset NX -
Suspension Hardtail -
Motor Yamaha mid-drive -
Battery Yamaha -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
161cm - 171cm
MD
169cm - 180cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
High Aluminium Unisex
Suspension Fork
Suntour XCM34 NLO DS 120 mm
Drivetrain
Rear Derailleur
SRAM NX 13
Shift Levers
SRAM Triggershift SL NX
Cassette
SRAM PG-1130
Crank
Miranda Kies
Bottom Bracket
integrated in the motor
Pedals
Freeridepedal
Wheels
Rims
Rodi Hollow rim Tryp 30
Brakes
Brakes
Front: Shimano Hydraulic Disc brake MT410
Seat
Saddle
Selle Royal Vivo Unitech
Motor & Battery
Motor
Yamaha
Battery
Yamaha
Charger
Yamaha Quick Charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Stack Reach Ratio | 1.555 mm | 1.519 mm |
| Bottom Bracket Height | 295 mm | 295 mm |
| Front Center | 712 mm | 722 mm |
| Rake | 44 mm | 44 mm |
| Trail | 96 mm | 96 mm |
| Stack | 656 mm | 656 mm |
| Reach | 422 mm | 432 mm |
| Top Tube Length | 610 mm | 620 mm |
| Seat Tube Angle | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 450 mm |
| Head Tube Angle | 68 ° | 68 ° |
| Head Tube Length | 140 mm | 140 mm |
| Chainstay Length | 465 mm | 465 mm |
| Wheelbase | 1171 mm | 1181 mm |
| Bottom Bracket Drop | 60 mm | 60 mm |
| Wheels | 27" | 27" |
| Rider Min Height | 161 cm | 169 cm |
| Rider Max Height | 171 cm | 180 cm |
