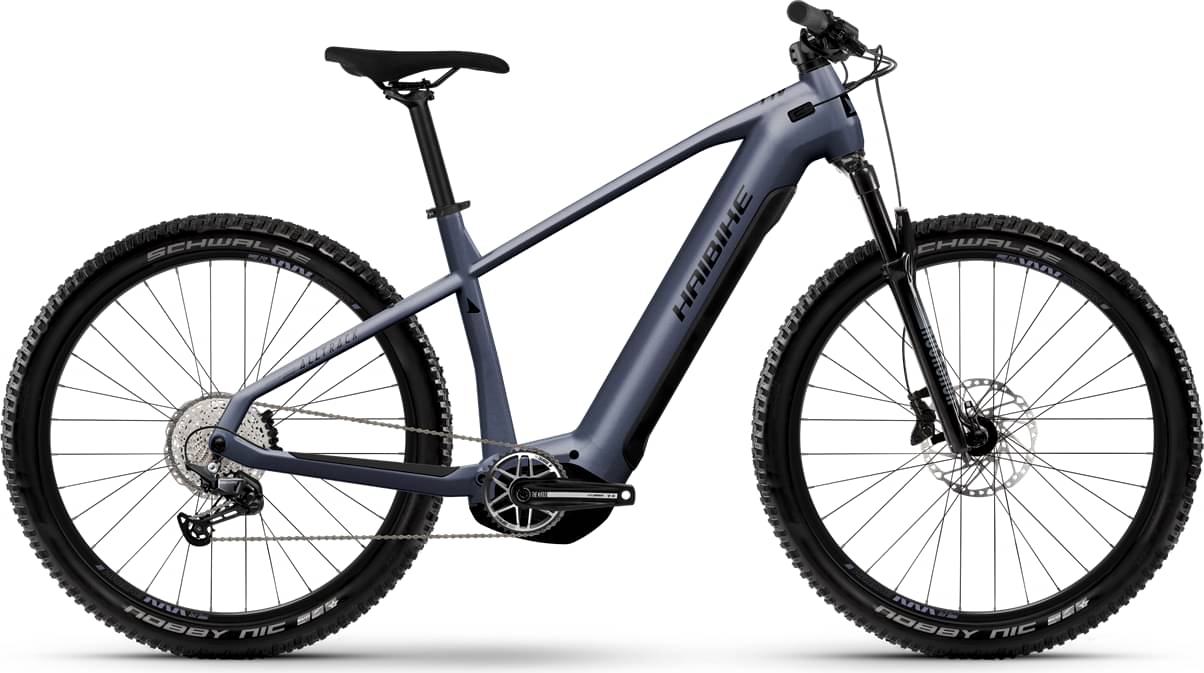

Haibike AllTrack 7 29 2024
2024 E-bike
Estimate price |
4,587$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork RockShox 35 Silver
-
Groupset Deore -
Suspension Hardtail -
Motor Yamaha 250W 85Nm mid-drive -
Battery InTube 720 Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
RockShox 35 Silver, Travel: 120mm
Drivetrain
Rear Derailleur
Shimano, Deore M6100
Shift Levers
Shimano, Deore M6100, Trigger switch
Cassette
Shimano, M6100, 10 - 51 teeth
Crank
teeth
Bottom Bracket
integrated in the motor
Chain
Shimano, CN-M6100
Chain Guide
Nylon directmount
Pedals
Freeridepedal, Aluminium, with Reflector
Wheels
Rims
WTB, ST i30 TCS, Double Wall
Spokes
Sapim, Leader, Black
Tires
Schwalbe, Nobby Nic Performance, 65-622, 29" x 2.6"
Brakes
Brakes
Shimano, MT420, 4-piston disc brake
Brake Levers
Shimano, MT401, Aluminium,
Cockpit
Stem
Alu, A-head
Handlebar
Haibike Components, TheBar ++, 780 mm
Headset
Acros, BlockLock, Aluminium
Seat
Saddle
Selle Royal, Vivo Unitech
Seatpost
Aluminium, Patent, 34.9 mm
Motor & Battery
Motor
Yamaha, PW-X3, 250W, 85 Nm
Battery
InTube 720 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.511 mm | 1.466 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm |
| Front Center | 748 mm | 772 mm | 796 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 104 mm | 104 mm | 104 mm |
| Stack | 674 mm | 683 mm | 692 mm |
| Reach | 432 mm | 452 mm | 472 mm |
| Top Tube Length | 625 mm | 648 mm | 670 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 140 mm | 155 mm | 170 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1216 mm | 1240 mm | 1264 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
