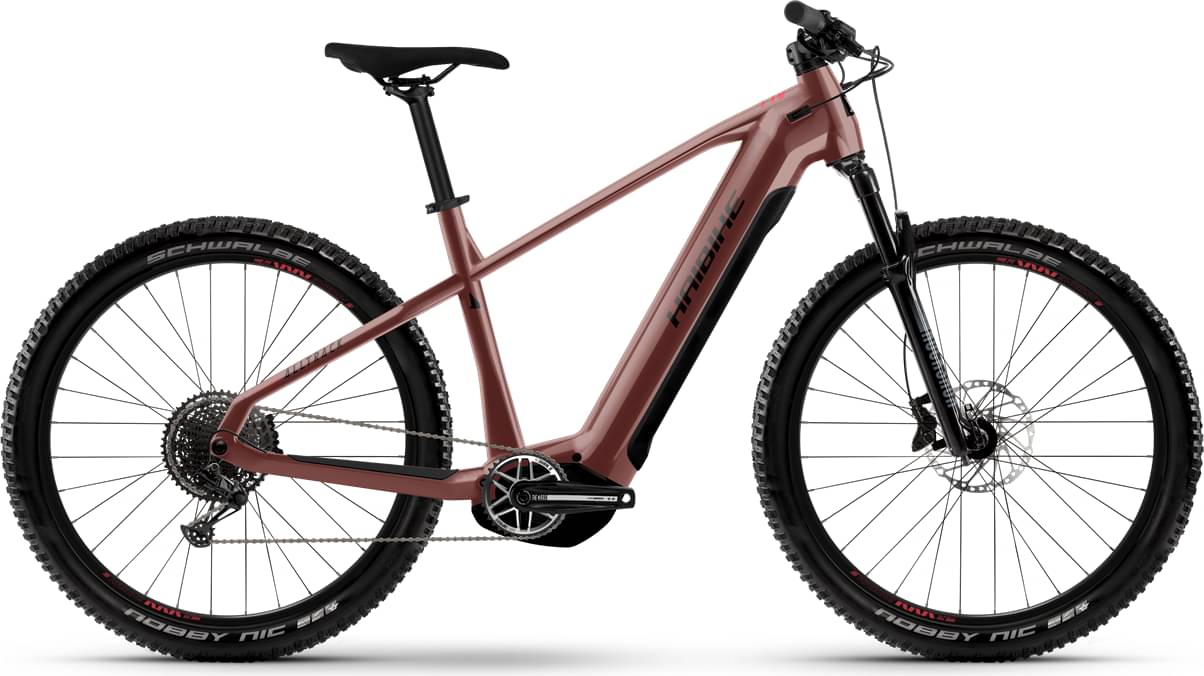

Haibike AllTrack 8.5 27.5 2024
2024 E-bike
Estimate price |
4,931$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork RockShox 35 Silver
-
Groupset SX Eagle -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 750Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
RockShox 35 Silver, Travel: 120mm
Drivetrain
Rear Derailleur
SRAM, SX Eagle
Shift Levers
SRAM, SX Eagle, Trigger switch
Cassette
SRAM, Eagle PG1210, 11 - 50 teeth
Crank
SRAM, Aluminium, 36 teeth
Bottom Bracket
integrated in the motor
Chain
SRAM, SX Eagle
Chain Guide
Nylon directmount
Pedals
Freeridepedal, Aluminium, with Reflector
Wheels
Rims
WTB, ST i30 TCS, Double Wall
Spokes
Sapim, Leader, Black
Tires
Schwalbe, Nobby Nic Performance, 65-584, 27.5" x 2.6"
Brakes
Brakes
Shimano, MT420, 4-piston disc brake
Brake Levers
Shimano, M4100, Aluminium,
Cockpit
Stem
Alu, A-head, 31.8 mm
Handlebar
Haibike Components, TheBar ++, 780 mm
Headset
Acros, BlockLock, Aluminium
Seat
Saddle
Selle Royal, Vivo Unitech
Seatpost
Aluminium, Patent, 34.9 mm
Motor & Battery
Motor
Bosch, Performance CX Smart System, 250W, 85 Nm
Battery
Bosch PowerTube 750Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Stack Reach Ratio | 1.555 mm | 1.519 mm |
| Bottom Bracket Height | 295 mm | 295 mm |
| Front Center | 712 mm | 722 mm |
| Rake | 44 mm | 44 mm |
| Trail | 96 mm | 96 mm |
| Stack | 656 mm | 656 mm |
| Reach | 422 mm | 432 mm |
| Top Tube Length | 610 mm | 620 mm |
| Seat Tube Angle | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 450 mm |
| Head Tube Angle | 68 ° | 68 ° |
| Head Tube Length | 140 mm | 140 mm |
| Chainstay Length | 465 mm | 465 mm |
| Wheelbase | 1171 mm | 1181 mm |
| Bottom Bracket Drop | 60 mm | 60 mm |
| Wheels | 27" | 27" |
