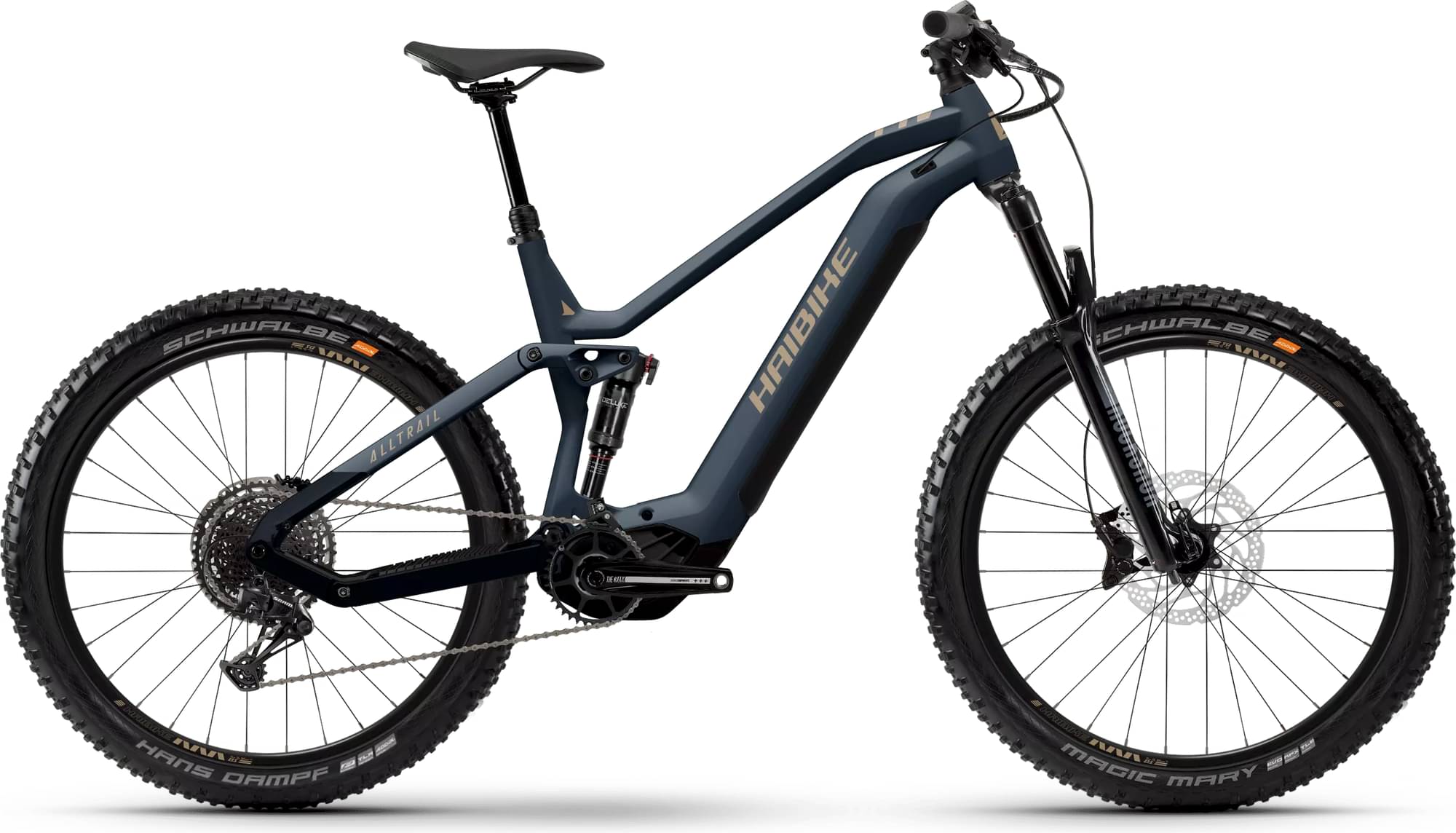

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Travel Rear 140mm -
Fork RockShox 35 Gold RL
-
Groupset Deore -
Suspension Full -
Motor Yamaha mid-drive -
Battery Yamaha InTube 750 Wh -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
MTB Fully Aluminium
Suspension Fork
Rockshox 35 Gold RL 140 mm
Rear Shock
Rockshox Air Deluxe Select Plus 140 mm
Drivetrain
Rear Derailleur
Shimano Deore M6100
Shift Levers
Shimano Triggershift Deore M6100
Cassette
Shimano M6100
Crank
Haibike The Crank ++
Bottom Bracket
integrated in the motor
Chain
Shimano Chain CN-M6100
Pedals
Freeridepedal
Wheels
Rims
WTB Hollow rim ST i35 TCS
Tires
Schwalbe Magic Mary Evo TLE 65-584
Brakes
Brakes
Front: Shimano Hydraulic Disc brake MT420
Cockpit
Handlebar
Haibike TheBar ++ Dia. 31.8 mm
Seat
Saddle
Selle Royal Vivo
Seatpost
Haibike Dropperpost
Motor & Battery
Motor
Yamaha
Battery
Yamaha InTube 750 Wh
Charger
Yamaha Quick Charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
