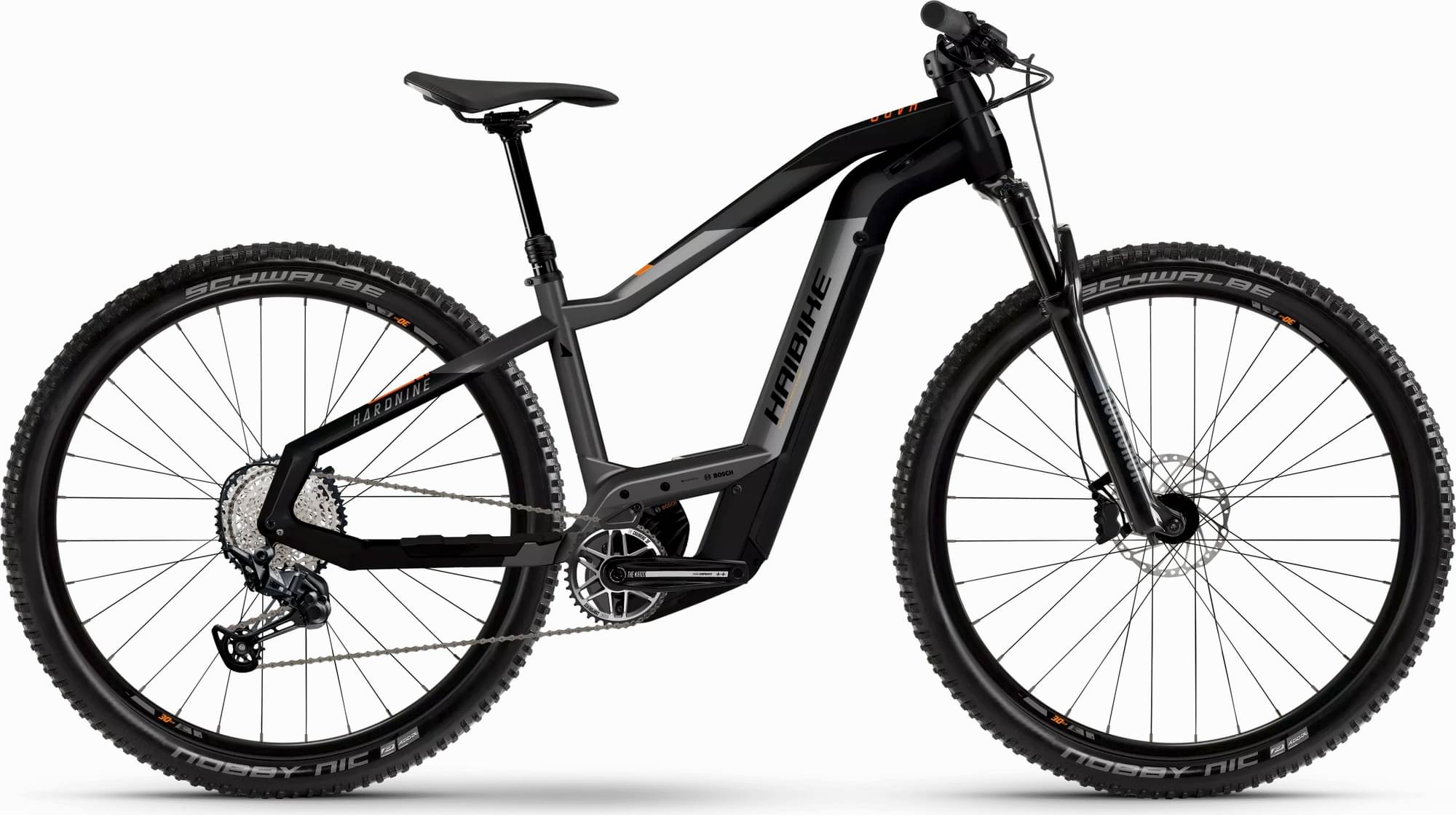

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Fork RockShox 35 Gold RL
-
Groupset SLX -
Suspension Hardtail -
Motor Bosch hub-drive -
Battery Bosch PowerTube 625 Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
169cm - 180cm
LG
178cm - 188cm
XL
186cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
MTB Hardtail Aluminium
Suspension Fork
Rockshox 35 Gold RL 140 mm
Drivetrain
Rear Derailleur
Shimano SLX M7100
Cassette
Shimano M6100
Crank
Haibike The Crank ++
Bottom Bracket
integrated in the motor
Chain
Shimano Chain CN-M6100
Pedals
Freeridepedal
Wheels
Rims
Rodi Hollow rim Tryp 30
Tires
Schwalbe Nobby Nic Performance 65-622
Brakes
Brakes
Front: Shimano Hydraulic Disc brake M6120
Cockpit
Handlebar
Haibike TheBar +++ Gravity Dia. 31.8 mm
Seat
Saddle
Selle Royal Vivo
Motor & Battery
Motor
Bosch
Battery
Bosch PowerTube 625 Wh
Charger
Bosch Quick Charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.548 mm | 1.493 mm |
| Stack | 669 mm | 678 mm | 687 mm |
| Reach | 426 mm | 438 mm | 460 mm |
| Top Tube Length | 630 mm | 645 mm | 670 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 140 mm | 150 mm | 160 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 169 cm | 178 cm | 186 cm |
| Rider Max Height | 180 cm | 188 cm | 197 cm |
