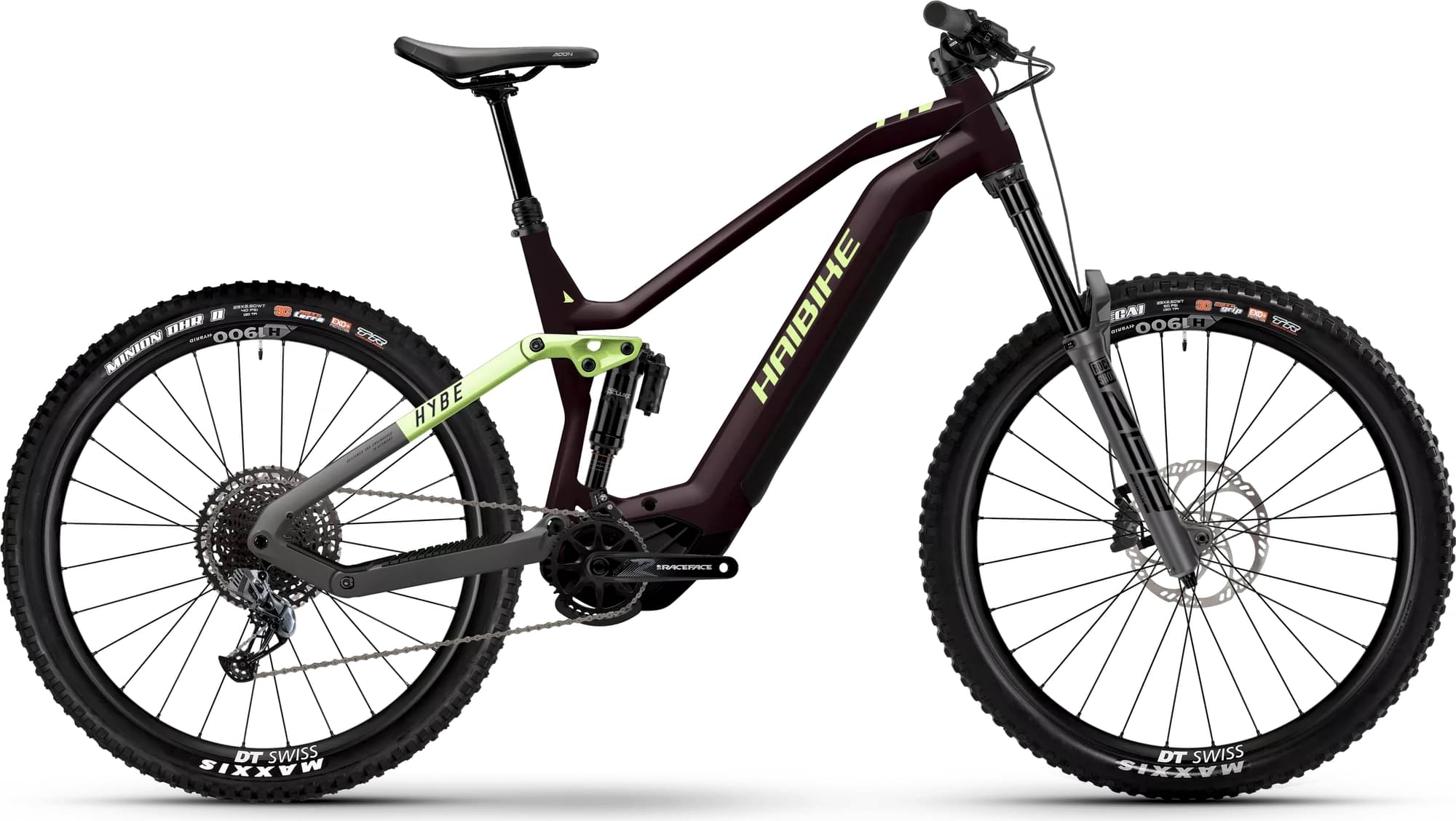

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 170mm -
Fork RockShox ZEB Ultimate
-
Groupset X01 Eagle AXS, GX Eagle AXS -
Suspension Full -
Motor Yamaha mid-drive -
Battery Yamaha Li-ION Simplo Intube 720 Wh -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 169cm
MD
167cm - 178cm
LG
176cm - 187cm
XL
185cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
MTB Fully Aluminium Unisex
Suspension Fork
Rockshox ZEB Ultimate Dual
Rear Shock
Rockshox Air Super Deluxe Ultimate
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS
Shift Levers
SRAM Triggershift AXS Paddle
Cassette
SRAM XS-1275 Eagle
Crank
Race Face AEFFECT R 165 ISIS 165
Bottom Bracket
integrated in the motor
Chain
SRAM Chain T- Type Eagle
Chain Guide
Nylon directmount
Pedals
VP Freeridepedal
Wheels
Rims
29
Tires
Maxxis Assegai MaxxTerra/Exo+/TR 63-622
Brakes
Brakes
Front: Magura Hydraulic Disc brake MT7
Brake Levers
Magura, MT7 HC-lever,
Cockpit
Stem
Haibike Components, TheStem +++, 31.8 mm
Handlebar
Haibike TheBar +++
Headset
Acros, BlockLock, Aluminium
Seat
Saddle
Prologo Proxim W400
Seatpost
Haibike Components, Dropper-Post Remote 34.9, Aluminium, Telescope, 34.9 mm
Motor & Battery
Motor
Yamaha
Battery
Yamaha Li-ION Simplo Intube 720 Wh
Charger
Yamaha Quick Charger Quick Charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.534 mm | 1.46 mm | 1.376 mm | 1.306 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 737 mm | 769 mm | 806 mm | 842 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 130 mm | 130 mm | 130 mm | 130 mm |
| Stack | 626 mm | 635 mm | 644 mm | 653 mm |
| Reach | 408 mm | 435 mm | 468 mm | 500 mm |
| Top Tube Length | 560 mm | 590 mm | 625 mm | 660 mm |
| Seat Tube Angle | 76.3 ° | 76.3 ° | 76.3 ° | 76.3 ° |
| Seat Tube Length | 410 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1191 mm | 1223 mm | 1260 mm | 1296 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm | 20 mm |
| Standover Height | 790 mm | 810 mm | 830 mm | 830 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 157 cm | 167 cm | 176 cm | 185 cm |
| Rider Max Height | 169 cm | 178 cm | 187 cm | 196 cm |
