Bike details
Overview
Key information split into simple groups.

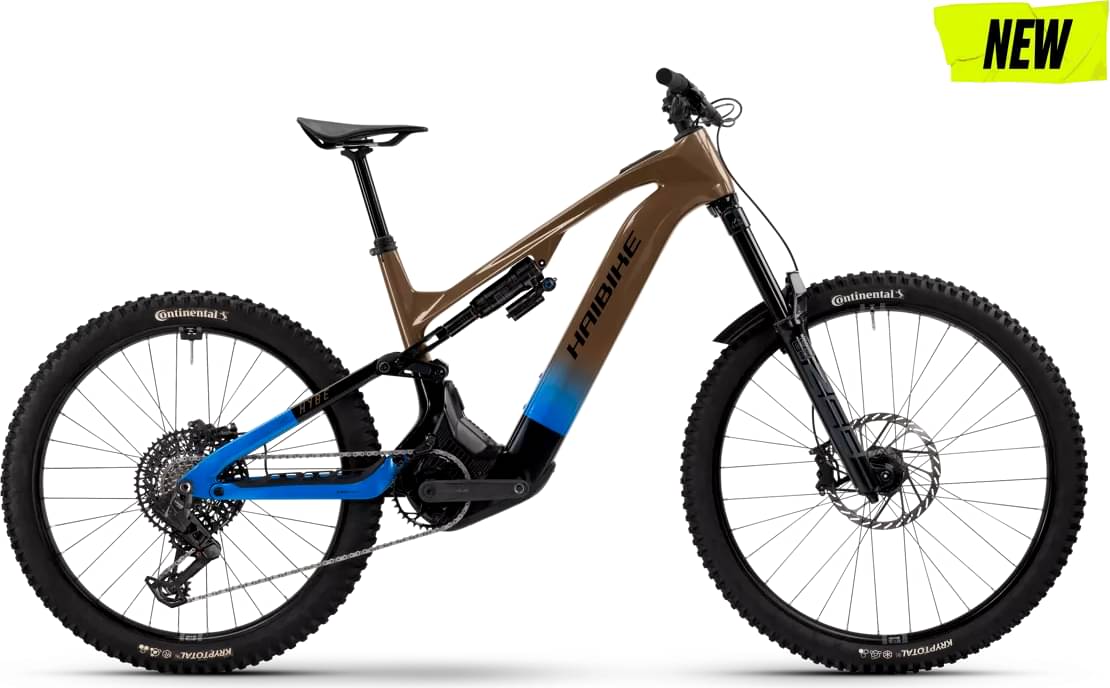

Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Fork RockShox ZEB Select
-
Groupset Eagle AXS, S1000 Eagle Transmission -
Suspension Full -
Motor Bosch hub-drive -
Battery Bosch InTube 800Wh -
Drivetrain 1 × 12 Electronic -
Brakes SRAM DB8 Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
High Carbon Uni
Suspension Fork
Rockshox ZEB Select RC, DebonAir+ 170 mm
Rear Shock
Rockshox Super Deluxe Select+ 230x65mm, DebonAir+
Drivetrain
Rear Derailleur
SRAM S1000 Eagle T-Type 12s
Shift Levers
SRAM Triggershift AXS Pod Controller
Cassette
SRAM XS-1275 GX Eagle T-Type, XD
Crank
Miranda Crius ISIS Crankarm 165 mm + SRAM T-Type Chainring 165
Chain
SRAM Chain GX Eagle T-Type 12s
Pedals
XLC VPE-527 MTB Alloy Pedal w. Reflector
Wheels
Rims
WTB ST i30 TCS 2.0 32H
Tires
Continental Kryptotal-Fr, Enduro Soft 60-622
Brakes
Brakes
Front: SRAM Hydraulic Disc brake DB8 Stealth, 4 pistons 220 mm
Cockpit
Handlebar
Haibike TheBar++ Dia. 31.8 mm
Seat
Saddle
Selle Italia Model X Black
Seatpost
Limotec Dropperpost A4H Dropper, Dia. 34.9 mm, Travel: 170 mm
Motor & Battery
Motor
Bosch
Battery
Bosch InTube 800Wh
Charger
Bosch Charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XL |
|---|---|
| Wheels | 29" |
