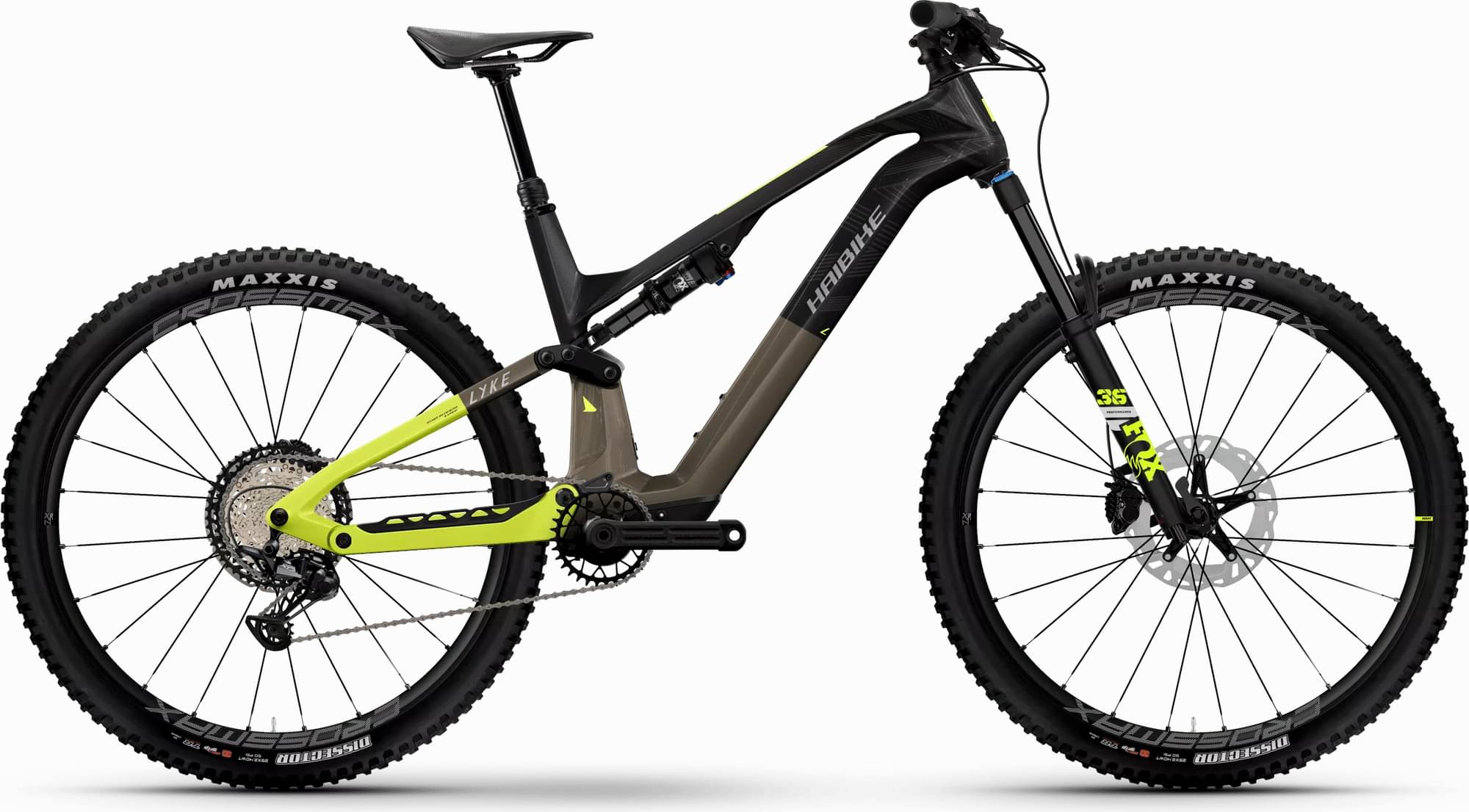

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 140mm -
Travel Rear 140mm -
Fork Fox Performance Float 36
-
Groupset XT -
Suspension Full -
Motor Fazua hub-drive -
Battery Fazua PowerTube 430 Wh -
Brakes Shimano XT Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
MTB Fully Carbon
Suspension Fork
FOX Factory 36 Float Performance 140 mm
Rear Shock
FOX Factory Air Float Performance DPS EVOL 140 mm
Drivetrain
Rear Derailleur
Shimano Deore XT M8100 Shadow Plus
Shift Levers
Shimano Triggershift Deore XT M8100
Cassette
Shimano SLX M7100
Crank
Rotor E-Kapic
Bottom Bracket
integrated in the motor
Chain
Shimano Chain SLX M7100
Pedals
Freeridepedal
Wheels
Rims
29
Tires
Maxxis Dissector MaxxTerra EXO 60-584
Brakes
Brakes
Front: Shimano Hydraulic Disc brake Deore XT M8120
Cockpit
Handlebar
XLC FlowBy Dia. 31.8 mm
Seat
Saddle
Selle Italia Model X
Seatpost
Dropperpost
Motor & Battery
Motor
Fazua
Battery
Fazua PowerTube 430 Wh
Charger
Fazua 3A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
