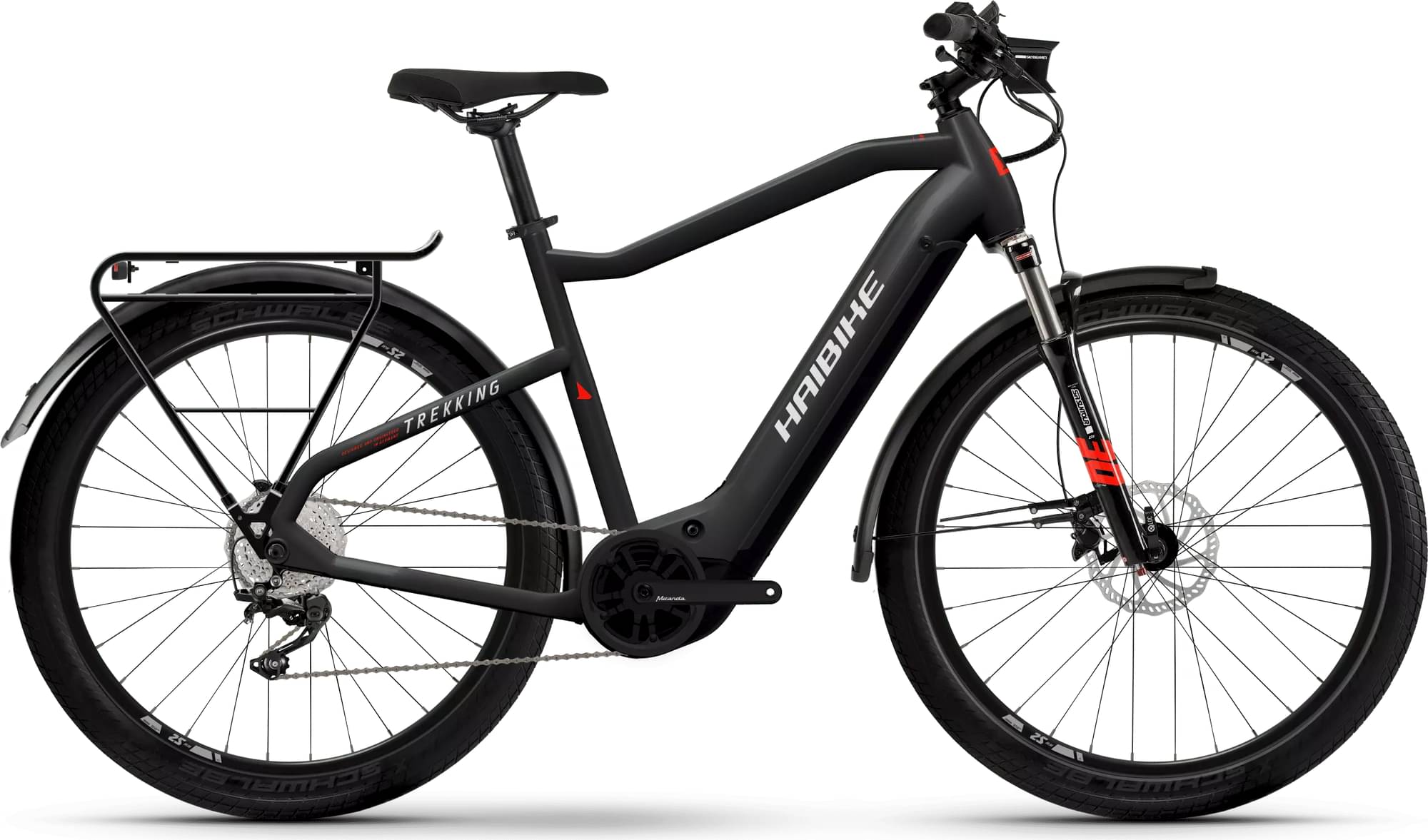

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Deore -
Suspension Hardtail -
Motor Yamaha mid-drive -
Battery Yamaha -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 168cm
MD
166cm - 176cm
LG
174cm - 184cm
XL
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
Suntour NEX E25-HLO 63 mm
Drivetrain
Rear Derailleur
Shimano Deore M4120
Shift Levers
Shimano Triggershift Deore M4100
Cassette
Shimano CSM4100
Bottom Bracket
integrated in the motor
Chain
KMC Chain e10S
Pedals
VP E461
Wheels
Rims
Schürmann Hollow rim Yak25
Tires
Schwalbe Al Grounder Performance 60-584
Brakes
Brakes
Front: Alhonga Hydraulic Disc brake HT472
Cockpit
Handlebar
XLC Topflat Dia. 31.8 mm
Seat
Saddle
XLC Trekking
Motor & Battery
Motor
Yamaha
Battery
Yamaha
Charger
Yamaha Quick Charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.528 mm | 1.551 mm | 1.586 mm | 1.572 mm |
| Front Center | 704 mm | 712 mm | 723 mm | 746 mm |
| Rake | 54 mm | 54 mm | 54 mm | 54 mm |
| Trail | 81 mm | 81 mm | 81 mm | 81 mm |
| Stack | 622 mm | 636 mm | 655 mm | 673 mm |
| Reach | 407 mm | 410 mm | 413 mm | 428 mm |
| Top Tube Length | 575 mm | 595 mm | 615 mm | 635 mm |
| Seat Tube Angle | 74.9 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 155 mm | 170 mm | 190 mm | 210 mm |
| Chainstay Length | 490 mm | 490 mm | 490 mm | 490 mm |
| Wheelbase | 1186 mm | 1194 mm | 1205 mm | 1228 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 157 cm | 166 cm | 174 cm | 182 cm |
| Rider Max Height | 168 cm | 176 cm | 184 cm | 193 cm |
