Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork RockShox Recon Silver RL
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch hub-drive -
Battery Bosch -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
161cm - 172cm
MD
170cm - 180cm
LG
178cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

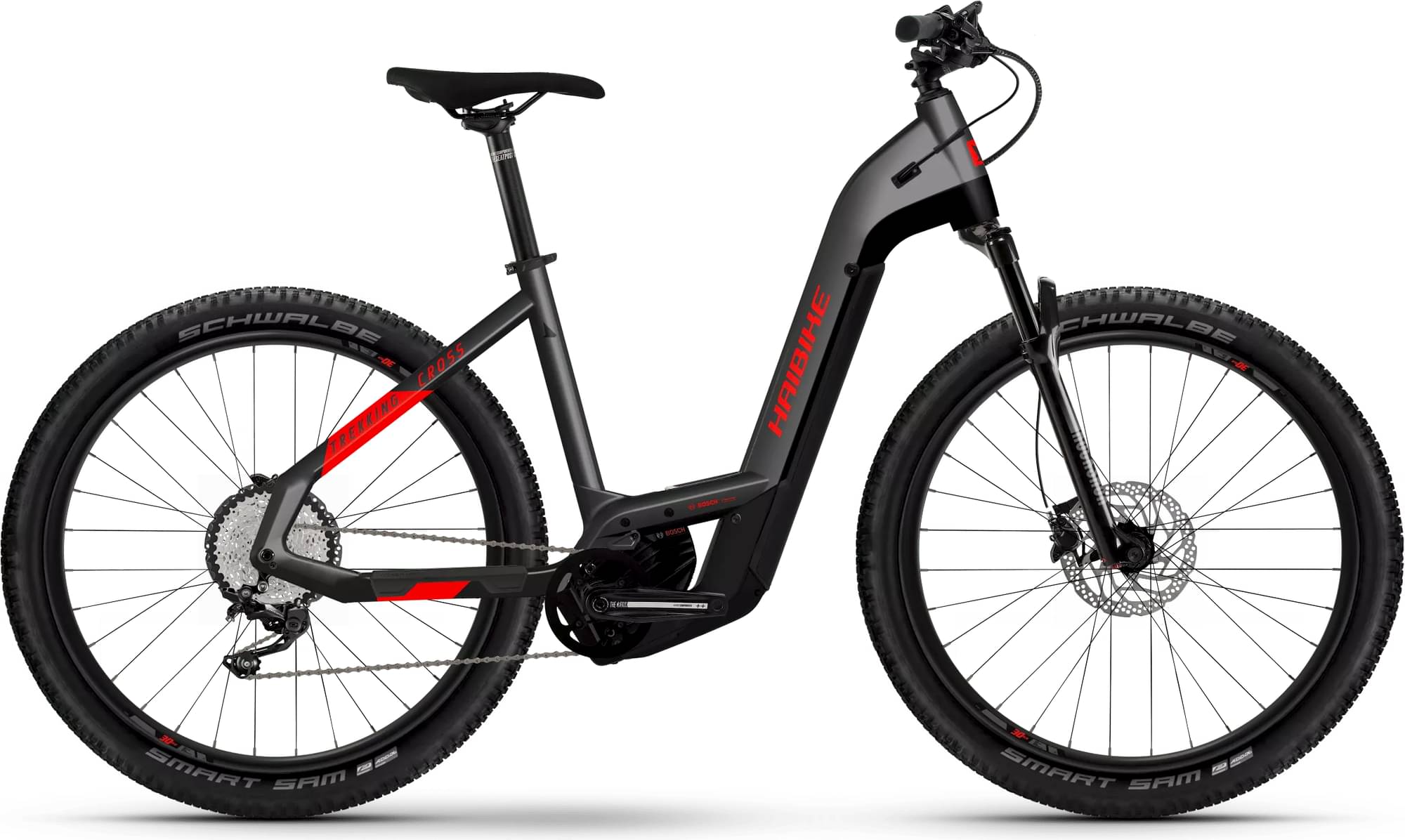

Low Aluminium Low step-through
Suspension Fork
Rockshox Recon RL 100 mm
Drivetrain
Rear Derailleur
Shimano Deore M5100
Shift Levers
Shimano Triggershift Deore M5100
Cassette
Sunrace CSMS7
Crank
Haibike The Crank ++
Bottom Bracket
integrated in the motor
Chain
KMC Chain X11e
Pedals
VP E461
Wheels
Rims
Rodi Hollow rim Tryp 30
Tires
Schwalbe Smart Sam Performance 65-584
Brakes
Brakes
Front: Shimano Hydraulic Disc brake MT410
Cockpit
Handlebar
Haibike TheBar ++ Dia. 31.8 mm
Seat
Saddle
Haibike TheSaddle
Motor & Battery
Motor
Bosch
Battery
Bosch
Charger
Bosch Quick Charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.579 mm | 1.556 mm | 1.53 mm |
| Stack | 660 mm | 669 mm | 678 mm |
| Reach | 418 mm | 430 mm | 443 mm |
| Top Tube Length | 620 mm | 635 mm | 650 |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 170 mm | 180 mm | 190 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 161 cm | 170 cm | 178 cm |
| Rider Max Height | 172 cm | 180 cm | 191 cm |
