Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset microSHIFT -
Suspension Rigid -
Drivetrain 1 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

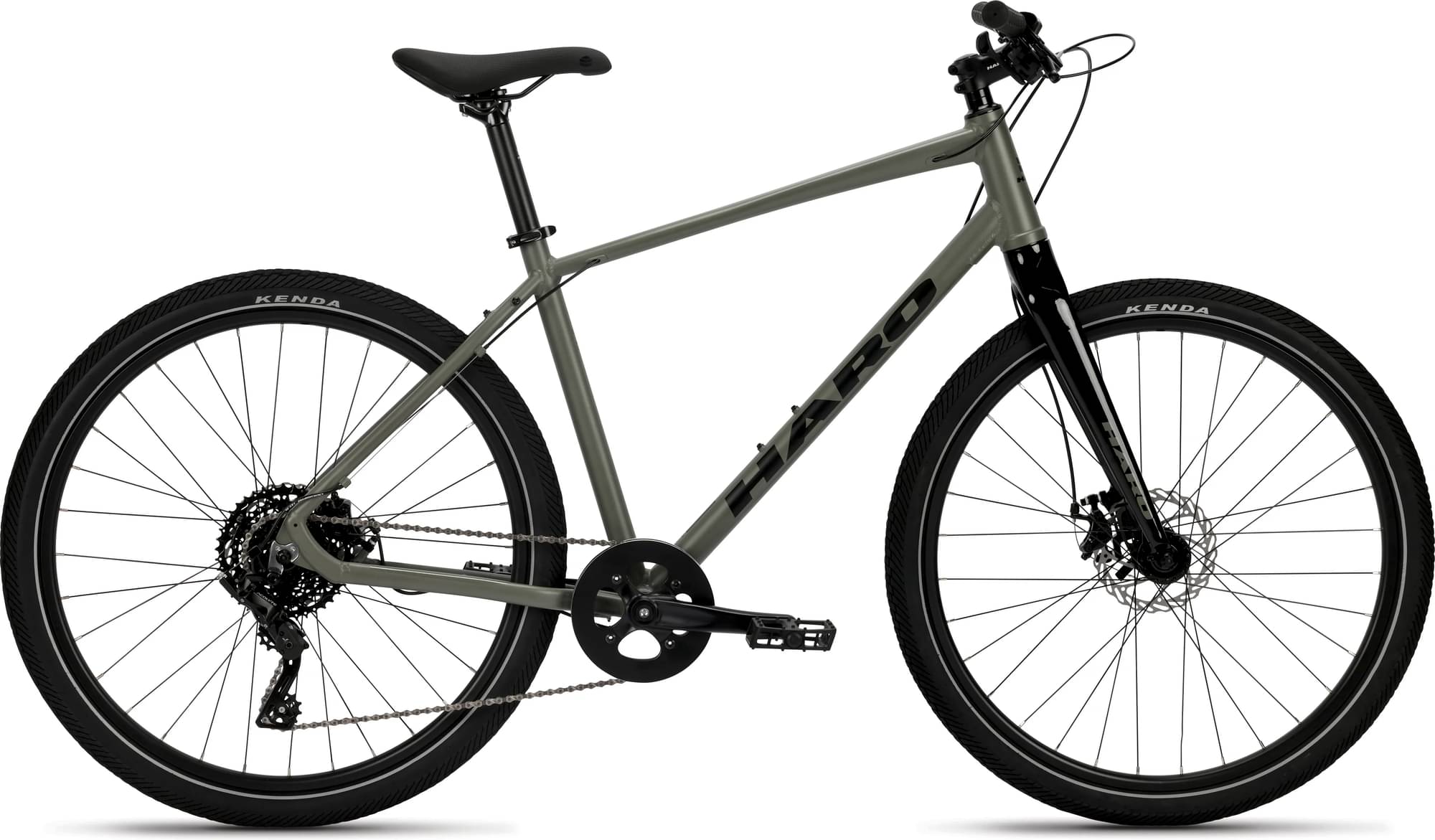

Haro Beasley 27.5" | X6 Aluminum series | New Chainstay design | Post disc mount
Suspension Fork
Rigid 27.5" 6000 Series tapered aluminum fork w/disc brake mount
Drivetrain
Rear Derailleur
Microshift RD-M5185M, 1 x 8 rear derailleur
Front Derailleur
N/A
Shift Levers
SL-M7180-R, Xpress Microshift shifters for 1 x 8, right side activation
Cassette
Microshift CS-H083 | 8-spd | 12-42T
Crank
40T steel chainring Double aluminum chainguards | 15" = 170mm, 17"/19"/21" = 175MM
Bottom Bracket
Sealed cartridge
Chain
KMC X8 HG | 8-spd | 1/2"*3/32"
Pedals
Aluminum Platform | Chromoly axles | SBB Ball-Bearings
Wheels
Front Hub
Aluminum cassette 32h
Rear Hub
Aluminum cassette 32h
Rims
MX-21 27mm aluminum double wall rims
Tires
Kenda Kwick Seven.5 | 27.5x2.0"
Brakes
Brakes
Jak-7 Mechanical disc brakes | 160mm Rotors (front & rear)
Brake Levers
VL-321D Aluminum | 2-Finger
Cockpit
Stem
Aluminum | 3D Forged | 31.8mm
Handlebar
Aluminum 25mm riser bar 31.8mm
Headset
1-1/8"-1.5" Tapered threadless Internal | Aluminum Top cone
Seat
Saddle
Haro Flightline
Seatpost
Micro adjust 30.9x350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.429 mm | 1.416 mm | 1.463 mm | 1.495 mm |
| Front Center | 614 mm | 640 mm | 650 | 666 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Stack | 566 mm | 592 mm | 616 mm | 640 mm |
| Reach | 396 mm | 418 mm | 421 mm | 428 mm |
| Top Tube Length | 570 mm | 600 mm | 610 mm | 625 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 120 mm | 145 mm | 170 mm | 195 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1051 mm | 1077 mm | 1087 mm | 1103 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 703 mm | 736 mm | 775 mm | 813 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
