Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset microSHIFT Advent X, Deore -
Suspension Rigid -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

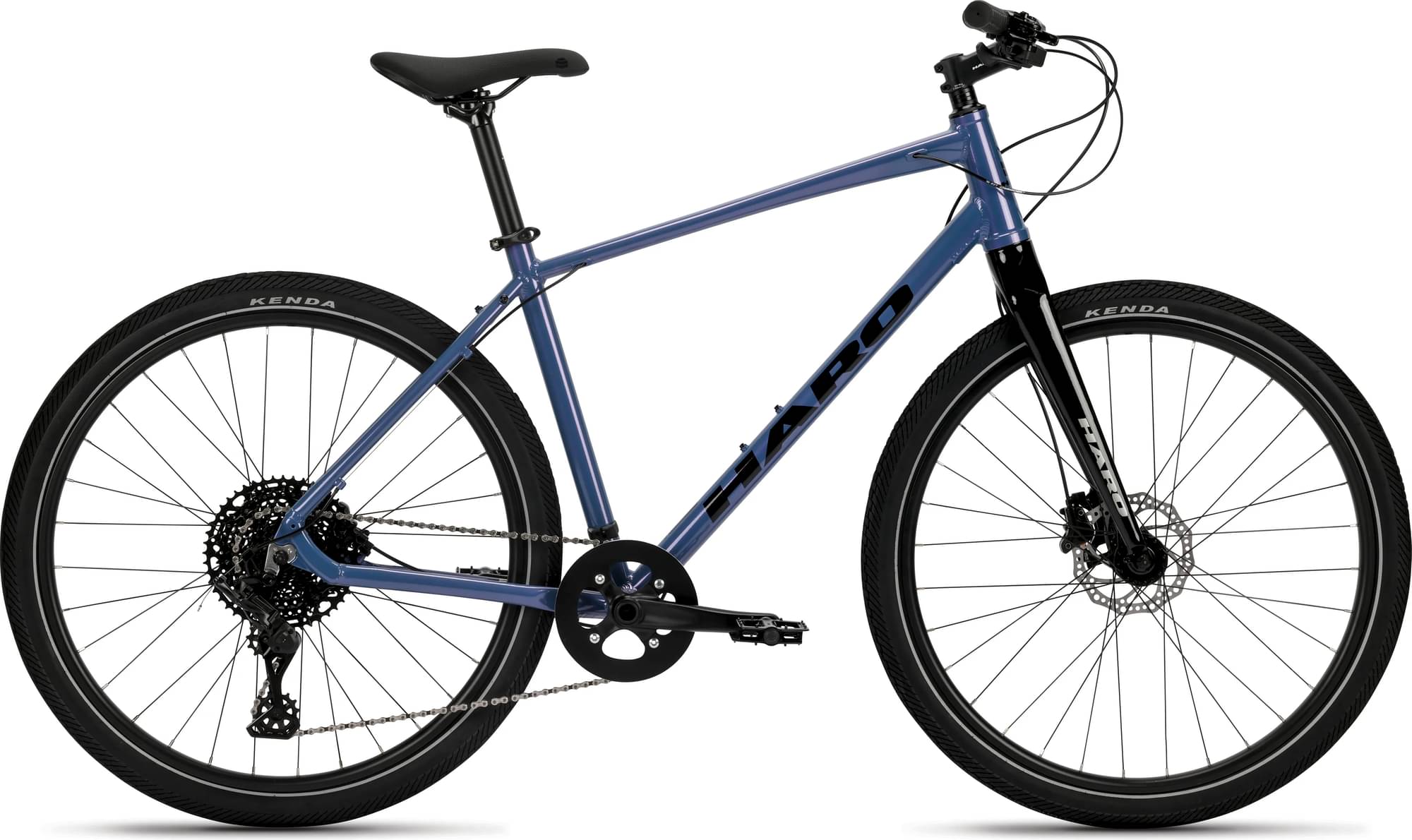

Haro Beasley 27.5" | X6 Aluminum series | Chaintstay Post disc mount
Suspension Fork
Rigid 27.5" 6061-T6 Aluminum Aluminum Tapered steer tube | IS Disc Mount | for integrated headset
Drivetrain
Rear Derailleur
Microshift RD-M6205GM | 10-speed
Front Derailleur
N/A
Shift Levers
New Shimano Deore SL-M4100-R 10-spd
Cassette
Microshift CS-H104 | 10-speed | 11-48T
Crank
Samox Aluminum 2-pc | 40T chainring Narrow-Wide Teeth | Aluminum chainguard | 170 / 175mm
Bottom Bracket
Sealed cartridge
Chain
KMC X10-1 NP/BLK | MTB 10-speed | Missing Link
Pedals
FPD Aluminum Platform | Chromoly axles | SBB Ball-Bearings
Wheels
Front Hub
Shimano RM35 | cassette | 32h | Center-Lock discs
Rear Hub
Shimano RM35 | cassette | 32h | Center-Lock discs
Rims
MX-21 27mm Aluminum double wall rims
Tires
Kenda Kwick Seven.5 27.5x2.0" | Reflective stripes
Brakes
Brakes
Radius hydraulic brake set w/ 160mm rotors, front & rear
Brake Levers
Radius, alloy
Cockpit
Stem
Pivit Lightweight | 3D Forged | 31.8mm
Handlebar
Pivit Aluminum 25mm rise | 31.8mm x 700 / 720mm
Headset
Alloy sealed bearing | 1-1/8"-1.5" Tapered threadless Internal | Aluminum Top cone
Seat
Saddle
Haro Flightline
Seatpost
Pivit Aluminum | 2 Bolts | micro adjust 30.9x350/400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.429 mm | 1.416 mm | 1.468 mm | 1.5 mm |
| Front Center | 614 mm | 640 mm | 645 mm | 660 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Stack | 566 mm | 592 mm | 618 mm | 642 mm |
| Reach | 396 mm | 418 mm | 421 mm | 428 mm |
| Top Tube Length | 570 mm | 600 mm | 610 mm | 625 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 120 mm | 145 mm | 170 mm | 195 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1034 mm | 1060 mm | 1065 mm | 1080 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 703 mm | 736 mm | 775 mm | 813 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
