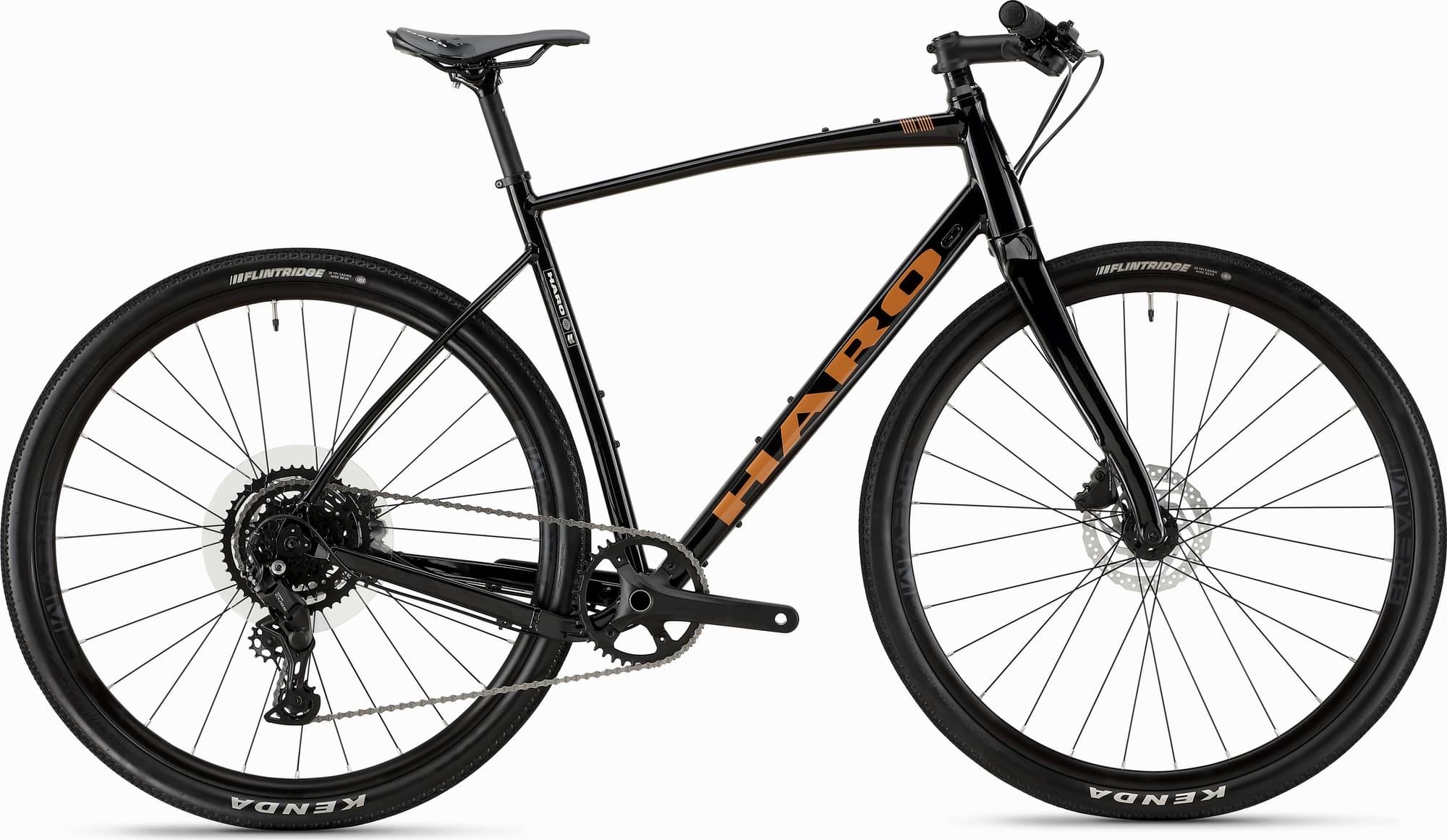

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset CUES -
Suspension Rigid -
Drivetrain 1 × 9 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haro Buzzard alloy frame. Smooth welded double-butted aluminum, 1.125 - 1.5" integrated head tube, BB86 bottom bracket, flat-mount disc brake, replaceable derailleur hanger, 12 x 142mm thru-axle dropouts
Suspension Fork
Haro Buzzard Fork, full carbon construction, 1.125 - 1.5" tapered steerer tube, flat-mount disc, fender mounts, 12 x 100mm thru-axle dropouts
Drivetrain
Rear Derailleur
Shimano Cues U4000 9-speed
Shift Levers
Shimano Cues U4000 9-speed
Cassette
Shimano Cues LG300 9-speed, 11-46T
Crank
Shimano Cues U4000, 40T chainring
Bottom Bracket
Shimano RS500-PB. BB86 press-fit
Chain
Shimano LG500
Wheels
Front Hub
Disc, sealed bearings, front: 12 x 100mm thru-axle, rear: 12 x 142mm thru-axle, 6-bolt, 28H
Rear Hub
Disc, sealed bearings, front: 12 x 100mm thru-axle, rear: 12 x 142mm thru-axle, 6-bolt, 28H
Rims
Disc, alloy rim, 28H
Tires
Kenda K1152, Flintridge, 700x40C GCT casing, tubeless ready
Brakes
Brakes
Flat mount dual-piston mechanical 160mm rotors, front & rear
Brake Levers
Shimano Cues
Cockpit
Stem
Alloy, 31.8mm, -7°
Handlebar
Brev M. aluminum, 31.8mm
Headset
FSA 42E, 1.125" upper bearing/1.5" lower bearing
Seat
Saddle
280 X 140mm, steel rails
Seatpost
Alloy, 27.2mm x 330mm, 5mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 51cm | 54cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.419 mm | 1.454 mm | 1.481 mm | 1.514 mm | 1.549 mm |
| Bottom Bracket Height | 275 mm | 275 mm | 275 mm | 275 mm | 275 mm | 275 mm |
| Front Center | 597 mm | 605 mm | 612 mm | 619 mm | 626 mm | 635 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 67 mm | 67 mm | 66 mm | 65 mm | 66 mm | 66 mm |
| Stack | 551 mm | 559 mm | 580 mm | 594 mm | 610 mm | 629 mm |
| Reach | 388 mm | 394 mm | 399 mm | 401 mm | 403 mm | 406 mm |
| Top Tube Length | 541 mm | 549 mm | 564 mm | 574 mm | 581 mm | 589 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 73.7 ° | 73.7 ° | 73 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 520 mm | 540 mm | 570 mm |
| Head Tube Angle | 71.8 ° | 71.8 ° | 72.2 ° | 72.2 ° | 72.2 ° | 72.2 ° |
| Head Tube Length | 114.5 mm | 123 mm | 144 mm | 158.5 mm | 175 mm | 195.5 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1011 mm | 1019 mm | 1026 mm | 1033 mm | 1040 mm | 1049 mm |
| Bottom Bracket Drop | 74 mm | 74 mm | 74 mm | 74 mm | 74 mm | 74 mm |
| Standover Height | 733 mm | 762 mm | 788 mm | 807 mm | 826 mm | 851 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
