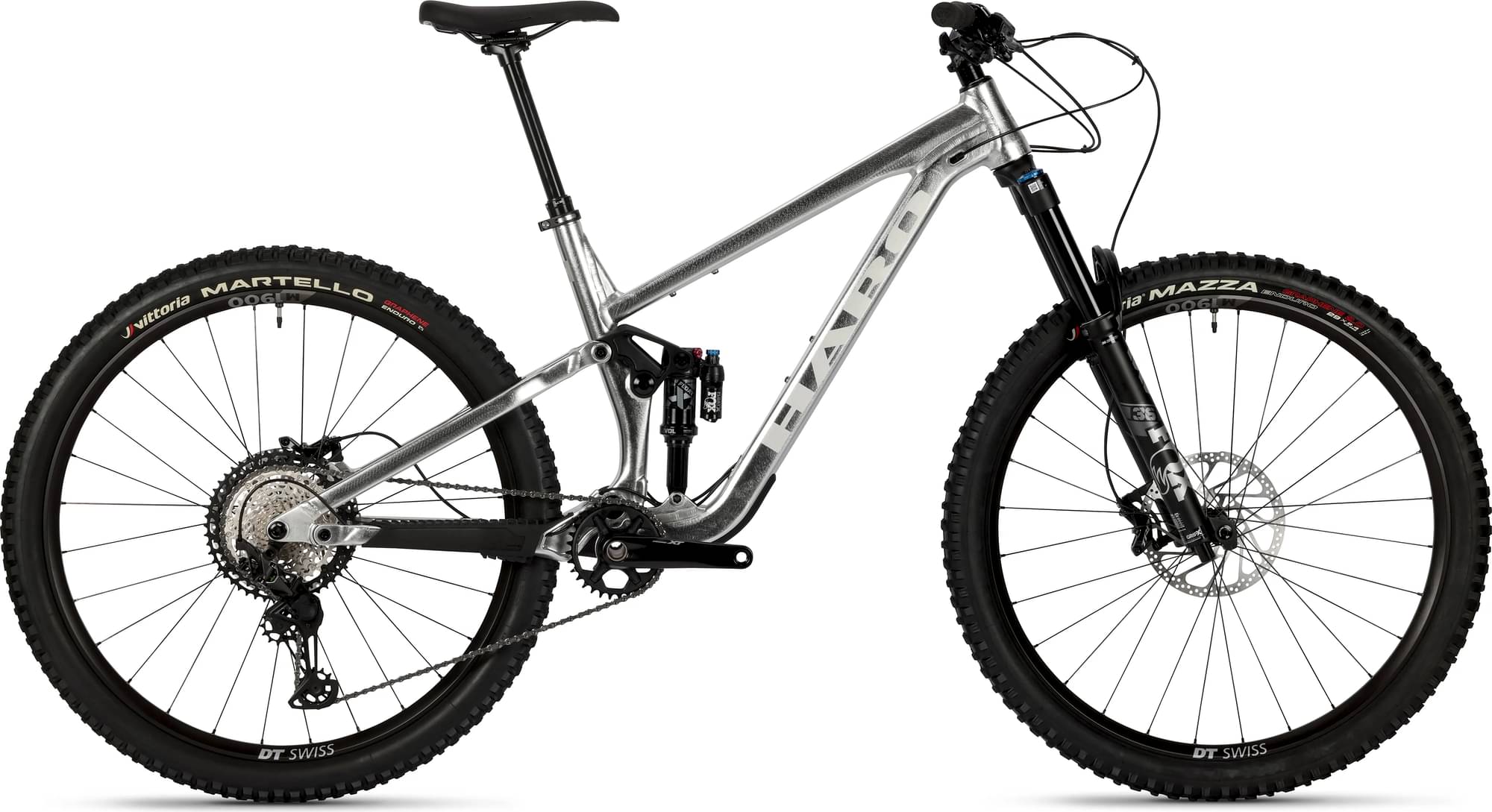

Haro Daley Alloy LTD 2 2025
2025 Mountain
Estimate price |
4,299$
Weight | 17.29 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Performance Elite Float 36
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes TRP Trail EVO Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haro Daley alloy full-suspension frame with raw anodized finish, 1-1/8" - 1-1/5" tapered head tube, 148mm Boost OLD, UDH derailleur hanger
Suspension Fork
Fox Float 36 Performance Elite with Grip X, 150mm travel
Rear Shock
Fox Float X Performance Elite, 140mm travel
Drivetrain
Rear Derailleur
Shimano XT 12-speed, Shadow Plus, RD-M8100
Front Derailleur
N/A
Shift Levers
Shimano XT 12-speed, SL-M8100R
Cassette
Shimano XT 12-speed CS-M8100, Hyper Glide Plus, 10-51T
Crank
Shimano XT, FC-M8120-1, 165mm, 32T chainring, 55:CL
Bottom Bracket
Shimano BB-MT501 BSA 68/73mm
Chain
Shimano CN-M8100 HG 12-speed
Pedals
N/A
Wheels
Rims
DT Swiss M 1900 wheel set
Tires
Front: Vittoria Mazza 2.4", enduro G2.0 120TPI / Rear: Vittoria Martello 2.4" enduro G2.0 120TPI
Brakes
Brakes
TRP Trail EVO 4-piston hydraulic disc with 203mm rotors, front & rear
Brake Levers
TRP Trail EVO
Cockpit
Stem
Race Face Chester 35mm ID, 40mm reach
Handlebar
Race Face Chester 35mm OD, 35mm rise, 780mm wide
Headset
FSA ORBIT 1.5E ZS/ NO.57E tapered, 44/56mm head tube
Seat
Saddle
WTB Volt Medium PU leather, flex-tuned, chromoly rails, with ABR corners
Seatpost
Kind Shock Rage-I, 34.9OD, sizes: Small 150mm, Medium 170mm, Large 190mm, X-Large 190MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.347 mm | 1.326 mm | 1.276 mm | 1.231 mm |
| Bottom Bracket Height | 332 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 745 mm | 794 mm | 823 mm | 853 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 120 mm | 121 mm | 121 mm | 120 mm |
| Stack | 579 mm | 610 mm | 619 mm | 628 mm |
| Reach | 430 mm | 460 mm | 485 mm | 510 mm |
| Top Tube Length | 553 mm | 590 mm | 617 mm | 644 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 361 mm | 410 mm | 448 mm | 473 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 428 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1172 mm | 1237 mm | 1266 mm | 1296 mm |
| Bottom Bracket Drop | 23 mm | 33 mm | 33 mm | 33 mm |
| Standover Height | 691 mm | 685 mm | 705 mm | 705 mm |
| Wheels | 27" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
