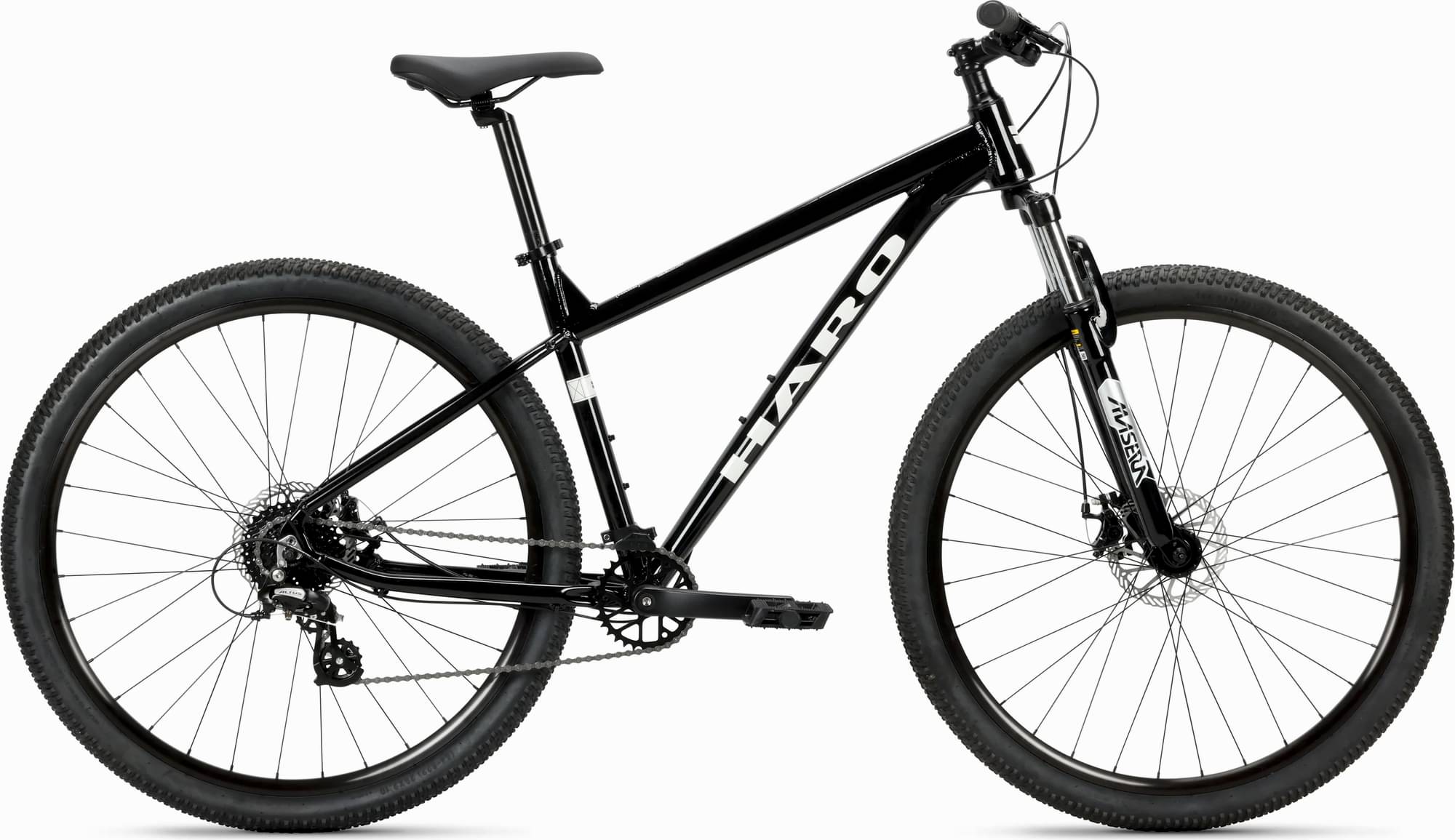

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 80mm -
Fork Zoom
-
Groupset Altus -
Suspension Hardtail -
Drivetrain 1 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
New Haro Flightline 6061-T6 aluminum, with internal cable routing and tapered steerer tube
Suspension Fork
Zoom 80mm suspension fork
Drivetrain
Rear Derailleur
Shimano Altus 8-speed
Shift Levers
Shimano Altus 8-speed Rapidfire with optical window
Cassette
Shimano Altus 8-speed 12-32T
Crank
Prowheel 3pc, square tapered alloy crank arm with stamped 32T chainring
Bottom Bracket
Sealed cartridge 73mm
Chain
KMC X8 chain
Pedals
FPD nylon platform 9/16"
Wheels
Front Hub
Alloy quick release front & rear
Rear Hub
Alloy quick release front & rear
Rims
Alloy double wall I25
Tires
Excel E610 29x2.1"
Brakes
Brakes
Jieke mechanical disc with 160mm rotors
Brake Levers
Jieke 2.5 finger alloy lever
Cockpit
Stem
Alloy 3D forged 60mm reach
Handlebar
780mm W, 15mm rise, ø31.8, 9° back sweep, 5° up sweep
Headset
Neco 1-1/8" threadless
Seat
Saddle
DDK MTB
Seatpost
Alloy ø31.6 micro adjust
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm | 310 mm |
| Front Center | 664 mm | 694 mm | 704 mm | 715 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Reach | 394 mm | 425 mm | 435 mm | mm |
| Top Tube Length | 595 mm | 610 mm | 635 mm | 645 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 406 mm | 457 mm | 508 mm | 559 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1105 mm | 1136 mm | 1146 mm | 1157 mm |
| Bottom Bracket Drop | 64 mm | 64 mm | 64 mm | 64 mm |
| Standover Height | 721 mm | 740 mm | 773 mm | 799 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
