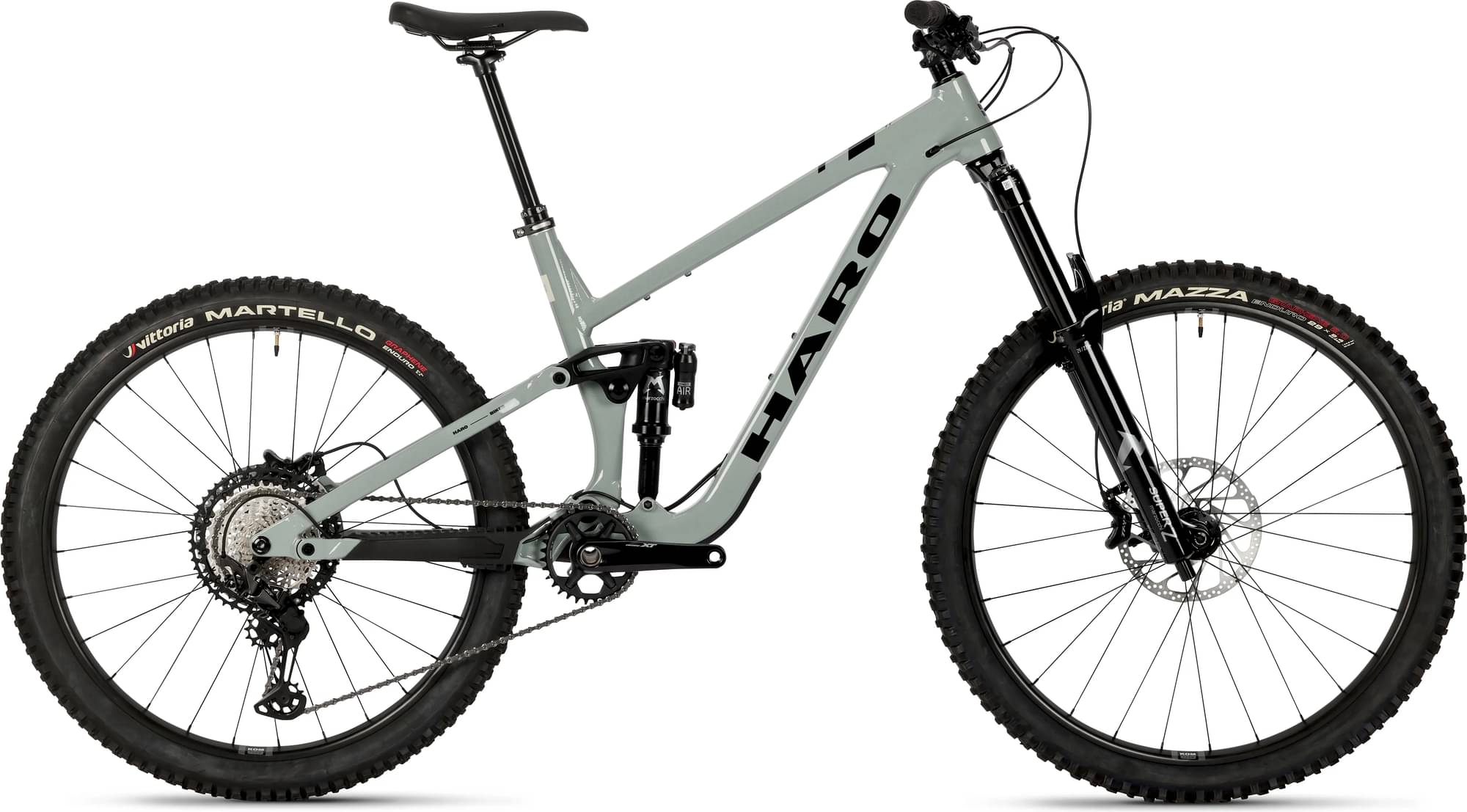

Haro Greer Alloy 1 2025
2025 Mountain
Estimate price |
4,299$
Weight | 17.35 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 170mm -
Travel Rear 160mm -
Fork Marzocchi Super Z
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes TRP Slate EVO Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haro Greer alloy full-suspension frame, 1-1/8" - 1-1/5" tapered head tube, 148mm Boost OLD, UDH derailleur hanger
Suspension Fork
Marzocchi Super Z with grip/damper, 170 mm travel
Rear Shock
Marzocchi Bomber Air, A, sweep adjust, 160mm travel
Drivetrain
Rear Derailleur
Shimano XT 12-speed, Shadow Plus, RD-M8100
Front Derailleur
N/A
Shift Levers
Shimano XT 12-speed, SL-M8100R
Cassette
Shimano XT 12-speed CS-M8100, Hyper Glide Plus, 10-51T
Crank
Shimano XT, FC-M8120-1, 32T, 165mm, 55:CL
Bottom Bracket
Shimano BB-MT501 BSA 68/ 73mm
Chain
Shimano CN-M8100 HG 12-speed
Pedals
N/A
Wheels
Front Hub
Alloy CNC 4 sealed bearings, 110x15 front, 148x12 rear
Rear Hub
Alloy CNC 4 sealed bearings, 110x15 front, 148x12 rear
Rims
WTB KOM Team I35, sleeved double-wall alloy, 28H, TSC 2.0
Tires
Front: Vittoria Mazza 2.4", enduro G2.0 120TPI / Rear: Vittoria Martello 2.4" enduro G2.0 120TPI
Brakes
Brakes
TRP Slate EVO 4-piston hydraulic disc with 2.3mm thick, 203mm rotors, front & rear
Brake Levers
TRP Slate EVO
Cockpit
Stem
Race Face Chester 35mm ID, 40mm reach
Handlebar
Race Face Chester 35mm OD, 780mm wide, 35mm rise
Headset
FSA ORBIT 1.5E ZS/ NO.57E tapered, 44/56mm head tube
Seat
Saddle
WTB Volt Medium, PU leather, Flex Tuned, with ABR corners
Seatpost
Kind Shock I900 dropper post, 34.9mm OD. Lengths: Small 150mm, Medium 170mm, Large 200mm, X-Large 200mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.357 mm | 1.305 mm | 1.259 mm |
| Bottom Bracket Height | 325 mm | 325 mm | 325 mm | 325 mm |
| Front Center | 777 mm | 811 mm | 840 mm | 870 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 117 mm | 117 mm | 118 mm | 117 mm |
| Stack | 615 mm | 624 mm | 633 mm | 642 mm |
| Reach | 430 mm | 460 mm | 485 mm | 510 mm |
| Top Tube Length | 561 mm | 593 mm | 620 mm | 646 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 361 mm | 410 mm | 448 mm | 473 mm |
| Head Tube Angle | 63.8 ° | 63.8 ° | 63.8 ° | 63.8 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1210 mm | 1244 mm | 1273 mm | 1303 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 697 mm | 701 mm | 714 mm | 714 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
