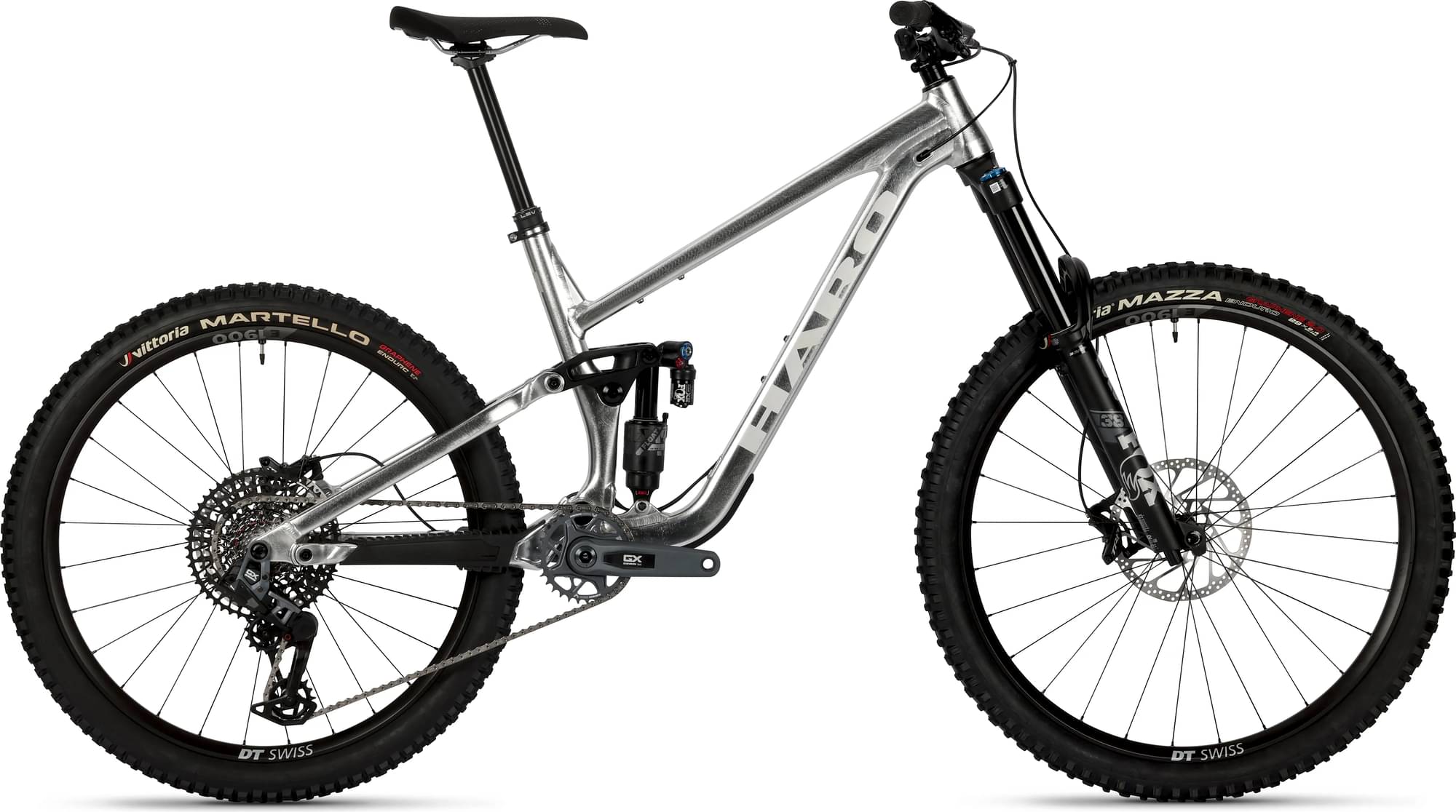

Haro Greer Alloy LTD 1 2025
2025 Mountain
Estimate price |
5,999$
Weight | 17.26 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Performance Elite Float 38
-
Groupset GX Eagle Transmission -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes TRP DH-R EVO Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haro Greer alloy full-suspension frame with raw anodized finish, 1-1/8" - 1-1/5" tapered head tube, 148mm Boost OLD, UDH derailleur hanger
Suspension Fork
Fox Float 38 Performance Elite with Grip X, 170mm travel
Rear Shock
Fox Float X2 Performance Elite, 160mm travel
Drivetrain
Rear Derailleur
SRAM GX AXS T-Type, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM AXS POD right bridge
Cassette
SRAM AXS 1275 T-Type, 10-52T
Crank
SRAM GX Eagle T-Type 165mm, Q174, CL:55
Bottom Bracket
SRAM DUB BSA 73mm wide
Chain
SRAM GX Eagle T-Type 12-speed
Pedals
N/A
Wheels
Rims
DT SWISS E 1900 Spline wheel set
Tires
Front: Vittoria Mazza 2.4", enduro G2.0 120TPI / Rear: Vittoria Martello 2.4" enduro G2.0 120TPI
Brakes
Brakes
TRP DH-R EVO 4-piston hydraulic disc with 2.3mm thick, 203mm rotors, front & rear
Brake Levers
TRP DH-R EVO
Cockpit
Stem
Race Face Turbine R, 35mm ID, 40mm reach
Handlebar
Race Face MY25 Turbine, 35mm OD, 40mm rise, 800mm wide
Headset
FSA ORBIT 1.5E ZS/ NO.57E tapered, 44/56mm head tube
Seat
Saddle
WTB Volt Medium PU leather, flex-tuned, chromoly rails, with ABR corners
Seatpost
Kind Shock LEV Integra dropper, 34.9mm OD, Sizes: Small 150mm, Medium 170mm, Large 200mm, X-Large 200mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.357 mm | 1.305 mm | 1.259 mm |
| Bottom Bracket Height | 325 mm | 325 mm | 325 mm | 325 mm |
| Front Center | 777 mm | 811 mm | 840 mm | 870 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 117 mm | 117 mm | 118 mm | 117 mm |
| Stack | 615 mm | 624 mm | 633 mm | 642 mm |
| Reach | 430 mm | 460 mm | 485 mm | 510 mm |
| Top Tube Length | 561 mm | 593 mm | 620 mm | 646 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 361 mm | 410 mm | 448 mm | 473 mm |
| Head Tube Angle | 63.8 ° | 63.8 ° | 63.8 ° | 63.8 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1210 mm | 1244 mm | 1273 mm | 1303 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 697 mm | 701 mm | 714 mm | 714 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
