Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Suspension Rigid -
Motor Bafang 500W hub-drive -
Battery Internal 50 cell, 48V, 672WH -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Heat treated aluminium twin top tube frame.
Suspension Fork
Full chromoly 1-1/8" - 1-1/5" tapered fork with 3/8" dropouts
Drivetrain
Cassette
36t Alloy Chainring with aluminium chain guard
Crank
3-pc Hollow forged aluminium with tapered square spindle - 170mm
Bottom Bracket
Euro square tapered pedal assist
Chain
KMC 410 Z chain
Pedals
FPD PC 9/16"
Wheels
Front Hub
Sealed bearing, High flange, 36H female axle front hub
Rims
27.5" Alloy 36h, Double Wall
Tires
Kenda "Kwick Seven" 27.5" x 2.4"
Brakes
Brakes
Promax Mechanical Disc Brake, 160mm Rotor
Brake Levers
Promax 2.5 finger
Cockpit
Stem
Baseline forged 48mm reach
Handlebar
Haro 5" Legends 2-piece bar
Grips
Baseline Flangeless
Headset
FSA 1 1/8" X 1.5" Sealed Bearing
Seat
Saddle
Haro Johnny 5 saddle
Seatpost
Alloy, 30.9 x 350mm
Motor & Battery
Motor
Bafang 500w
Battery
Internal 50 cell, 48V, 672WH
Fit data
Geometry
Numbers for sizing and ride feel.
About this model

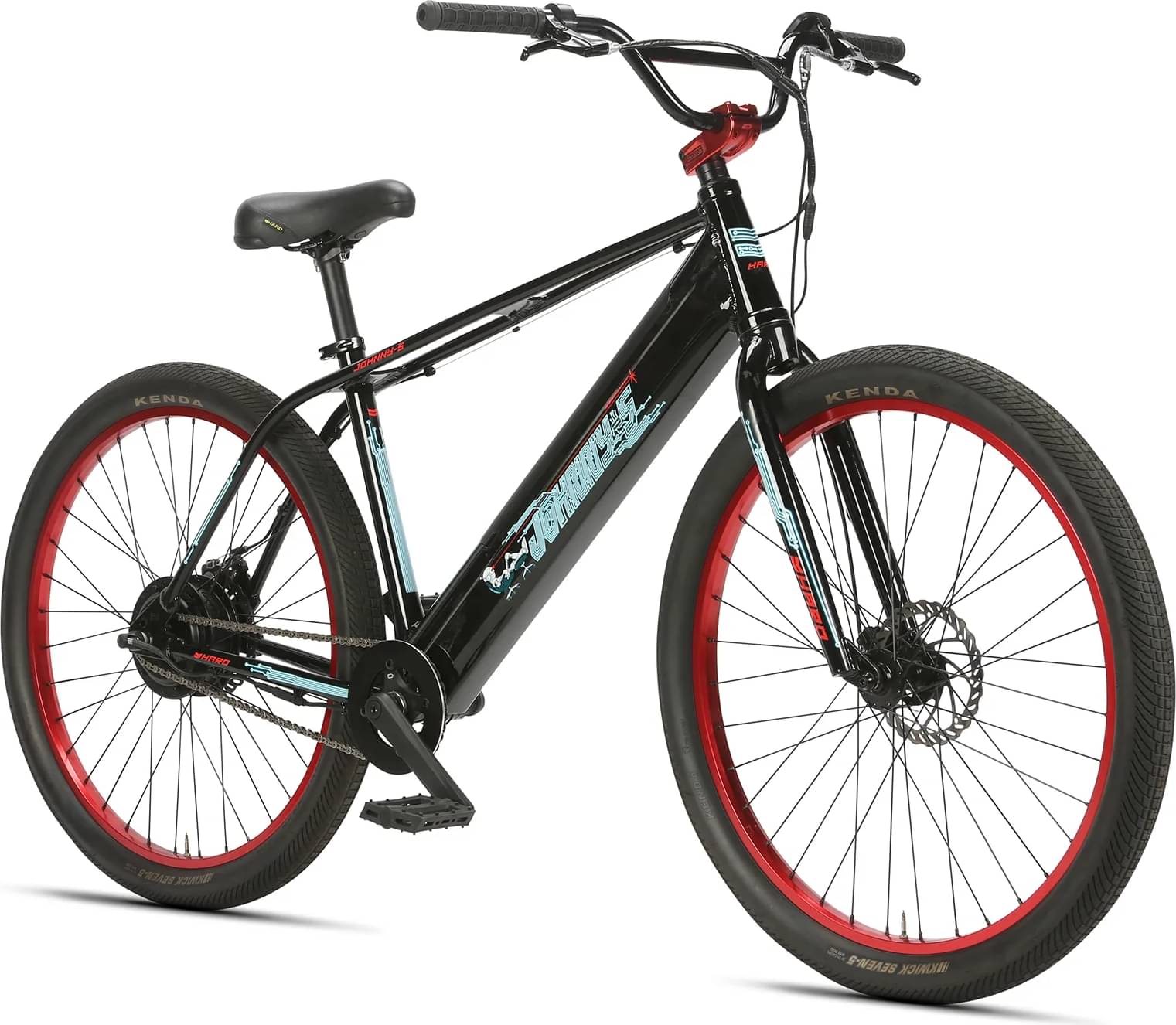

Johnny 5 belongs to the Haro E Johnny model. There are 2 e-bikes that carry this model name.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
BMX e-bikes average price
According to our calculations, the average cost of a BMX e-bike that is reliable is 1364$. However, you could also get a good BMX e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2022 for 1899$. Comparing the average cost of a BMX e-bike to this one, you will see that Johnny 5 price is 39.22% higher.
Johnny 5 components
Fork material
The fork on this e-bike is made out of steel, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels size
The Johnny 5 2022 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Johnny 5 has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
