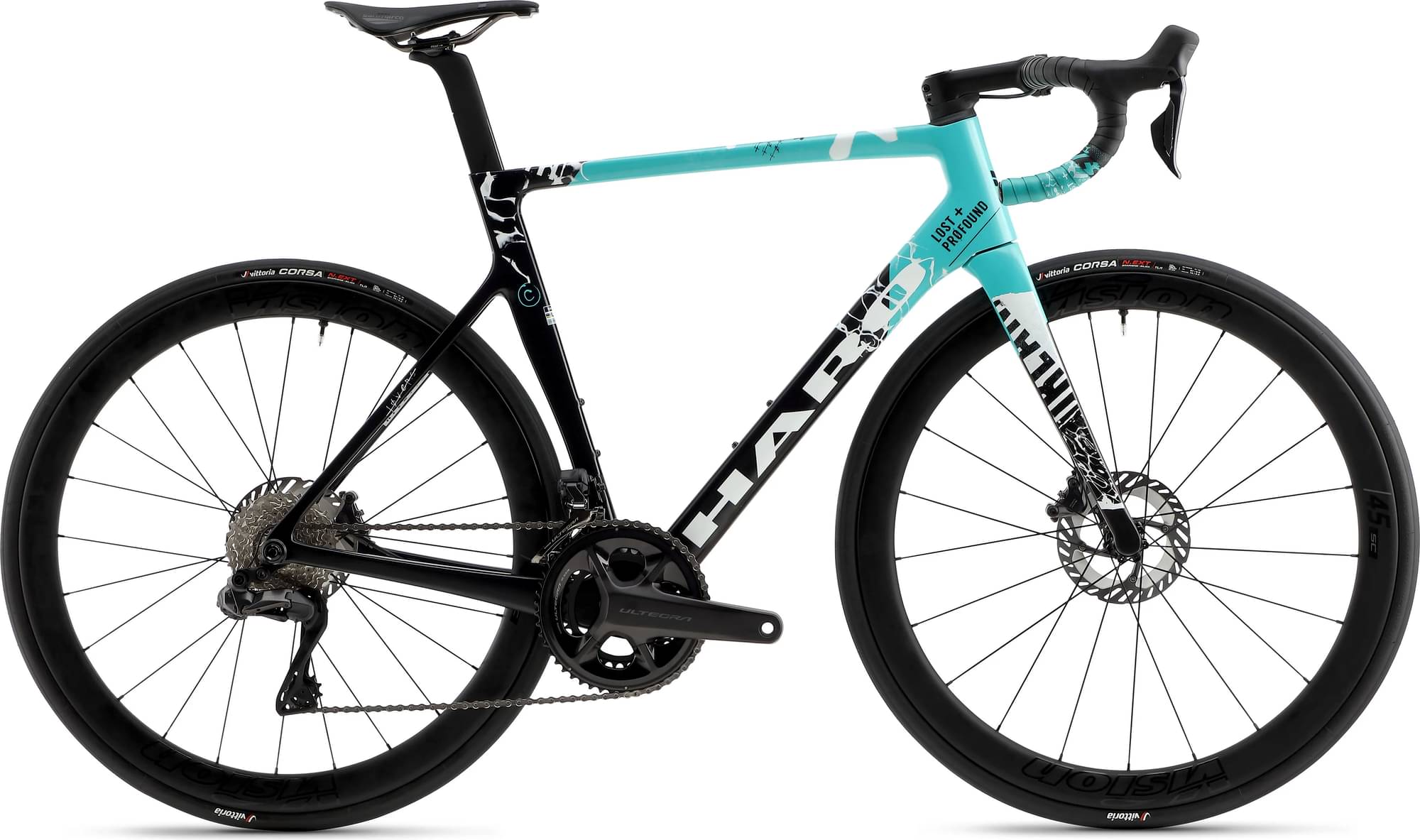

Haro Rivette Carbon 1 2024
2024 Road
Estimate price |
6,599$
Weight | 7.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Ultegra, Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haro Rivette Carbon Frame
Suspension Fork
Haro Rivette Carbon Fork with internal routing and Carbon Tapered steerer
Drivetrain
Rear Derailleur
Shimano Ultegra Di2 12spd, RD-8150
Front Derailleur
Shimano Ultegra Di2, FD-R8150
Shift Levers
Shimano Ultegra Di2 12 spd, ST-R8170
Cassette
Shimano Ultegra 12spd, 11-34T
Crank
Shimano Ultegra FC-R8100 50-34T; 48cm, 165mm; 51cm, 170mm; 54cm, 172.5mm; 56cm, 172.5mm; 58cm, 175mm; 61cm, 175mm
Bottom Bracket
T47, 76.75mm, ø24
Chain
Shimano HG 12spd, CN-M8100
Wheels
Rims
Vision Carbon SC45 Tubeless Clincher
Tires
Vittoria Corsa N.EXT 30-622 TLR (tubeless ready) G2.0 700x30c
Brakes
Brakes
Shimano Ultegra Hydraulic Disc Brakes with 160mm Center Lock Rotors
Brake Levers
Shimano Ultegra Di2
Cockpit
Stem
BLKTEC Alloy AL6061-T6; 48cm, 90mm; 51cm, 100mm; 54cm, 100mm; 56cm, 110mm; 58cm, 110mm; 61cm, 120mm
Handlebar
BLKTEC R2 Carbon Bars; 48cm, 38cm; 51cm, 38cm; 54cm, 40cm; 56cm, 40cm; 58cm;42cm; 61cm, 42cm
Headset
Token A-Box Headset with internal cable routing
Seat
Saddle
Selle San Marco Shortfit 2.0 Open-Fit Racing Xsilite rails
Seatpost
Haro Rivette Carbon Aero; 275mm for 48/51/54/375mm for 56/58/61
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.372 mm | 1.392 mm | 1.429 mm | 1.461 mm | 1.492 mm | 1.537 mm |
| Bottom Bracket Height | 262 mm | 262 mm | 264 mm | 264 mm | 267 mm | 267 mm |
| Front Center | 586 mm | 600 mm | 612 mm | 598 mm | 610 mm | 627 mm |
| Rake | 53 mm | 53 mm | 53 mm | 45 mm | 45 mm | 45 mm |
| Trail | 62.7 mm | 60.4 mm | 60.7 mm | 57.8 mm | 57.8 mm | 57.8 mm |
| Stack | 513 mm | 533 mm | 553 mm | 574 mm | 594 mm | 624 mm |
| Reach | 374 mm | 383 mm | 387 mm | 393 mm | 398 mm | 406 mm |
| Top Tube Length | 518 mm | 533 mm | 549 mm | 565 mm | 581 mm | 605 mm |
| Seat Tube Angle | 74.6 ° | 74.3 ° | 74.3 ° | 73.3 ° | 72.9 ° | 72.3 ° |
| Seat Tube Length | 430 mm | 470 mm | 510 mm | 536 mm | 558 mm | 590 mm |
| Head Tube Angle | 70.9 ° | 71.2 ° | 71.2 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 110 mm | 130 mm | 153 mm | 164 mm | 188 mm | 220 mm |
| Chainstay Length | 408 mm | 408 mm | 408 mm | 408 mm | 408 mm | 408 mm |
| Wheelbase | 983 mm | 997 mm | 1009 mm | 995 mm | 1008 mm | 1025 mm |
| Bottom Bracket Drop | 74 mm | 74 mm | 72 mm | 72 mm | 69 mm | 69 mm |
| Standover Height | 721 mm | 753 mm | 786 mm | 809 mm | 832 mm | 862 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
