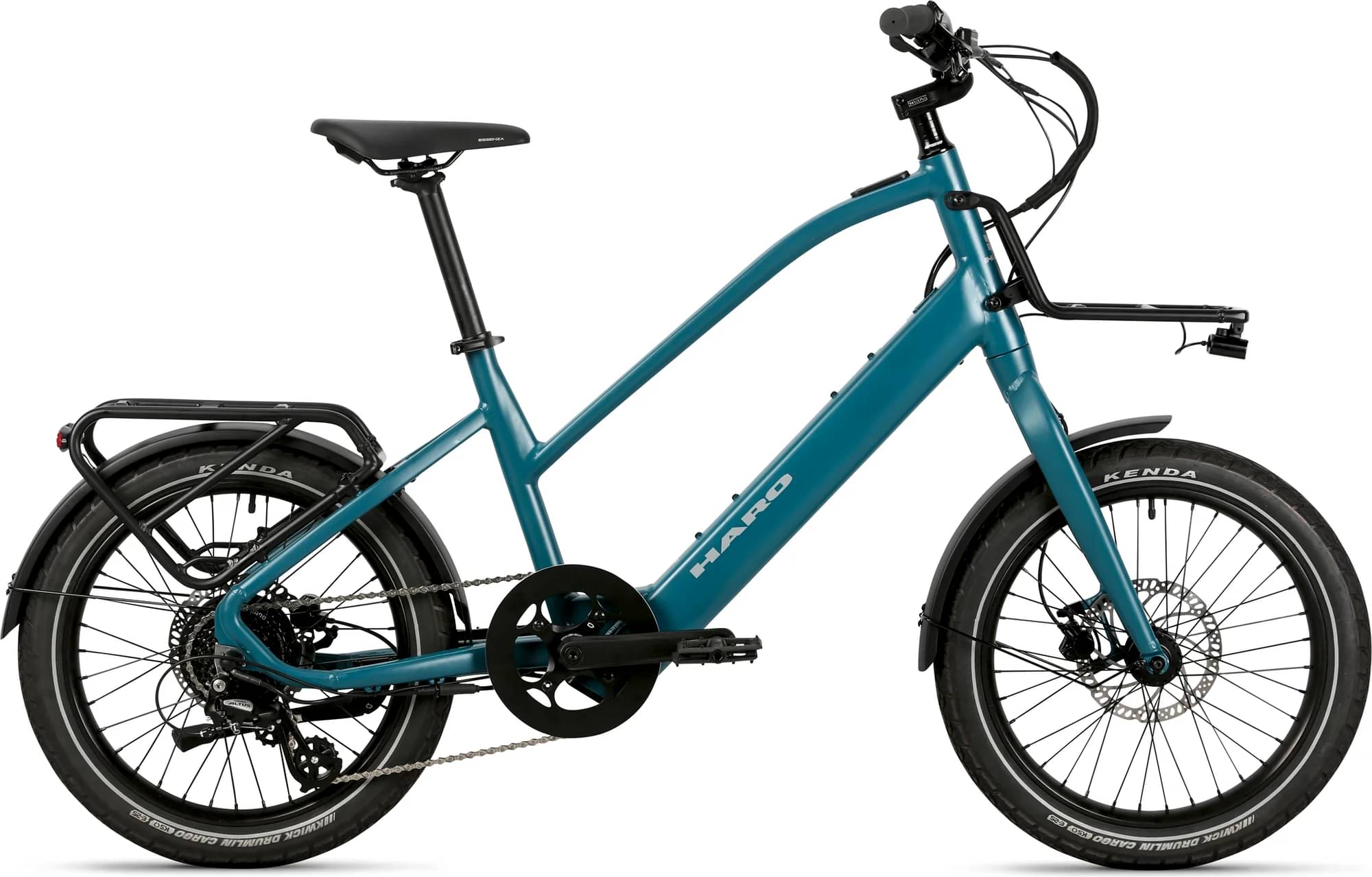

Haro Skwad LT 2024
2024 E-bike
Estimate price |
2,399$
Weight | 22.68 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Altus -
Suspension Rigid -
Motor 250W hub-drive -
Battery 36V; 300w; Slim In-tube battery. UL 2849 certified and EN 15194 compliant -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haro Skwad LT 6061-T6 heat-treated aluminum
Suspension Fork
6061-T6 heat-treated aluminum
Drivetrain
Rear Derailleur
Shimano Altus 8-speed
Front Derailleur
N/A
Shift Levers
Shimano Altus 8-speed with window
Cassette
Shimano 8-speed Cassette 12-28T
Crank
Forged aluminum 170mm. 48T alloy chainring with guard
Bottom Bracket
Euro
Chain
KMC X8
Pedals
Nylon 9/16"
Wheels
Front Hub
Alloy sealed bearing with 3/8" axle. Female bolts
Rims
20" Alloy 36-hole. Double-wall. Disc specific
Tires
Kenda Drumlin Caro 20"x2.4"
Brakes
Brakes
Tektro two-piston with motor cut-off
Brake Levers
Tektro with cut-off
Cockpit
Stem
Haro Baseline. 48mm reach
Handlebar
Haro 2-pc. 3" Rise. 760mm wide. 2° up sweep
Headset
1-1/8" integrated
Seat
Saddle
Selle Royal Essenza
Seatpost
31.6mm micro-adjust aluminum
Motor & Battery
Motor
250W hub motor with dual-sided torque sensor. Class 1, 250W/20MPH
Battery
36V; 300w; Slim In-tube battery. UL 2849 certified and EN 15194 compliant
Fit data
Geometry
